1. Professional 3-axis High-precise FOC Program
Z30 is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Z30TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.
Buy 30x Starlight Gimbal Camera for Drone Online
2. SONY 30x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Z30TIR can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.
| Hardware Parameter |
| Working voltage |
12V ~ 16V |
| Input voltage |
3S ~ 4S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
500mA @ 12V |
| Idle current |
400mA @ 12V |
| Power consumption |
≤ 6W |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
micro HDMI(HD output 1080P 60fps) / IP / SDI |
| Local-storage |
SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method |
PWM / TTL / S.BUS |
| Gimbal Spec |
| Pitch/Tilt |
±90° |
| Roll |
±85° |
| Yaw/Pan |
±170°(HDMI output)/ ±360°*N (IP/SDI output) |
| Vibration angle |
Pitch/Roll: ±0.01°, Yaw：±0.01° |
| One-key to center |
√ |
| Camera Spec |
| Imager Sensor |
SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |
| Video format |
MP4 |
| Lens optical zoom |
30x, F=4.3~129mm |
| Digital zoom |
12x (360x with optical zoom) |
| Min object distance |
10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle |
1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| SD: 47.8°(wide end) ~ 1.7°(tele end) |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color 0.01lux@F1.6 |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation,
Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium
Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
|
| Shutter speed |
1/1s to 1/10,000s, 22 steps |
| Backlight compensation |
Yes |
| Aperture control |
16 steps |
| Defog |
Yes |
| OSD |
Yes |
| Fotoformate |
JPEG |
| Videoformate |
MP4 |
| Camera Object Tracking |
| Update rate of deviation pixel |
50Hz |
| Output delay of deviation pixel |
<15ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
160*160 pixel |
| Tracking speed |
±32 pixel/frame |
| Object memory time |
100 frames (4s) |
| The mean square root values of pulse noise in the object position |
< 0.5 pixel |
| Thermal Imager Spec |
| Lens size |
50mm |
| Horizontal FOV(°) |
12.4 |
| Vertical FOV(°) |
9.3 |
| Diagonal FOV(°) |
15.5 |
| Detective Distance (Man: 1.8×0.5m) |
1471 meters |
| Recognize Distance (Man: 1.8×0.5m) |
368 meters |
| Verified Distance (Man: 1.8×0.5m) |
184 meters |
| Detective Distance (Car: 4.2×1.8m) |
4510 meters |
| Recognize Distance (Car: 4.2×1.8m) |
1127 meters |
| Verified Distance (Car: 4.2×1.8m) |
564 meters |
| Working mode |
Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*480 |
| Pixel size |
17μm |
| Focusing method |
Athermal prime lens |
| Emissivity correction |
0.01~1 |
| NETD |
≤50mK (@25℃) |
| MRTD |
≤650mK (@characteristic frequency) |
| Image enhancement |
Auto adjust image brightness and contrast ratio |
| Color palette |
White, iron red, pseudo color |
| Auto Non-uniform correction |
Yes (no shutter) |
| Digital zoom |
1x, 3x (max 6x optional) |
| Sync correct time |
Yes |
| Thermometry type |
Temperature bar (psudo color display) max temp, min temp,
FOV center temp (Optional) |
| Temperature warning |
0℃~100℃ |
| Thermal Object Tracking |
| Update rate of deviation pixel |
25Hz |
| Output delay of deviation pixel |
<3ms |
| Minimum object size |
16*16 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
±32 pixel/frame |
| Object memory time |
100 frames (4s) |
| Packing Information |
| N.W. |
1220g |
| Product meas. |
162.5*164.2*146.5mm |
| Accessories |
1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders,
12pcs damping balls, 4pcs damping boards / Hight quality
plastic box with foam cushion
|
30x Starlight Gimbal Camera for Drone For Sale Online
30x Starlight Gimbal Camera for Drone Revolutionizing Aerial Surveillance with AI and Advanced Sensors The Starlight Night Vision AI Tracking gimbal camera series is the latest technology that brings artificial intelligence (AI tracking) to the drone industry. It is a drone camera with a 3-axis gimbal that integrates AI tracking and detection algorithms with a 30x optical zoom camera — SONY STARVIS CMOS sensor. Based on the version, A30 has a single sensor , Dual Sensor (H30) with a laser rangefinder, or Triple Sensor (H30T) with a thermal camera.
Buy 30x Starlight Gimbal Camera for Drone Online
This innovative gimbal drone camera series revolutionizes aerial surveillance and reconnaissance with its advanced tracking capabilities and high-resolution imaging. A30- Advanced SONY STARVIS CMOS Module with 30x Optical Zoom for Enhanced Observation and Safety A30 has a SONY STARVIS CMOS module inside, which has 4.17 megapixels, which is combined with 30x advanced optical zoom technology, to increase the observation range, more than enough for a lot of applications in different domains including surveying, monitoring, and so on. 30x optical zoom means the drone can maintain a safe distance from the target in case of a dangerous incident like a fire hazard while capturing enough details of the scene.
Buy 30x Starlight Gimbal Camera for Drone Online

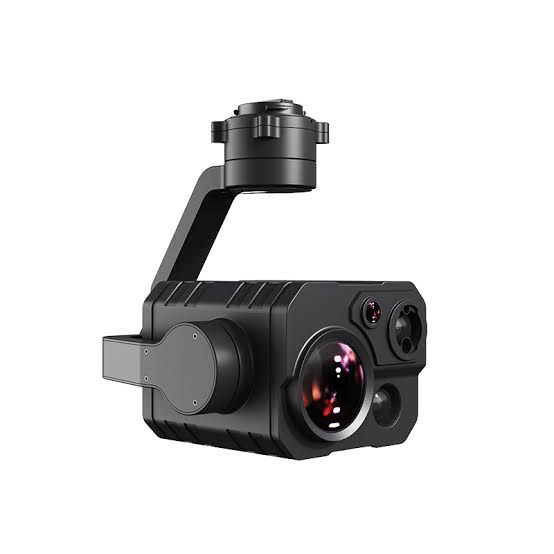

Enhanced Capabilities with Laser Rangefinder and High-Resolution Thermal Imaging In the H30 version, a 1000m laser rangefinder is added to support target distance measurement. Above all, H30T adds a 19mm lens IR thermal sensor with 640×512 resolution. The thermal camera is an uncooled long wave (8μm ~14μm) image sensor, and has a higher resolution of 640×512 pixels compared to its predecessors, with each pixel size of 12μm. It is possible to record and transmit thermal and visible images at the same time in PIP format. There is IR thermal and PIP switch, an IR color palette switch, and thermal digital zoom also available.
Buy 30x Starlight Gimbal Camera for Drone Online
Robust Design and Stabilization in All Models All three models have an aluminum alloy housing to give them a sophisticated look and anti-interference ability, as well as thermal cooling. The 3 axis gimbal camera stabilizes yaw, roll, and pitch. The integrated damping system and gimbal design can significantly reduce mechanical vibration. Advanced AI Object Detection and Tracking The best thing about Starlight gimbal cameras is their AI object detection and tracking module, which can detect more than 10 simultaneous cars, humans, and boats automatically.
It uses computer vision technology to replace manual decision-making and combines deep learning to extract and classify the targets in the field of view. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – 30x Starlight Gimbal Camera for Drone
Buy 30x Starlight Gimbal Camera for Drone Online
1. What type of sensors are available in the different models (A30, H30, H30T)? The A30 model includes a SONY STARVIS CMOS sensor with 30x optical zoom, the H30 model integrates a dual sensor system with a laser rangefinder, and the H30T model adds a thermal imaging sensor for triple-sensor functionality. 2. Does the gimbal support AI-based tracking and detection? Yes. The Starlight Gimbal Camera series comes with built-in AI tracking and detection algorithms, enabling precise object recognition and autonomous tracking for surveillance and reconnaissance missions.
3. What is the stabilization mechanism of the camera? The system uses a 3-axis gimbal, ensuring stable and vibration-free imaging during flight, even under challenging conditions. 4. What payment methods are accepted for purchasing this camera? Kratos Defense Drone Shop supports multiple payment methods, including major credit cards, PayPal, and bank transfers.
5. Is OEM customization available for bulk orders? Yes, OEM options can be discussed for large-scale or specialized projects. Customers are encouraged to contact the sales team for tailored solutions. 6. Are technical documents and manuals provided with the purchase? Yes. Each product includes access to detailed documents such as datasheets, user manuals, and integration guides, available in the “Documents” section of the product page.
