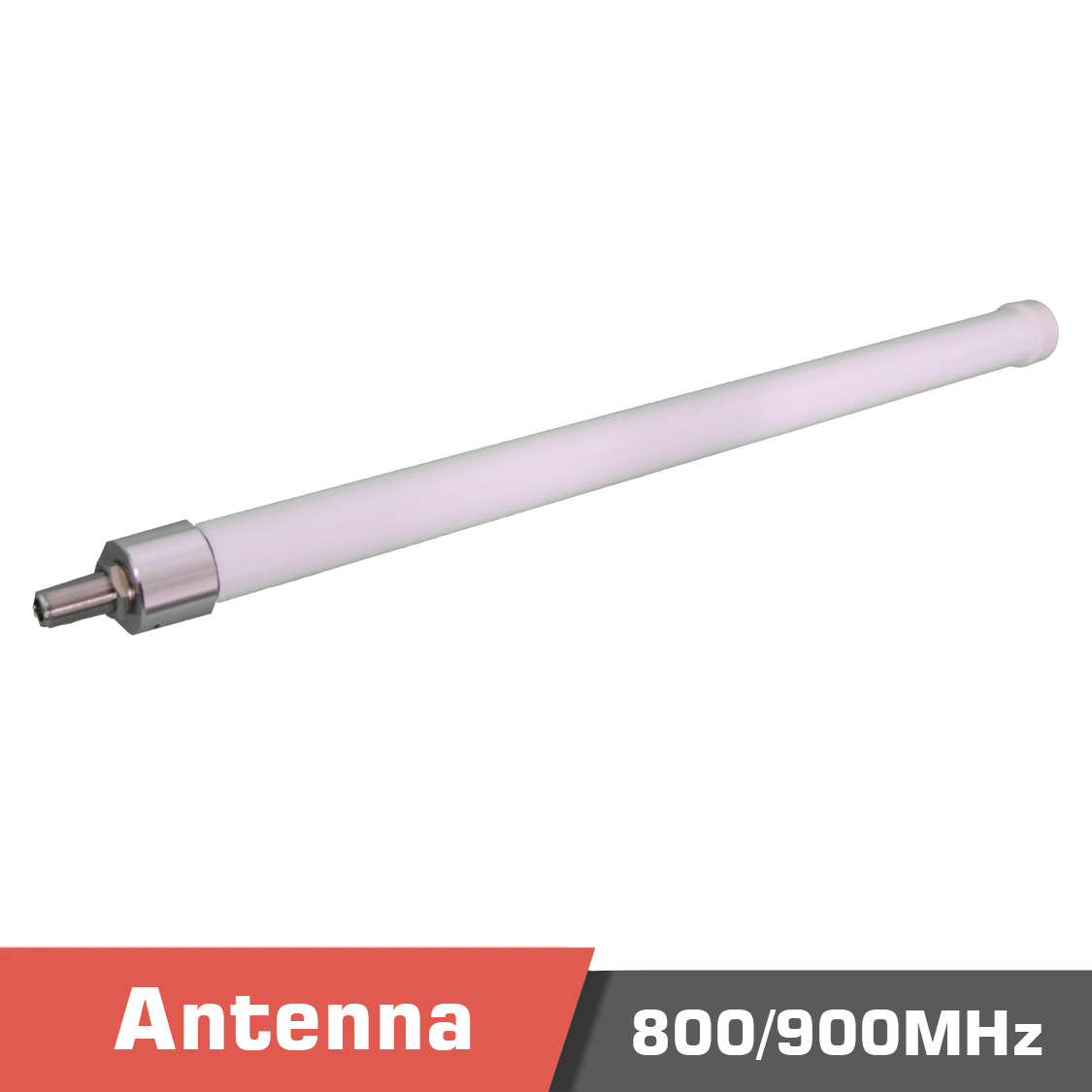

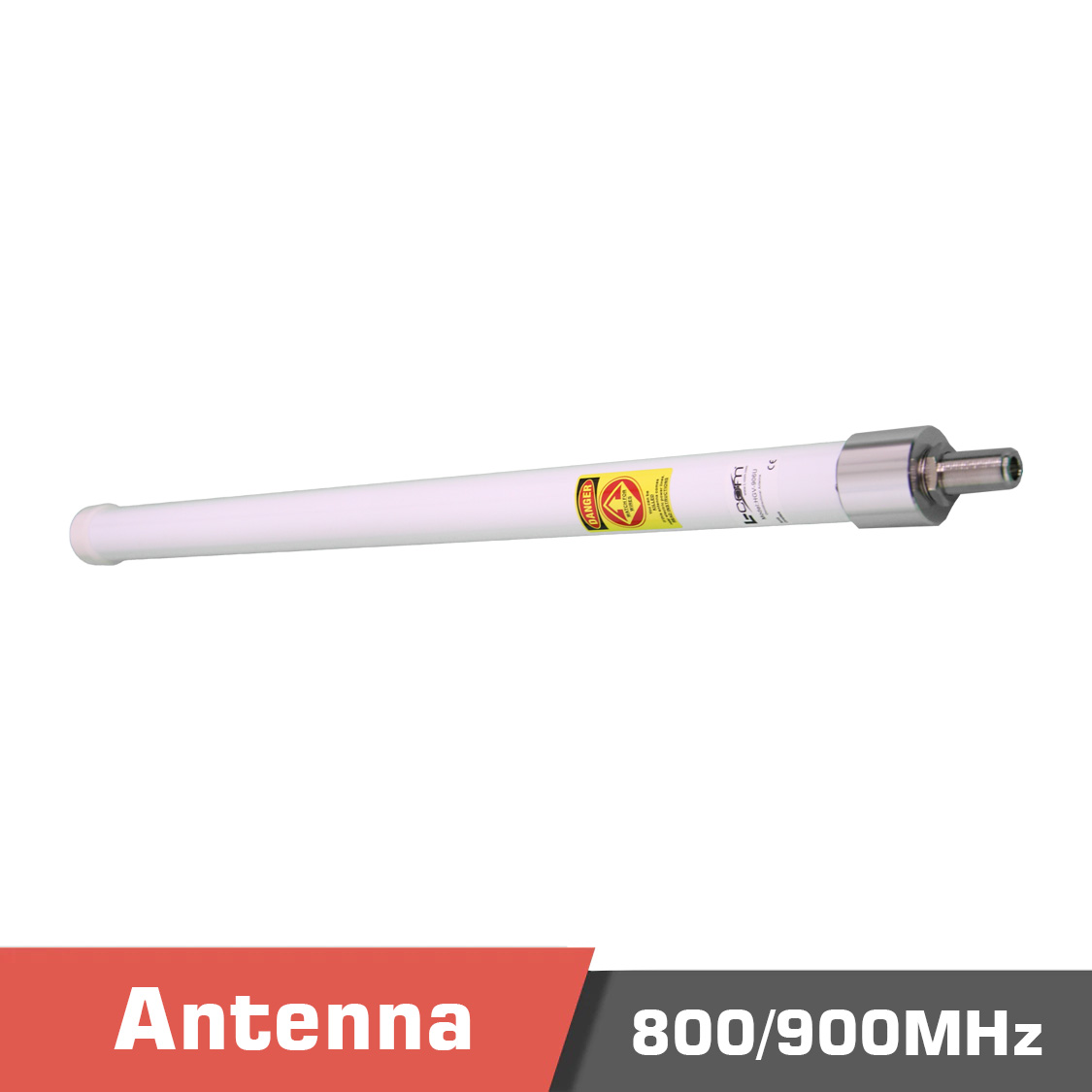

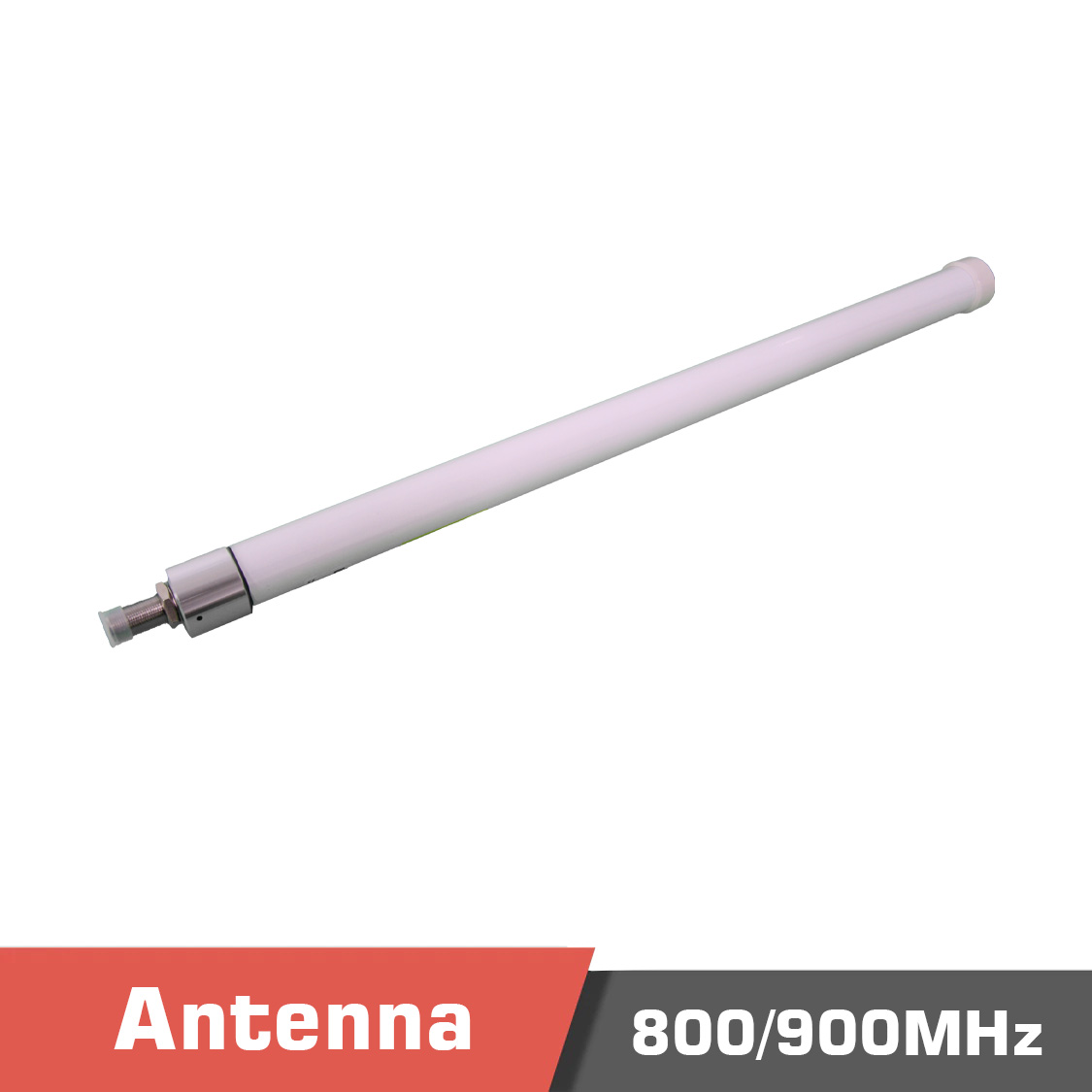

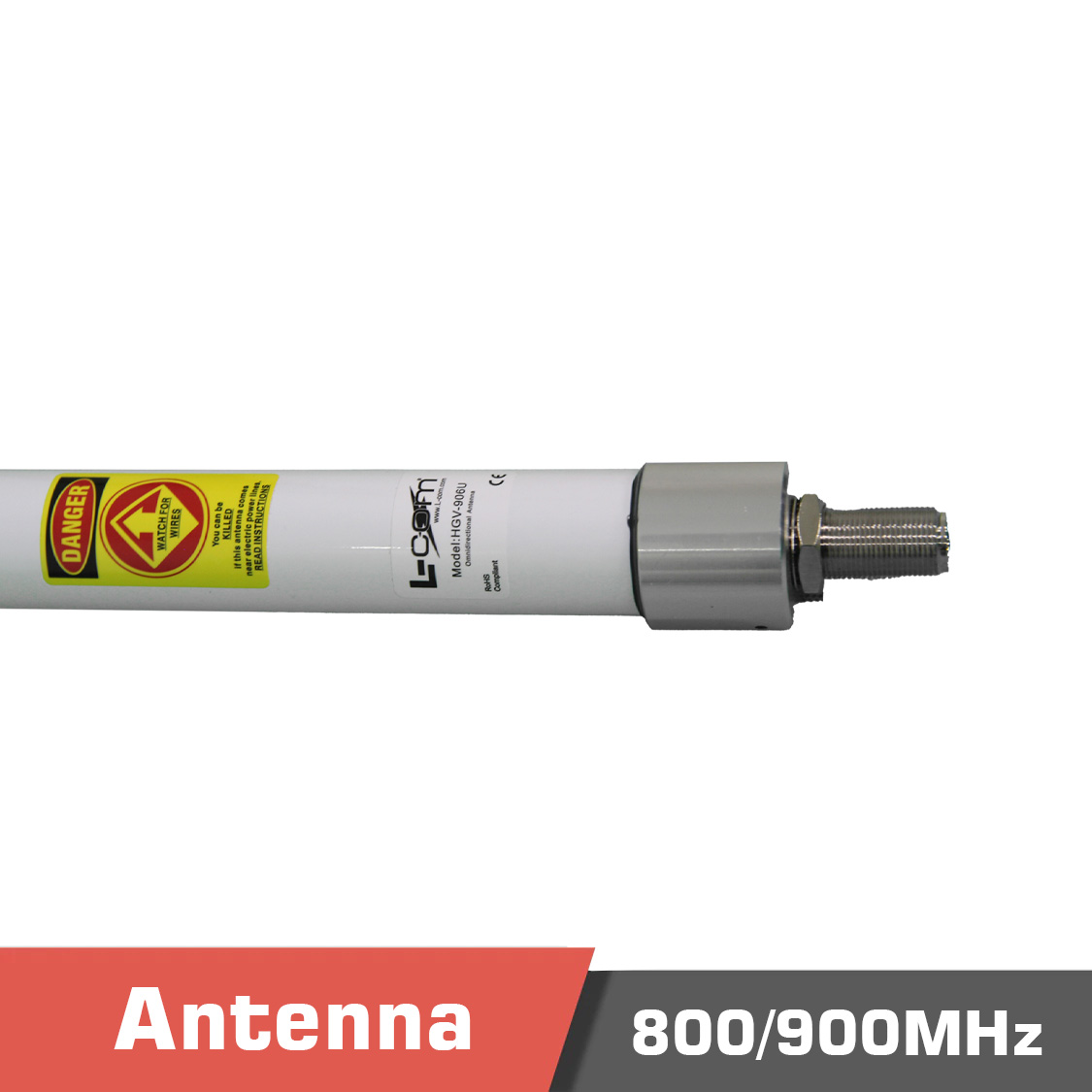

HGV-906U 800MHz / 900MHz 6dBi Omnidirectional Antenna

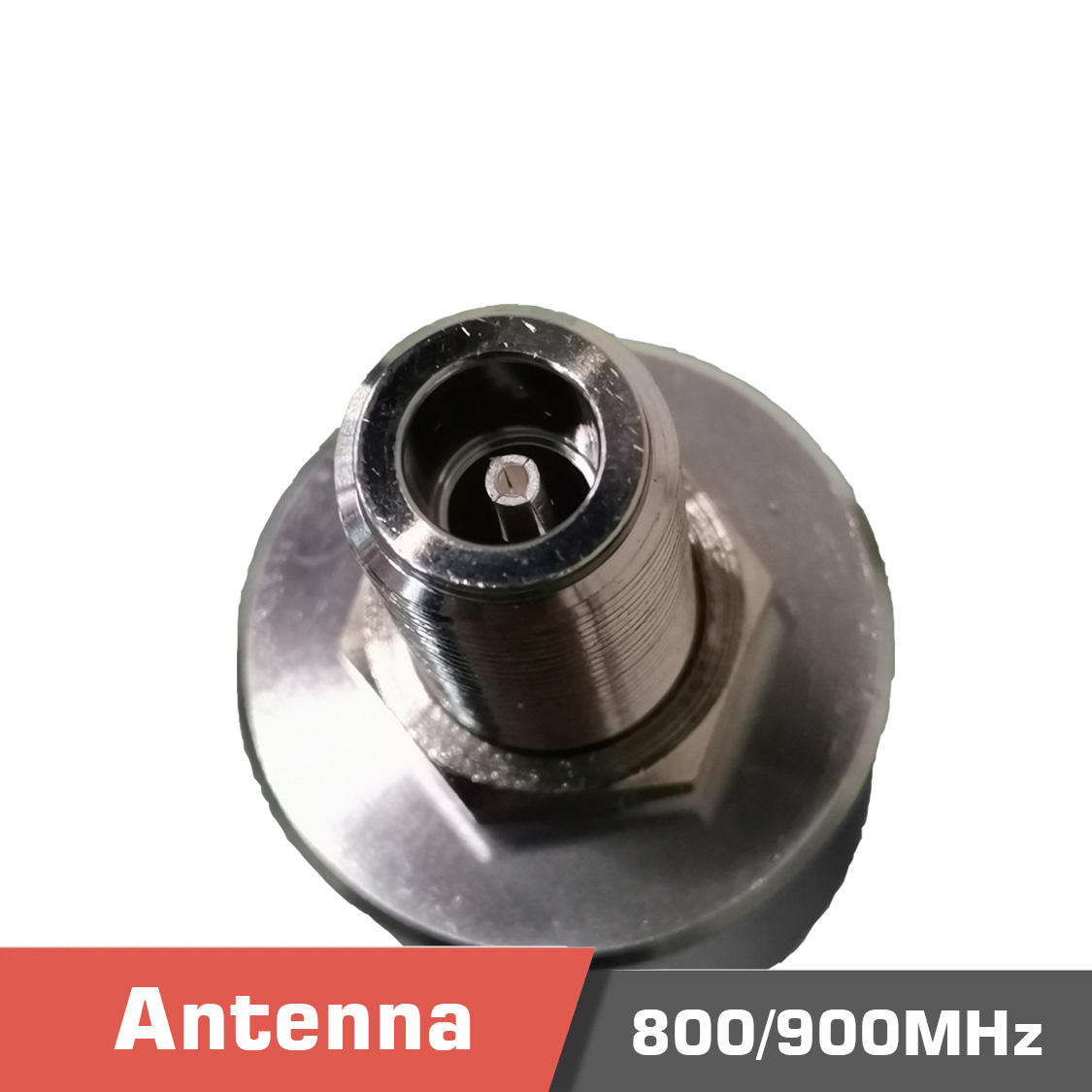

The HyperLink HGV-906U is a high-performance omnidirectional antenna designed for the 800MHz / 900MHz ISM band. It is ideally suited for multipoint, Non-Line of Sight (NLOS), and mobile applications where high gain and wide coverage are desired. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links , LPWAN/IoT/M2M, datalink drone , and 800 MHz as well as 900MHz Cellular band applications. You can match this antenna with modules working in the 900MHz band like MotionUAV P900 or MotionUAV P900 V2 . Installing it on the ground side, it can ensure long-range operations of up to 60km in different applications. This antenna features an integral N-Female bulkhead type connector that mounts through the wall of an equipment enclosure. Included with the HGV-906U is a mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0″ in diameter. This omni antenna’s construction features a rugged 1.3″ diameter white high-intensity fiberglass radome for durability and aesthetics. It is designed for all-weather operation. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – HGV-906U High-Gain Antenna 1. What are the main specifications of the HGV-906U antenna? The HGV-906U is a high-gain directional antenna designed for 900 MHz ISM band applications , such as UAV telemetry, data links, and long-range communication systems . It offers a gain of 9 dBi with 50-ohm impedance , ensuring strong signal performance and extended range. 2. What type of radiation pattern does it use? The antenna features a directional pattern , focusing signal energy along a specific axis to maximize range and minimize interference, making it suitable for point-to-point or point-to-multipoint links . 3. What are its physical and environmental specifications? The HGV-906U is constructed from UV-resistant materials and is rated for outdoor use . It includes N-type or SMA connectors (depending on version) and offers low VSWR (<1.5:1) for efficient signal transmission. 4. What payment methods are accepted for purchasing the HGV-906U? Kratos Defense Drone Shop accepts credit/debit cards, PayPal, and wire transfers . For enterprise or OEM customers , proforma invoices can be issued for direct payments. 5. Is OEM or customization available? Yes. Kratos Defense Drone Shop offers OEM customization , including connector type, mounting options, and labeling . Contact the sales team for MOQ and lead time information. 6. Are datasheets and installation guides available? Yes. Kratos Defense Drone Shop provides technical datasheets, radiation pattern plots, and mounting instructions . Additional technical support is available for UAV integration, antenna alignment, and signal optimization .
