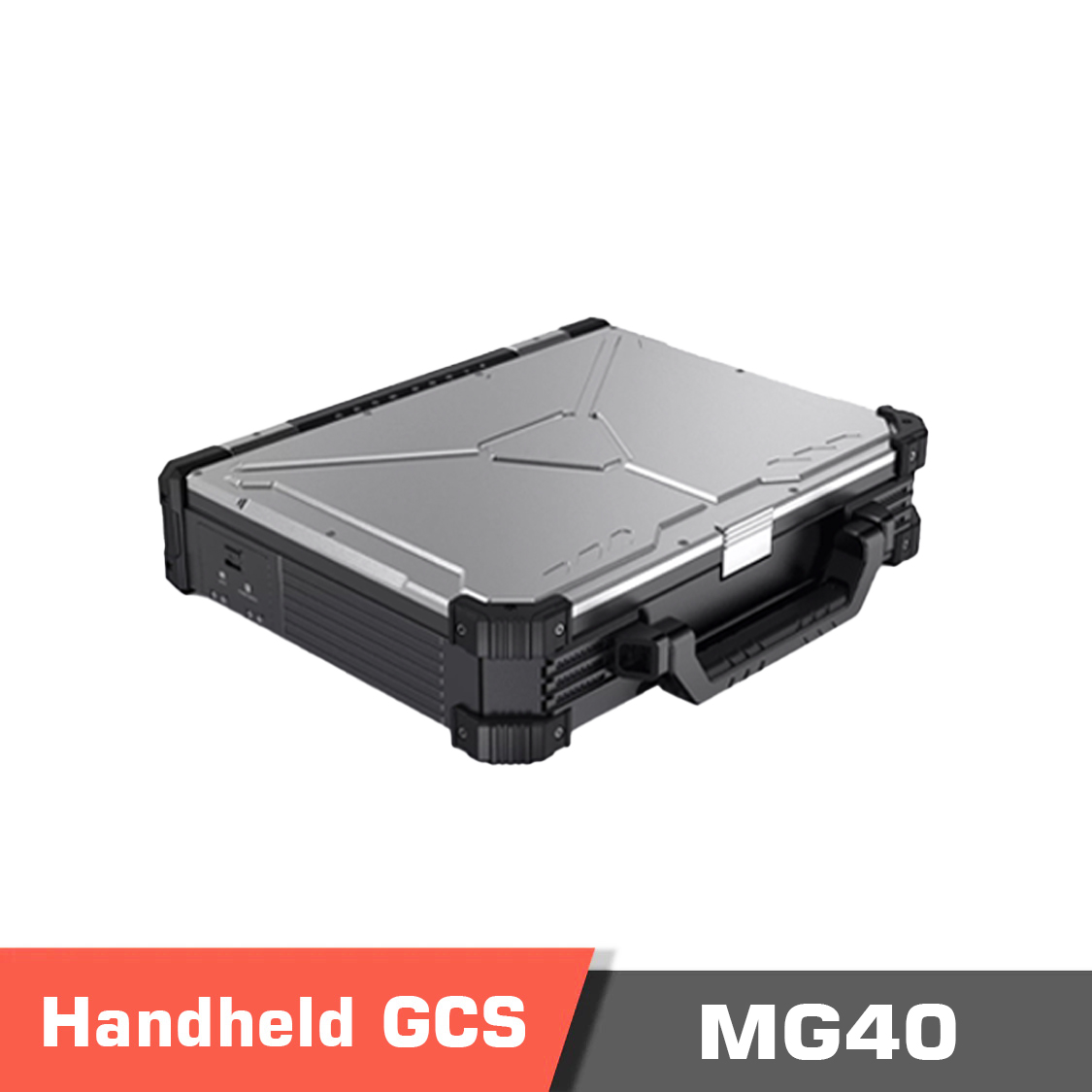

MG40 GCS, Handheld Ground Control Station

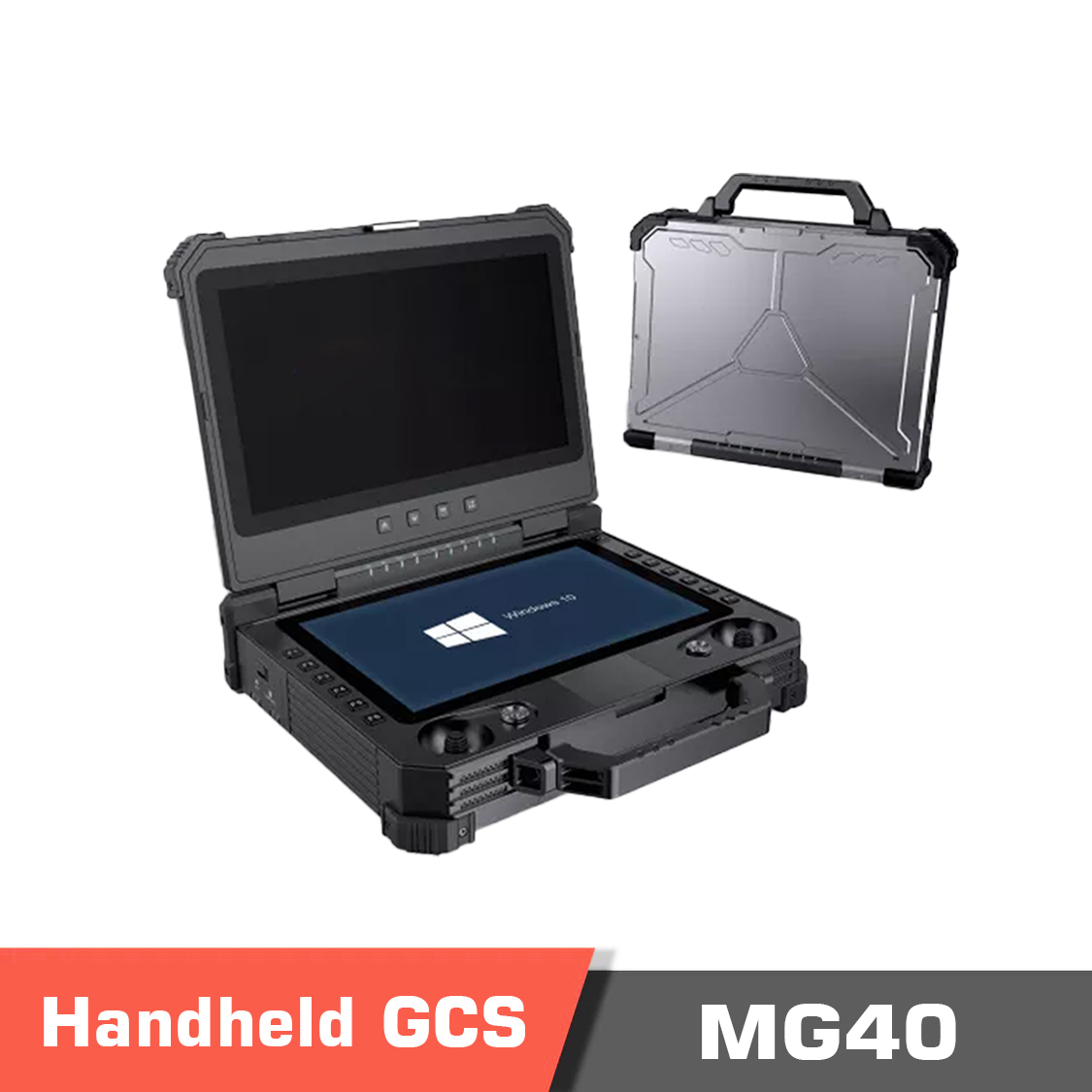

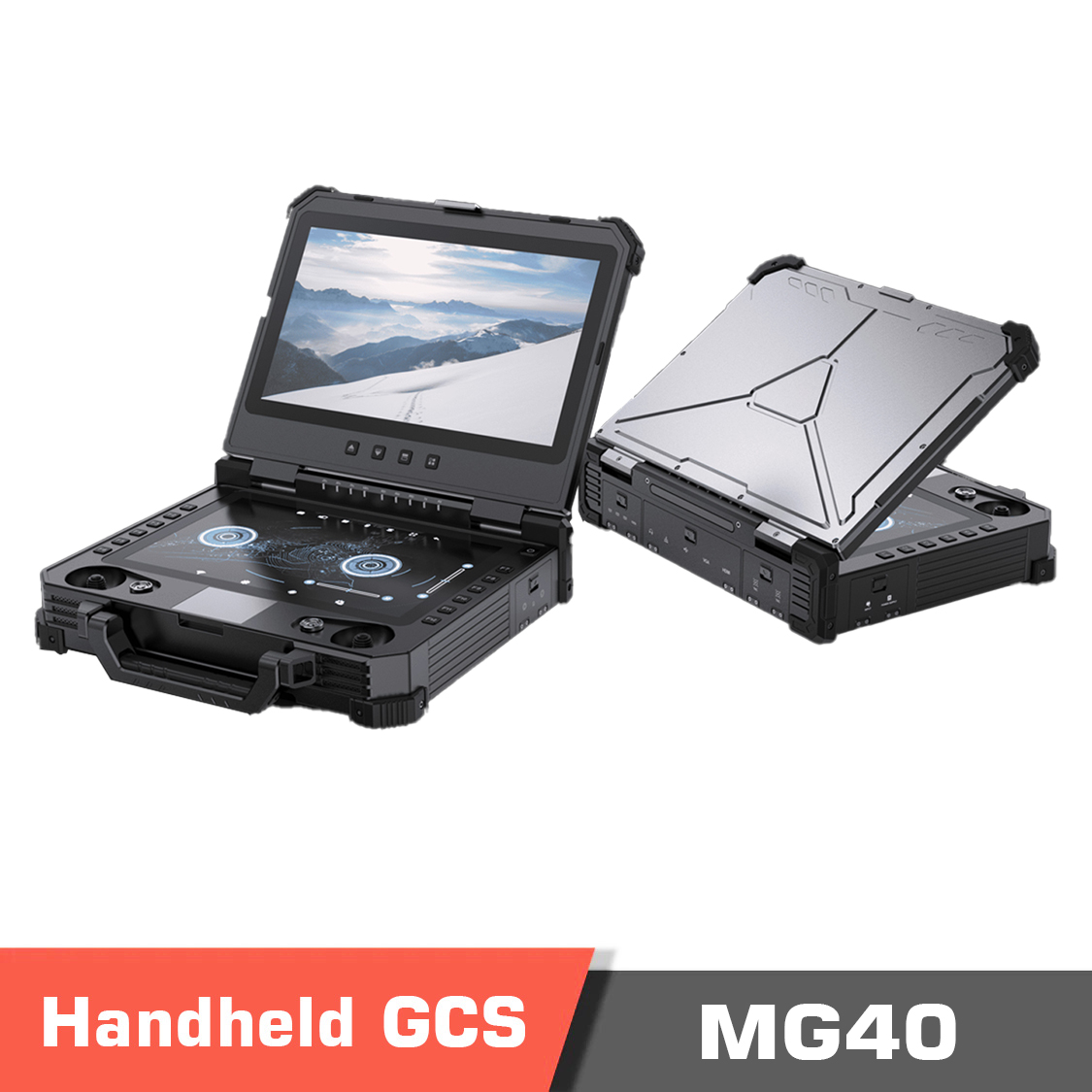

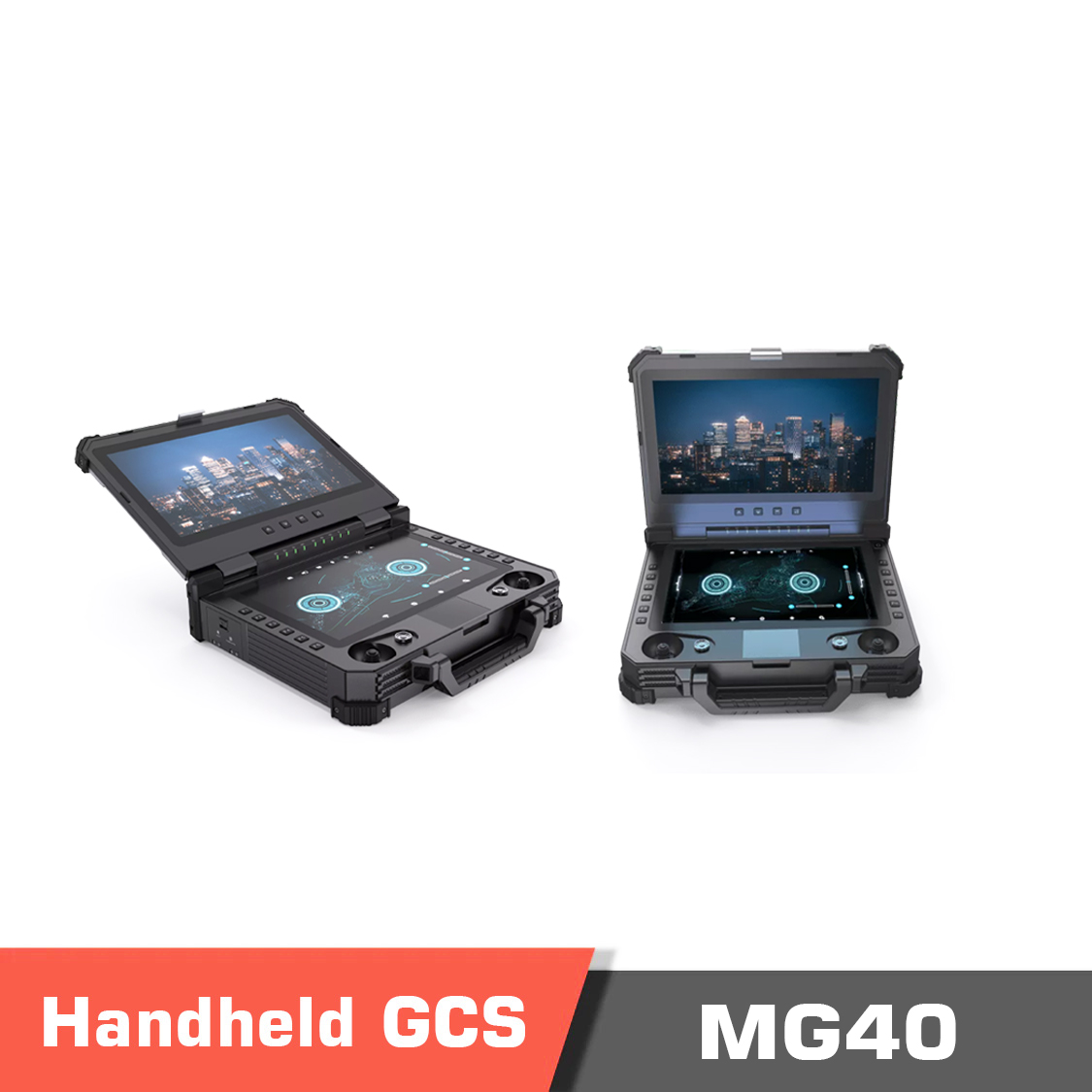

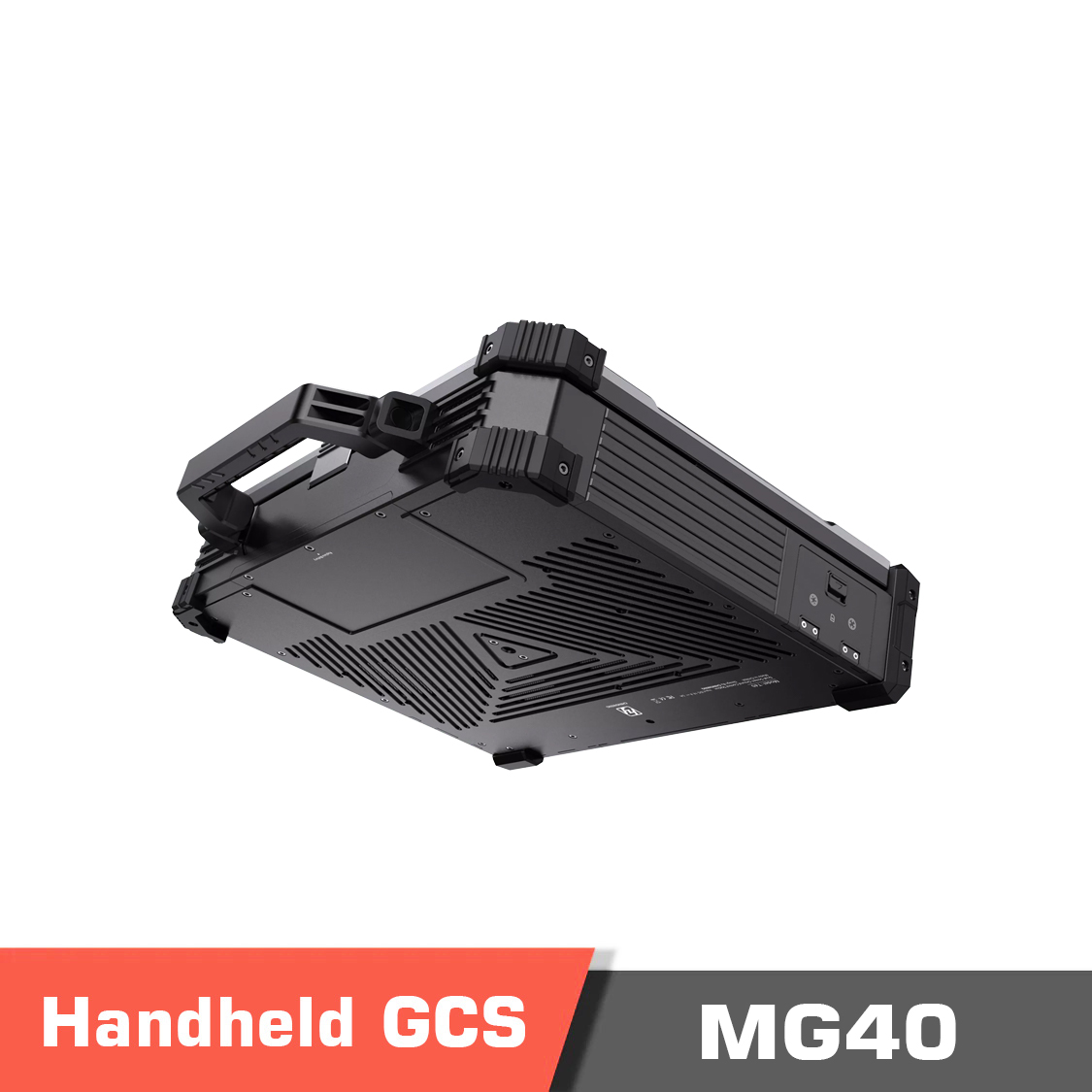

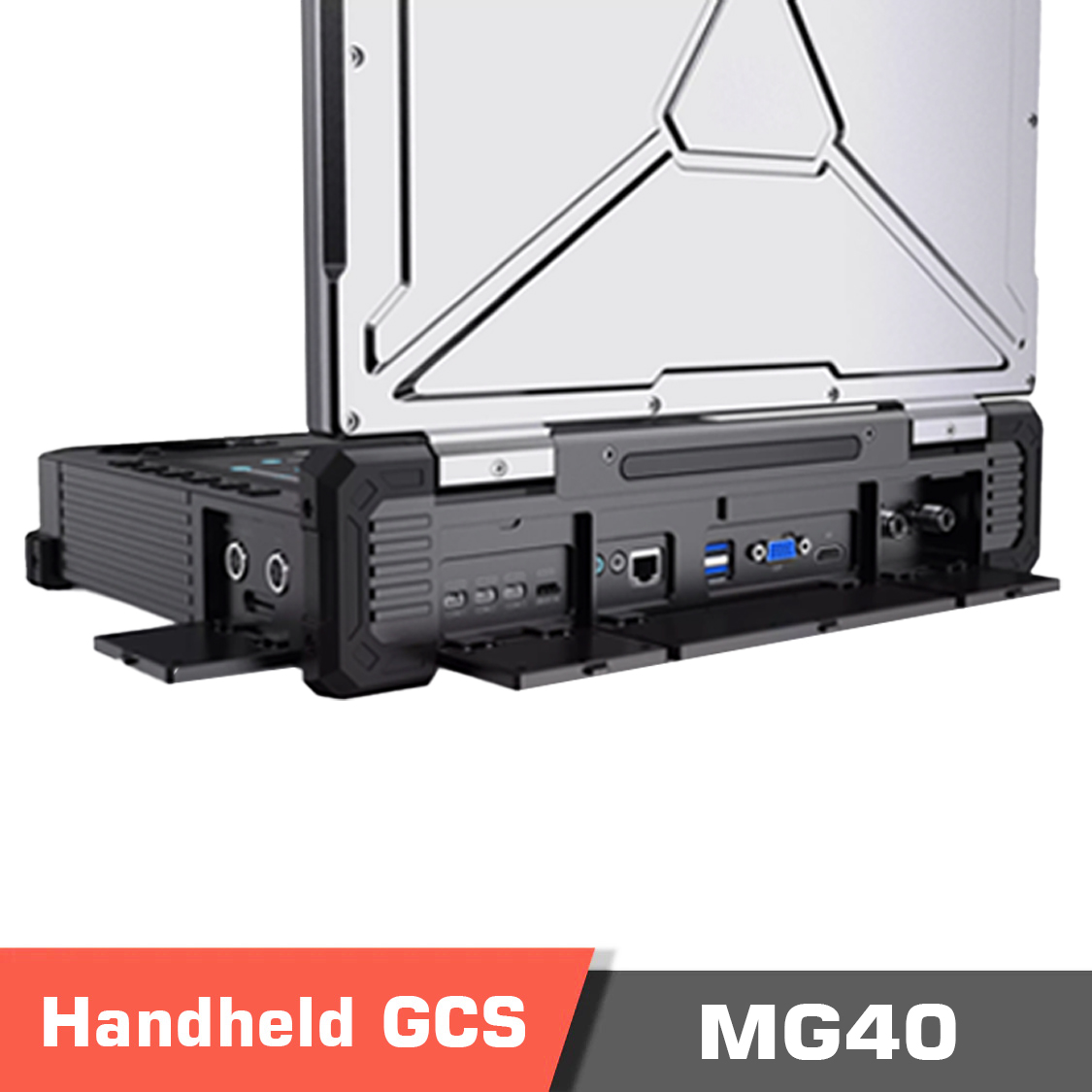

OverView MG40 GCS is a case-type handheld ground control station with a dual high-quality and high brightness screen. Multiple configurable physical channels are available on the unit to control your drone. It weighs less than 6kg and can be carried easily. MG40 is an all-in-one GCS with a built-in communication link. This unit belongs to our advanced lineup of ground control stations rc , offering high-performance solutions for field operations and demanding UAV missions. However, other third-party datalinks in the market are also supported. It is manufactured from aviation aluminum, has a rugged design, and is suitable for operation in harsh environments. Double touchscreen with high resolutions and high brightness are installed in a foldable design that can be opened up to 180° . The upper screen is a 13.3″ screen with 1000nit brightness and 1920×1080 resolution. The lower screen is a 12.3″ screen with 1500nit brightness and 1280×800 resolution. There is no problem working with the system under direct sunlight. MG40 comes with a built-in datalink system. Telemetry data, Radio control signal (RC signal), and video can be transmitted simultaneously from the ground station to the air unit. In a Lind of Sight setup, the communication range can be established up to 10km distance . Two SBUS ports are available on the air unit for radio control signals. Multiple physical channels including two main joysticks , and 12 key buttons are available on the GCS. It is also possible to define combinational buttons to simulate other functions. With a 13.6Ah battery, the system can work up to 3 hours at full charge. MG40 Handheld Ground Control Station – FAQ What are the key features and specifications of the MG40 GCS? The MG40 is a rugged, case-type handheld ground control station featuring dual high-brightness touchscreens in a foldable 180° design. The upper display is 13.3 inches, and the system includes multiple configurable control channels. Built from aviation-grade aluminum, it weighs less than 6 kg and integrates a built-in communication link for efficient field operation. Which operating systems and control software are supported? The MG40 supports Windows and Linux operating systems and is compatible with ground control software such as QGroundControl and Mission Planner for UAV management and telemetry. What connectivity and expansion options are available on the MG40? The station supports various interfaces including HDMI, USB, Ethernet, and serial ports. It is compatible with both the built-in communication link and external third-party datalinks, providing flexibility for different UAV systems. Does MotioNew provide OEM or customization services for the MG40? Yes, OEM customization options such as corporate branding, firmware integration, and custom configurations are available for enterprise and bulk orders. What payment methods can be used to purchase the MG40 GCS? MotioNew accepts major international payment methods including credit cards, PayPal, and bank transfers. Are user manuals and technical documentation included with the MG40? Yes, the MG40 package includes full documentation, wiring diagrams, and user manuals. Additional firmware and technical resources are available upon request.
