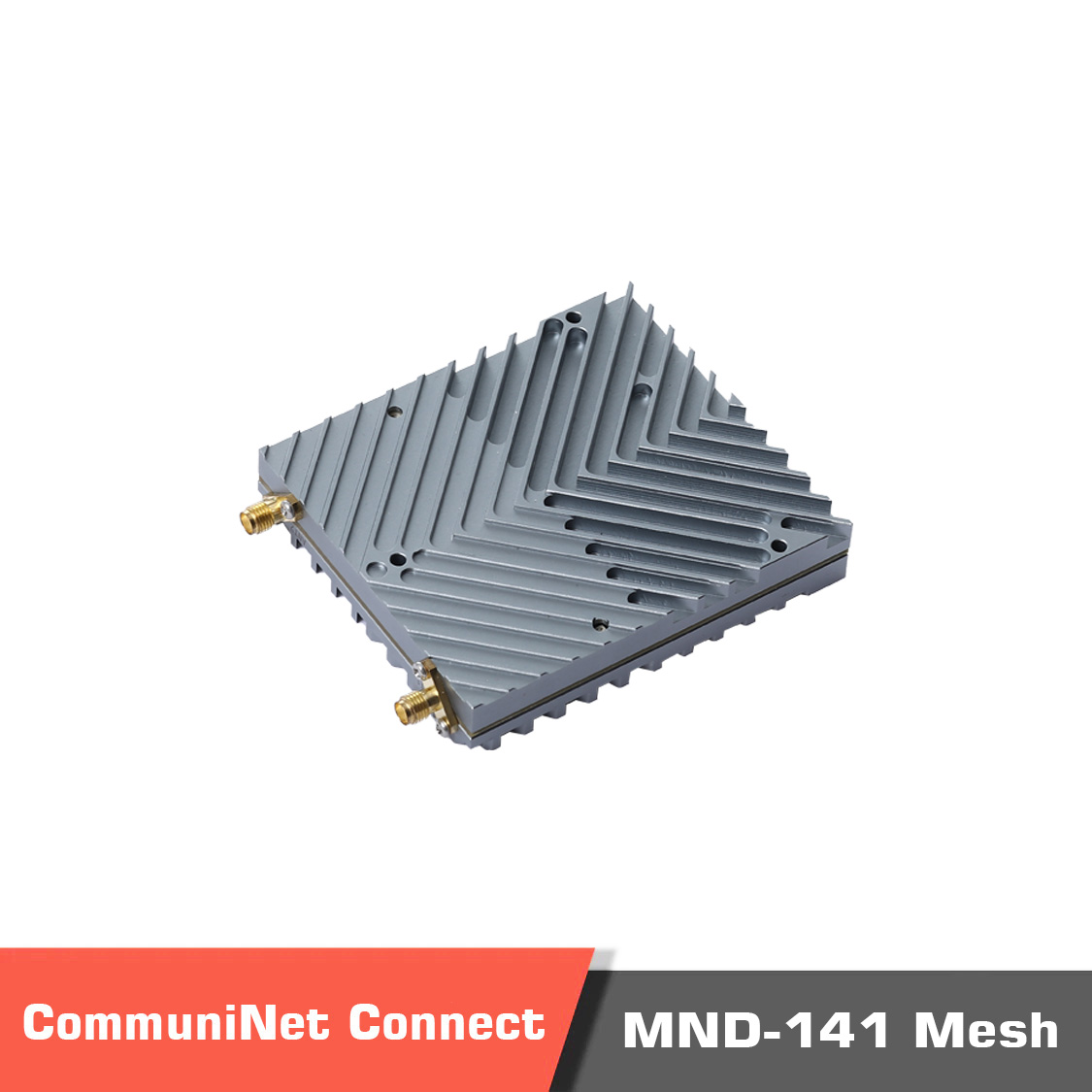

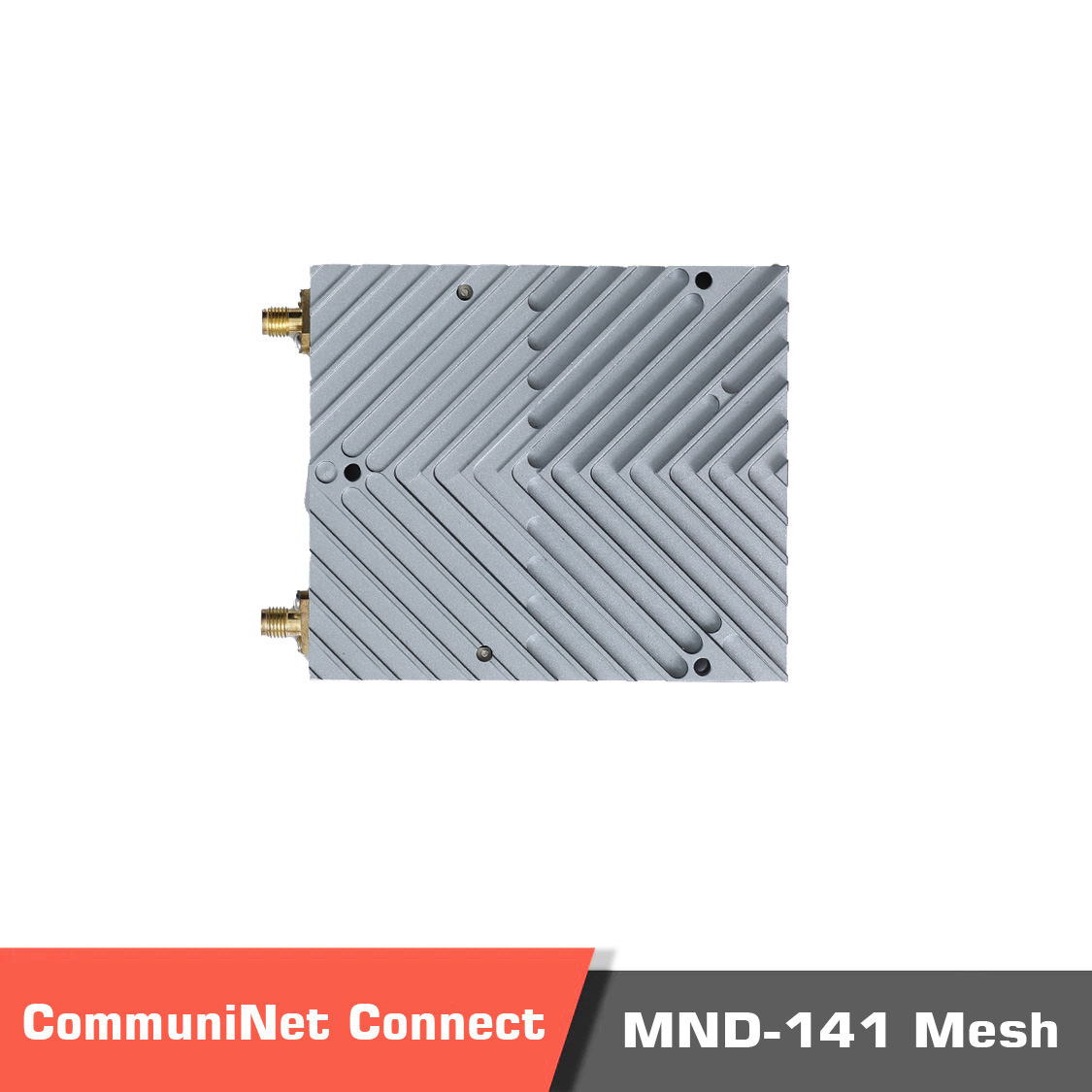

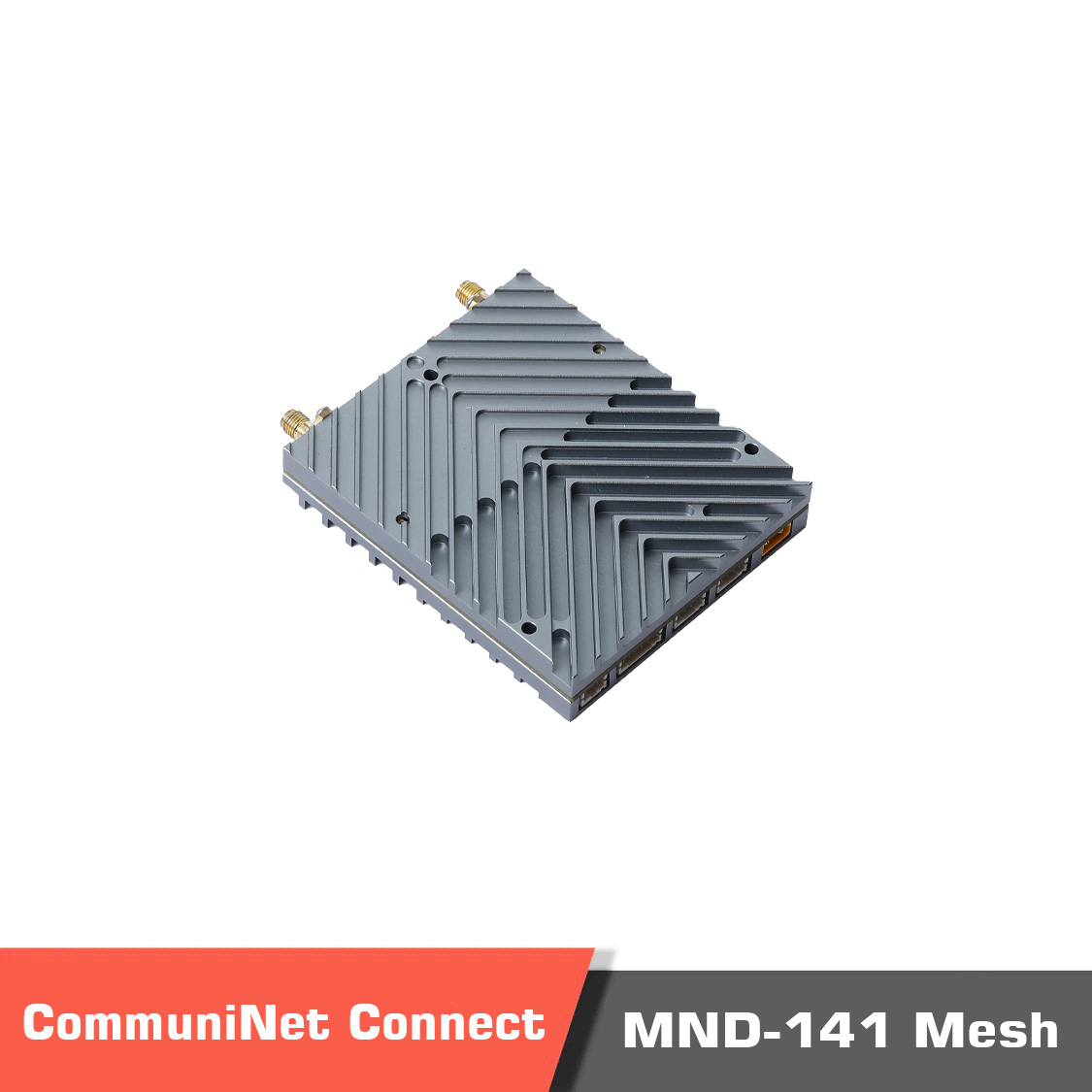

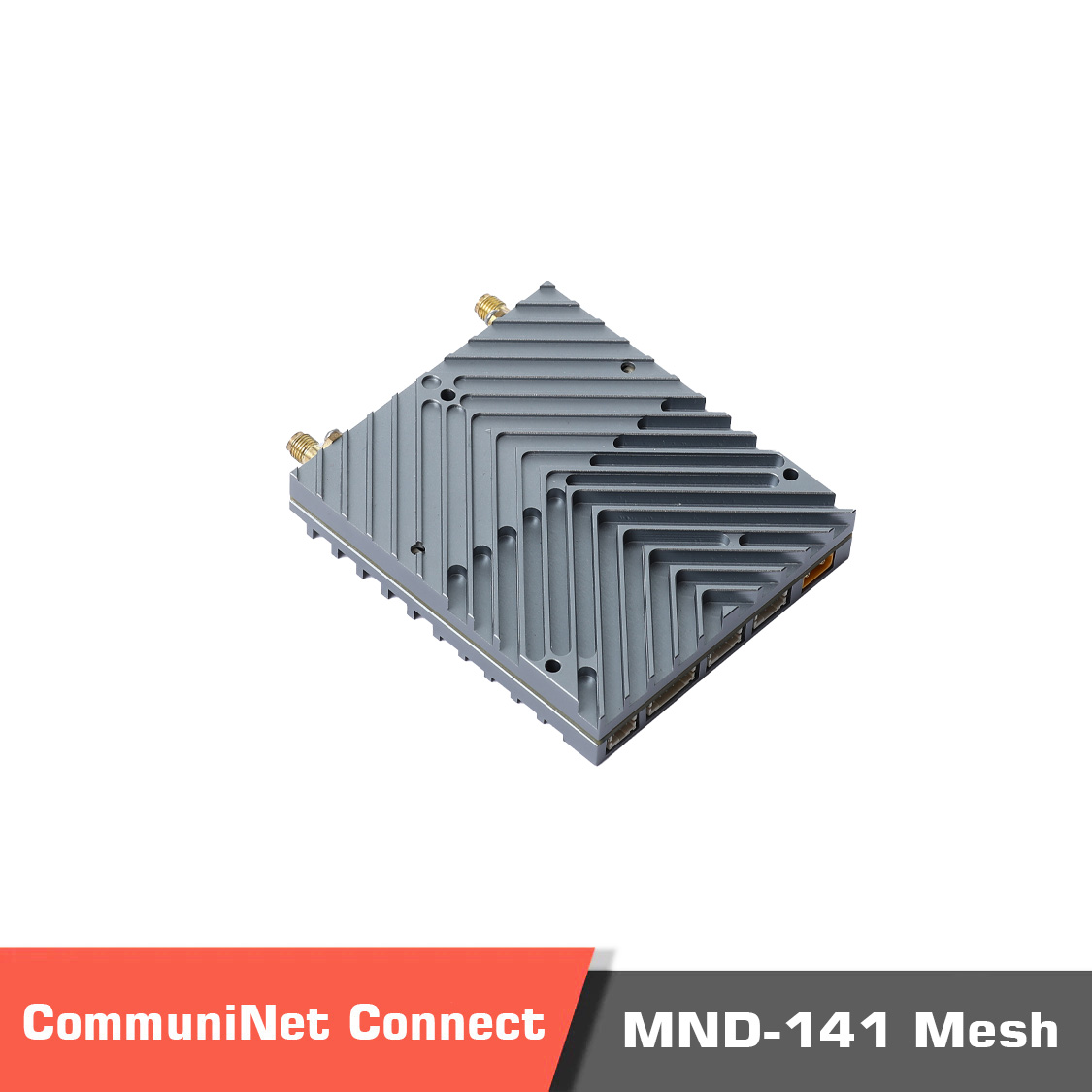

Data Link – CommuniNet MND-141 Mesh, 1W*2 output power transmission

Overview of the MND-141 Mesh UAV Data Link The CommuniNet MND-141 Mesh UAV Data Link is a 1.4 GHz mesh networking system designed for engineers, system integrators, and industrial IoT specialists who require secure, low-latency, and scalable communication . Supporting up to 256 mesh nodes , the MND-141 combines 2T2R MIMO technology and AES-256 encryption in a compact 167 g form factor, making it perfect for BVLOS UAV missions , fleet coordination, and wide-area sensing networks. Key Features of the 1.4GHz Mesh Data Link Frequency Band: 1350–1450 MHz (customizable for specific deployments) MIMO Configuration: 2T2R for high stability and throughput Output Power: 1 W × 2 Channel Bandwidths: 1.25 / 2.5 / 5 / 10 / 20 MHz Modulation: QPSK, 16QAM, 64QAM Max Data Rate: 28 Mbps @ 10 MHz / 46 Mbps @ 20 MHz (optional) Latency: ≤ 7 ms – ideal for real-time UAV control and live video streaming Range: 30+ km LOS Security: AES-256, DES encryption Interfaces: SMA ×2 (RF), Ethernet ×2, RS232 ×2, TTL ×1 Power Consumption: ≤ 15 W, 18–27 V DC (typ. 24 V @ 1 A) Dimensions / Weight: 102.5 × 81 × 18 mm, 167 g Operating Temperature: −40 °C to +55 °C Applications of the MND-141 Mesh UAV Link Multi-UAV Mesh Networking Ideal for surveillance, mapping, and inspection missions that require interconnection between multiple UAVs. Industrial IoT Communication Supports wide-area distributed sensor networks with real-time data transfer. BVLOS Operations Maintains reliable communication links for Beyond Visual Line of Sight UAV missions. Advantages of the MND-141 Mesh Data Link Lightweight and low power for extended UAV endurance Scalable to 256 nodes for large operations Extremely low latency for mission-critical responsiveness Rugged design for extreme temperature environments Comparison of MND UAV Data Link Models Model Topology Output Power Range (LOS) Latency Max Data Rate Ideal For MND-141 Mesh Mesh 1 W × 2 30+ km ≤ 7 ms 46 Mbps Lightweight, low-power UAV mesh MND-142 MINI P2P / P2MP 2 W 30+ km ≤ 10 ms 26.4 Mbps Budget P2MP UAV links MND-142 Mesh Mesh (multi-hop) up to 2 × 2 W 50+ km ~15 ms 100 Mbps (CA) Large fleets, high data volume Explore our full UAV Data Link category for all models. If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team. FAQ – CommuniNet MND-141 Mesh 1W/2W Output Power Transmission System 1. What are the main specifications of the CommuniNet MND-141 Mesh system? The MND-141 Mesh is a high-performance mesh communication system designed for UAVs, UGVs, and ground control networks . It supports 1W or 2W RF output power , enabling real-time bi-directional data, video, and telemetry transmission across multiple nodes. The system is built for dynamic networking and automatic link recovery . 2. What communication technology and frequency bands does it use? The system operates using TDD (Time Division Duplexing) and Mesh networking technology , allowing multiple units to communicate simultaneously without a central hub. It supports configurable frequency bands (typically 1.4GHz / 2.4GHz) depending on regional regulations and mission requirements. 3. What are the range and network capabilities of the MND-141 Mesh? In open, line-of-sight conditions, each node can reach up to 10–15 km , with multi-hop capability extending the range significantly through mesh relaying . This ensures robust coverage even in complex terrain or urban environments where direct links may be obstructed. 4. What payment methods are available for purchasing the MND-141 Mesh system? Motionew accepts credit/debit cards, PayPal, and bank wire transfers . For corporate and OEM clients , proforma invoicing is available for streamlined payment processing. 5. Is OEM or system customization available? Yes. Motionew offers OEM customization , including frequency configuration, power tuning, enclosure design, branding, and connector type selection . Contact the sales department for MOQ and lead time information. 6. Are datasheets and setup manuals available for this product? Yes. Motionew provides datasheets, integration guides, and mesh network setup documentation . Additional technical support is available for UAV communication setup, system calibration, and mission network planning.
