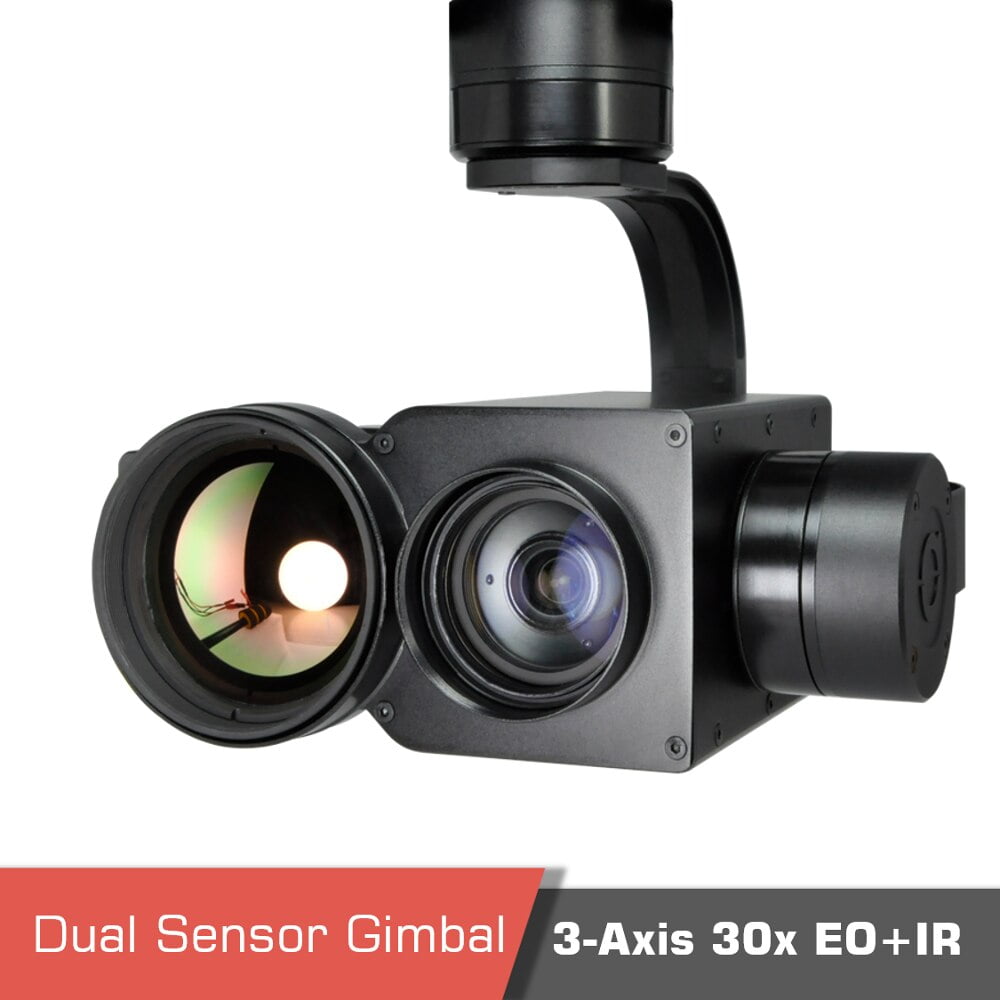

Dual Sensor Tracking Camera Gimbal Z30TIR50 / Night Vision

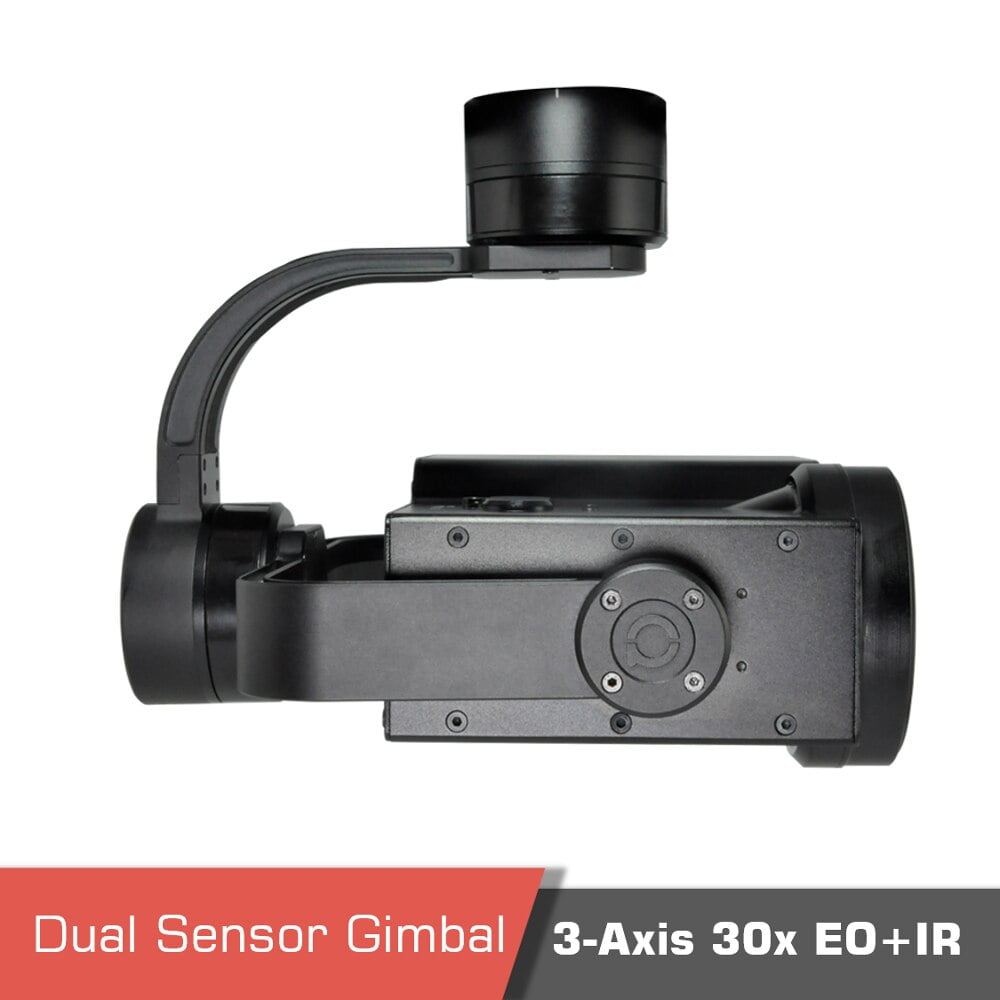

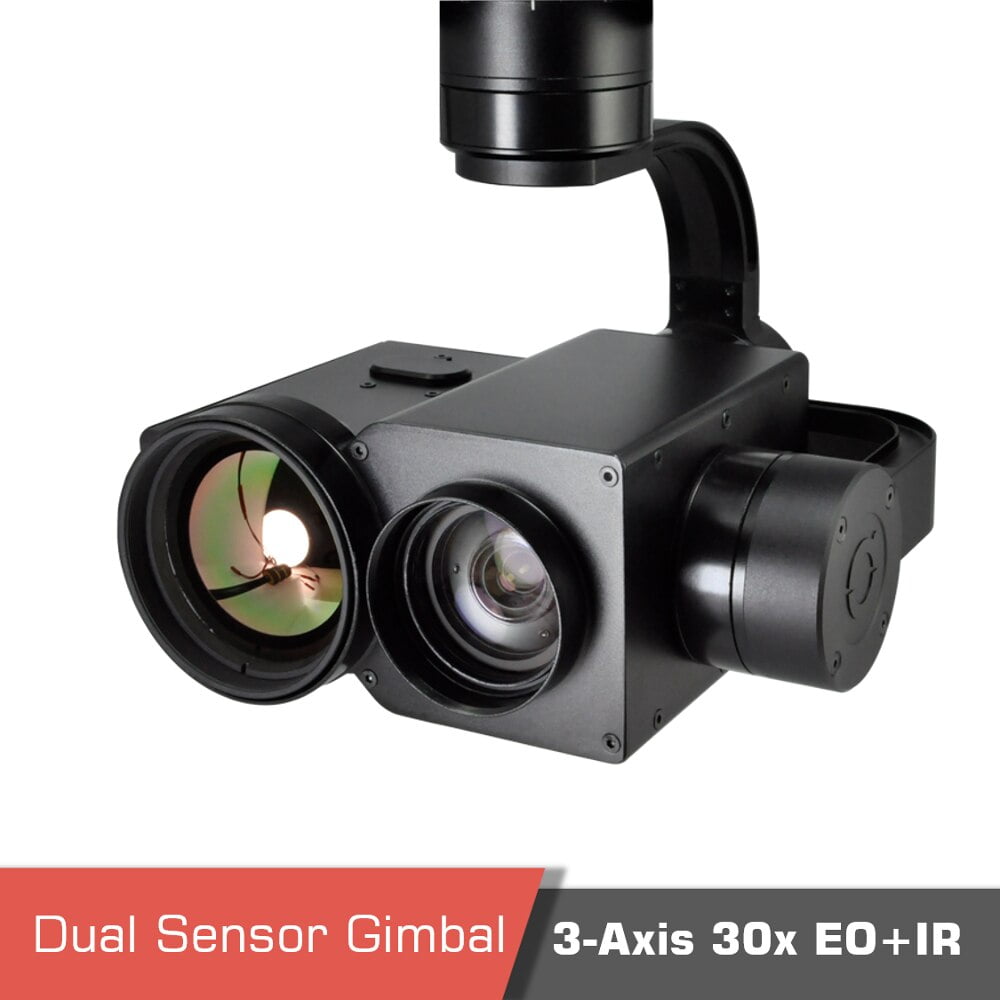

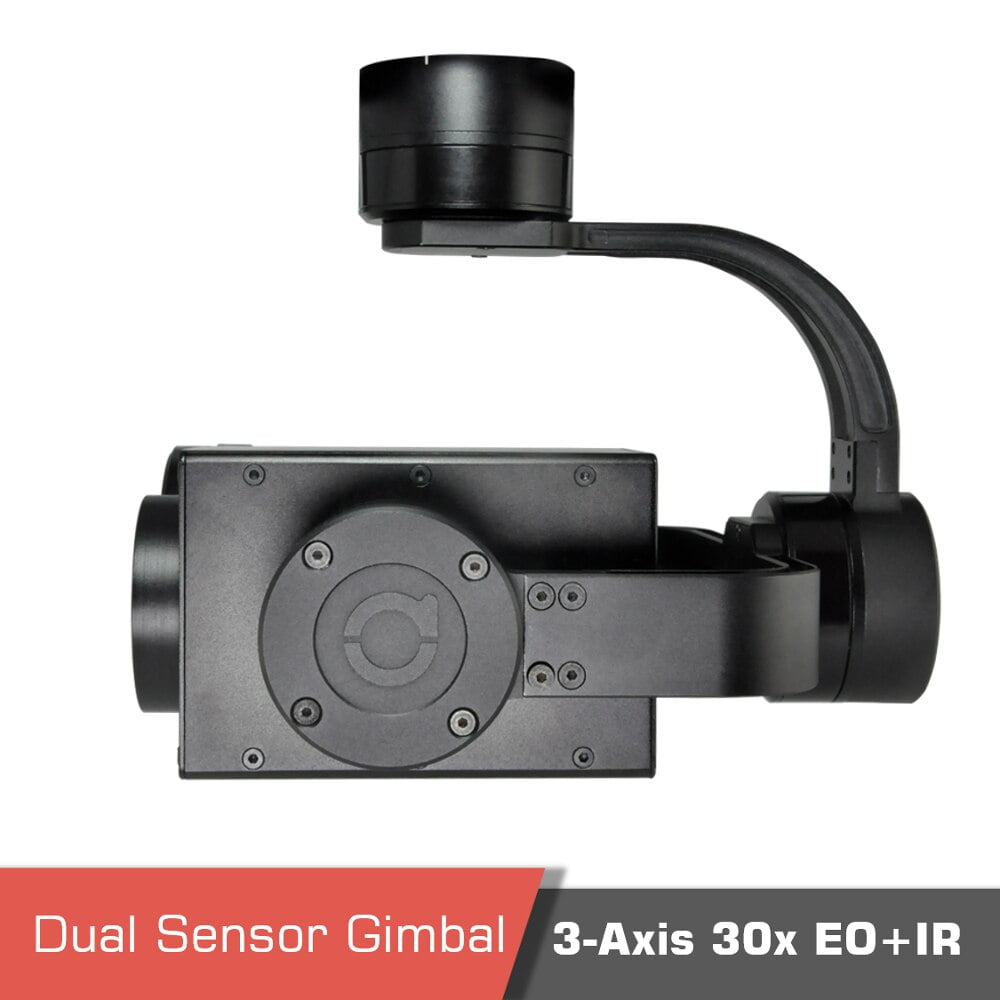

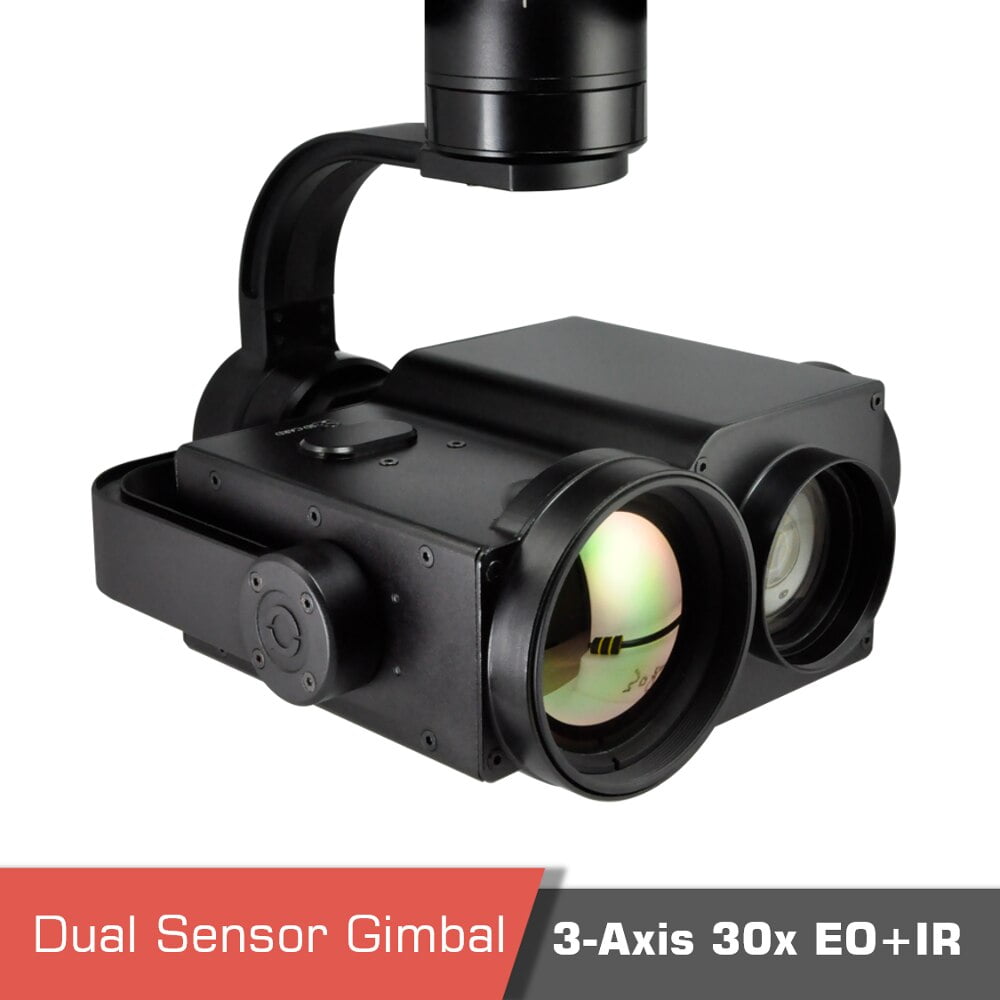

Overview Camera Gimbal Z30TIR50 Professional 3-axis High-precise FOC Program Stabilizing the Gimbal Z30TIR is a highly optimized 3-axis UAV gimbal camera with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Z30TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight. SONY 30x Zoom Starlight Camera Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Z30TIR can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains. Professional Thermal Imager in Gimbal Z30TIR50 Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Z30TIR can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more. Visible Light and Thermal Imager Dual Sensors Object Tracking Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect. Multi Output Methods Optional in Gimbal Z30TIR50 Night vision camera Z30TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan. Multi Control Methods Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl. Control box signal interfaces: Compatible with Viewport Z30TIR is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play. Application Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties. For a comprehensive reading of related products, please visit the Motionew website. FAQ – Dual Sensor Tracking Camera Gimbal Z30TIR50 1. What are the key technical specifications of the Z30TIR50? The Z30TIR50 is a professional 3-axis high-precision gimbal with ±0.01° control accuracy. It integrates a dual-sensor system combining a 30x optical zoom visible camera and a 50mm thermal imaging sensor, enabling day-and-night aerial operations. 2. How does the gimbal achieve stabilization and durability? It uses a dedicated processor for stabilization and a mechanically limited design with concealed wiring (instead of slip rings). This ensures stable data transmission, high durability, and smooth operation during UAV missions. 3. What applications does the Z30TIR50 support? The system supports intelligent object tracking, visible-light zoom, and thermal imaging with temperature measurement, making it suitable for security, inspection, and search-and-rescue operations. 4. What payment methods are supported for this product? MotioNew accepts payments via major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for UAV manufacturers and system integrators? Yes. OEM services and integration support are available to adapt the Z30TIR50 to different UAV platforms and mission-specific requirements. 6. What documentation and support are included with the Z30TIR50? The package comes with user manuals, technical specifications, and wiring diagrams. MotioNew’s engineering team also provides after-sales technical support for setup and integration.
