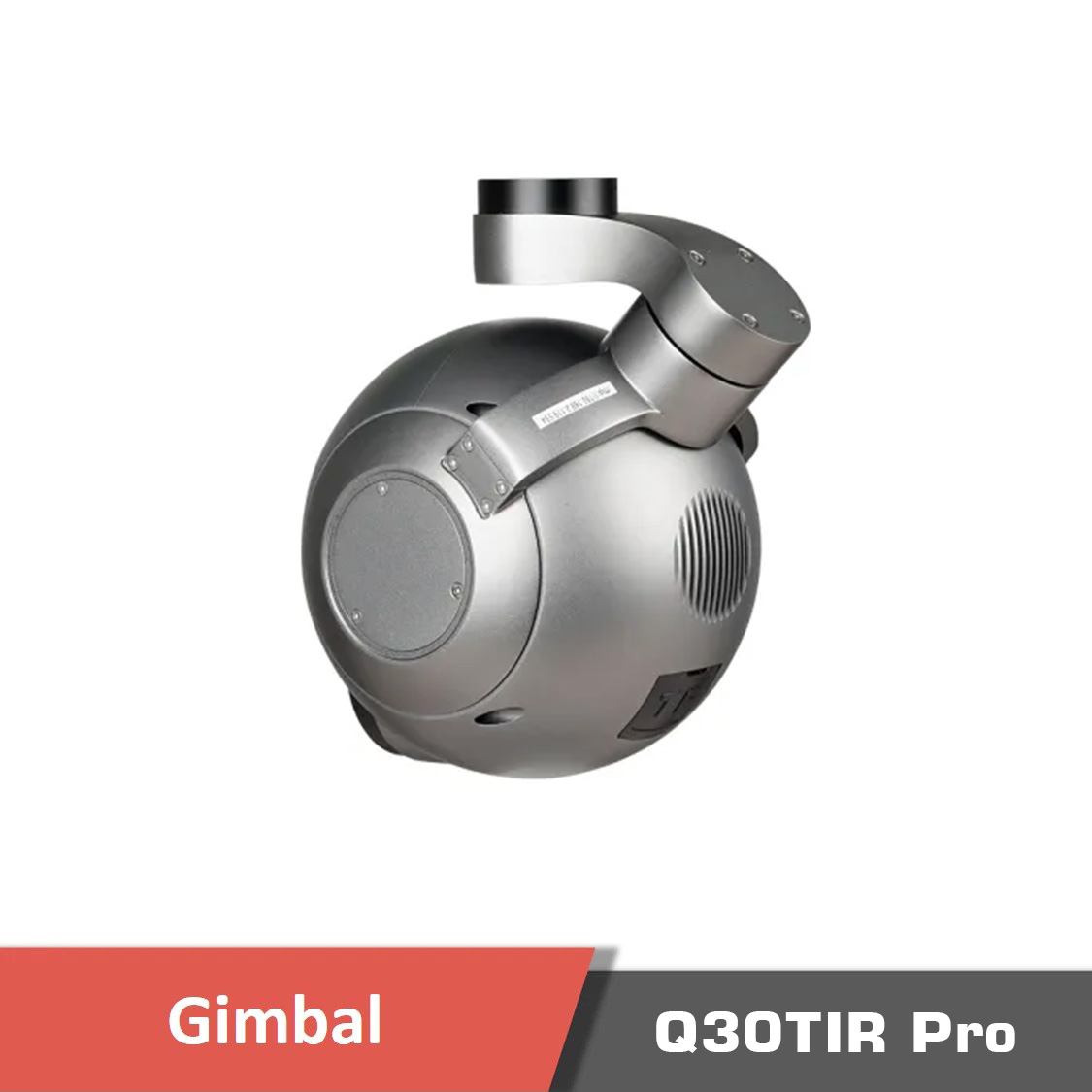

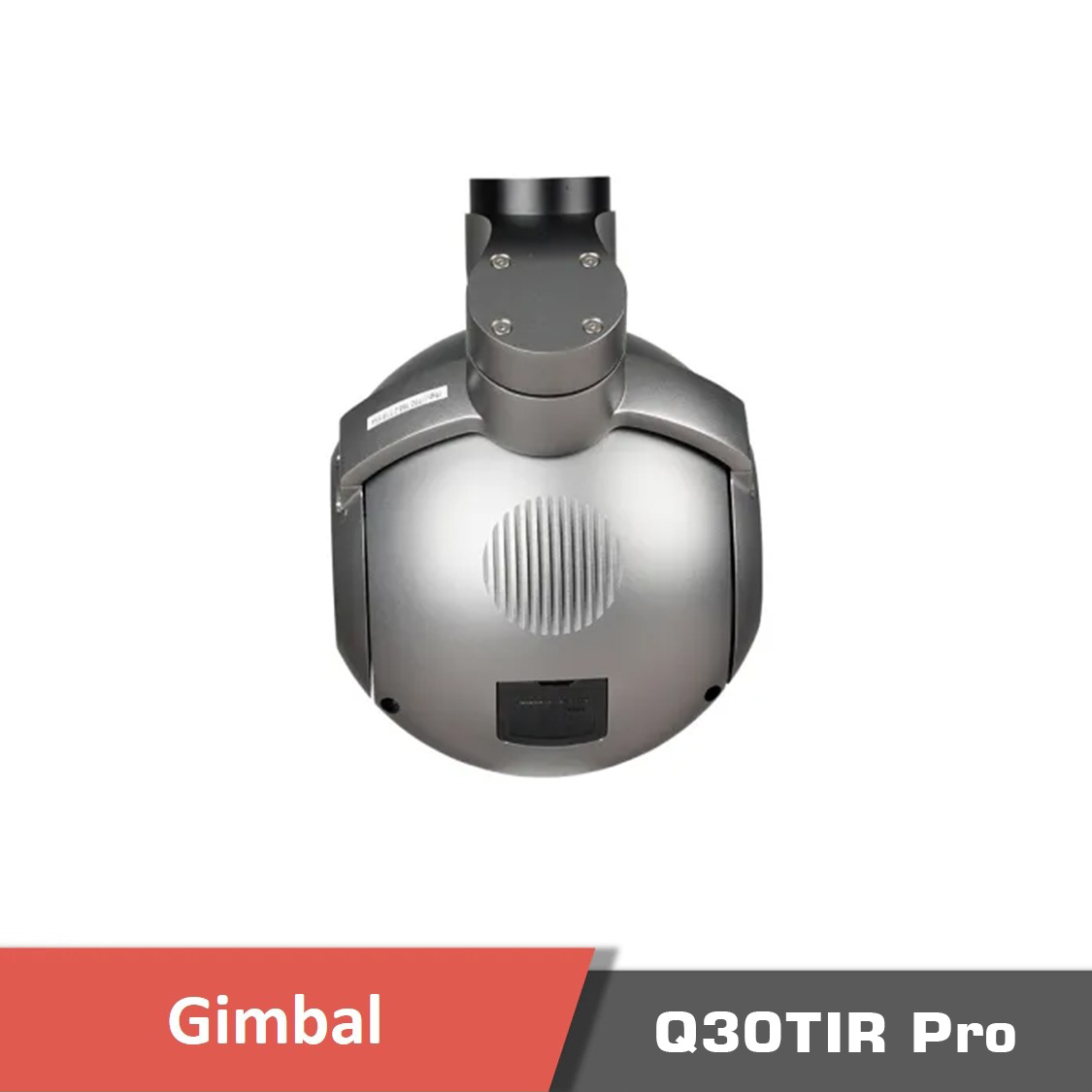

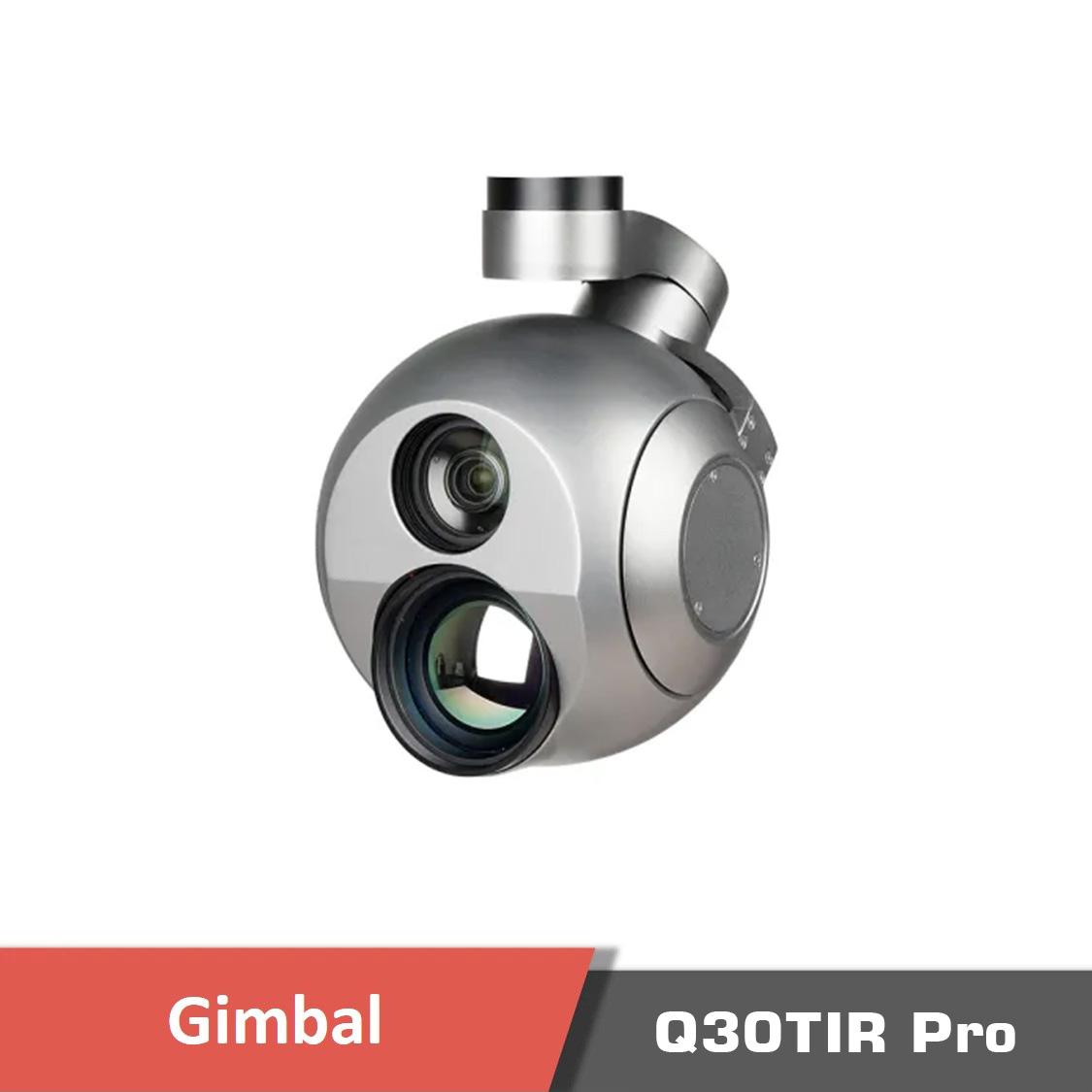

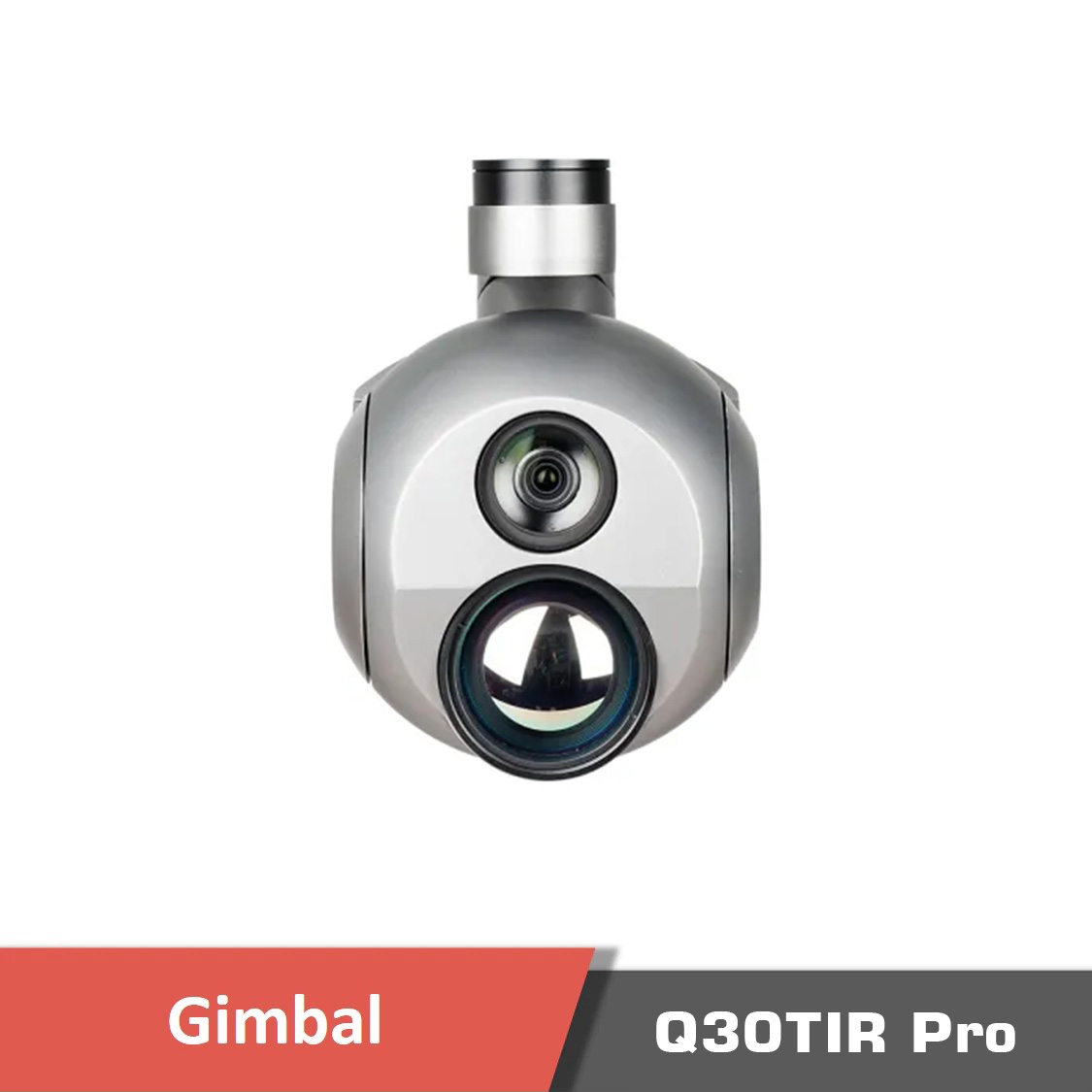

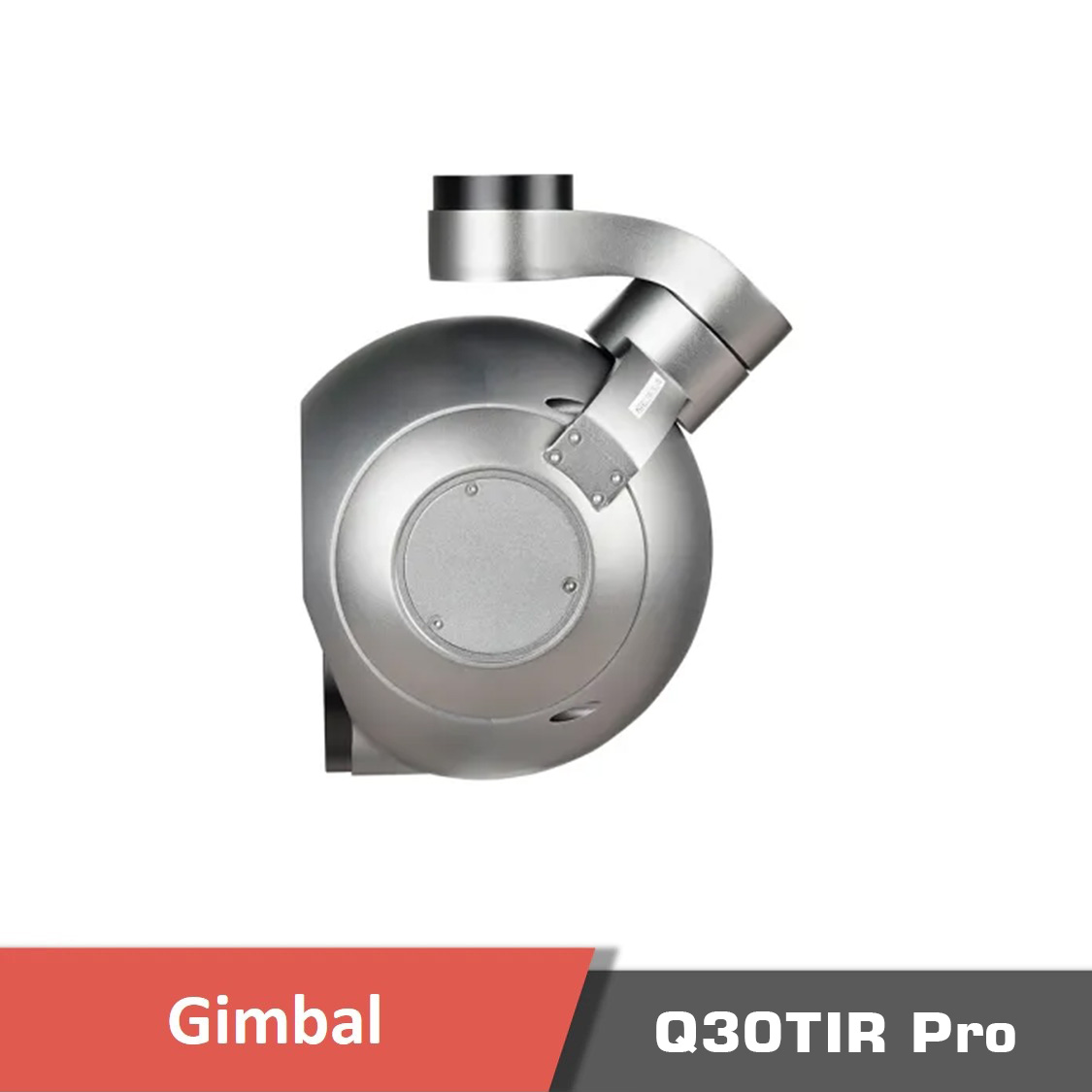

Introductions The Q30TIR Pro Gimbal Drone is a multi sensor gimbal camera with 30x optical zoom and 2.13MP sensor . It features a Starlight night vision thermal IR sensor, with 50mm lens and Full HD 1920×1080 thermal sensor resolution. The gimbal operates with a working voltage of 16V and supports input voltages from 4S to 6S. It provides an output voltage of 5V for PWM connections and has a dynamic current range of 820 to 2500mA at 16V . The drone is designed to function within a temperature range of -20°C to +60°C. The Q30TIR Pro Gimbal supports both IP output (RTSP/UDP) at 720p or 1080p resolution with frame rates of 25fps or 30fps, and SDI output at 1080P and 30fps. For local storage, it accommodates TF cards up to 512GB, class 10, and FAT32 format. Photos are stored in JPG format (1920×1080), while videos are saved in MP4 format at 1080p and 30fps. The device supports card reading via SMB or HTTP. Control methods include PWM, TTL, S.BUS, TCP/IP, and UDP (for IP output versions), and it features geotagging capabilities to display time and GPS coordinates in picture EXIF data. Gimbal Camera AI object detection and Tracking Video IR Thermal Imager Specifications The Q30TIR Pro Gimbal Drone features a high-performance Full HD IR thermal imager with a 50mm focus length , providing a horizontal field of view (FOV) of 17.5° and a vertical FOV of 14.0°. The thermal imager is capable of detecting a person (1.8×0.5m) from up to 2083 meters away , recognizing them at 521 meters, and verifying at 260 meters. For vehicles (4.2×1.8m), it offers detection up to 6389 meters , recognition at 1597 meters, and verification at 799 meters. The imager operates in the long wave (8μm~14μm) spectrum with a detector resolution of 1280×1024 pixels and a pixel pitch of 12μm. It uses an athermal prime lens for focusing and features a NETD of ≤40mK and an MRTD of ≤400mK at 25℃, F #1.0. The camera includes a bistable shutter and offers color palettes in white, black, and pseudo colors. Digital zoom capabilities range from 1x to 4x , though thermometry functions are not supported. EO/IR Camera Object Tracking The Q30TIR Pro Gimbal Drone is equipped with sophisticated EO/IR camera object tracking capabilities. It features an update rate of deviation pixel at 50Hz, with a minimal output delay of just 5 milliseconds. The system can track objects with a minimum contrast of 5% and offers a signal-to-noise ratio (SNR) of 4. It supports object sizes ranging from a minimum of 32×32 pixels to a maximum of 128×128 pixels , with a tracking speed of ±48 pixels per frame. The drone retains object memory for up to 100 frames, or approximately 4 seconds. Additionally, the mean square root values of pulse noise in the object position are kept below 0.5 pixel, ensuring precise and reliable tracking performance. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – Q30TIR Pro Gimbal Camera 1. What sensors are integrated in the Q30TIR Pro? The gimbal combines a 30x optical zoom EO camera with a 2.13MP sensor and a Starlight thermal IR sensor featuring a 50mm lens and Full HD 1920×1080 resolution. 2. What are the power and voltage requirements? It operates at 16V, supports 4S–6S input voltage, and provides a 5V output for PWM connections. The dynamic current consumption ranges from 820mA to 2500mA. 3. What stabilization system is used? The Q30TIR Pro is mounted on a precision 3-axis stabilized gimbal, ensuring smooth imaging performance even under drone vibration and motion. 4. What payment methods are accepted for this camera? Payments can be made using major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for enterprise or defense customers? Yes. OEM options are available for bulk orders and projects requiring tailored EO/thermal imaging configurations. 6. Are technical documents and manuals provided with the purchase? Yes. Buyers receive datasheets, setup guides, and integration manuals for deployment and operation.
