A30TR-1575 Gimbal Camera with Triple Sensors | 5x Thermal Optical Zoom Sensor

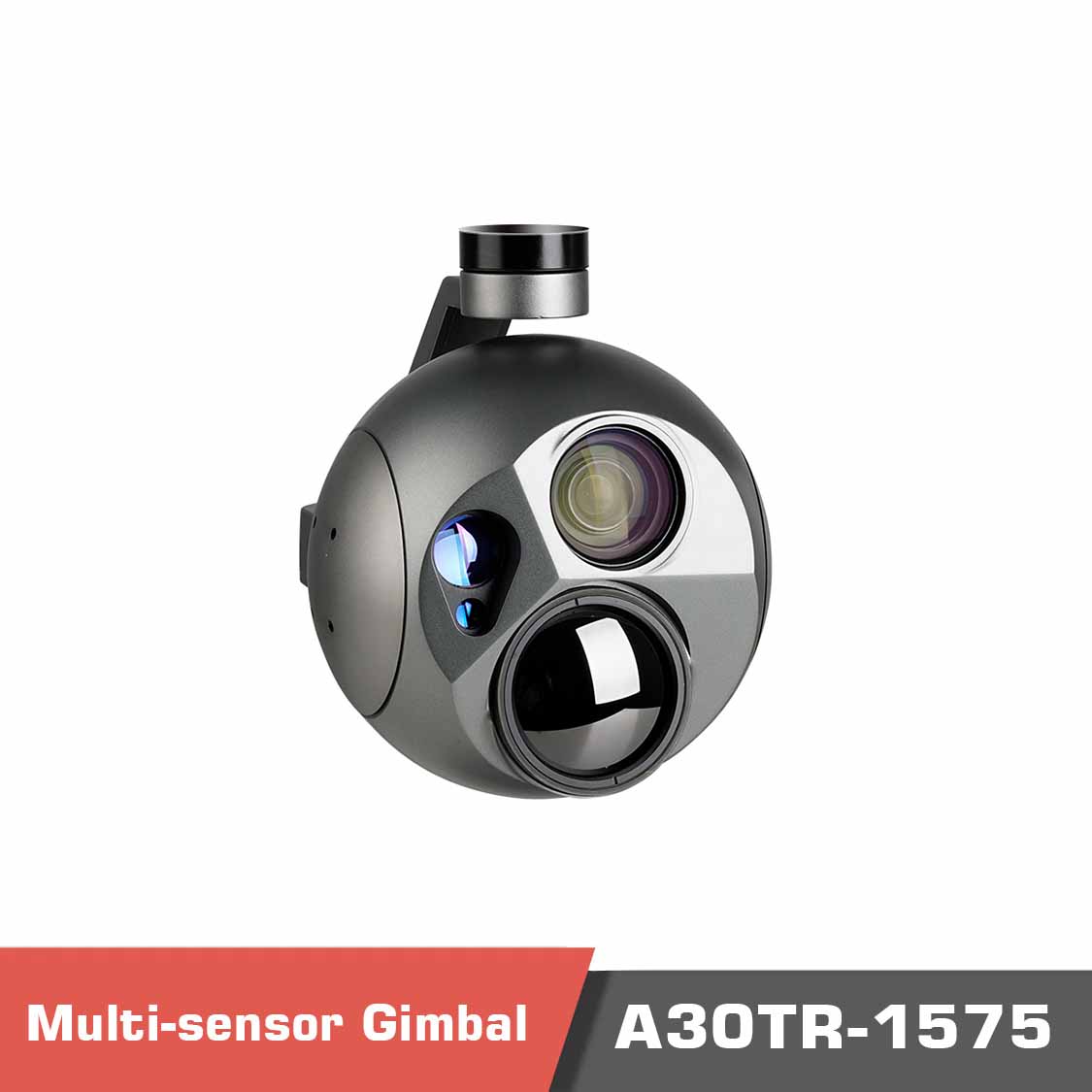

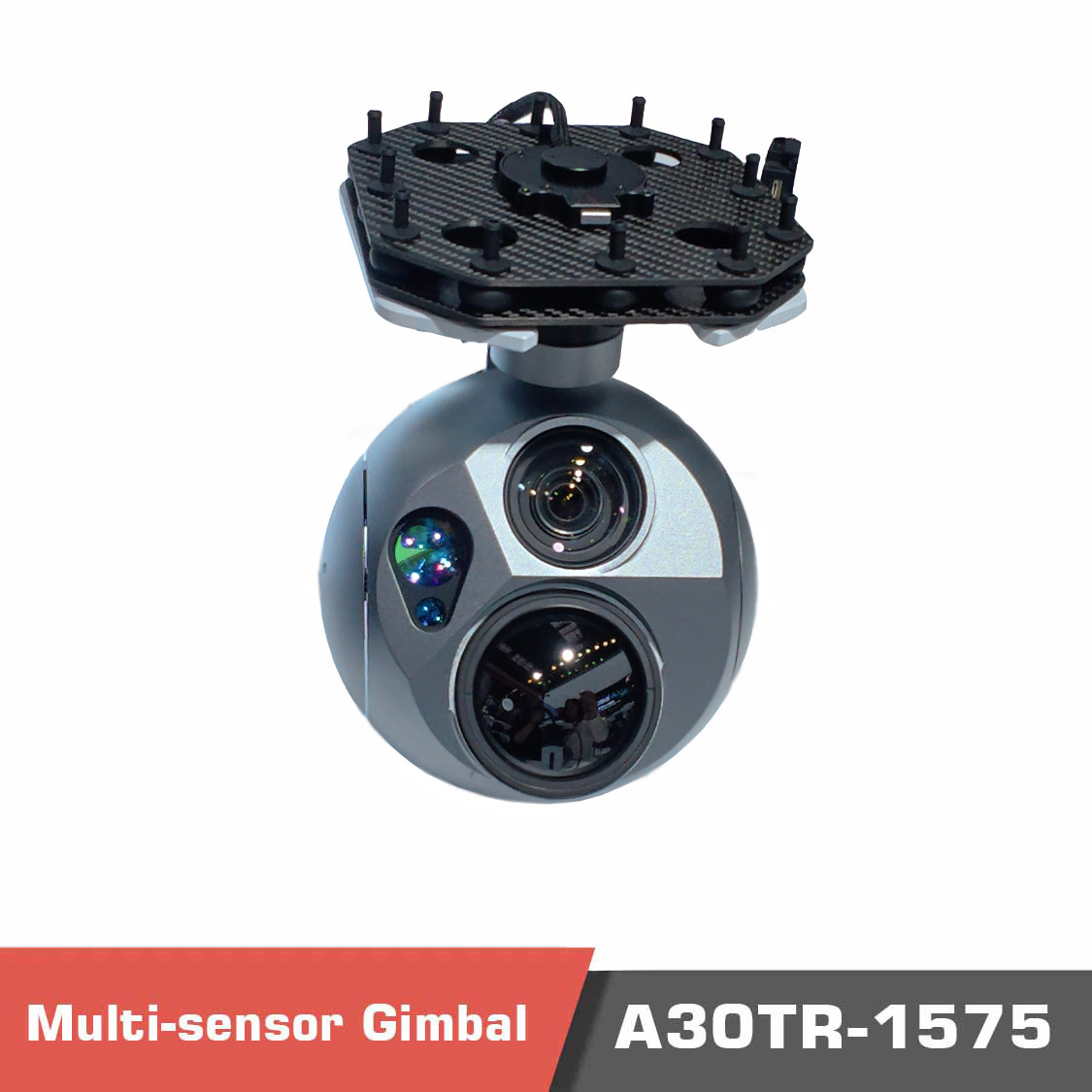

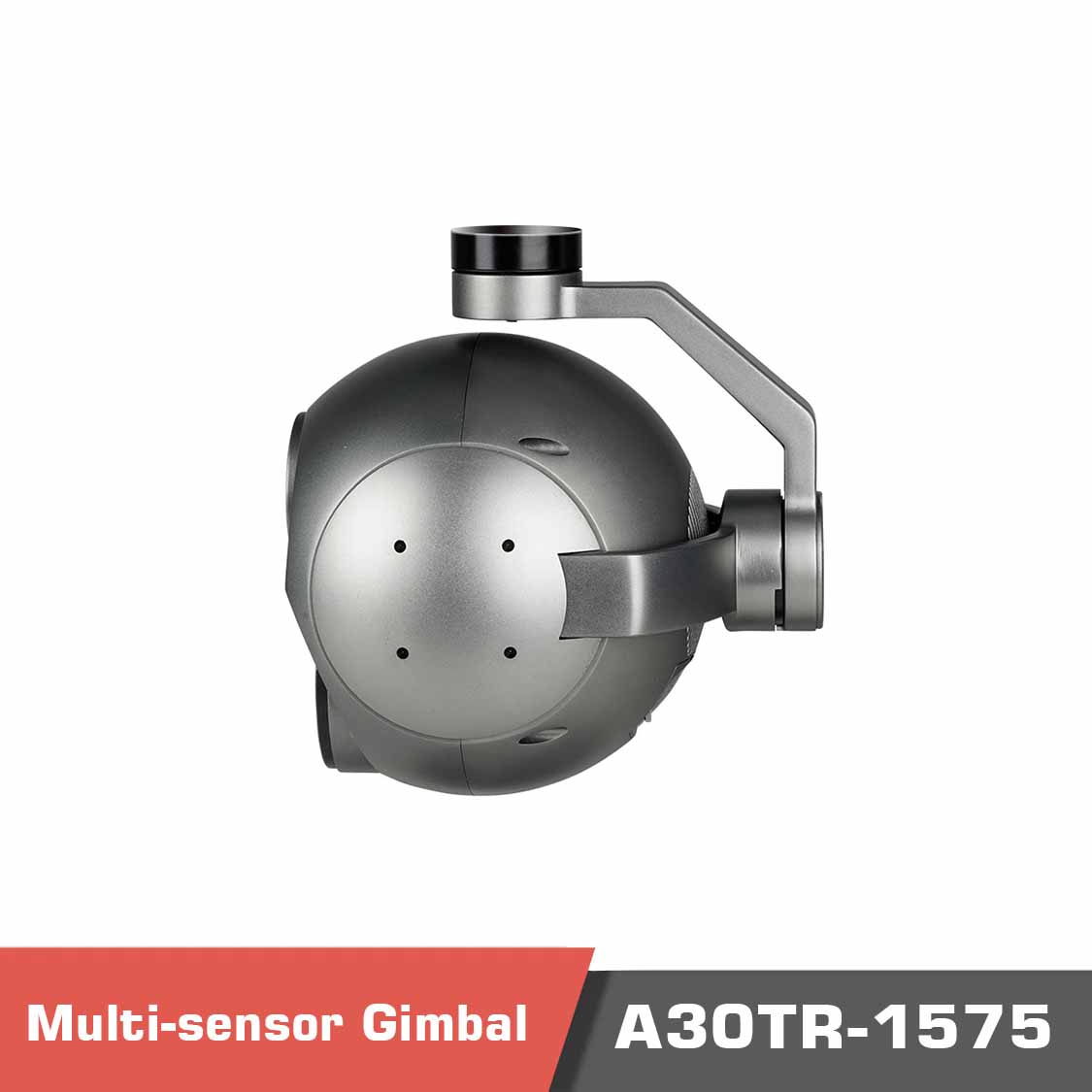

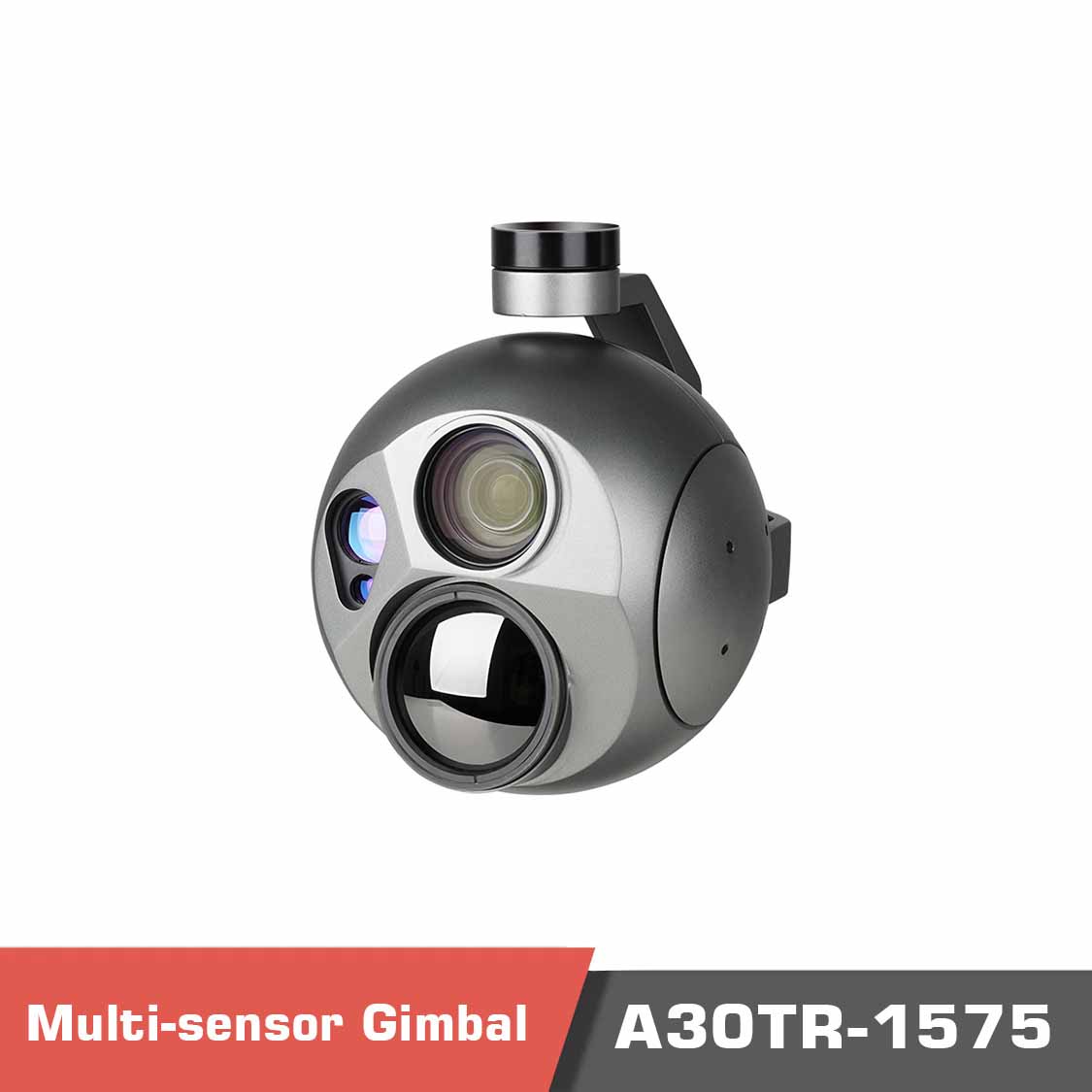

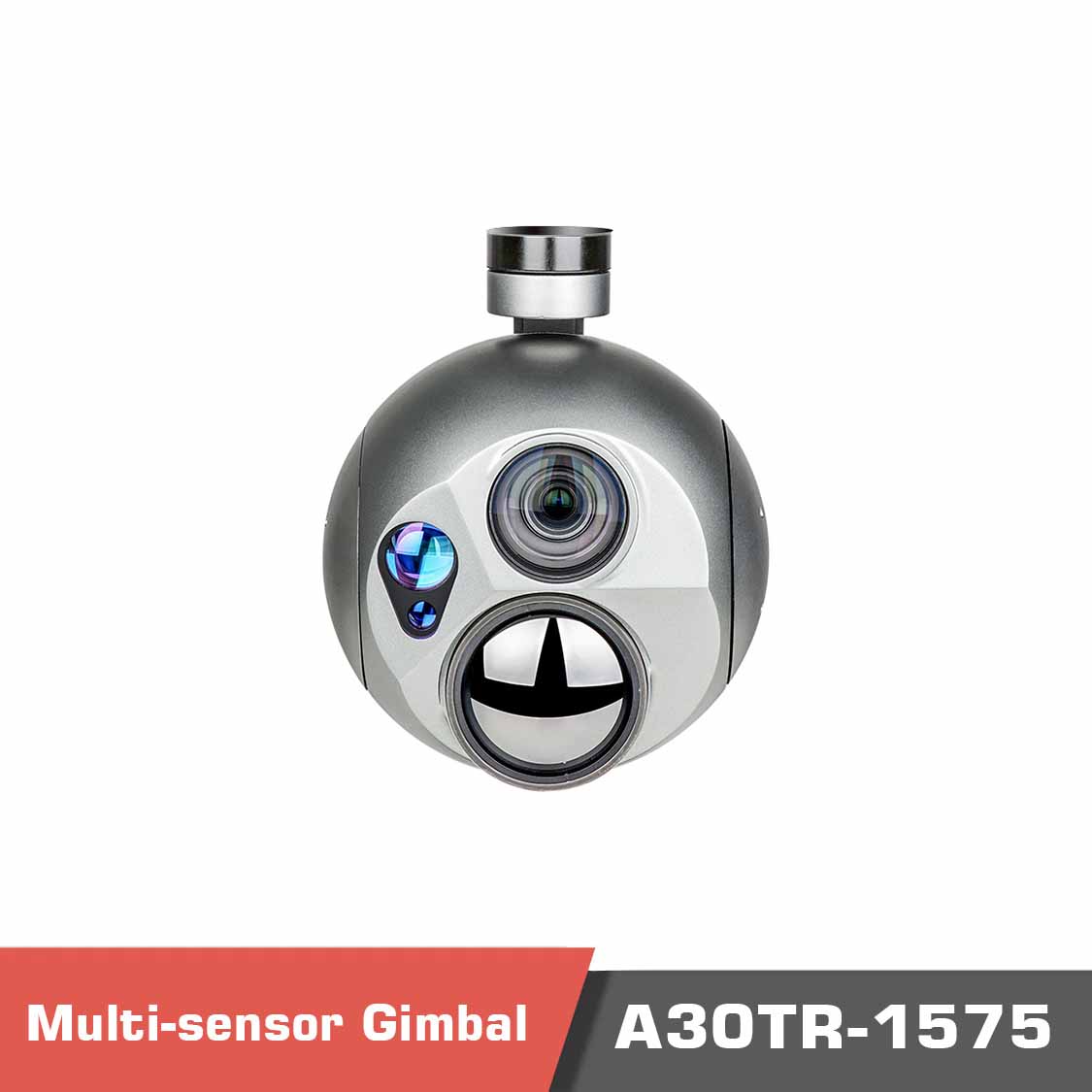

A30TR-1575 Gimbal Camera Overview Introducing the A30TR-1575 gimbal camera, an advanced gimbal system designed to deliver superior imaging and tracking capabilities for a variety of applications. At its core, the gimbal features a 1/1.8″ Type STARVIS CMOS image sensor, renowned for its high sensitivity and low-light performance, coupled with a 30x optical zoom lens ranging from 6.5mm to 162.5mm. This powerful combination allows for detailed and crisp imagery with a total pixel count of 4.17 megapixels. It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution. Thermal sensor of A30TR-1575 Enhancing its versatility, the A30TR-1575 also includes a thermal sensor with a resolution of 640×512. Most importantly, most of the available models have a fixed lens for the thermal sensor, while digital zoom is supported. The good news is that the new model addresses a highly demanded solution to solve that issue. A30TR-1575 has a variable focus length of 15mm to 75mm, and a 5x optical zoom. The thermal sensor boasts a 12-micrometer pixel size and a 25Hz refresh rate, ensuring precise thermal imaging capabilities. Operational Applications Equipped with advanced AI functions, the gimbal offers human and vehicle identification and tracking, making it ideal for security, surveillance, and search-and-rescue operations. The integrated laser rangefinder provides accurate distance measurements up to 5000 meters, further enhancing its operational utility. Robust Performance Designed for robust performance, the A30TR-1575 gimbal camera supports multiple control methods including PWM, TTL, S.BUS, TCP, and UDP, and outputs via IP, ensuring seamless integration with various systems. It operates within a voltage range of 4s to 6s, accommodating different power configurations. For local storage, it supports SD cards up to 256GB, providing ample space for high-quality video and data recording. Operational Capabilities Upgrade your operational capabilities with the A30TR-1575 gimbal system, delivering high-definition visual and thermal imaging, reliable AI tracking, and precise laser rangefinding for a wide range of demanding applications. Gimbal Camera AI object Detection and Tracking Video Overview of the gimbal A30TR-1575 gimbal camera For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – A30TR Gimbal Camera 1. What sensors are integrated in the A30TR? The A30TR combines a SONY 1/2.8” Exmor R CMOS EO sensor (2.13MP, 30x optical zoom), a ULIS uncooled LWIR thermal camera (640×512, 19mm lens), and a laser rangefinder with up to 1.5 km range. 2. What stabilization system does it use? It is mounted on a 3-axis stabilized gimbal (yaw, pitch, roll) with an integrated damping system to reduce vibrations, ensuring clear and stable imaging. 3. What are the observation capabilities of the EO camera? The EO sensor, with 30x optical zoom, provides up to a 3 km observation range, allowing drones to capture detailed images while keeping a safe distance from hazards. 4. What payment methods are available for purchasing the A30TR? Payments can be made via major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for enterprise or defense applications? Yes. OEM options are available for clients requiring tailored EO/IR + LRF solutions. 6. Are technical documents and manuals provided with the product? Yes. Buyers receive datasheets, setup manuals, and integration guides to support installation and deployment.
