A40TR Pro Gimbal Camera for Drone

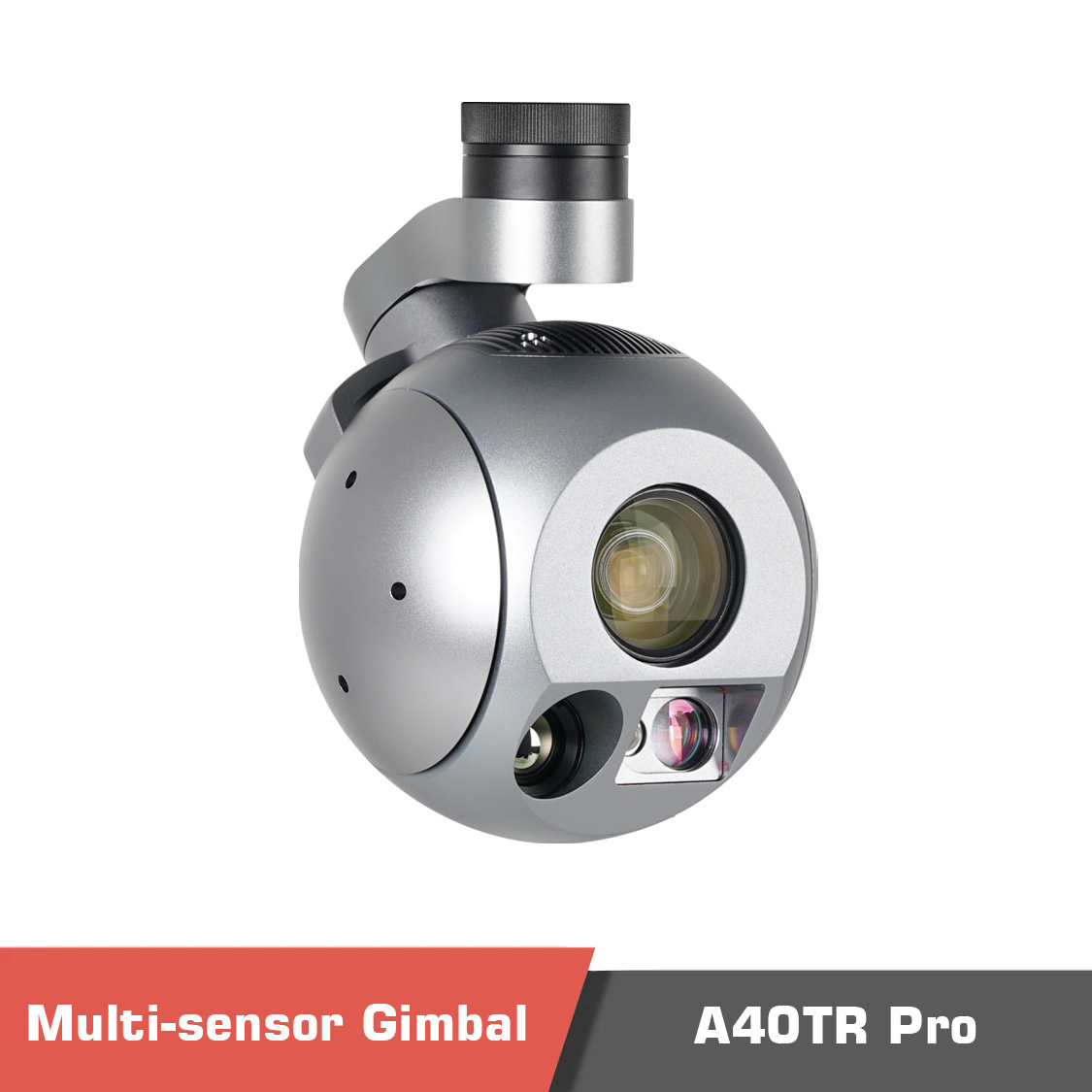

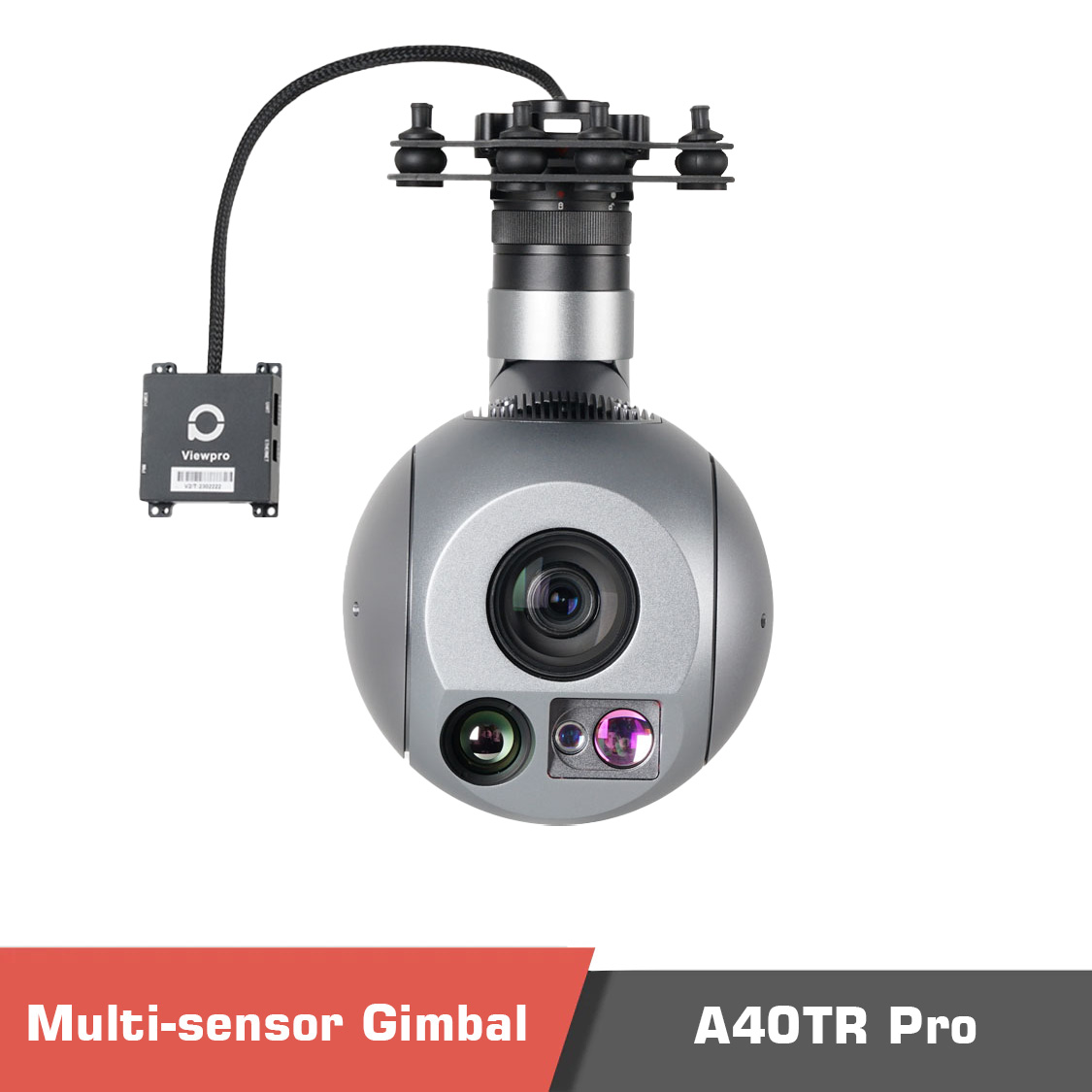

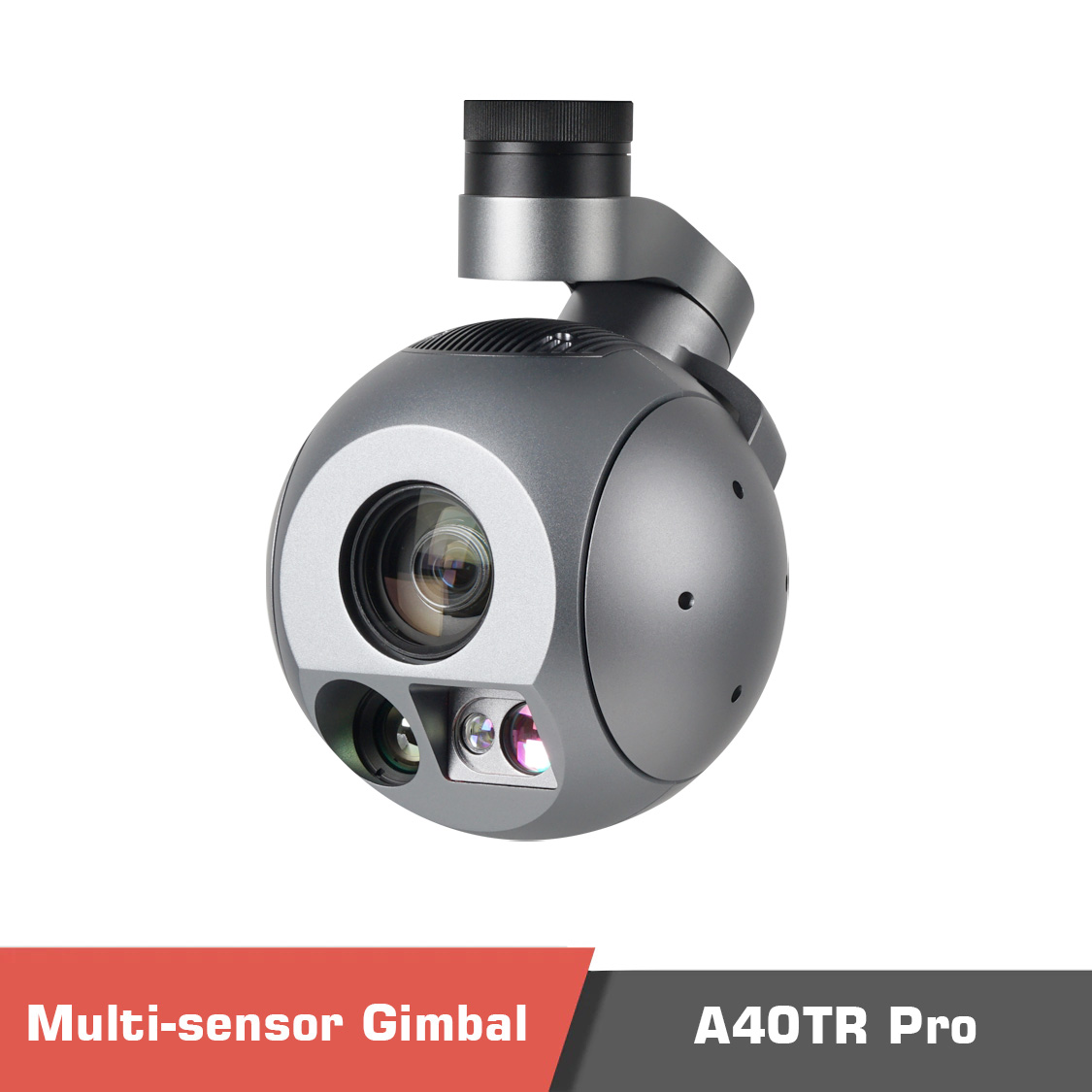

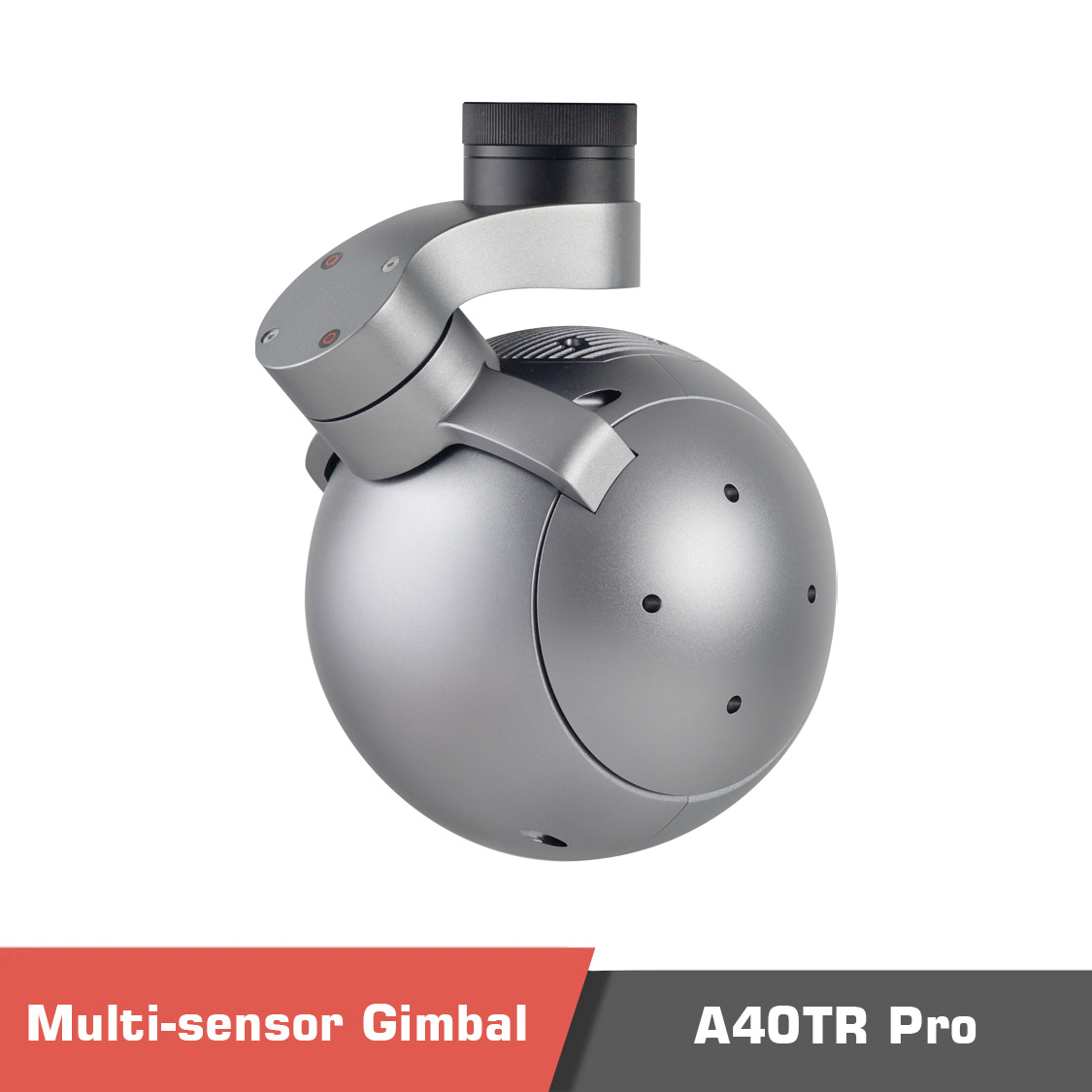

A40TR Pro Overview A40TR Pro is a 3-axis high-precision gimbal that integrates an AI-based sensor with a 40x optical zoom EO SONY camera, a 19mm 640×512 IR thermal sensor, and a 3km laser rangefinder. It is the most powerful and multi-function payload camera at present. A40TR Pro is widely used for surveillance, first responders, inspections, disaster prevention, emergency monitoring inspections, search and rescue, etc. At its core, the gimbal features a 1/2.8 Type STARVIS CMOS image sensor, renowned for its high sensitivity and low-light performance, coupled with a 40x optical zoom lens ranging from 4.25mm to 170mm. This powerful combination allows for detailed and crisp imagery with a total pixel count of 5.13 megapixels. A40TR Pro Thermal sensor has a focus length of 19mm and boasts a 12-micrometer pixel size and, ensuring precise thermal imaging capabilities. Gimbal Camera AI object Detection and Tracking Video Operational Applications of A40TR Pro Equipped with advanced AI functions, the gimbal drone offers human and vehicle identification and tracking, making it ideal for security, surveillance, and search-and-rescue operations. The integrated laser rangefinder provides accurate distance measurements up to 3000 meters, further enhancing its operational utility. Robust Performance Designed for robust performance, the A40TR Pro supports multiple control methods including PWM, TTL, S.BUS, TCP, and UDP, and outputs via IP, ensuring seamless integration with various systems. It operates within a voltage range of 4s to 6s, accommodating different power configurations. For local storage, it supports SD cards up to 128GB, providing ample space for high-quality video and data recording. Weight Weighing 1136 grams and measuring 134.2mm by 125mm by 210.4mm, the A40TR Pro is engineered for stability and durability, making it suitable for deployment on various UAV platforms and other equipment. Operational Capabilities Upgrade your operational capabilities with the A40TR Pro gimbal system, delivering high-definition visual and thermal imaging, reliable AI tracking, and precise laser rangefinding for a wide range of demanding applications. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – A40TR Pro Gimbal Camera 1. What sensors are integrated in the A40TR Pro? The gimbal combines a SONY STARVIS CMOS EO sensor with 40x optical zoom (4.25–170mm), a 19mm 640×512 thermal infrared sensor, and a laser rangefinder with up to 3 km detection range. 2. What stabilization system does the gimbal use? It features a 3-axis high-precision gimbal, designed to deliver smooth, stable imaging with AI-enhanced stabilization under dynamic UAV conditions. 3. Does the A40TR Pro include AI-assisted functions? Yes. It integrates AI-based target detection, recognition, and tracking, making it ideal for surveillance, inspection, search-and-rescue, and disaster monitoring missions. 4. What payment methods are supported for purchasing this camera? Payments can be made using major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for enterprise or defense applications? Yes. OEM services are available for bulk orders and specialized projects requiring tailored EO/IR + LRF solutions. 6. Are technical documents and manuals included with the product? Yes. Buyers receive datasheets, setup guides, and integration manuals for installation and field deployment.
