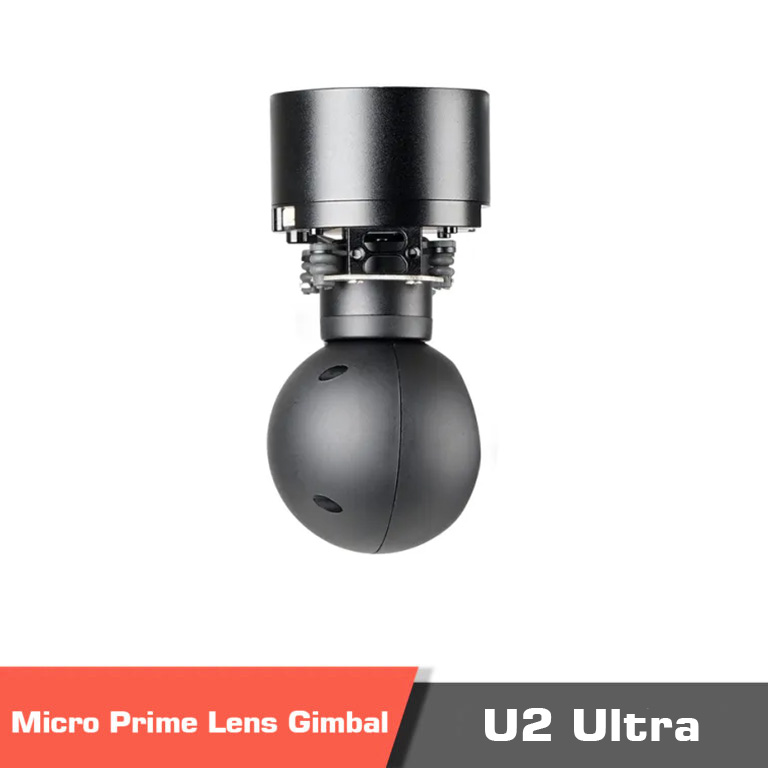

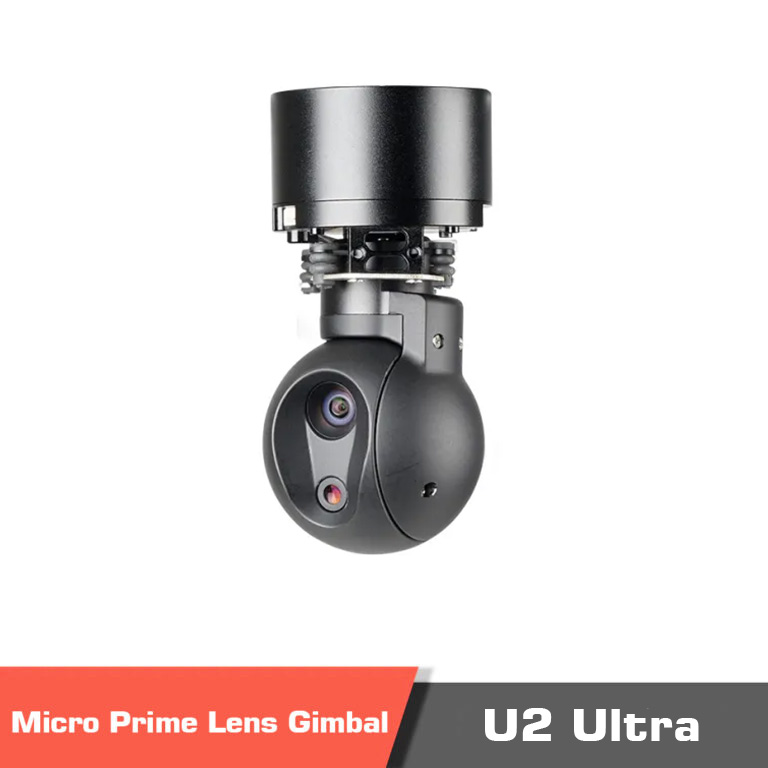

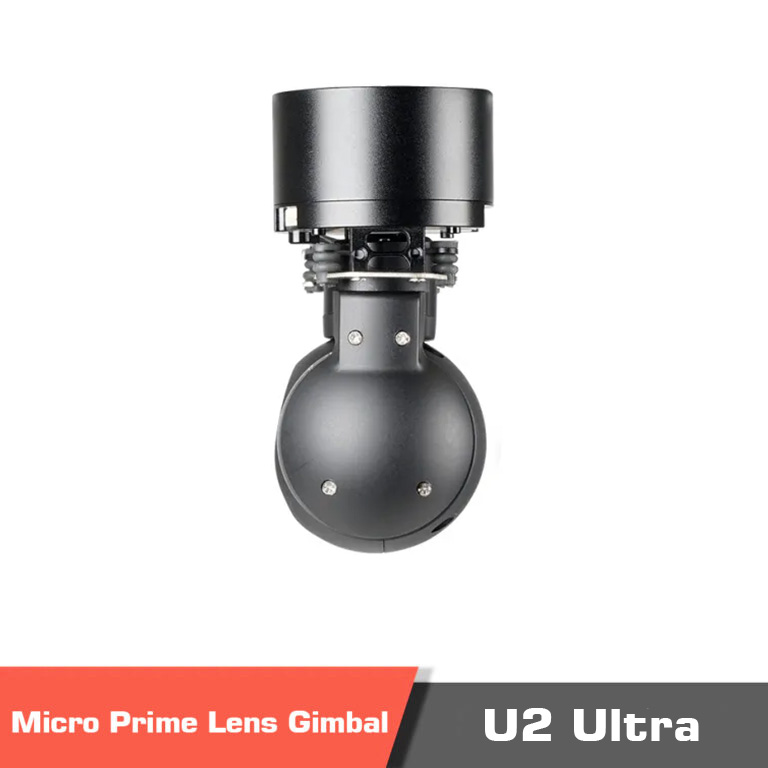

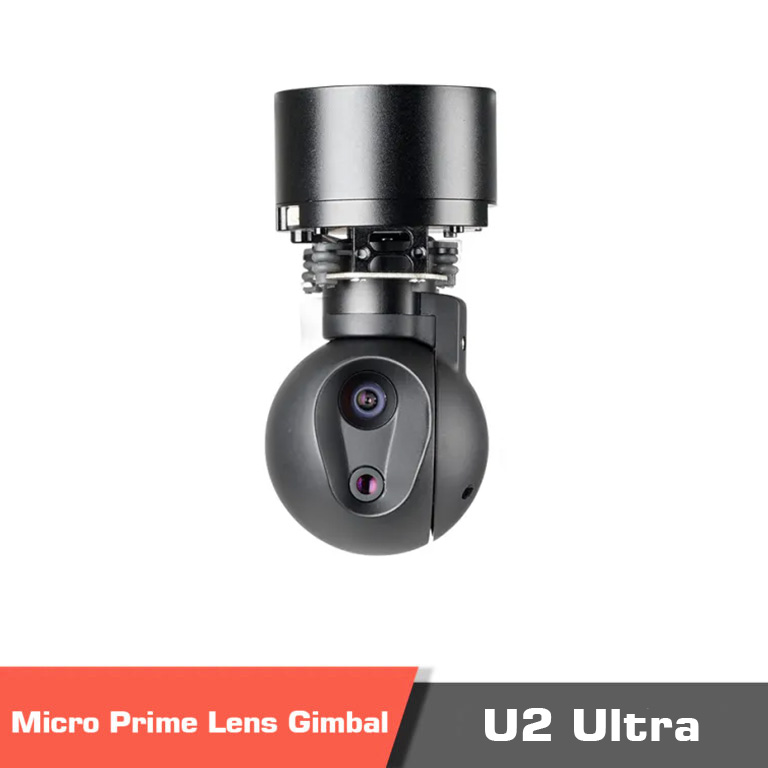

U2 Ultra Gimbal Camera Overview The U2 Ultra gimbal camera is designed with robust hardware specifications, making it suitable for various demanding environments. It operates on a voltage range of 12-16V, with a dynamic current between 200-700mA at 12V, ensuring efficient power management. The camera’s average power consumption is 2.4W, peaking at 8.4W when necessary. It performs reliably within a temperature range of -20°C to +50°C, allowing for use in diverse weather conditions. The camera outputs high-definition video at 1080p and 30fps in H264 format via an IP (RTSP) stream, and it can be controlled using TTL or TCP protocols , providing flexibility in integration and operation. It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution. Gimbal Camera AI object Detection and Tracking Video Gimbal Specifications of U2 Ultra The U2 Ultra gimbal camera features advanced stabilization and control capabilities, making it ideal for precise imaging applications. Its controllable range allows for a pitch/tilt of -30° to 115° and a yaw/pan range of ±145°, providing wide-angle coverage and flexibility in capturing footage from various angles. The gimbal boasts a high stability precision of 0.2 milliradians , ensuring smooth and accurate positioning even in dynamic conditions. Additionally, it supports a maximum angular velocity of ≥30° per second, enabling rapid adjustments to keep up with fast-moving subjects or changes in orientation. U2 Ultra EO Camera Specifications The U2 Ultra gimbal camera is equipped with a dual Electro-Optical (EO) camera that delivers high-definition imaging with a resolution of 1920×1080 at 30 frames per second , ensuring clear and detailed video capture. Considering the first sensor, its 2.4mm focal length provides a balanced perspective, making it well-suited for a variety of surveillance and observation tasks. The camera offers a wide angle of view, covering 98.5° horizontally and 66.3° vertically , enabling comprehensive scene coverage and situational awareness in a single frame. This combination of resolution, focus length, and angle of view makes the U2 Ultra gimbal camera a powerful tool for capturing expansive and precise imagery. The U2 Ultra gimbal camera ‘s second Electro-Optical (EO) camera is engineered for detailed, long-range imaging. It delivers a resolution of 1920×1080 at 30 frames per second, ensuring crisp and clear video. With a focal length of 10.36mm, this camera provides a narrower field of view, specifically 30° horizontally and 17.1° vertically, making it ideal for focused observation of distant subjects. Additionally, the camera features a powerful hybrid zoom capability of 12.5x, combining 4.2x optical zoom with 3x digital zoom. This allows for versatile imaging, whether capturing broad scenes or zooming in for close-up detail. EO Camera Object Tracking of U2 Ultra The U2 Ultra gimbal camera is equipped with advanced object tracking capabilities, ensuring reliable performance in various surveillance and monitoring applications. It can track objects with a minimum contrast of 5%, allowing it to maintain focus even in low-contrast environments. The camera supports tracking of objects as small as 16×16 pixels and as large as 128×128 pixels , making it versatile for different target sizes. It handles dynamic tracking effectively, with a speed of ±32 pixels per frame for people and ±48 pixels per frame for vehicles. Additionally, the camera has an object memory time of 100 frames, allowing it to maintain tracking even if the object temporarily moves out of view or changes position rapidly. Packing Information The U2 Ultra gimbal camera is compact and lightweight, with a net weight of just 80 grams and product dimensions of 39x39x81.1mm , making it easy to integrate into various setups. For a comprehensive reading of related products, please visit the Motionew website. FAQ U2 Ultra Gimbal 1. What are the main imaging capabilities of the U2 Ultra Gimbal Camera? The U2 Ultra supports dual EO sensors with FHD 1080p resolution at 30fps, providing stable video output in H.264 format via IP (RTSP) streaming. 2. What are the power requirements for the U2 Ultra? The system operates at 12–16V , with a dynamic current draw of 200–700mA (at 12V). Average power consumption is 2.4W, with a peak of 8.4W. 3. What platforms can the U2 Ultra be integrated with? The gimbal is designed for UAVs, aviation carriers, ships, and vehicle platforms , making it suitable for both aerial and maritime operations. 4. What payment methods are accepted for this product? MotioNew accepts secure payments through major credit cards and online gateways, with full options available at checkout. 5. Is OEM customization available for the U2 Ultra Gimbal Camera? Yes, OEM services and bulk order customization can be arranged by contacting the MotioNew sales team directly. 6. What documents are provided with the U2 Ultra purchase? The package includes user manuals, technical specifications, and integration guidelines to support setup and professional use.
