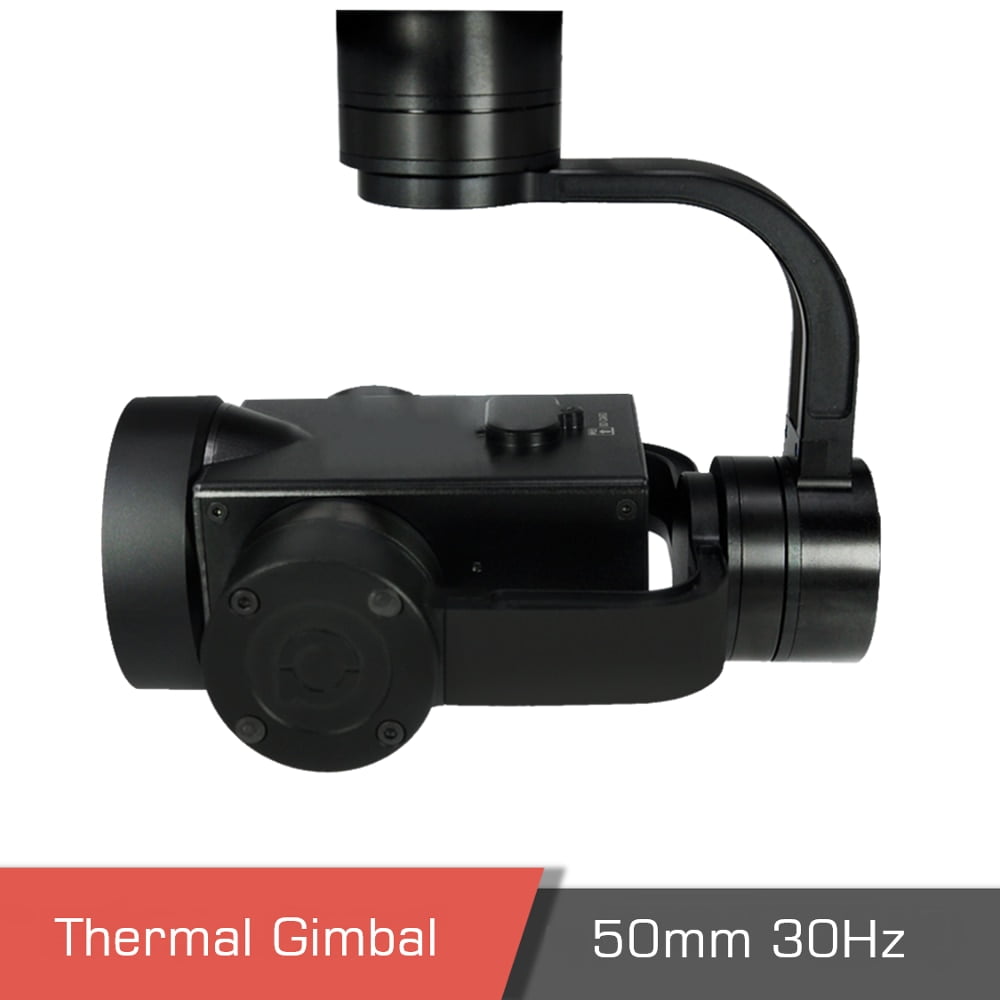

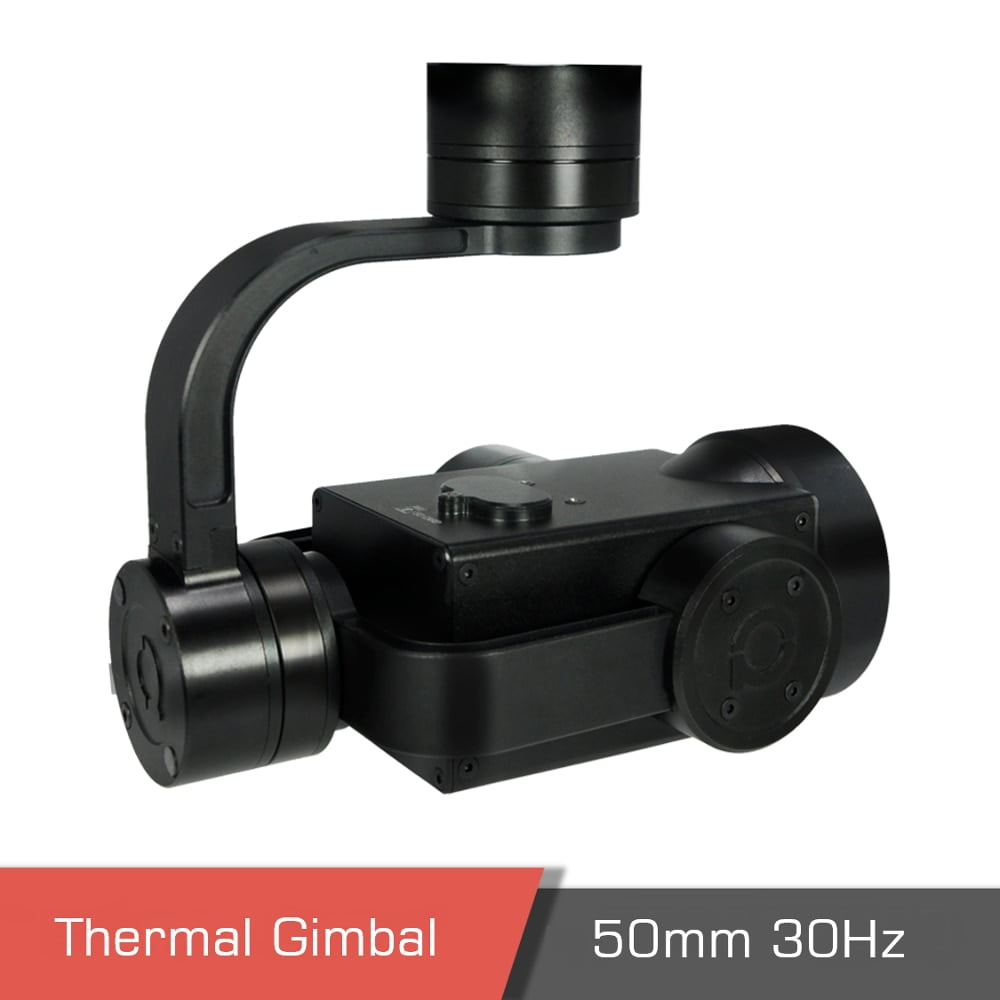

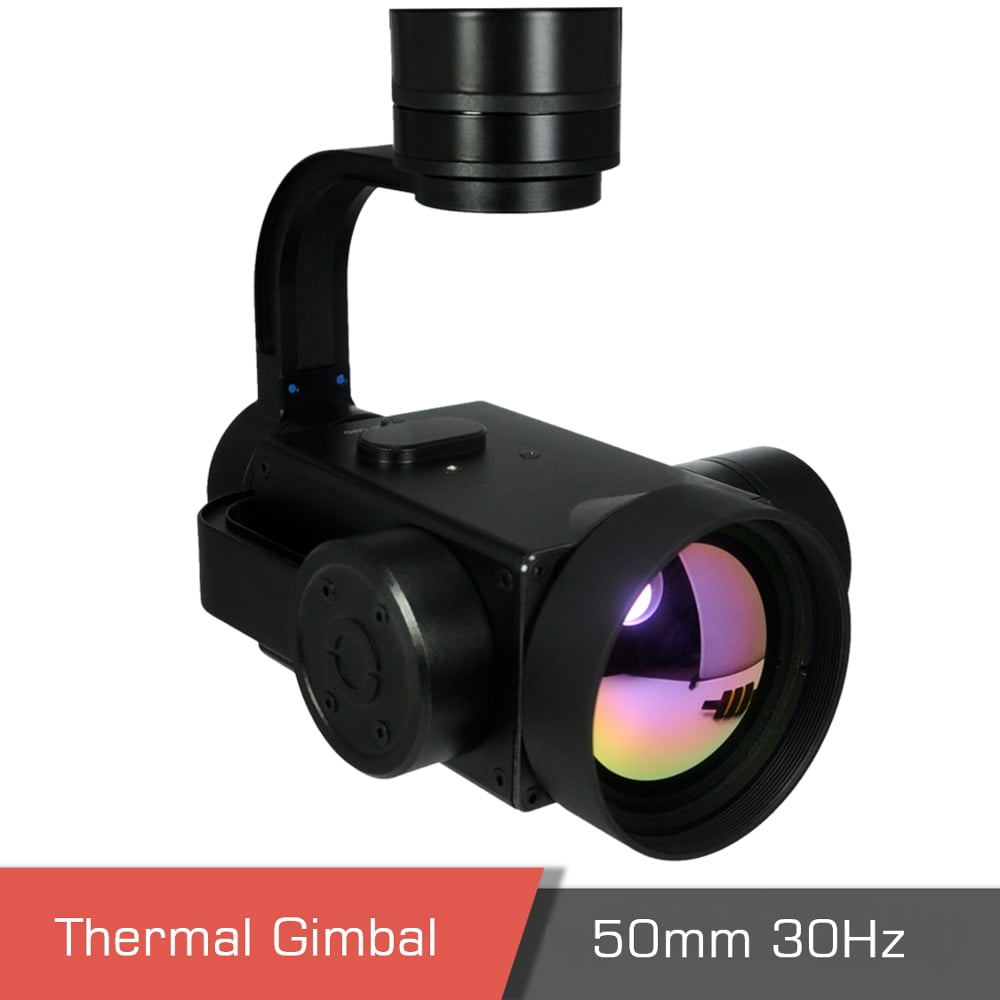

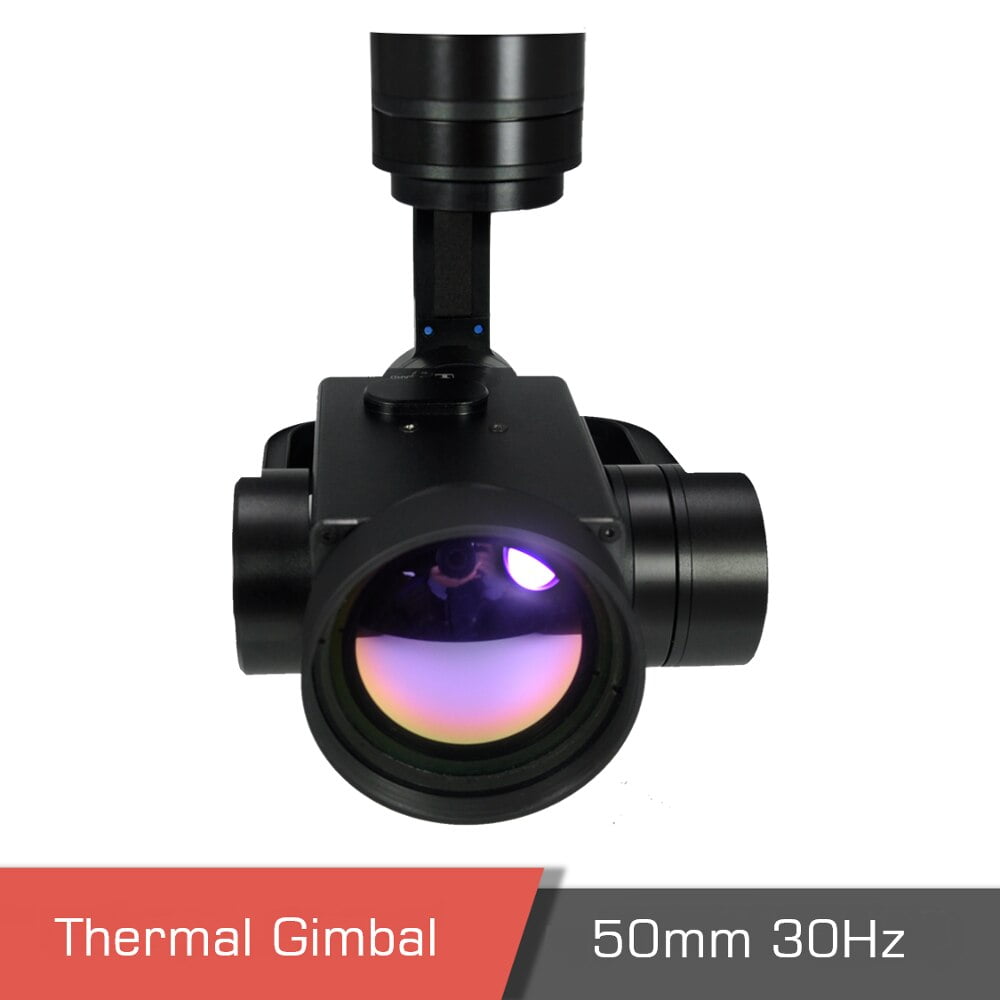

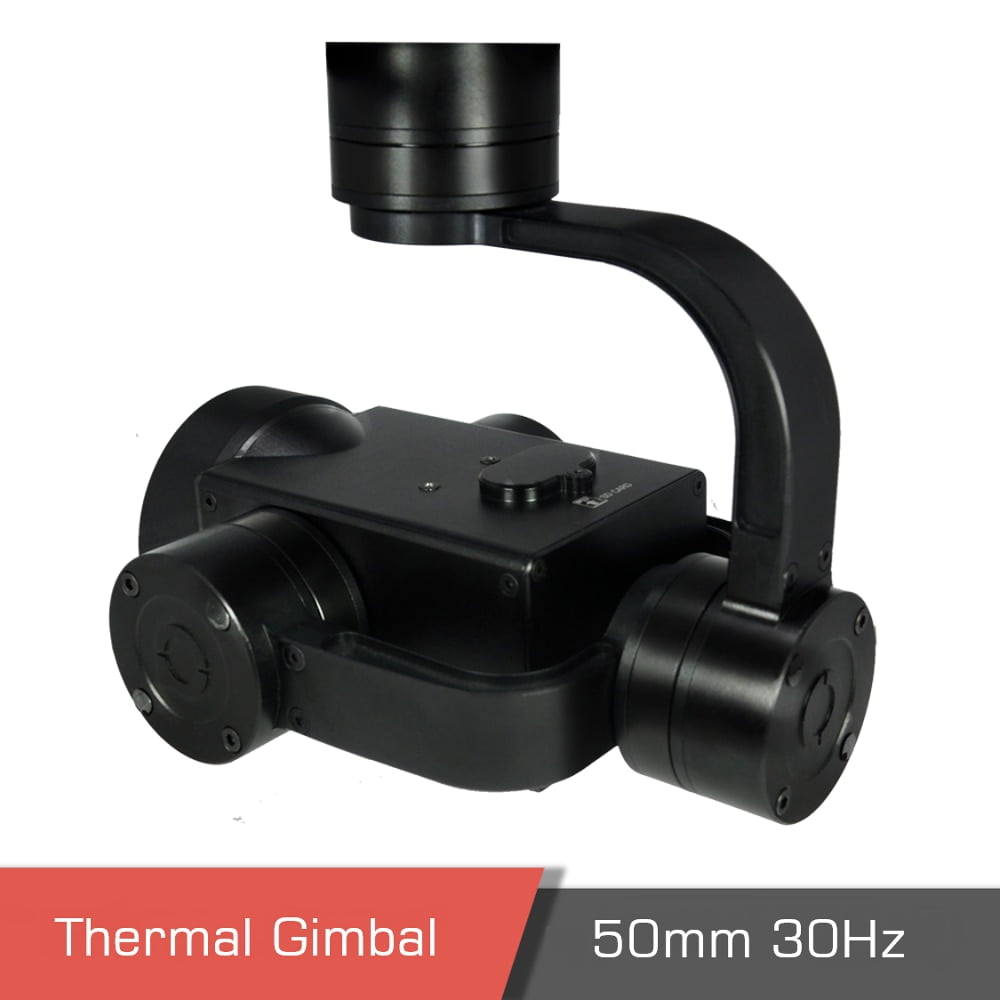

Single Sensor Thermal Camera Gimbal ZIR 50/ Night Vision

Overview of Gimbal ZIR 50 The thermal imaging camera lens size of ZIR50T is 50mm. It has just one infrared camera. There are 3 color palette to choose, white, iron red, pseudo color. ZIR50T is a pinpoint-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. Z- IR50 supports PWM control, S.BUS contral and serial command control, suitable for close range remote control or remote data command control. The speed of ZIR50T gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly. Powerful 50mm Thermal Imager Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 50mm lens thermal image sensor, ZIR50T can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more. Multi Output Methods Optional ZIR50T supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan. Multi Control Methods Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl. Control box signal interfaces Compatible with Viewport ZIR50T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play. Application of this thermal camera Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties. Dimensions For a comprehensive reading of related products, please visit the Motionew website. Simple FAQ (ZIR-50 – Engineers & B2B Buyers) 1. What are the main specifications of the ZIR 50 thermal gimbal? The ZIR 50 features a 50mm thermal infrared lens with three selectable color palettes (white, iron red, pseudo color). It is a single-sensor system designed for professional thermal imaging missions. 2. How is stability maintained during operation? The gimbal uses a 3-axis stabilization system with FOC motor control technology and precision encoders in each motor, ensuring smooth and accurate imaging. 3. What control options are supported? It supports PWM, S.BUS, and serial command control, allowing both close-range manual operation and remote data command integration. 4. What payment methods are accepted? Customers can complete purchases using international credit cards, PayPal, or bank transfers. 5. Is OEM customization available for enterprise buyers? Yes. OEM integration and customization are available for industrial and enterprise applications. 6. What documentation is included with the product? The package includes user manuals, specifications, and integration guides. Additional technical documents are available upon request from MotioNew’s support team.
