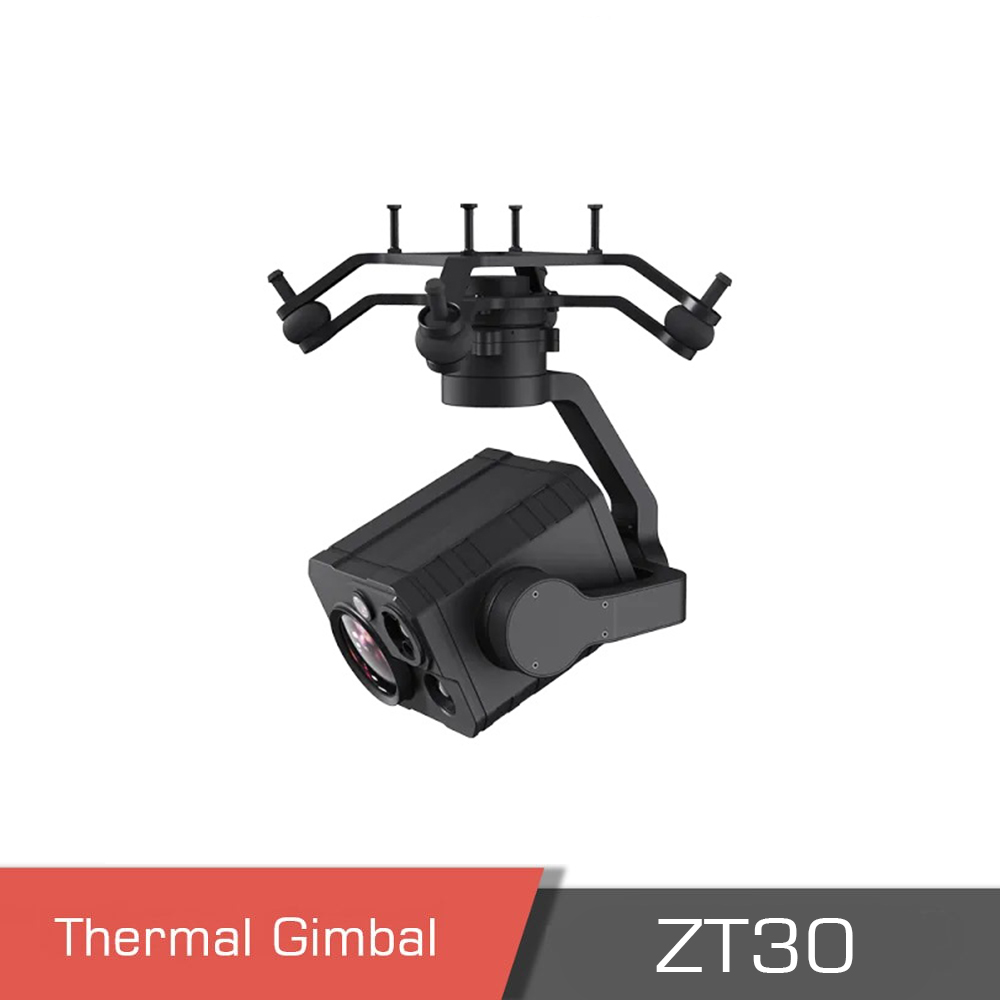

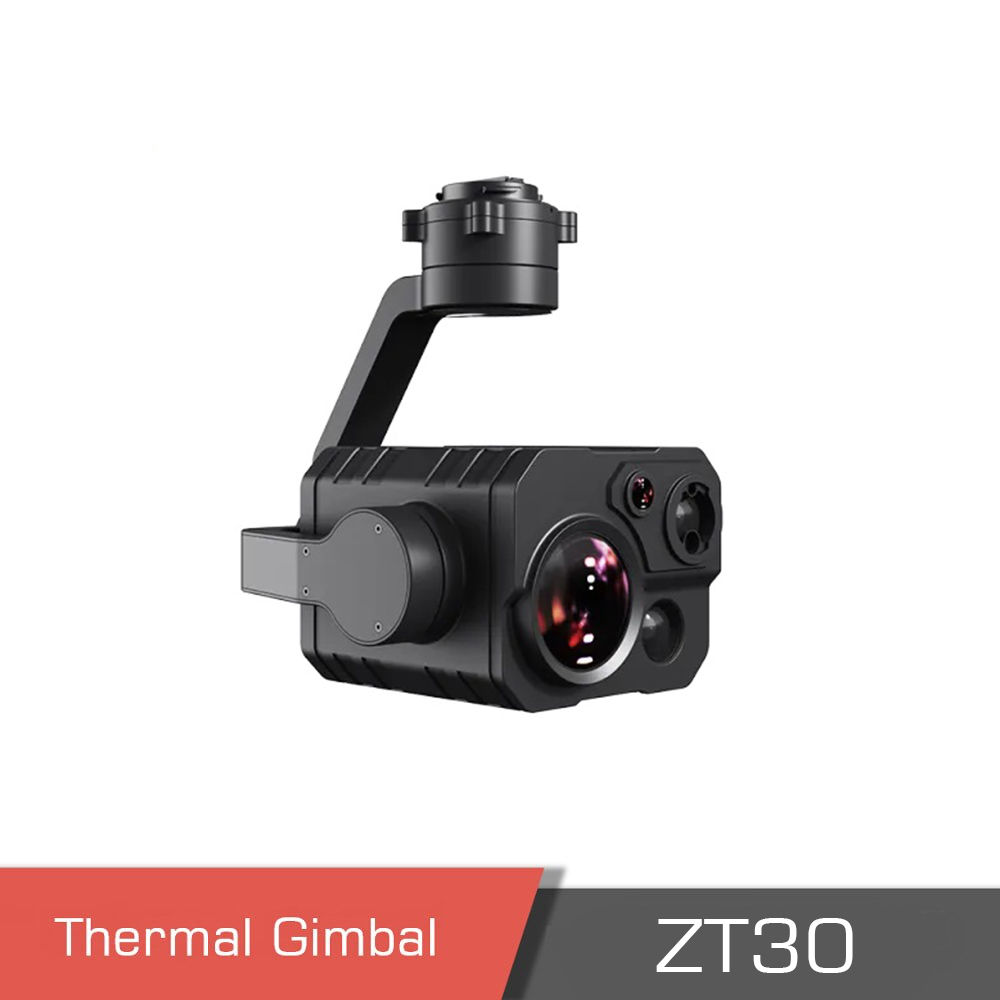

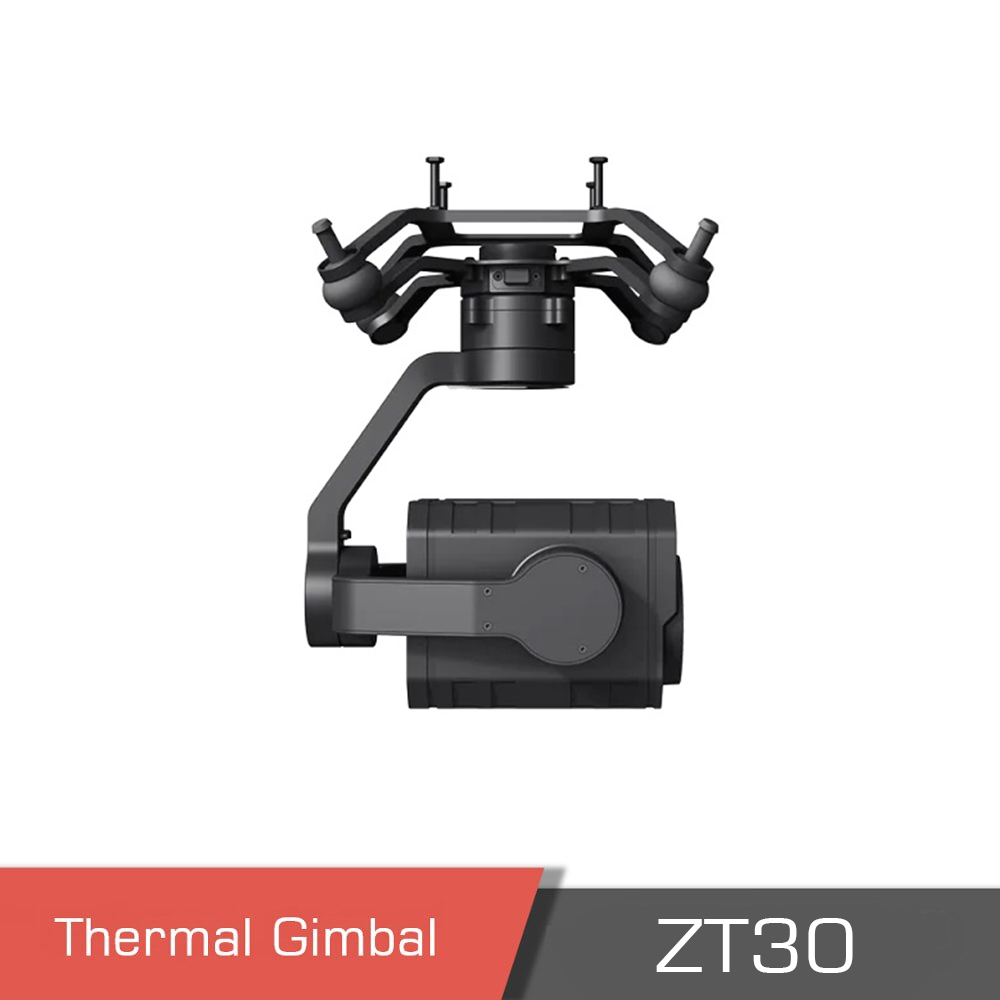

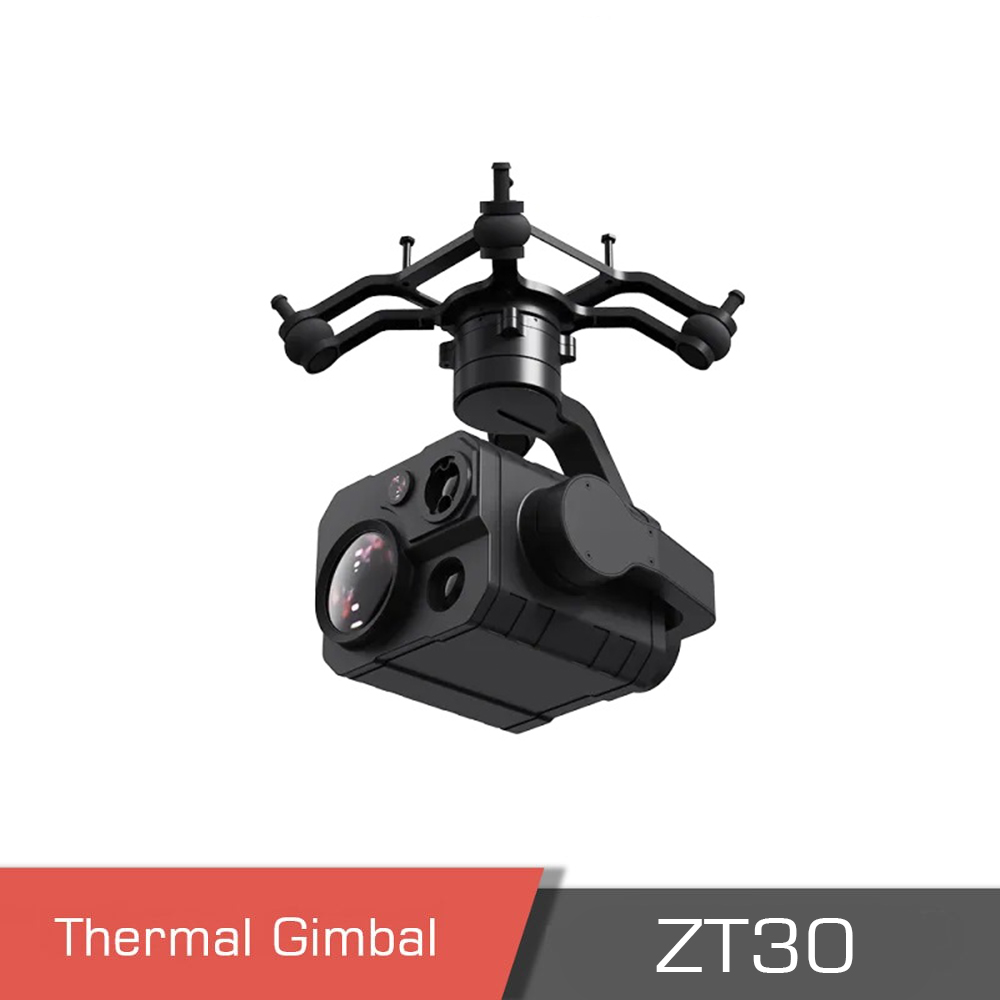

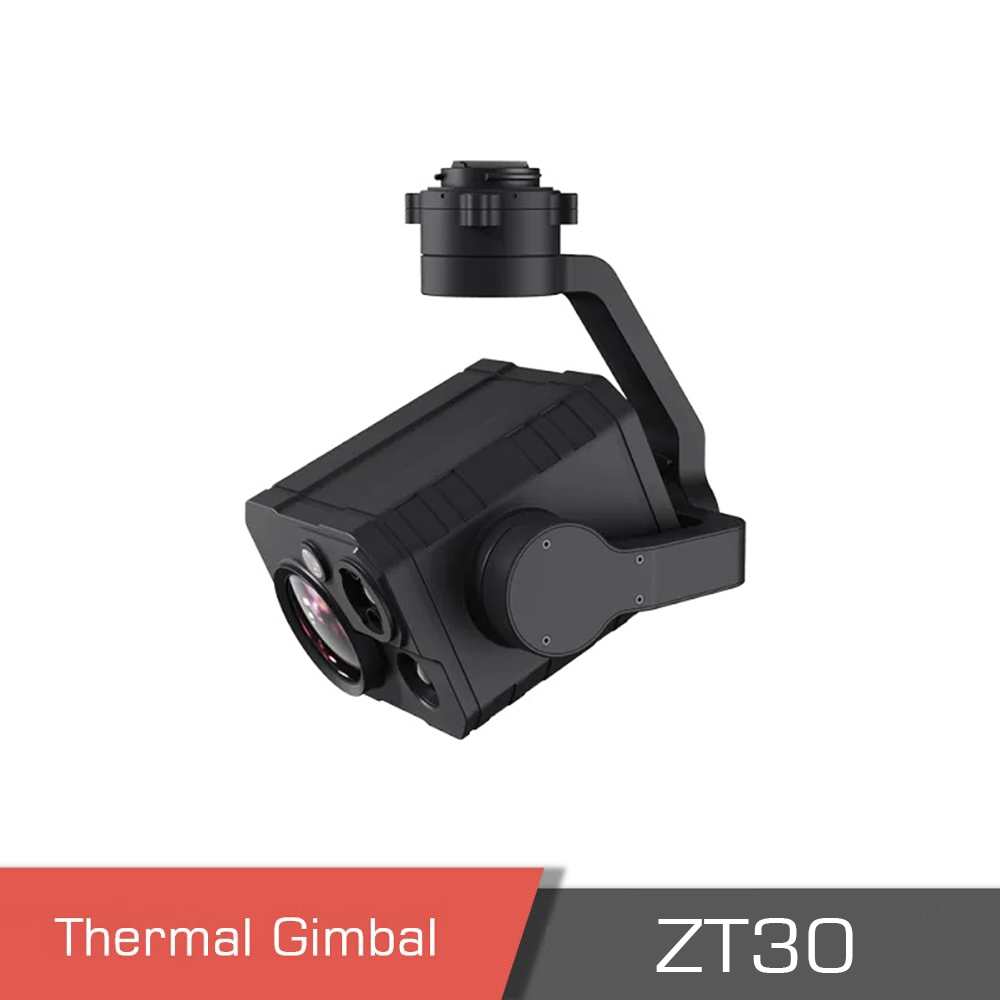

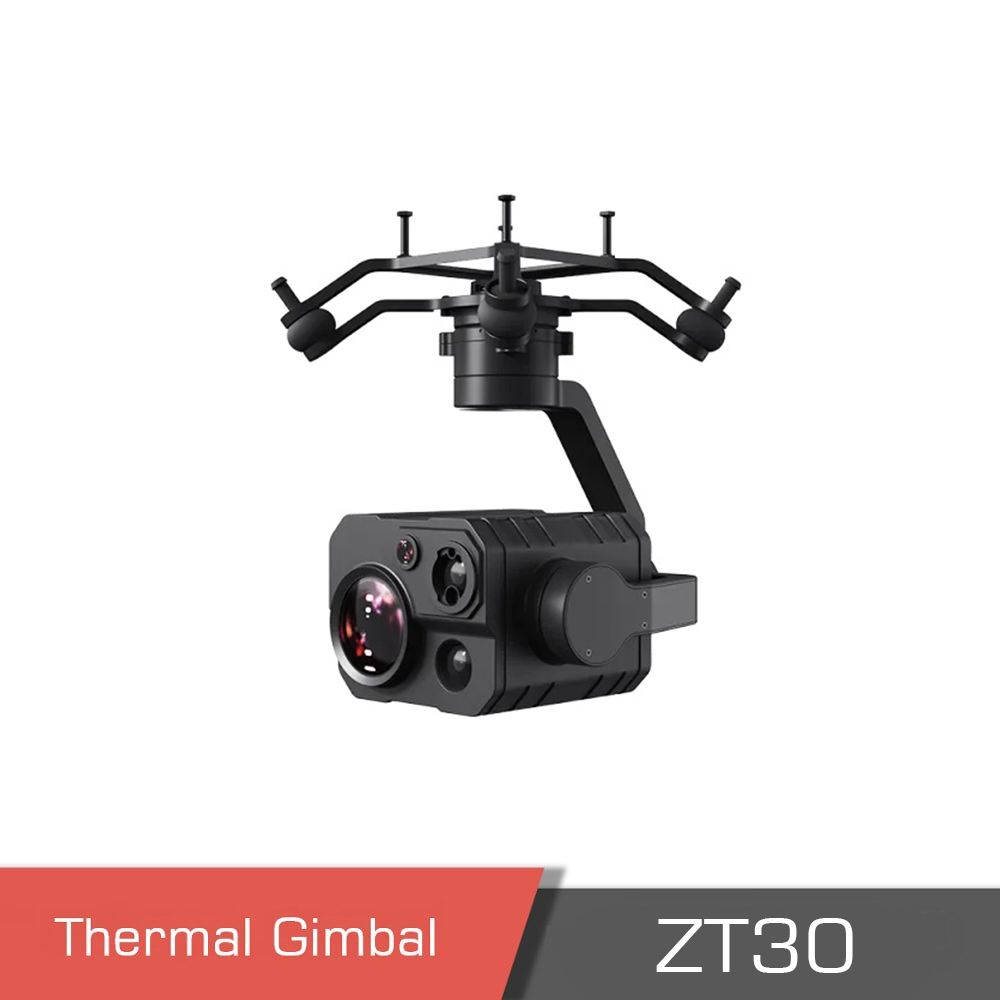

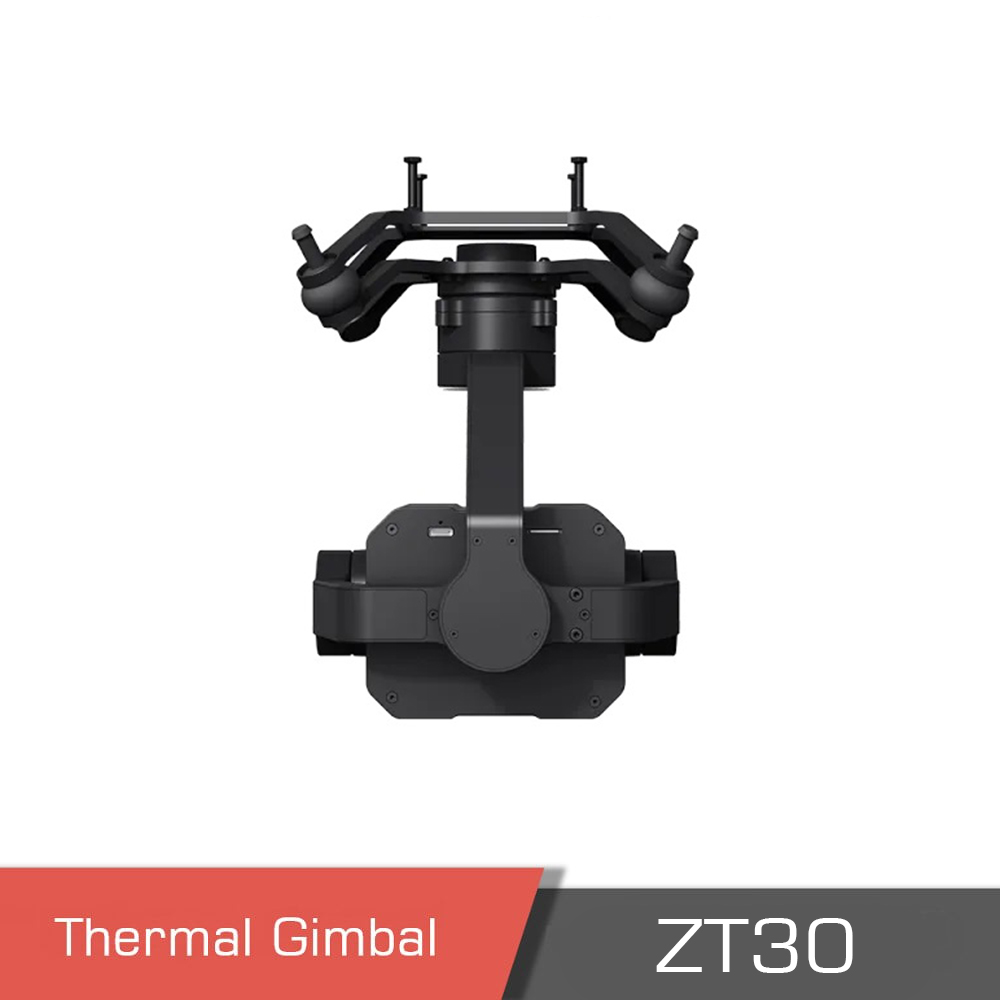

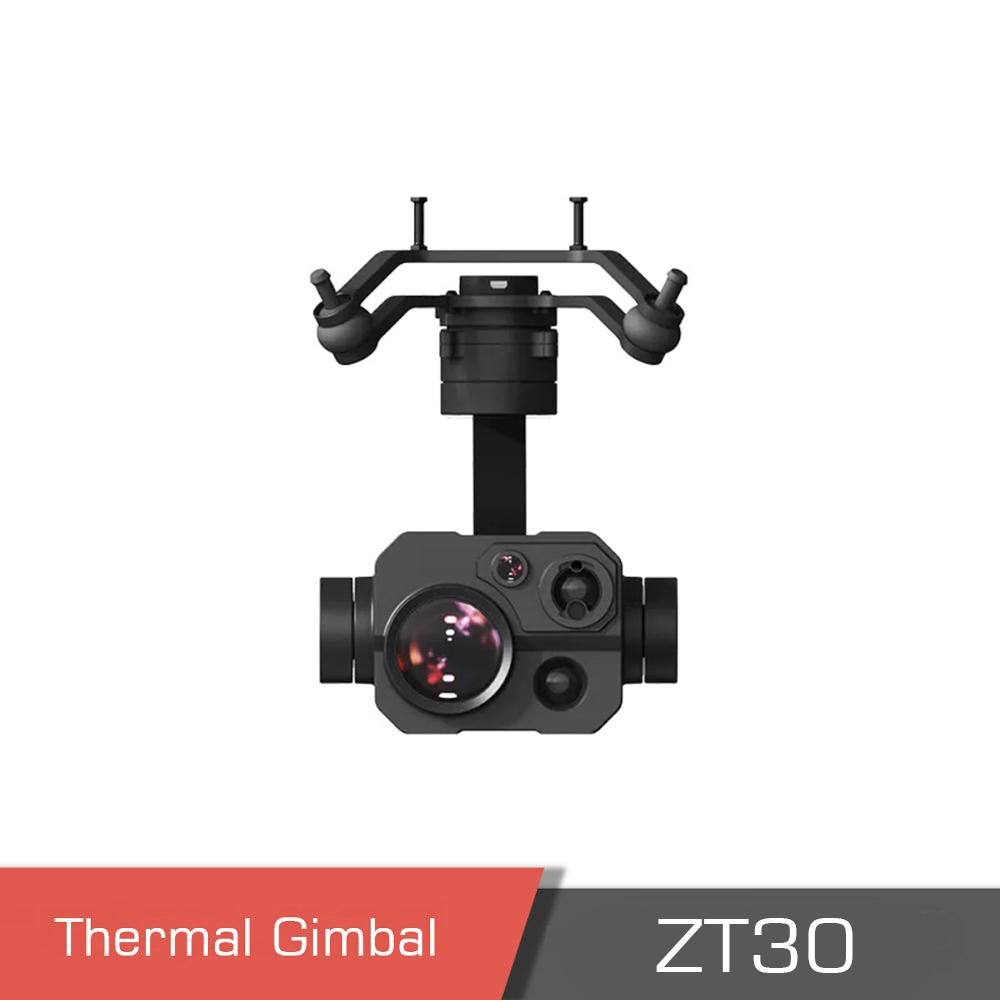

SIYI ZT30 high resolution AI gimbal camera – Optical Pod Camera

Gimbal Camera AI object detection and Tracking Video Introducing the SIYI ZT30 Optical Pod The SIYI ZT30 Optical Pod is a hybrid sensor solution considered as the industry leader. It features a combination of zoom, thermal imaging, wide-angle camera, and laser rangefinder that work efficiently together. With this technology, heat sources can be detected while simultaneously measuring distance and capturing clear images. The four-sensor optical housing is equipped with a thermal image sensor, with a resolution of 640×512, a focal length of 19mm, and a frame rate of 30fps. Once an abnormal heat source is detected, fast and accurate responses are possible. SIYI ZT30 is suitable for applications where you need a fixed wing drone with gimbal camera . Advanced Features of the SIYI ZT30 Optical Pod The laser range of the SIYI ZT30 Optical Pod is 1200m, and the measurement accuracy is 0.1m, making it possible to obtain accurate coordinates in real-time, even in high-risk operational areas. Using the integrated Neural Processing Unit (NPU), and in combination with SIYI’s proprietary AI algorithm, the SIYI ZT30 Optical Pod can identify moving targets such as cars, ships, and people, among others. Continuous tracking, identification, and positioning are possible with the help of the gimbal attitude control and flight control system. The ZT30 also has an automatic zoom function, ensuring that the target is always in the center of the screen while maintaining clear visibility (The AI function is under development and will be supported through an upgrade). Enhanced Imaging Capabilities The SIYI ZT30 features a 1/2.7″ Sony 4K image sensor camera with a 180x hybrid zoom and a 30x optical zoom, as well as a wide-angle camera with 2K resolution. This allows for a clear wide view and the ability to capture panoramic shots. The pictures taken with the ZT30 get GPS location information and a time stamp. Versatile Zoom Functions and Enhanced Stability The ZT30 has several functions related to zoom, including infrared zoom, synchronized zoom, video split-screen, starlight night vision, point-to-focus, focus tracking, and HDR. These functions provide accurate control over image details, true colors, and natural brightness. The ZT30 also features a limitless yaw axis rotation with improved quick release and vibration dampers. The yaw axis of the ZT30 gimbal rotates endlessly, providing 360° all-around visibility when mounted below fixed wing drone, VTOL drones , or aircrafts. SIYI’s quick-release structure is equipped with better stabilization and more load capacity, making it compatible with ZR30 and able to support more payload in the future. Communication interfaces of SIYI ZT30 SIYI’s Optical Pods offer extensive compatibility to contribute to smart robotics in all aspects. They can be controlled via SBUS, Ethernet, UDP, and UART (with SIYI SDK) or common open-source protocols such as Ardupilot and Mavlink (Mavlink control is under development and will be supported with an upgrade in the future). Extensive Compatibility and Control Algorithms The SIYI ZT30 Optical Pod has control algorithms with high accuracy and effectiveness. It features IMU calibration algorithms for compensation and correction of inertial measurement unit errors and the reduction of disturbance factors such as zero offset, scale factor, inter-axis error, temperature drift, and noise, among others. These algorithms significantly improve the IMU measurement accuracy and gimbal stability, even in the presence of larger temperature differences, wide margin control, and strong vibrations. The attitude fusion algorithms make extensive use of sensor data (accelerometers, gyroscopes) to obtain roll, pitch, and yaw angles through mathematical models and filtering algorithms. This information leads to a significant improvement in system performance, robustness, and stability. The 3-axis industry-grade stabilization algorithms efficiently use and integrate 3-axis gyroscopes/accelerometers, PID controllers, motors, and magnetic encoders to stabilize the gimbal and output stable high-quality video images even during motion. For a comprehensive reading of related products, please visit the Motionew website. FAQ – SIYI ZT30 Gimbal Camera 1. What sensors are integrated in the SIYI ZT30? The ZT30 combines a long-range zoom camera, a thermal imaging sensor, a wide-angle camera, and a laser rangefinder, offering a complete multi-sensor solution in one payload. 2. What are the main imaging and detection capabilities? It supports EO zoom for long-range surveillance, thermal imaging for heat detection, wide-angle situational awareness, and precise distance measurement with the integrated laser rangefinder. 3. Does the ZT30 include AI-assisted features? Yes. It features onboard AI object detection and tracking algorithms, allowing autonomous recognition and continuous tracking of moving targets. 4. What payment methods are supported for purchasing the ZT30? Payments can be made using major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for enterprise or defense projects? Yes. OEM services are offered for bulk orders and customers requiring customized EO/IR + LRF configurations. 6. Are technical documents and manuals provided with the product? Yes. Buyers receive datasheets, setup guides, and integration manuals to support installation and operation.
