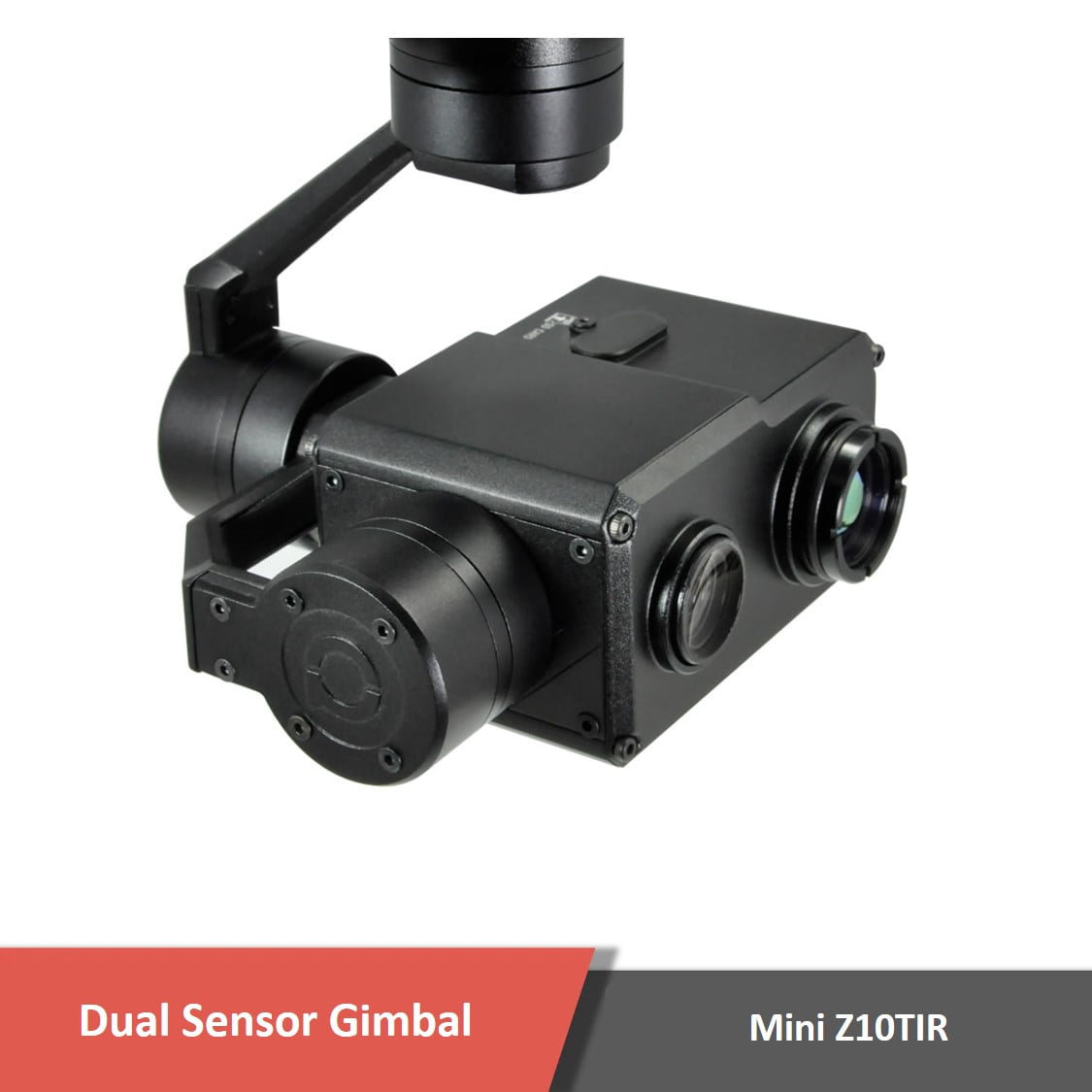

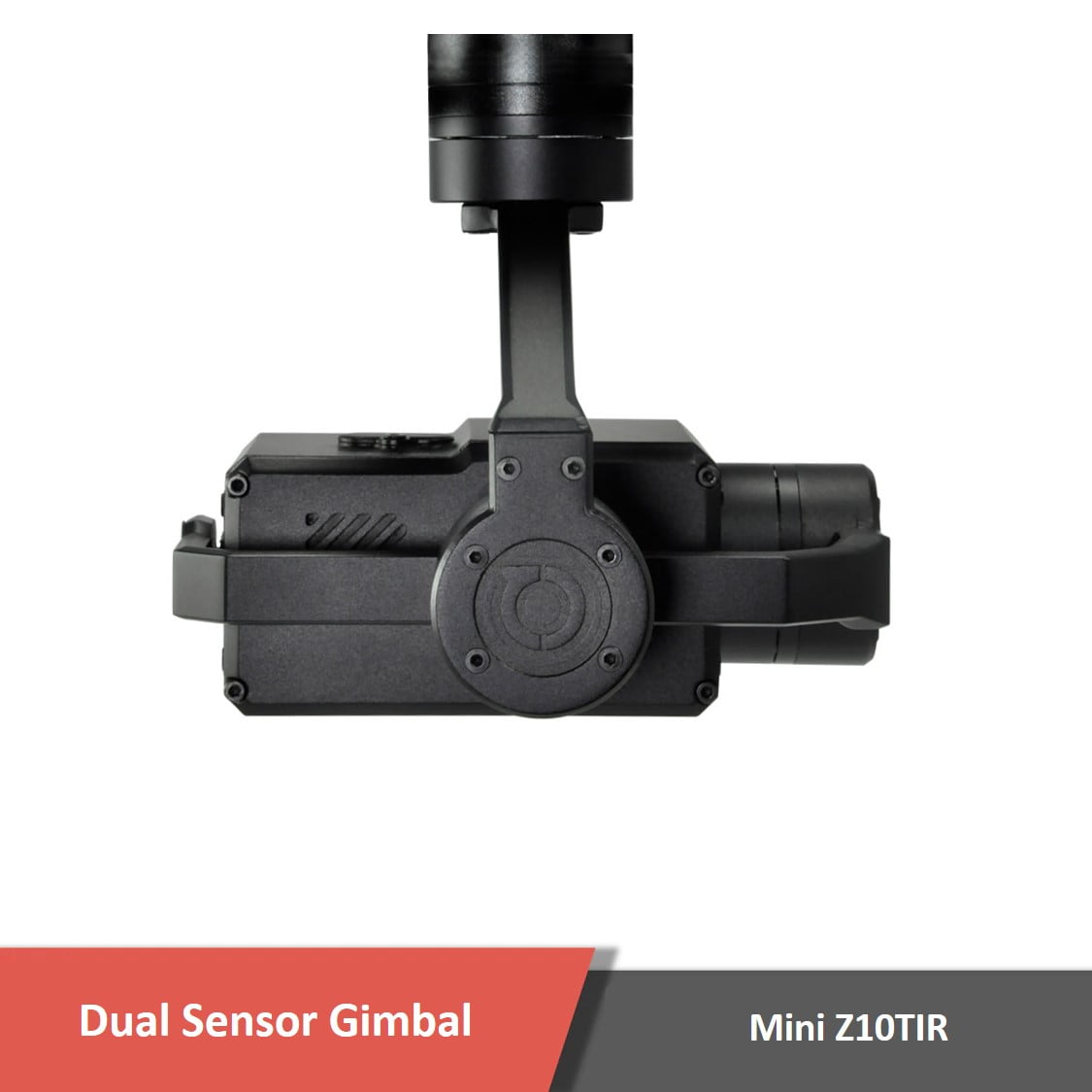

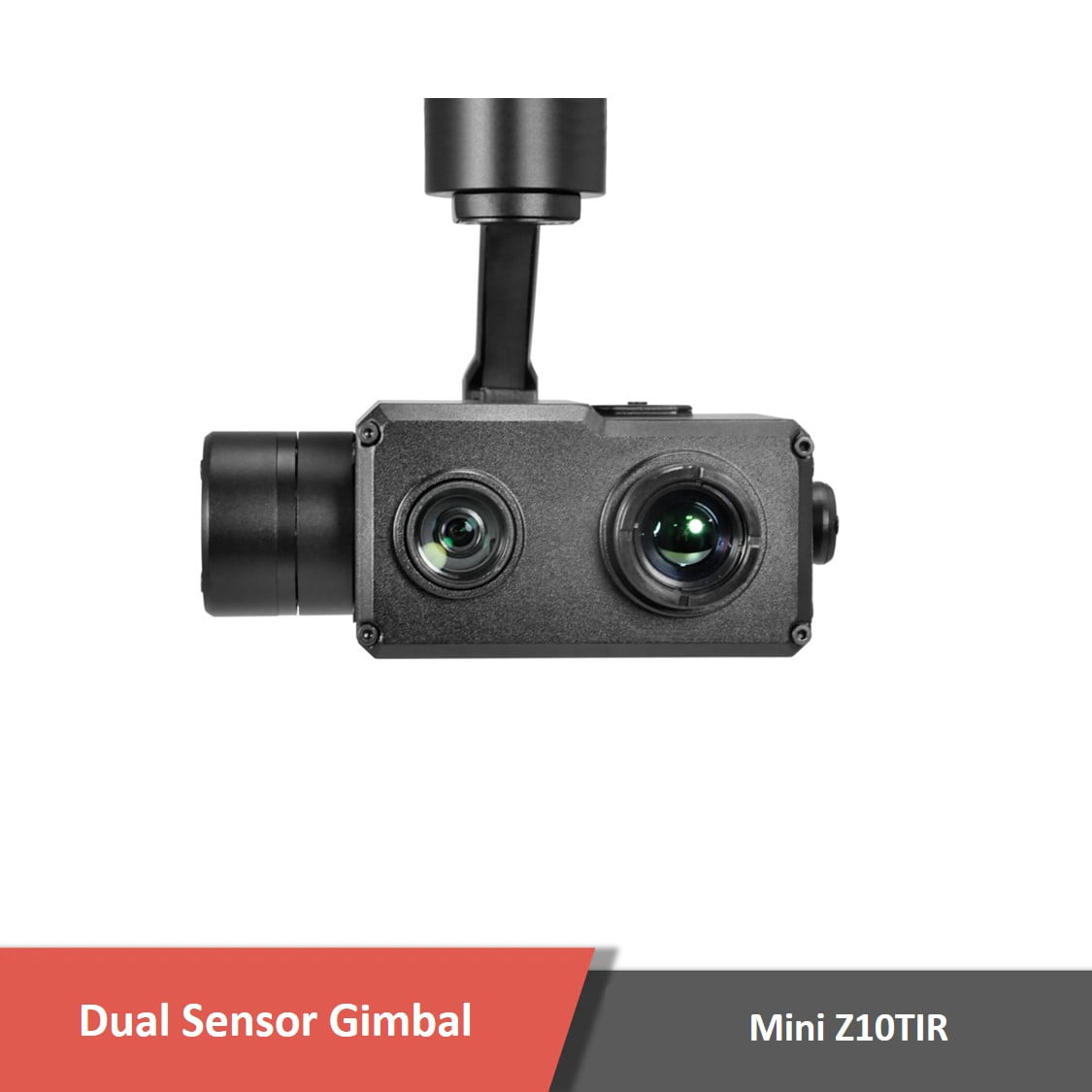

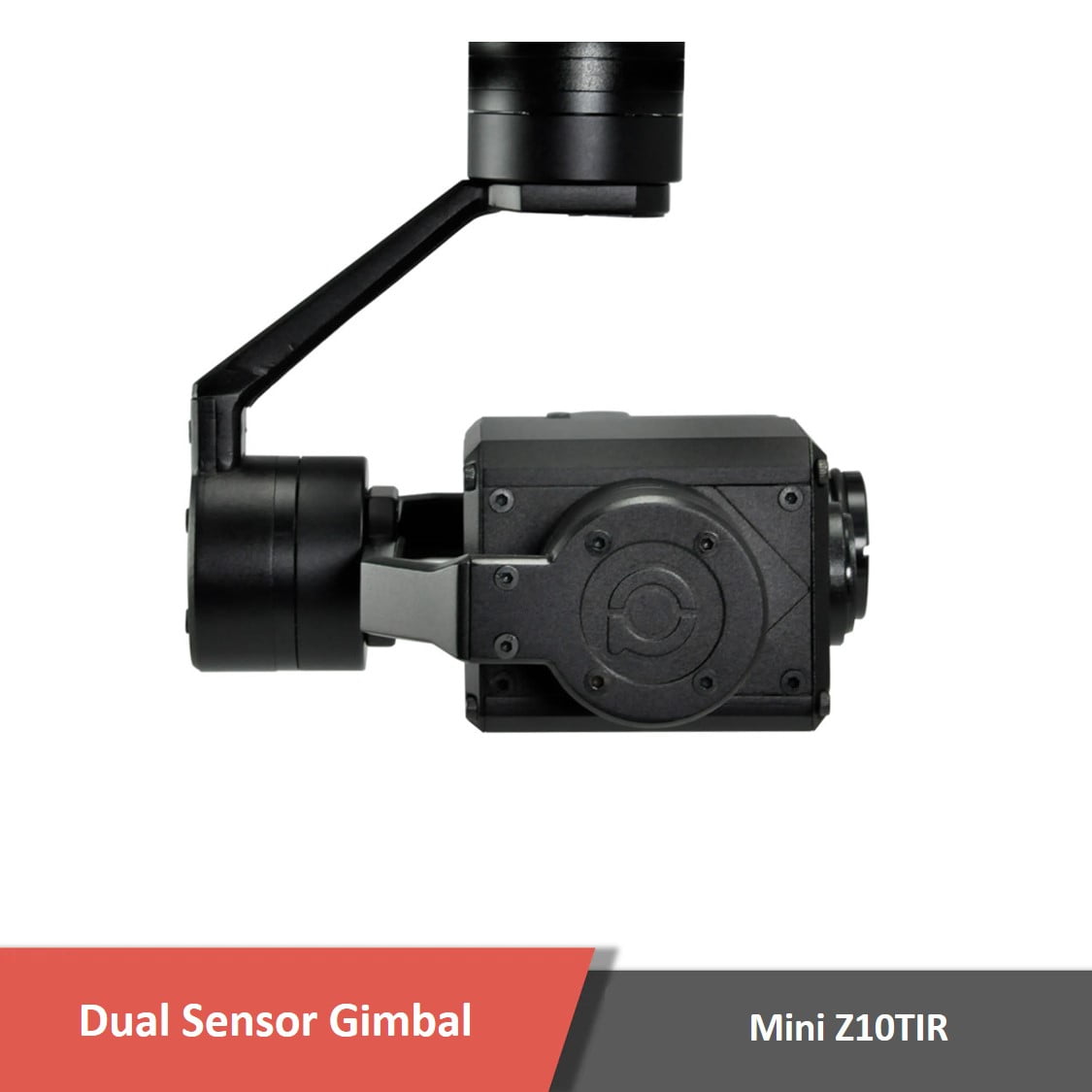

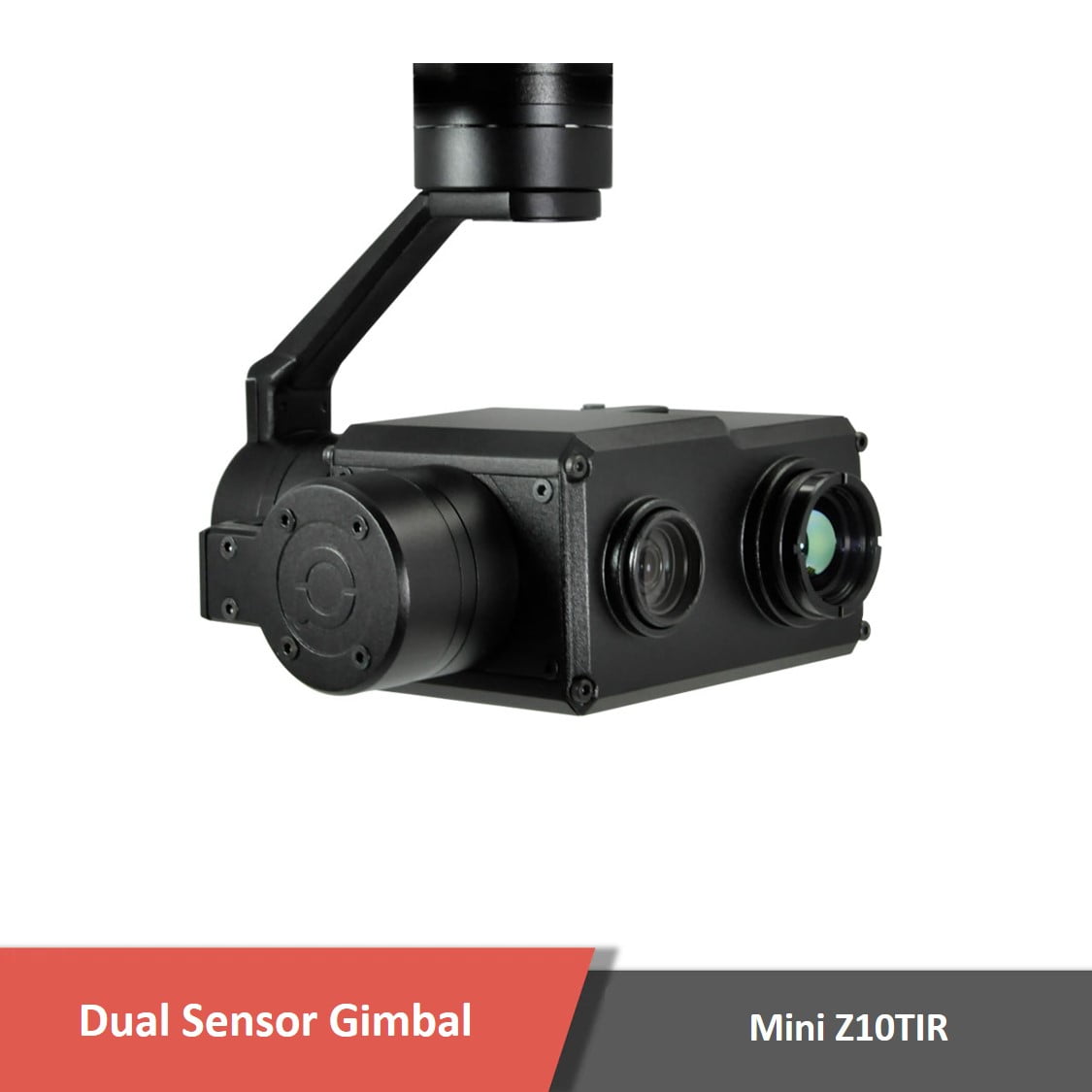

Dual Sensor Gimbal Mini Z10TIR Thermal Camera

Professional 3-axis High-precise FOC Program Stabilizing the Mini Z10TIR is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Mini Z10TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight. 10x Zoom Camera Powered by 1/3″ CMOS module, with color 0.5lux@F1.6. 2.48mega effective pixel and 1080p FHD image quality, combined with powerful optical zoom technology, fast auto-focus speed,designed for UAV aerial photography. Powerful 25mm Thermal Imager Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 25mm lens thermal image sensor, Z10TIR can record and transmit thermal image and visible images at the same time. There are two different thermal resolutions for optional: 640*480 as standard version and 384*288 resolution as low configuration. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more. Visible Light and Thermal Imager Dual Sensors Object Tracking Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect. Multi Output Methods Optional Mini Z10TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan. Multi Control Methods Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl. Control box signal interfaces: Compatible with Viewport Mini Z10TIR is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play. Application of Mini Z10TIR Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties. Dimension Simple FAQ (MNW102 / MNW103 Drone Winch Grips – Engineers & B2B Buyers) 1. What sensors are integrated into the Mini Z10TIR? It combines a 10x optical zoom visible light camera with a 640×512 resolution thermal infrared sensor, making it suitable for both day and night missions. 2. How is image stability ensured during flight? The gimbal uses a 3-axis stabilization system with high-precision FOC control, hidden wiring, and damping structures to minimize vibrations. 3. What are its main applications? The Mini Z10TIR is ideal for public security, search and rescue, firefighting, power line inspection, and industrial monitoring missions. 4. What payment options are accepted? Customers can pay via international credit cards, PayPal, and bank transfers. 5. Is OEM customization available for enterprise buyers? Yes, OEM and integration support are offered for bulk or enterprise-level projects. 6. What documentation is included with the product? Each package comes with technical specifications, a user manual, and integration guides. Additional documents are available upon request from Kratos Defense Drone Shop support.
