Holybro M8N GPS with UBLOX M8N module IST8310 compass

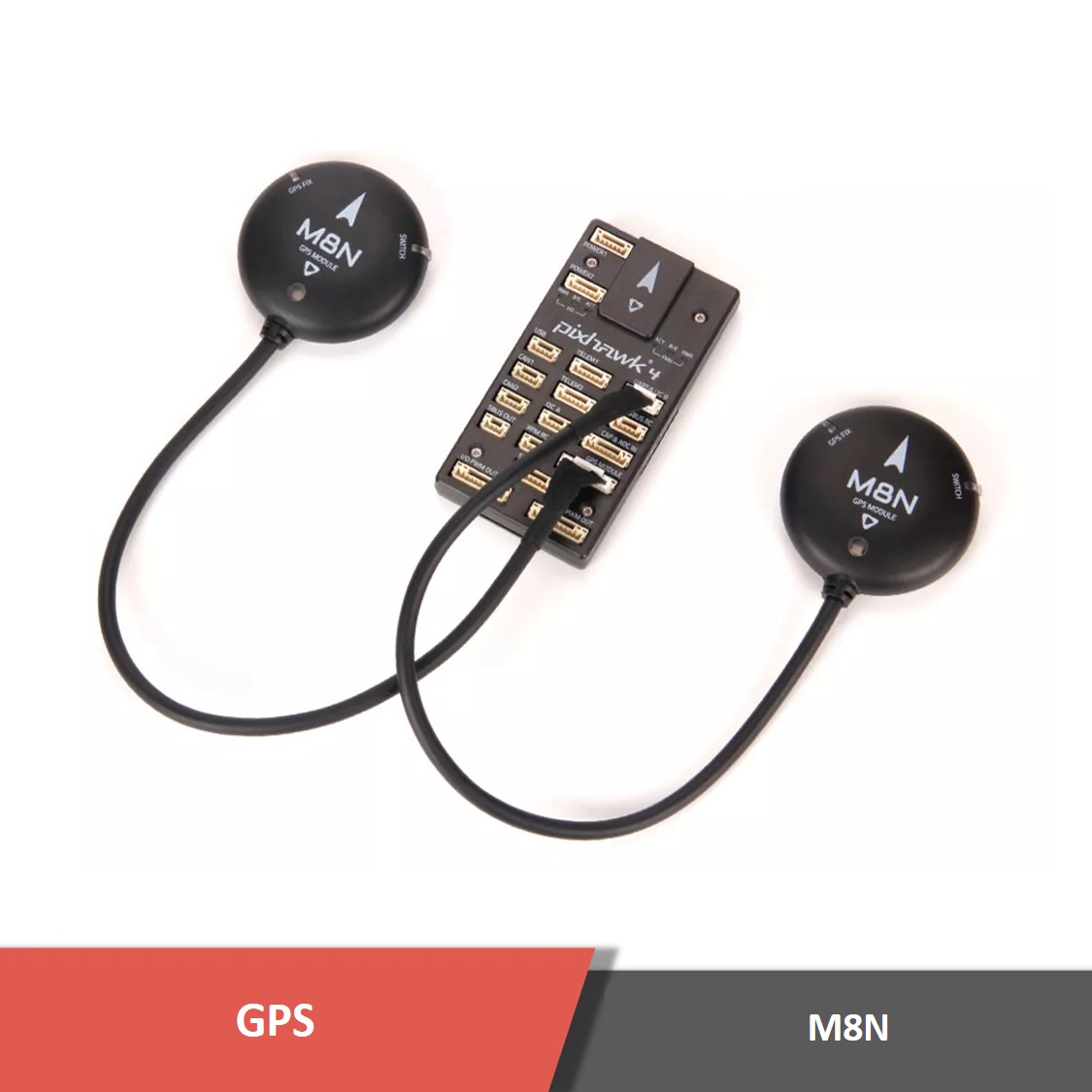

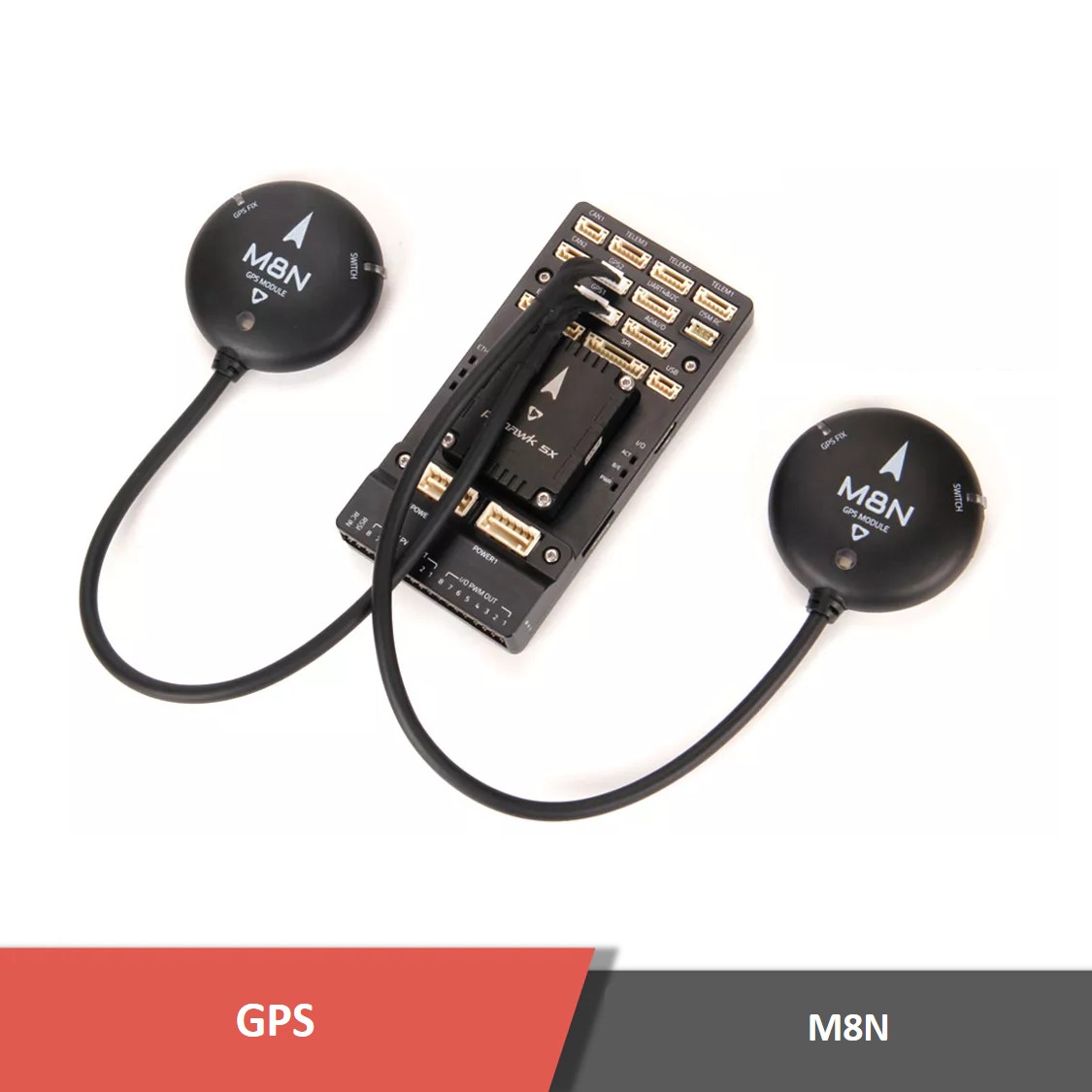

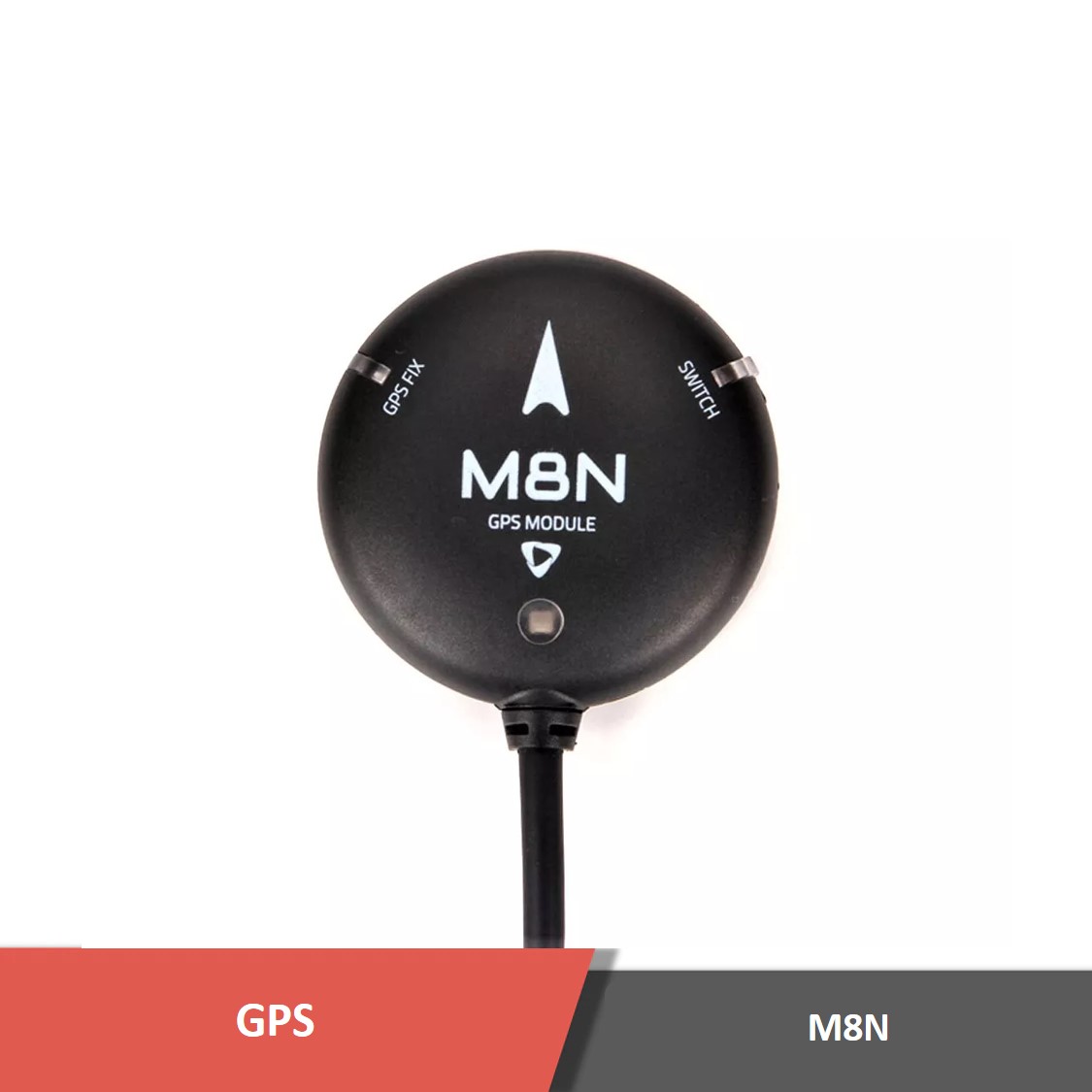

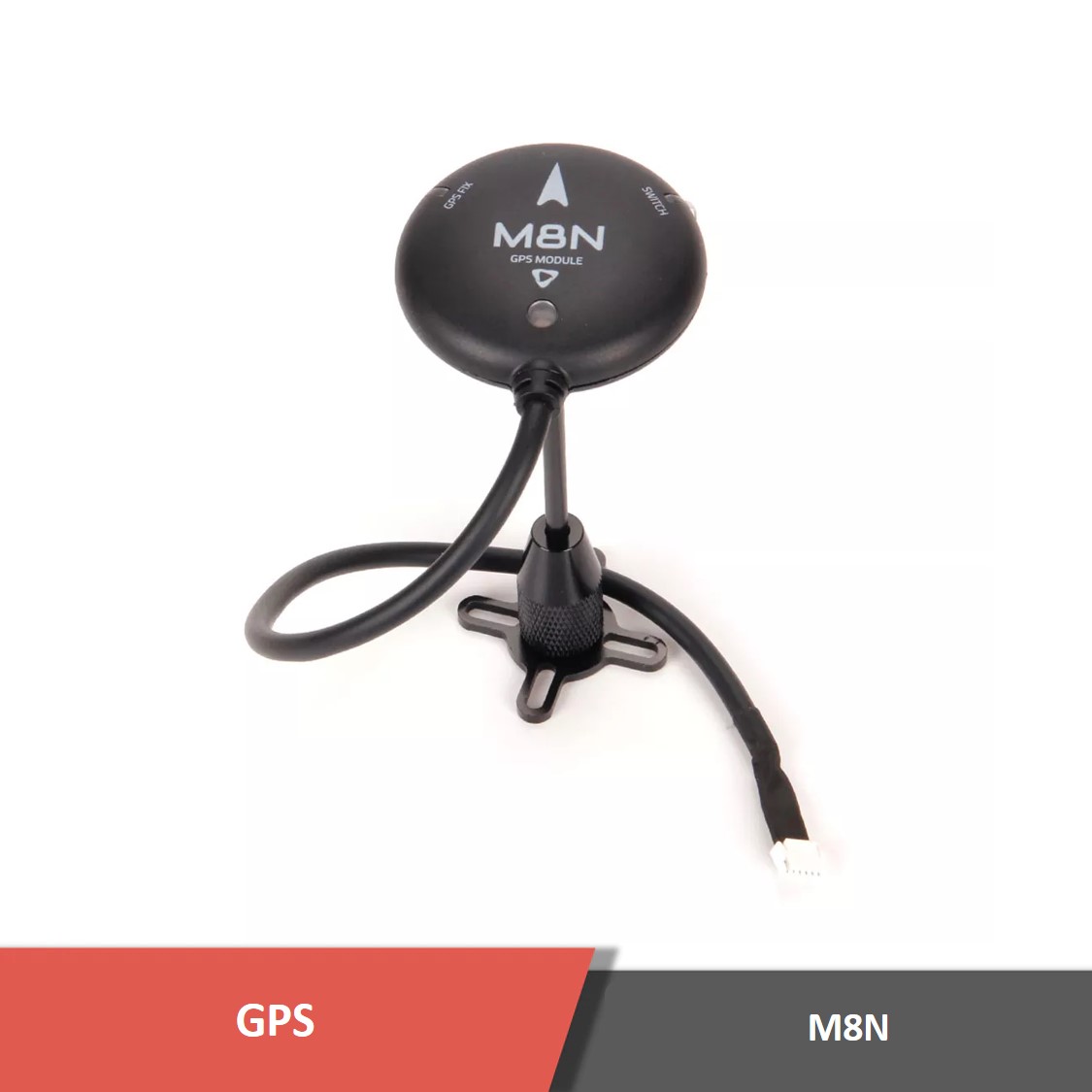

Holybro M8N GPS system It is equipped with a UBLOX M8N module, an IST8310 compass, a tricolored LED indicator, and a safety switch. Depending on the purpose, there are three different connector options available. A 38400 5Hz baud rate is provided with the module when purchased. Features and Specifications: – Ublox Neo-M8N module – Industry-leading –167 dBm navigation sensitivity – Cold starts: 26s – LNA MAX2659ELT+ – 25 x 25 x 4 mm ceramic patch antenna – Rechargeable Farah capacitance – Low noise 3.3V regulator – Current consumption: less than 150mA @ 5V – Fix indicator LEDs – Protective case – Cable Length: 26cm – Diameter 50mm total size, 32 grams with the case. Pin Map The Holybro M8N GPS (JST GHR1.25mm 10pin cable) is as follows: With this JST GH 10Pin connector, you can use it on the 10pin “GPS Module” or “GPS1” input port of the Pixhawk Standard Flight Controller. The M8N GPS for Pix32 (Molex1.25mm 6 pins, 4 pins, and 3pins cable): These Molex1.25mm 6 pins, 4 pins, and 3 pins are designed to handle inputs such as the “Switch”, “GPS” and “I2C” ports on the Pix32. Using the Holybro M8N 2nd GPS cable (JST GHR1.25mm 6pin cable): The JST GH 6Pin connector can be used as the secondary GPS of the Pixhawk Standard Flight Controller via the 6-pin “UART & I2C” or “GPS2” input port. In addition to this GPS, it is also compatible with the GPS2 port on the Cube Flight Controller. Dimensions (in mm) If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team. FAQ – Holybro M8N GPS / Compass Module 1. What is the M8N GPS used for? It is a GNSS module with an integrated compass, designed to provide positioning and heading data for UAVs. 2. What GNSS and sensor features does it include? It uses the u-blox NEO-M8N receiver, which supports multiple satellite systems simultaneously and includes a built-in compass. 3. What are its performance specifications for sensitivity and start time? It offers high navigation sensitivity of around –167 dBm and a typical cold-start time of about 26 seconds. 4. What are the typical power, dimensions, and weight? It consumes less than 150 mA at 5 V, weighs around 32 g, and has a diameter of roughly 50 mm. 5. What installation or usage considerations are important? It should be mounted with a clear view of the sky, with the compass kept away from motors, wiring, and magnetic interference for accurate heading. 6. Is this module suitable for professional or industrial UAV deployments? Yes, its high sensitivity, integrated compass, and compatibility with major autopilot systems make it a reliable choice for advanced UAV applications.
