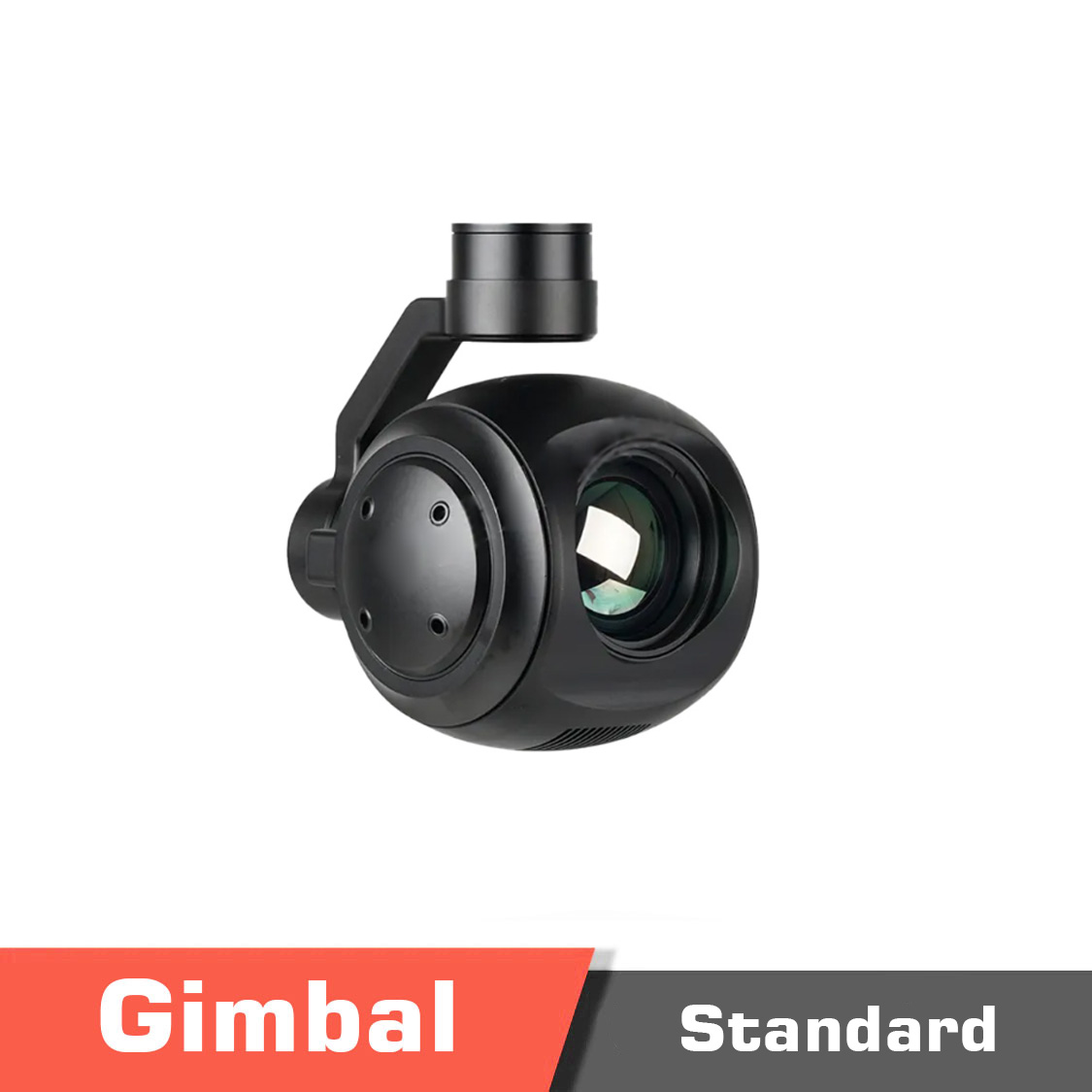

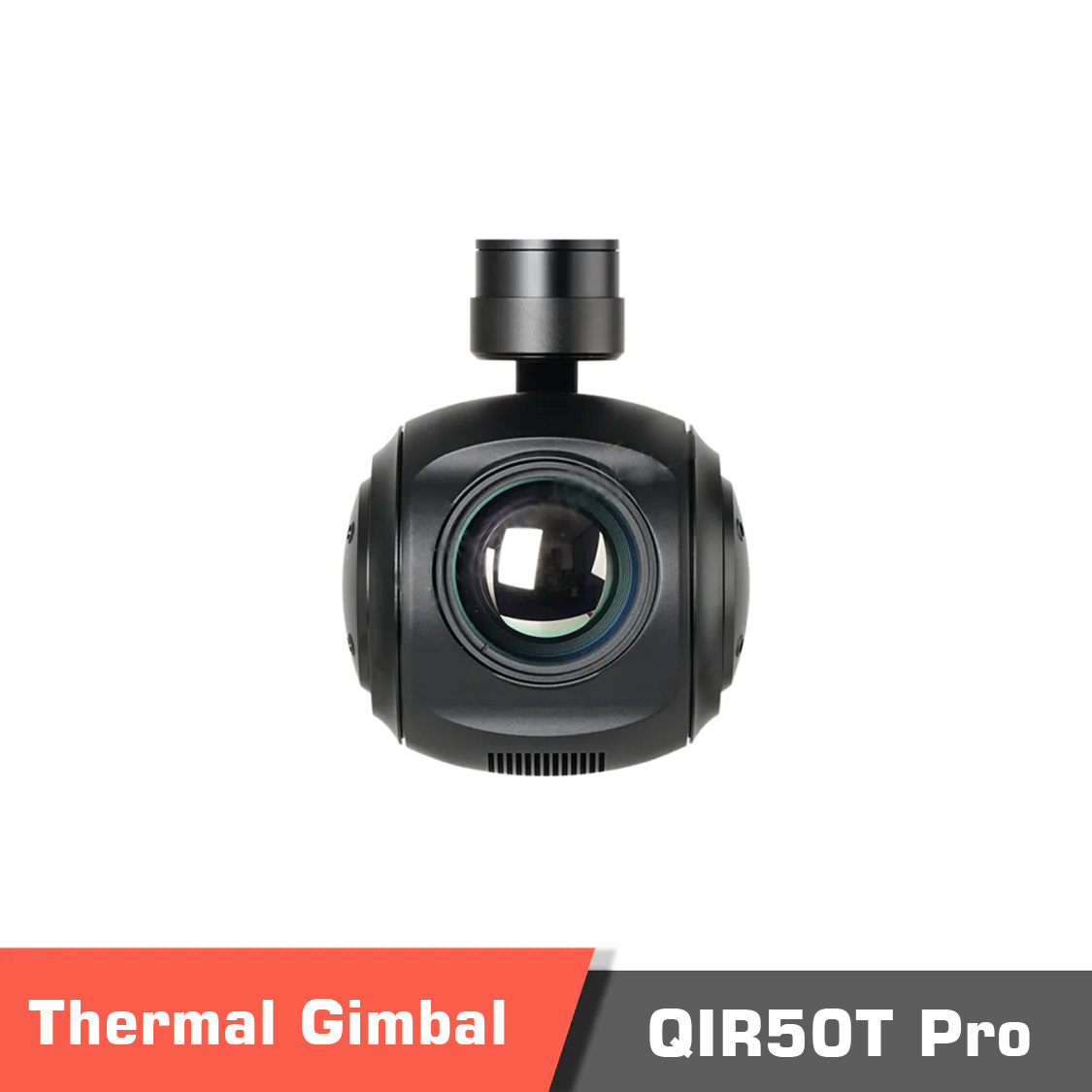

1280×1024 HD IR Thermal QIR50T Pro Gimbal Camera

QIR50T Pro Overview The QIR50T Pro is a high-performance IR thermal camera featuring a 1280×1024 HD uncooled long-wave (8μm~14μm) thermal imager with a 12μm pixel pitch, ensuring enhanced clarity and precision for long-range detection. Equipped with a 50mm focus length, it delivers closer and clearer imaging for critical applications. The camera operates on a working voltage of 16V, with an input range of 4S to 6S and an output voltage of 5V when connected via PWM. It supports dynamic current ranging from 500mA to 1000mA at 16V and functions effectively in temperatures from -20℃ to +60℃. The QIR50T Pro offers versatile output options, including micro HDMI (1080P 60fps), IP (RTSP/UDP 720p/1080p at 25fps/30fps), and SDI (1080P 30fps). It supports local storage via an SD card (up to 512G, class 10, FAT32 format), with picture storage in JPG format (1920×1080) and video storage in MP4 (1080P 30fps). Users can access stored data online via SMB or HTTP read, while control options include PWM, TTL, S.BUS, and TCP/UDP for IP output versions, making it a versatile solution for advanced thermal imaging applications. It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution. Professional 3-axis High-precise FOC Program Video Overview of the QIR50T Pro High definition Infrared Thermal Camera For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – QIR50T Pro Thermal Gimbal Camera 1. What are the key imaging specifications of the QIR50T Pro? The gimbal integrates a 1280×1024 HD uncooled long-wave infrared (LWIR) sensor with a 12μm pixel pitch and a 50mm focal length lens, providing high-clarity thermal imaging for long-range detection. 2. What video output formats are supported? It supports micro HDMI (1080P @ 60fps), IP streaming (RTSP/UDP up to 1080P @ 30fps), and SDI (1080P @ 30fps), ensuring compatibility with multiple monitoring and recording systems. 3. What are the control and storage options? Control options include PWM, TTL, S.BUS, and TCP/UDP for IP models. Local storage is supported via SD cards up to 512GB, with image saving in JPG and video in MP4 format. 4. What payment methods are supported for purchasing this gimbal? Payments can be made using major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for enterprise or defense applications? Yes. OEM services are available for bulk orders and specialized projects requiring tailored thermal imaging solutions. 6. Are technical documents provided with the purchase? Yes. Buyers have access to datasheets, manuals, and integration guides to support setup and deployment.
