NAV30U Inertial Navigation System (INS)

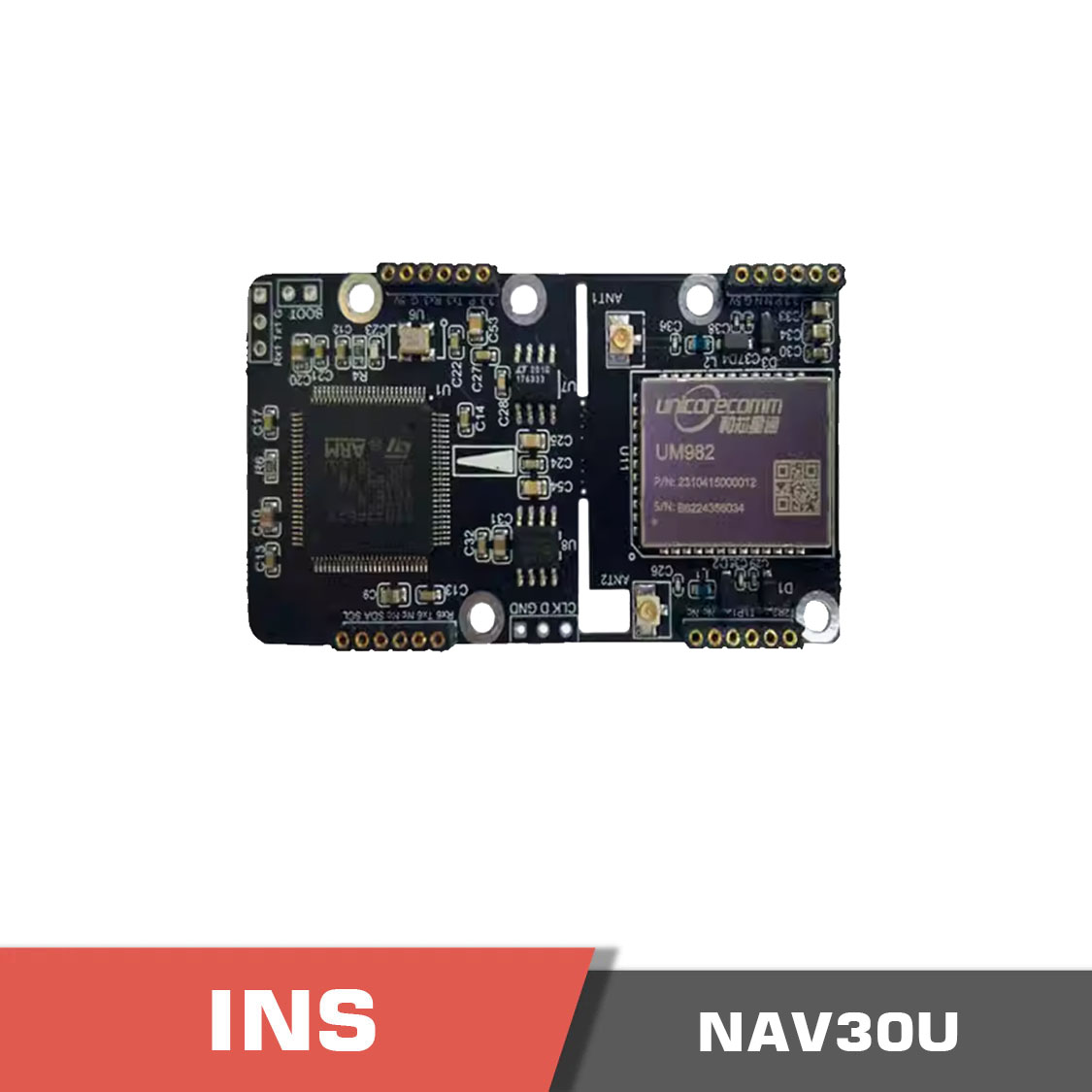

NAV30U Inertial Navigation System (INS) NAV30U Inertial Navigation System (NAV30 UltraINS) with Dual Antenna OEM Module integrates micro sensors such as three-axis gyroscope, three-axis accelerometer, three-axis magnetometer, GNSS receiving module, barometric altimeter, and a Drone Inertial Navigation System . It utilizes a built-in improved Extended Kalman Filter (EKF) algorithm for information fusion, effectively reducing the impact of carrier maneuvering, vibration, ambient temperature and electromagnetic interference, and providing users with complete and reliable three-dimensional position, three-axis attitude, three-axis speed, three-axis acceleration and other information up to 200Hz . NAV30 Ultra (Dual Antenna OEM Model) is structurally divided into two parts: GNSS module and inertial measurement module. It can be installed as a whole board, stacked, or used separately (the inertial measurement module can complete all functions without GNSS), which is convenient for users to integrate the system. Application areas: drones, robots, oceans, unmanned ships, unmanned vehicles, and human posture measurement. High quality performance; Support RTCM, support RTK ; Support dual antenna directionality; Up to 200Hz navigation data update frequency; Support whole board installation or cascade installation; Support users to customize structure, size, and data format. If you have any questions regarding our products, use the Kratos Defense Drone Shop Contact us page to consult our engineering team. NAV30U Inertial Navigation System (INS) – FAQ 1. What is the main function and design of the NAV30U INS? The NAV30U (UltraINS) is a high-performance dual-antenna inertial navigation system that integrates a 3-axis gyroscope, accelerometer, magnetometer, GNSS receiver, and barometric altimeter. It delivers real-time 3D position, velocity, attitude, and acceleration data up to 200Hz for UAVs, robotics, and autonomous vehicles. 2. What technologies and algorithms are used? It employs an advanced Extended Kalman Filter (EKF) algorithm for sensor fusion, minimizing errors caused by motion, vibration, temperature variation, and electromagnetic interference. 3. What are the installation and integration options? The NAV30U features a dual-module structure with separate GNSS and inertial measurement units. These can be installed together, stacked, or used independently, allowing flexible integration into different UAV or robotics systems. 4. What are the available purchasing and delivery options for the NAV30U? The module is sold as an OEM dual-antenna board set with cables and documentation. Kratos Defense Drone Shop provides global shipping with tracking and estimated delivery times displayed during checkout. 5. Does Kratos Defense Drone Shop support OEM and bulk purchasing for this model? Yes. OEM and volume purchase options are available for UAV manufacturers and research organizations. Buyers can request custom structural designs, dimensions, or data output formats through Kratos Defense Drone Shop’s sales department. 6. What documentation and support resources are provided? Comprehensive setup manuals, datasheets, and configuration guides are included in the product documentation section. Firmware updates, calibration tools, and technical support are provided through Kratos Defense Drone Shop’s engineering support teams.
