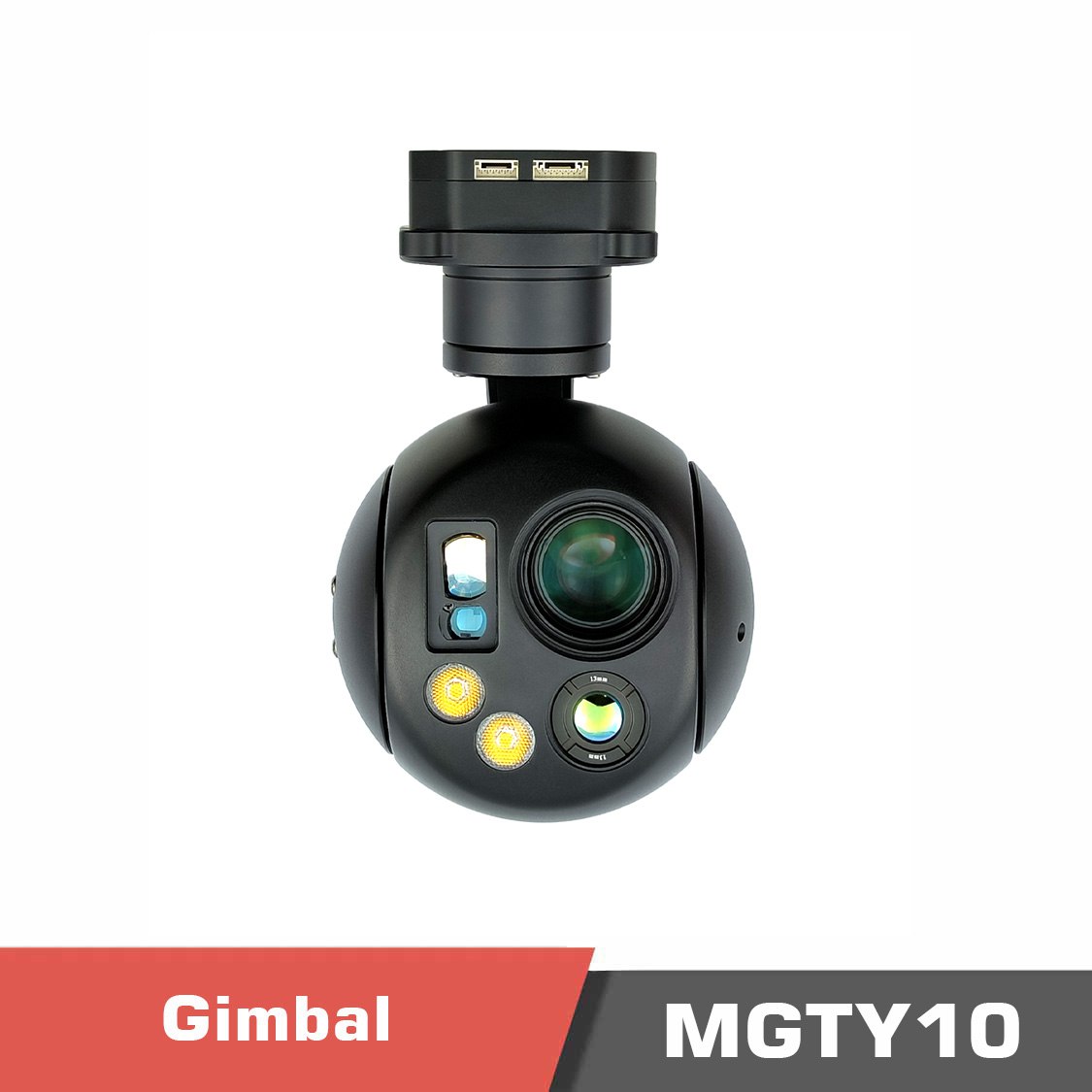

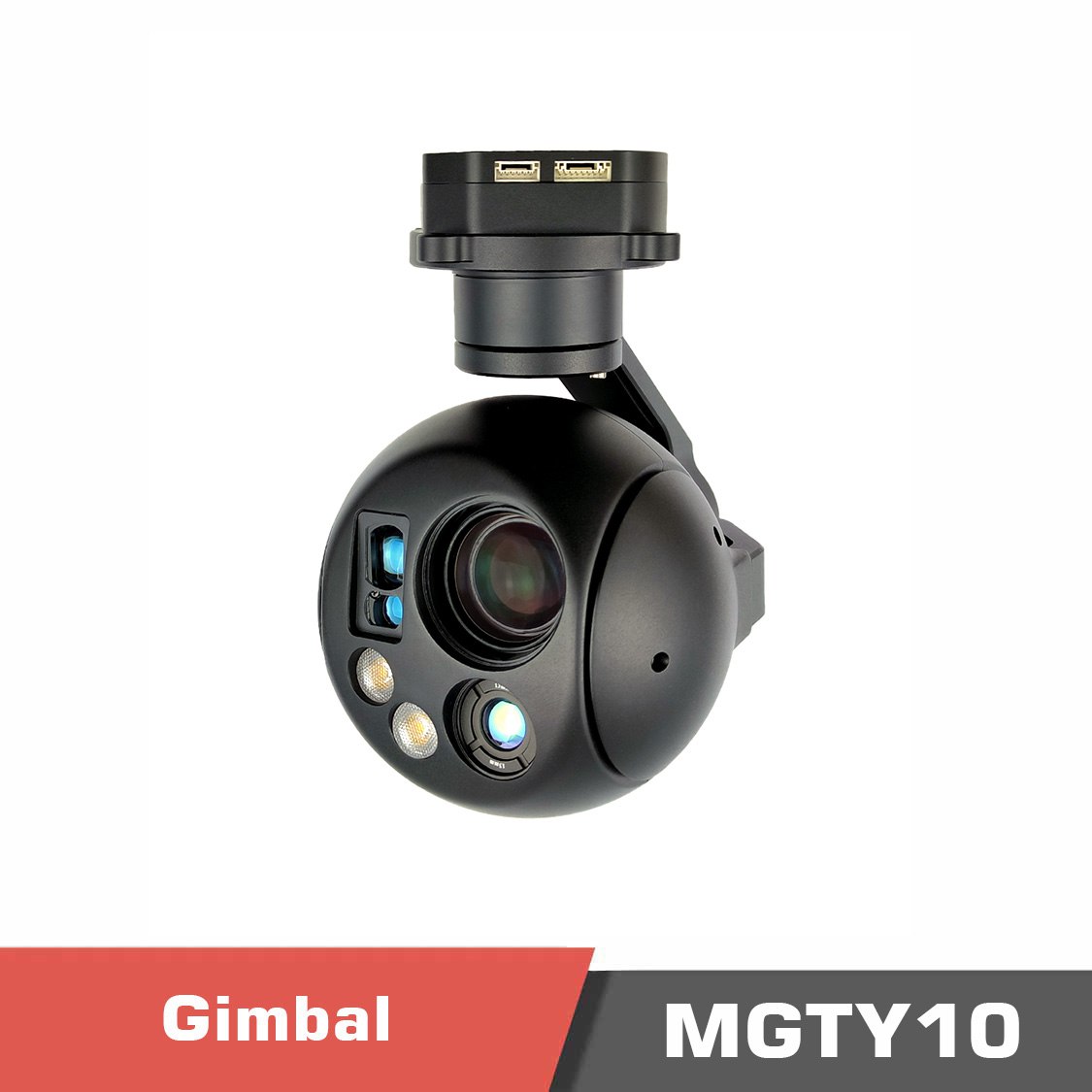

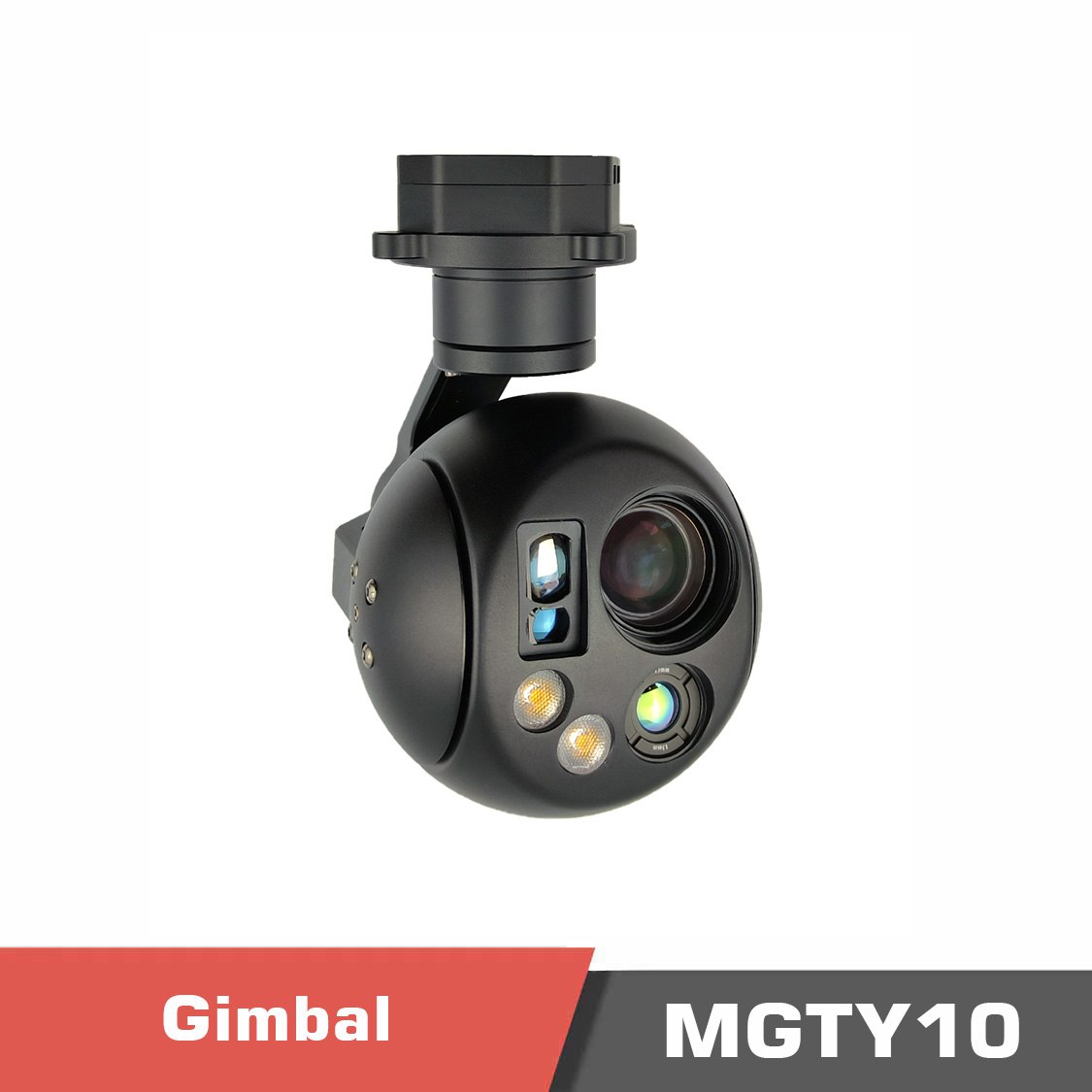

MGTY10 Four-in-one Gimbal Camera with dual output

MGTY10 Compact UAV Gimbal – 10x EO Zoom + Thermal + Laser Rangefinder The MGTY10 is a lightweight, high-performance multi-sensor gimbal payload designed for drone-based surveillance, inspection, and reconnaissance. Despite weighing only 650g , it integrates a 10x optical zoom EO camera , 640×512 thermal imaging , and a 905nm laser rangefinder , offering robust capabilities in a highly compact form. Its adjustable PTZ speed , multi-protocol control , and real-time tracking make it ideal for public safety , industrial inspection , wildlife monitoring , and UAV patrol missions . Hardware & Mechanical Specs Input Voltage: DC 12V–26.2V Power Consumption: <7.2W (Dynamic) Weight: 650g ± 20g Dimensions: 150 × 154 mm Operating Temp: -10°C to +60°C Storage Temp: -20°C to +80°C 3-Axis Gimbal (PTZ) Roll Range: -45° ~ +45° Pitch Range: -30° ~ +100° Yaw Range: -285° ~ +285° Angular Jitter (Pitch/Roll): ±0.02° Horizontal Jitter: ±0.03° Control Modes: UDP, UART, SBUS, optional PWM Auto Return: One-click return to center function Adaptive Speed: Rotation adapts to zoom level & speed setting EO Camera – 10x Optical Zoom Sensor: 1/3” 4MP CMOS Zoom: 10x optical + 9x digital (f=5.15–47.38mm ±5%) Focus: Real-time fast focus <1s Output: 1080p @30fps (Ethernet RTSP) Field of View: D: 69.5° (wide) ~ 7.95° (tele) H: 61.5° ~ 7.0° V: 35.0° ~ 3.97° Infrared Thermal Imaging Resolution: 640 × 512 pixels Pixel Pitch: 12μm Detector: Uncooled Vanadium Oxide Wavelength Range: 8–14μm NETD: ≤50mK @ f/1.0 @ 25°C FOV: 33° × 26° (13mm lens) Measurement: Global temp sensing + optional full-pixel recording Laser Range Finder Wavelength: 905nm (Class I eye-safe) Range: 5m – 1500m Accuracy: ≤ ±1m Target Detection & Tracking Categories: Human, Vehicle Min Detection Size: 32 × 32 pixels Max Tracking Size: 1500m Memory Time: 2 seconds Tracking Speed: Up to 50 pixels/frame Simultaneous Tracking: Up to 100 objects Applications Public safety, security & search-and-rescue UAV surveillance & patrol missions Precision agriculture & livestock monitoring Thermal inspection of solar farms, pipelines, and buildings Wildlife monitoring and anti-poaching missions MGTY10 combines intelligent features , multi-sensor versatility , and precise gimbal control into a small, efficient package—making it a go-to solution for UAV operators who demand professional-grade imaging without the bulk. For a comprehensive reading of related products, please visit the Motionew website. FAQ – MGTY10 Four-in-One Gimbal Camera 1. What sensors are integrated in the MGTY10? The gimbal combines a 10x optical zoom EO camera, a 640×512 thermal imaging sensor, and a 905nm laser rangefinder, all in a compact 650g payload. 2. What stabilization and control system does it use? It features a high-precision 3-axis gimbal with ±0.02° pitch/roll jitter accuracy and ±0.03° horizontal jitter. Control options include UDP, UART, SBUS, and optional PWM, with adaptive PTZ speed that adjusts based on zoom level. 3. What are the hardware and mechanical specifications? The MGTY10 operates on DC 12V–26.2V, consumes <7.2W dynamically, and has dimensions of 150×154 mm. It supports operating temperatures from -10°C to +60°C. 4. What payment methods are accepted for this product? Payments can be made using major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for enterprise projects? Yes. OEM services are available for bulk orders or specialized UAV integrations requiring custom EO/IR + LRF solutions. 6. Are technical documents and manuals provided with the purchase? Yes. Buyers receive datasheets, setup manuals, and integration guides to support installation and operation.
