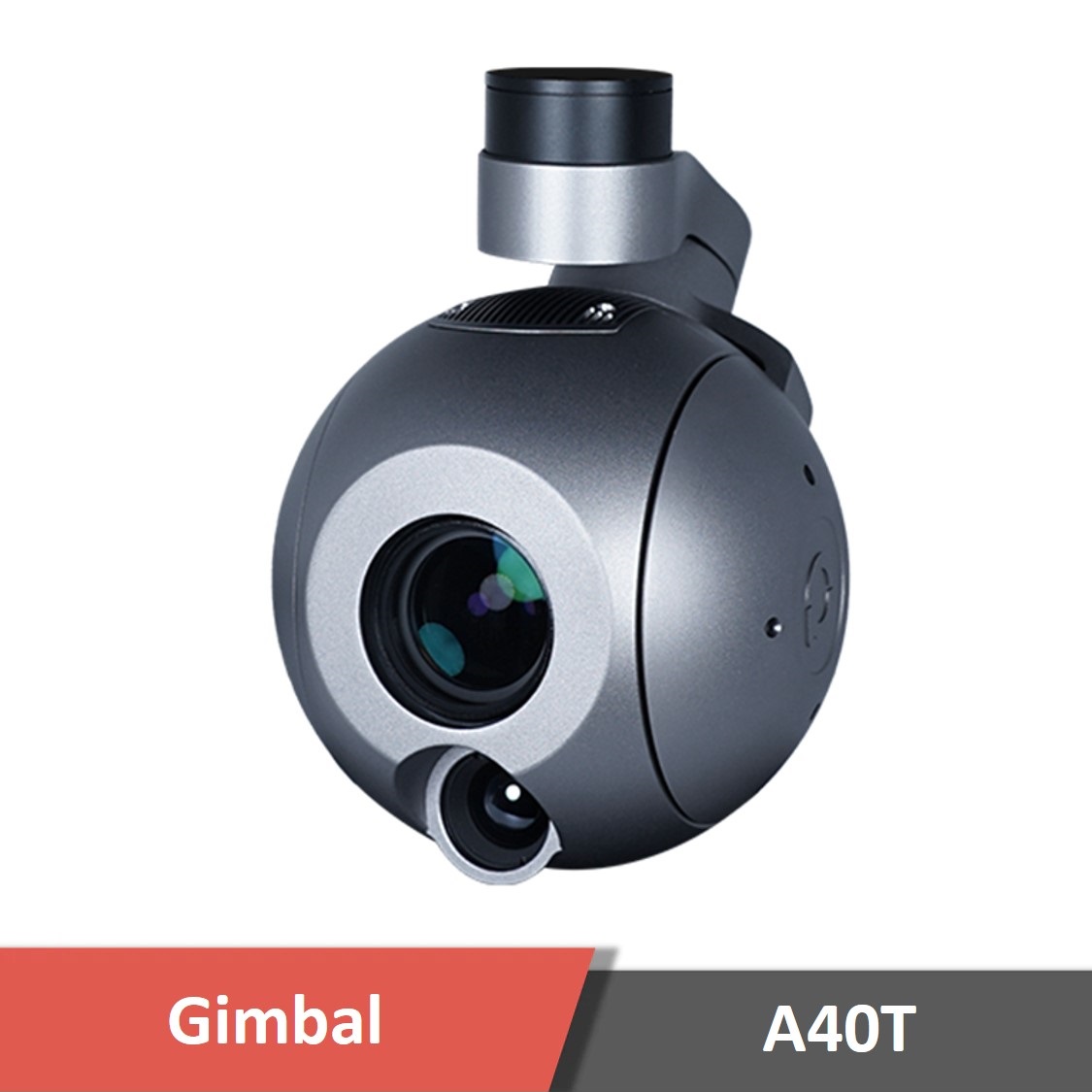

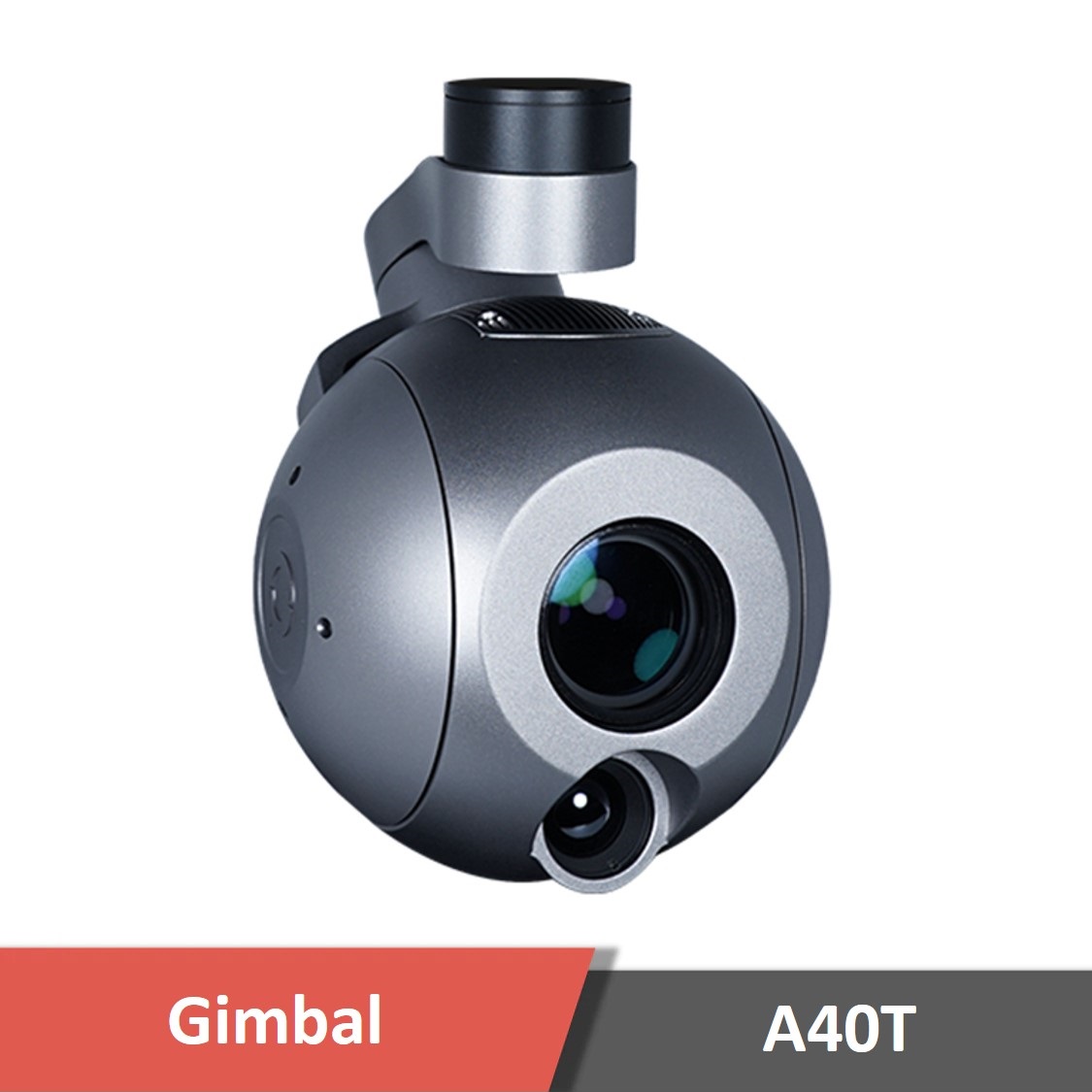

A40T Gimbal Camera for Drone

Gimbal Camera AI object detection and Tracking Video A40T Gimbal Camera Overview The A40T gimbal camera is the latest technology that brings artificial intelligence (AI tracking) to the drone industry. “It is a gimbal drone camera with a 3-axis gimbal that integrates AI tracking and detection algorithms with a 40x optical zoom camera — SONY 1/2.8″ IMX462LQR CMOS, a 19mm lens IR thermal sensor with 640×512 resolution. It has an aluminum alloy housing to give it a sophisticated look and anti-interference ability, as well as thermal cooling. The 3 axis gimbal camera stabilizes yaw, roll, and pitch. The integrated damping system and gimbal design can significantly reduce mechanical vibration (using four damping balls and a lightweight damping board). 3KM observation range A40T gimbal camera has a SONY 1/2.8″ IMX462LQR CMOS module inside, which has 2.13 megapixels, which is combined with 40x advanced optical zoom technology, to increase the observation range to 3000 meters, more than enough for a lot of applications in different domains including surveying, monitoring and so on. 40x optical zoom means the drone can maintain a safe distance from the target in case of a dangerous incident like a fire hazard while capturing enough details of the scene. A40TR Thermal Camera The thermal camera is a ULIS uncooled long wave (8μm ~14μm) image sensor, and has a higher resolution of 640×512 pixels compared to its predecessors, with each pixel size of 12μm. It is possible to record and transmit thermal and visible images at the same time in PIP format. With a temperature measuring sensor (optional), it could accurately measure the temperature of objects in the scene. The thermal module allows the user to measure the temperature of three points ranging between 0℃~120℃ and displays them on the screen. AI object detection and tracking module The best thing about A40T Gimbal Camera is its AI object detection and tracking module, which can detect more than 10 simultaneous cars, humans, and boats automatically. With Built-in tracking algorithms, combined with an object missing recapture algorithm, stable tracking of the targets is possible. You can define custom characters to be shown on OSD to show trace information display. The tracking speed is up to 32pixel/frame, and object size can be from 16×16 pixels to 160×160 pixels. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – A40T Gimbal Camera 1. What sensors are integrated in the A40T? The A40T combines a SONY 1/2.8″ IMX462LQR CMOS EO camera with 40x optical zoom (2.13MP) and a ULIS uncooled LWIR thermal sensor (640×512 resolution, 19mm lens, 12μm pixel size). 2. What stabilization system does the gimbal use? It features a 3-axis stabilized gimbal with damping balls and a lightweight damping board, providing smooth yaw, roll, and pitch stabilization while reducing vibration interference. 3. Does the system support AI-assisted features? Yes. The A40T integrates AI object detection and tracking, capable of simultaneously identifying and following more than 10 cars, humans, or boats. It includes a target-missing recapture algorithm for continuous tracking. 4. What payment methods are accepted for this product? Payments can be made via major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for enterprise or defense clients? Yes. OEM services are available for bulk orders and customers requiring tailored EO/IR solutions. 6. Are technical documents and manuals provided with the purchase? Yes. Buyers receive datasheets, integration manuals, and setup guides to support installation and operation.
