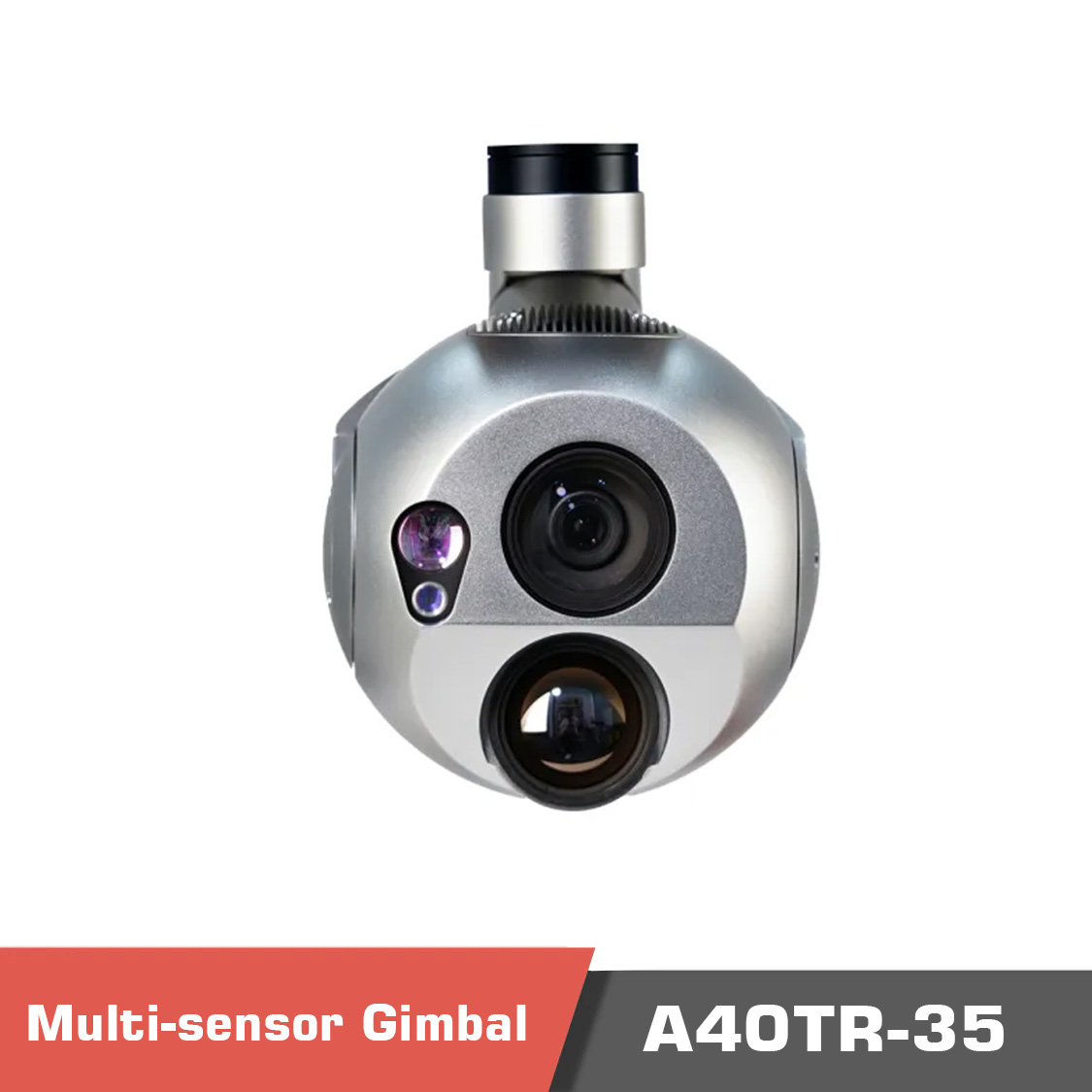

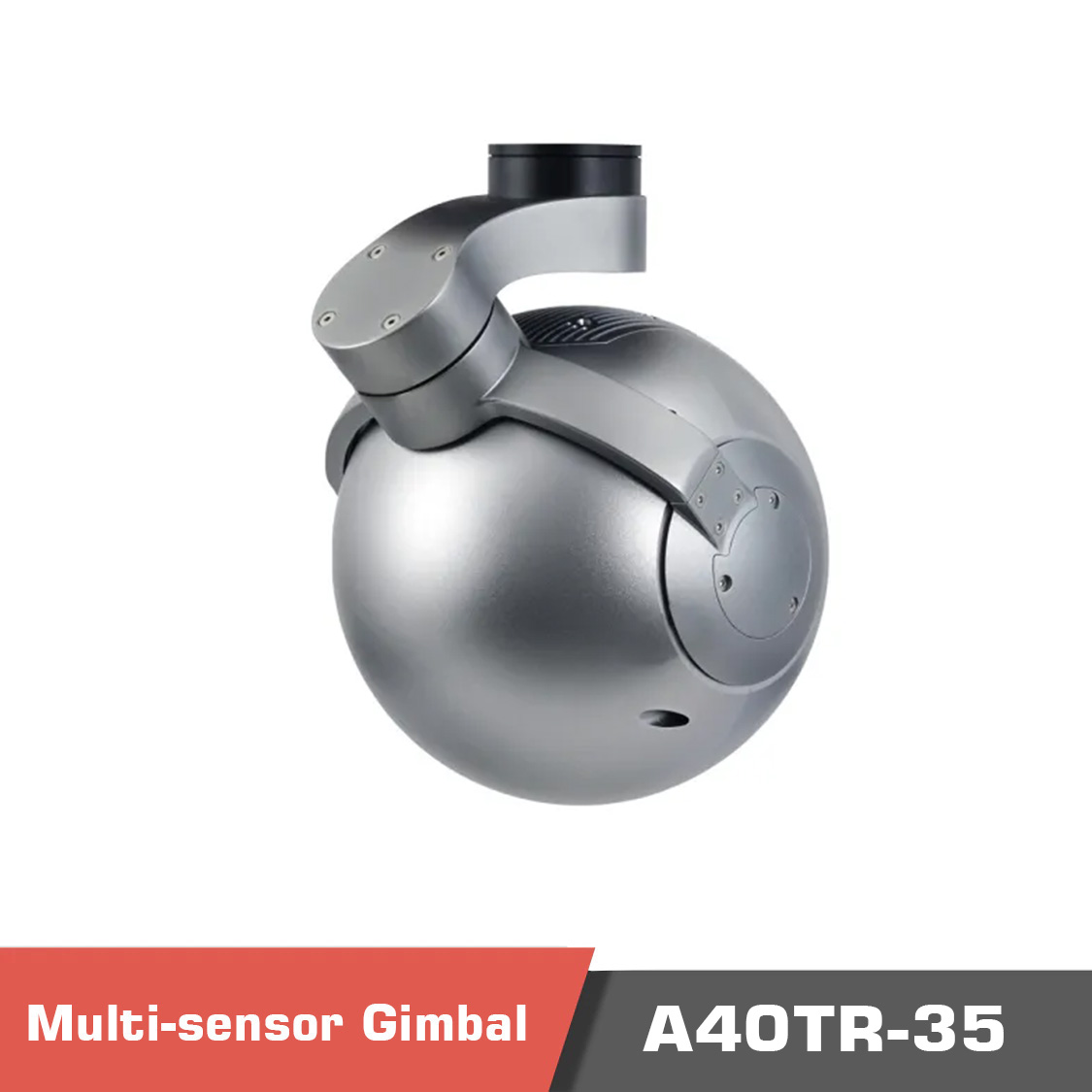

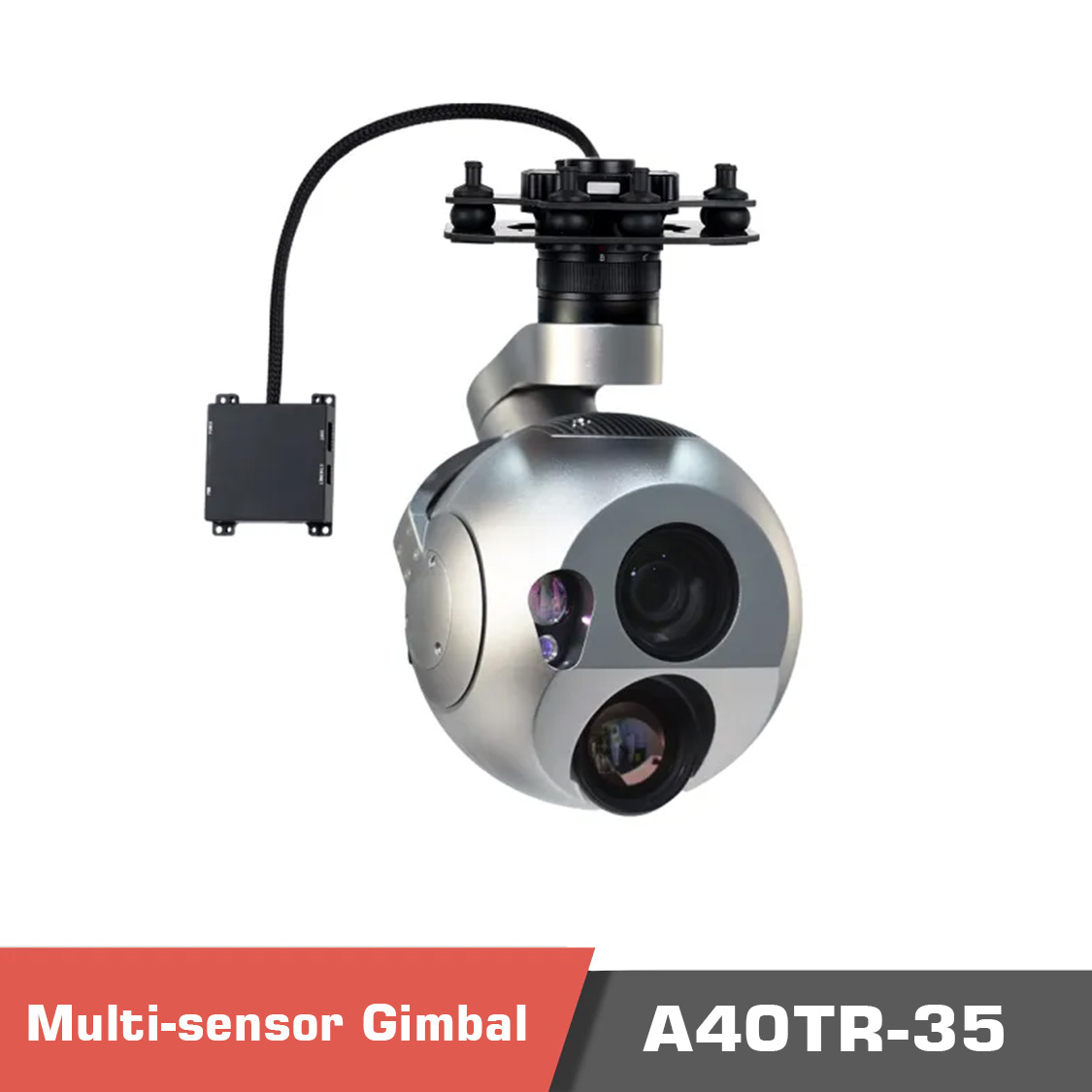

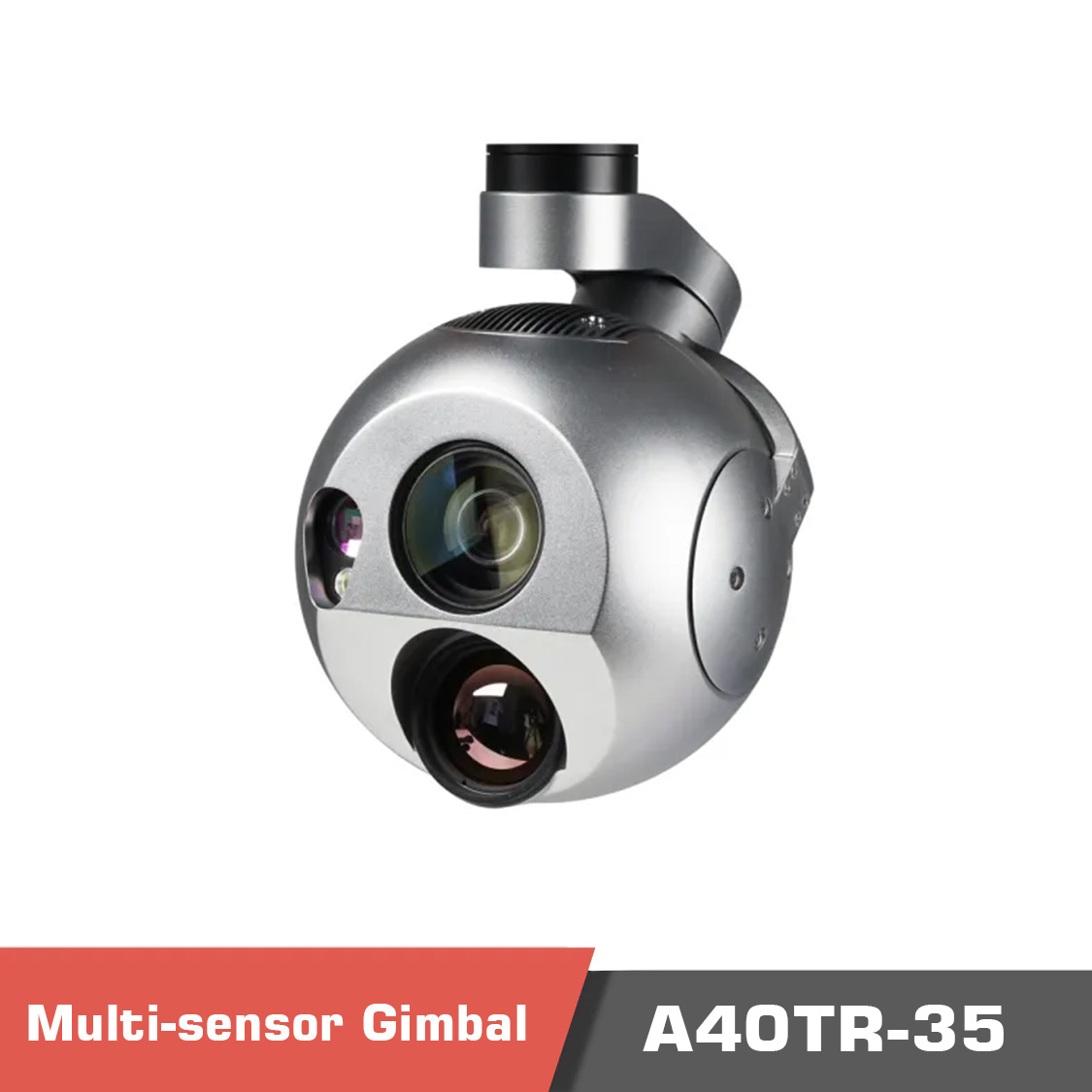

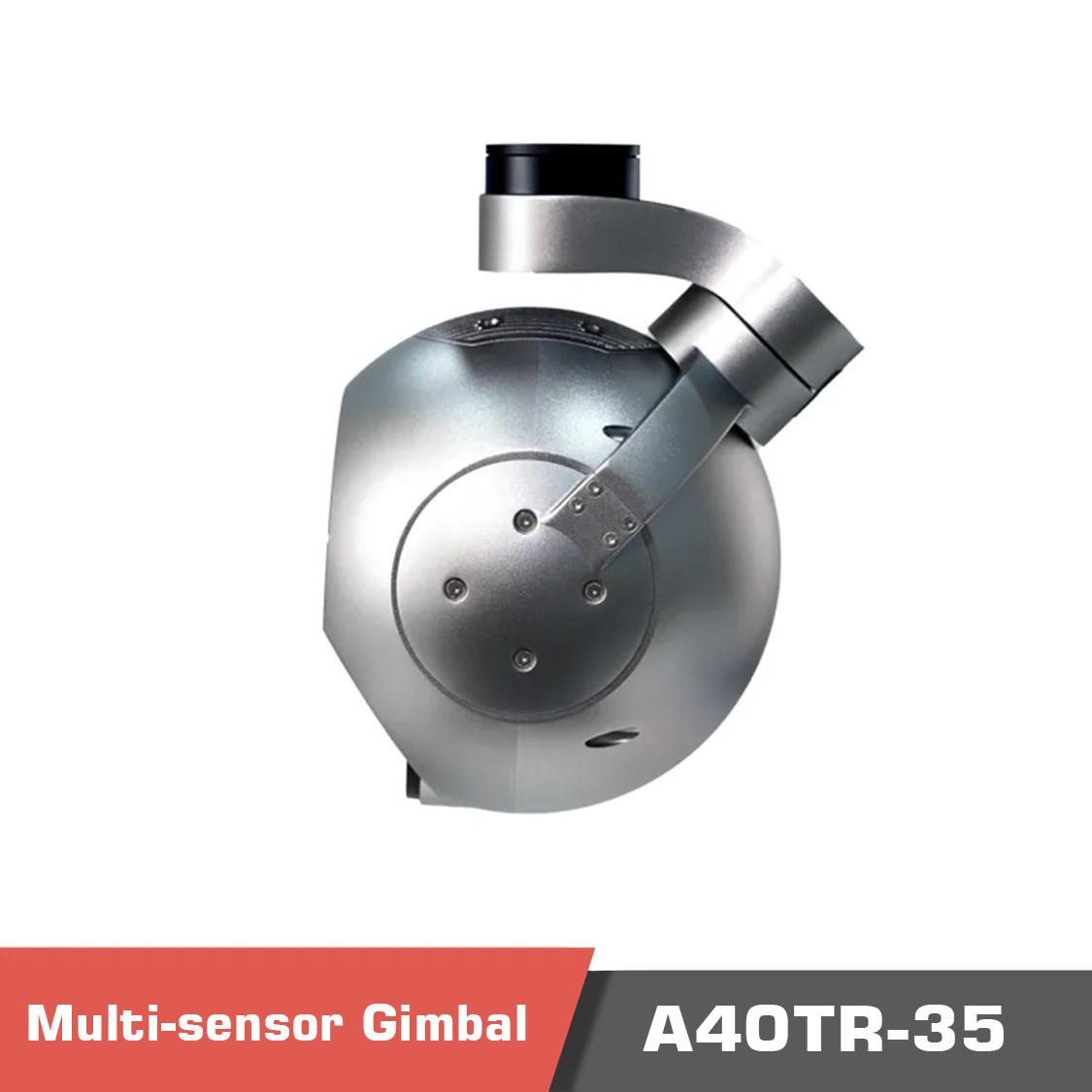

A40TR-35 gimbal camera, 40x zoom with Al automatic tracking

Specifications of A40TR-35 Gimbal Camera The A40TR-35 gimbal is a gimbal camera with triple sensors, featuring a 2.13MP Full HD 1/2.8″ Sony CMOS Sensor, with 40x optical zoom. In addition to that, there is a 35mm thermal sensor with 640×512 resolution. The laser range finder can find the GPS location of the targets within 3km range. A40TR-35 gimbal can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution. Gimbal Camera AI object detection and Tracking Video Specifications of EO Sensor The EO camera boasts a 2.13MP 1/2.8″ Sony CMOS sensor with Full HD 1080p resolution, featuring a 40x optical zoom and digital zoom up to 32x. It’s designed to perform in low-light conditions, offering advanced exposure control, auto-focus modes, and defog capabilities. It features micro HDMI (1080P 30fps/60fps) and IP (RTSP/UDP 720p/1080p 30fps) outputs, and supports local storage via a TF card of up to 256GB (class 10, FAT32, or exFAT format). Photo storage is in JPG format (1920×1080), while video storage is in MP4 format (1080P 30fps). The A40TR-35 also offers network read capabilities through HTTP Read TF Card Online and can be controlled via PWM, TTL, S.BUS, TCP (IP output), or UDP (IP output). IR Thermal Imager Spec The A40TR-35 Gimbal is equipped with a sophisticated IR Thermal Imager that has a 35mm focus length and DLC coating. It provides a horizontal field of view (FOV) of 12.5°, a vertical FOV of 10.0°, and a diagonal FOV of 16.0°. It can detect a human-sized object (1.8×0.5m) at a distance of up to 1458 meters, recognize it at 365 meters, and verify it at 182 meters. For car-sized objects (4.2×1.8m), the detection distance extends to 4472 meters, recognition at 1118 meters, and verification at 559 meters. The thermal imager employs an uncooled VOx long-wave thermal sensor, with a detector resolution of 640×512 pixels and a 12μm pixel pitch. The device supports multiple color palettes, including white, iron red, and pseudo color, and features a radiometric function (optional) for temperature measurement within the ranges of -20℃ to +150℃ and 0℃ to +550℃. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – A40TR-35 Gimbal Camera 1. What sensors are integrated in the A40TR-35? The gimbal includes a SONY 1/2.8″ CMOS EO sensor (2.13MP, 40x optical zoom), a 35mm LWIR thermal sensor (640×512 resolution), and a laser rangefinder (LRF) with a detection range of up to 3 km. 2. What stabilization system does the gimbal use? It features a high-precision 3-axis stabilized gimbal with vibration damping, ensuring smooth, stable imagery during UAV operations. 3. Does the A40TR-35 support AI-assisted functions? Yes. It comes with AI-powered detection and automatic tracking capabilities for humans, vehicles, and other moving objects. 4. What payment methods are accepted for purchasing the A40TR-35? Payments can be made using major credit cards, PayPal, and international bank transfers. 5. Is OEM customization available for enterprise and defense projects? Yes. OEM services are available for bulk orders requiring customized EO/IR + LRF solutions. 6. Are technical documents and manuals provided with the purchase? Yes. Buyers receive datasheets, user manuals, and integration guides for setup and field deployment.
