Raspberry Pi Zero, Zero W

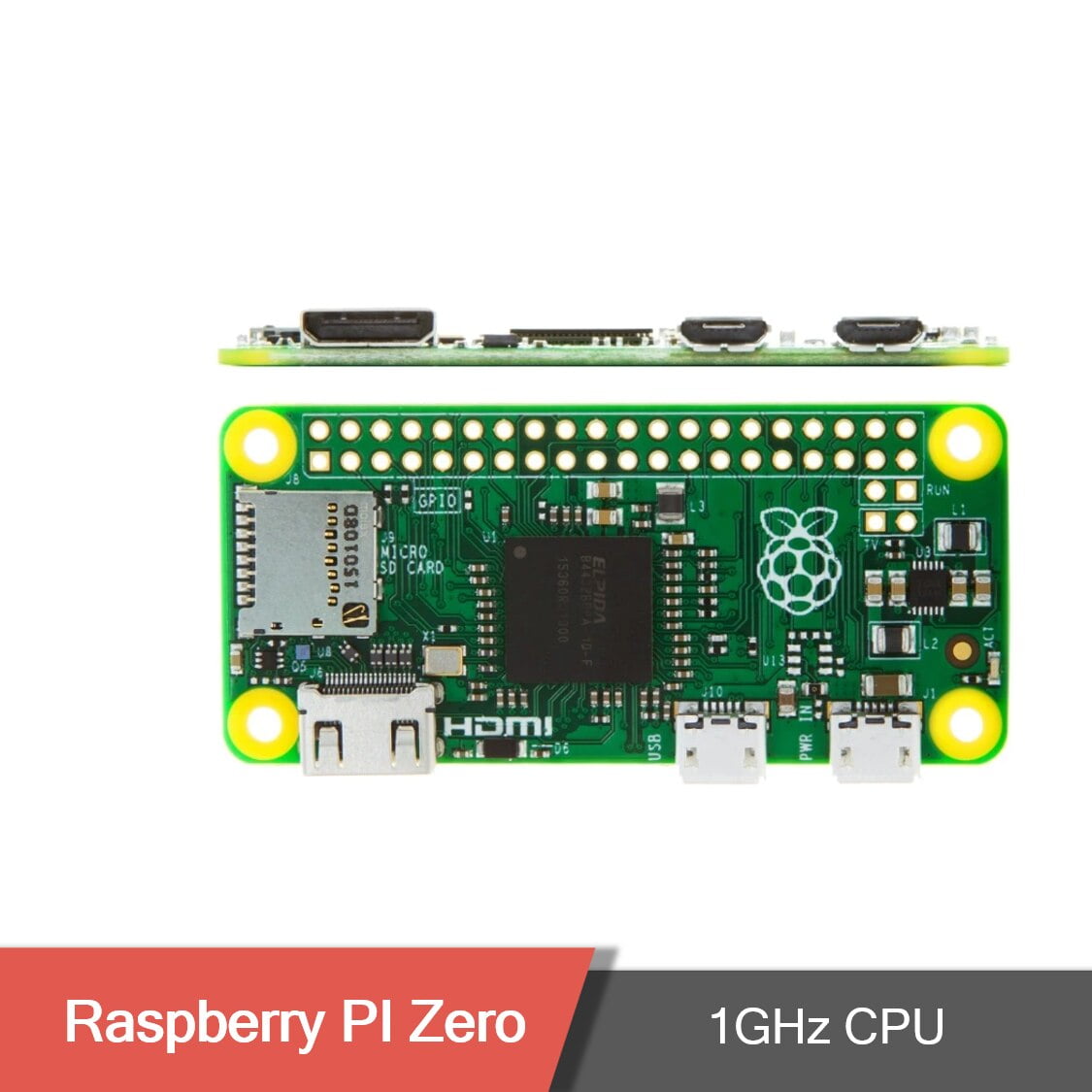

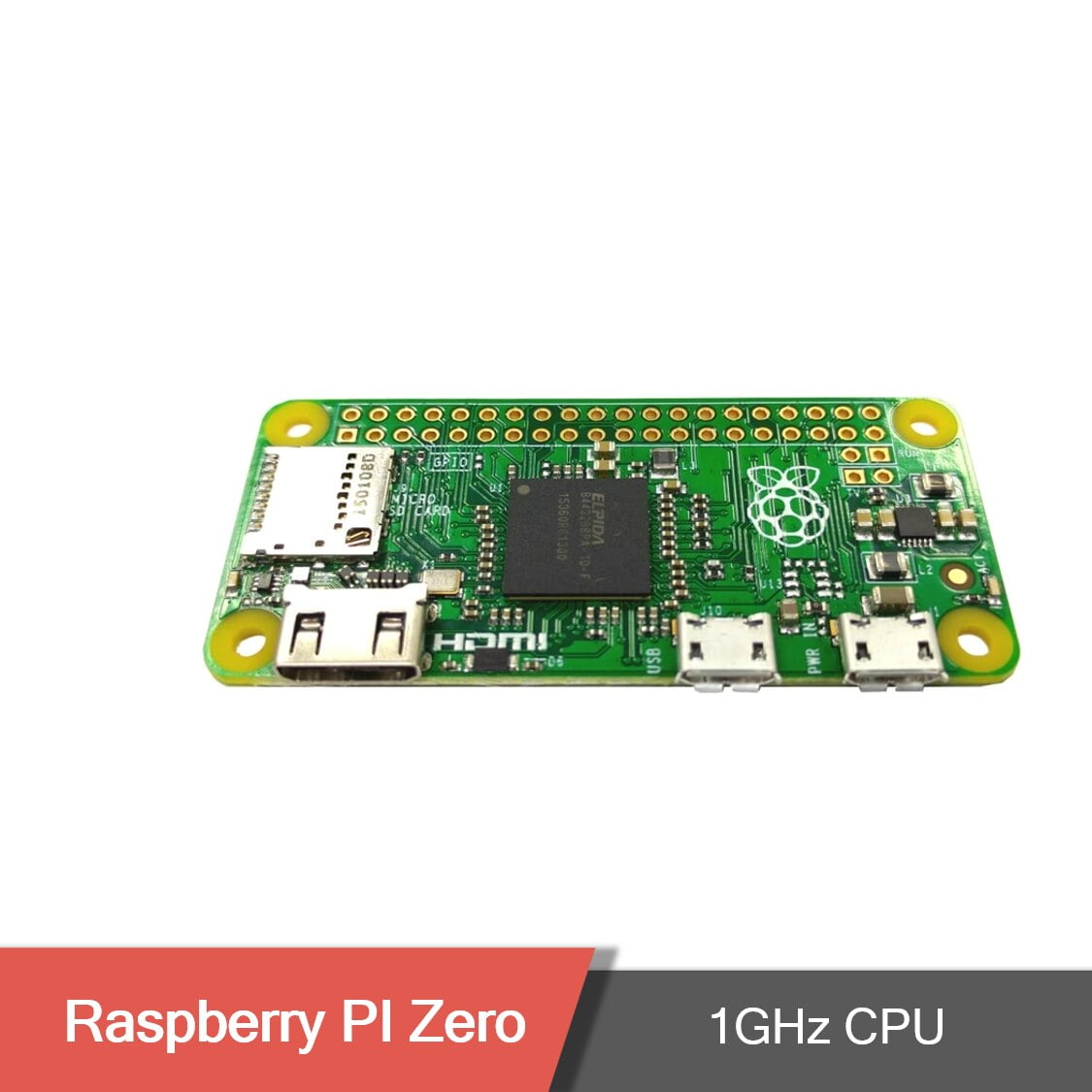

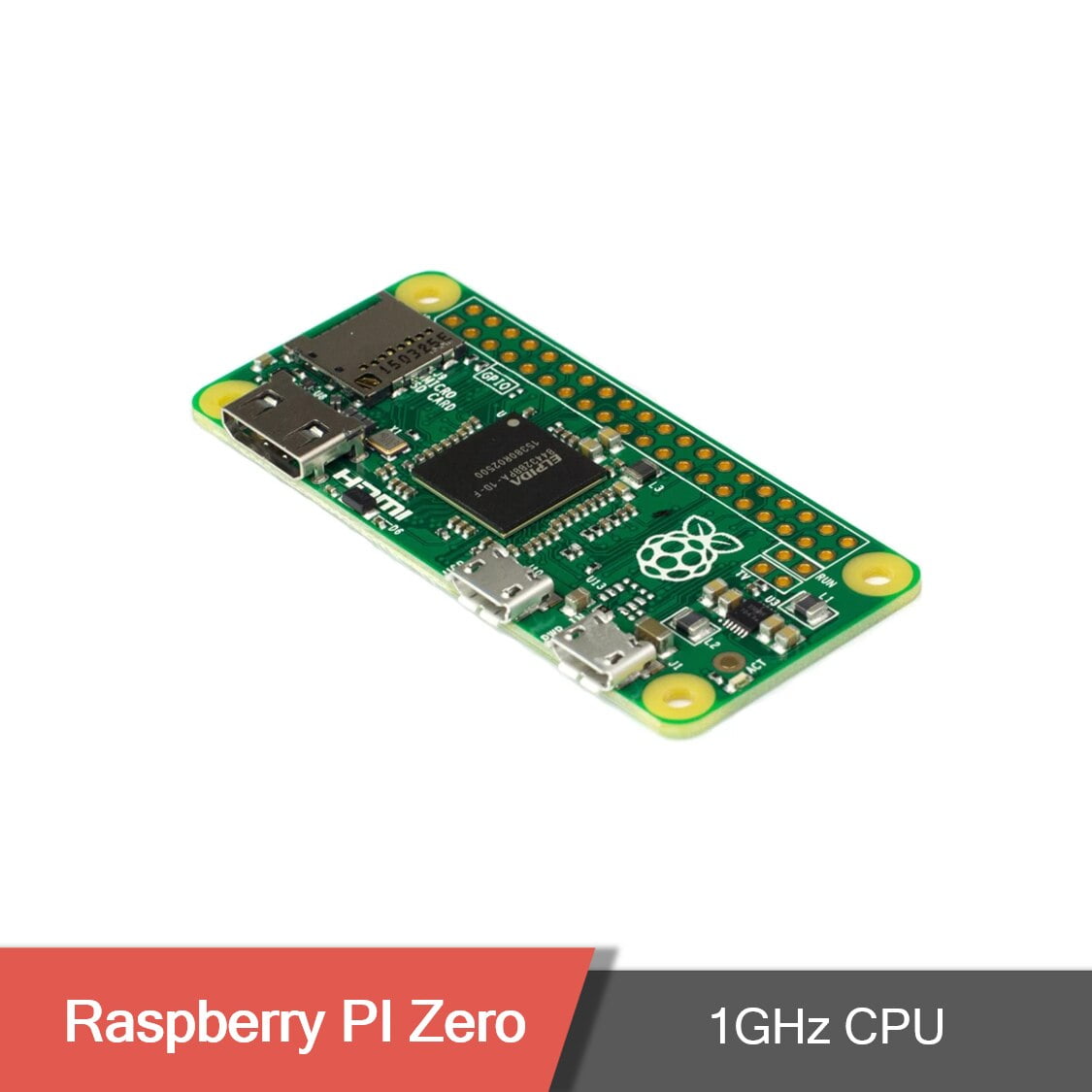

Raspberry Pi Zero Raspberry Pi Zero is a super-small, hackable, and ultra-low-cost computer. This is the newest version (v1.3) with camera connector. What is the Raspberry Pi Zero? While the Raspberry Pi 4 marks the top end of the platform’s tech specs, the Pi Zero takes the opposite approach. This is, for all intents and purposes, an entry-level model that’s been reduced both in price and size (being three times smaller than the original Raspberry Pi 1 series). MicroSD Card Slot: The Pi Zero gets its storage space from a MicroSD card, which you’ll need to install the operating system on. Mini HDMI: Video output for the Pi Zero is by way of a mini-HDMI connector. In terms of their operation, these connectors perform identically to their larger versions. Micro USB: You’ll notice there are two micro USB connectors on the Pi Zero. One is for data (the connector on the left, if the MicroSD card slot is on the left), and one is for power. Don’t get them mixed up. GPIO: The Pi Zero has the same 40 pin General Purpose Input/Output connections as the original Raspberry Pi models, but the connector pins are unpopulated. So if you want to use the GPIO, you’ll either have to solder the required pins in place, or solder your connections directly to the Pi Zero. RUN Mode Pins: There are two unpopulated RUN mode pins, which can be used to connect a reset button to the Pi Zero. Again, you’ll either have to add the pins yourself, or solder a button straight to the board. Composite Video: Here’s an interesting one. There’s an RCA composited video output via two (unpopulated) pins, so you can hook the Pi Zero up to older display equipment that accepts a phono plug as an input. FAQ – Raspberry Pi Zero 1. What are the main specifications of the Raspberry Pi Zero? The Raspberry Pi Zero features a Broadcom BCM2835 single-core ARM11 processor (1GHz) , 512MB RAM , mini-HDMI video output , micro-USB for data and power , and a 40-pin GPIO header . It offers compact computing power in a minimal footprint ideal for embedded and lightweight applications. 2. What connectivity and expansion options does the Pi Zero support? It includes CSI camera connector , GPIO interface , and USB OTG functionality for connecting peripherals such as keyboards, Wi-Fi adapters, and sensors. Some variants, like the Pi Zero W , feature built-in Wi-Fi and Bluetooth 4.1 for wireless applications. 3. What are the typical use cases of the Raspberry Pi Zero? The Pi Zero is widely used for UAV companion computing , IoT edge devices , automation controllers , sensor processing , and portable robotics due to its small size and low power consumption. 4. What payment methods are accepted for purchasing the Raspberry Pi Zero? Motionew accepts credit/debit cards, PayPal, and bank wire transfers . For bulk or institutional purchases , proforma invoices can be issued to facilitate bank payments. 5. Is OEM customization or bundle integration available? Yes. Motionew offers OEM customization including preloaded software images , custom enclosures , and interface modifications for industrial and educational applications. Contact the sales department for MOQ and lead time information. 6. Are datasheets and setup guides available for the Raspberry Pi Zero? Yes. Datasheets, pinout diagrams, and setup manuals are available on the Motionew product page or by request. Additional technical support is offered for integration into UAVs, robotics, and IoT systems.
