M10 Handheld Ground Control Station

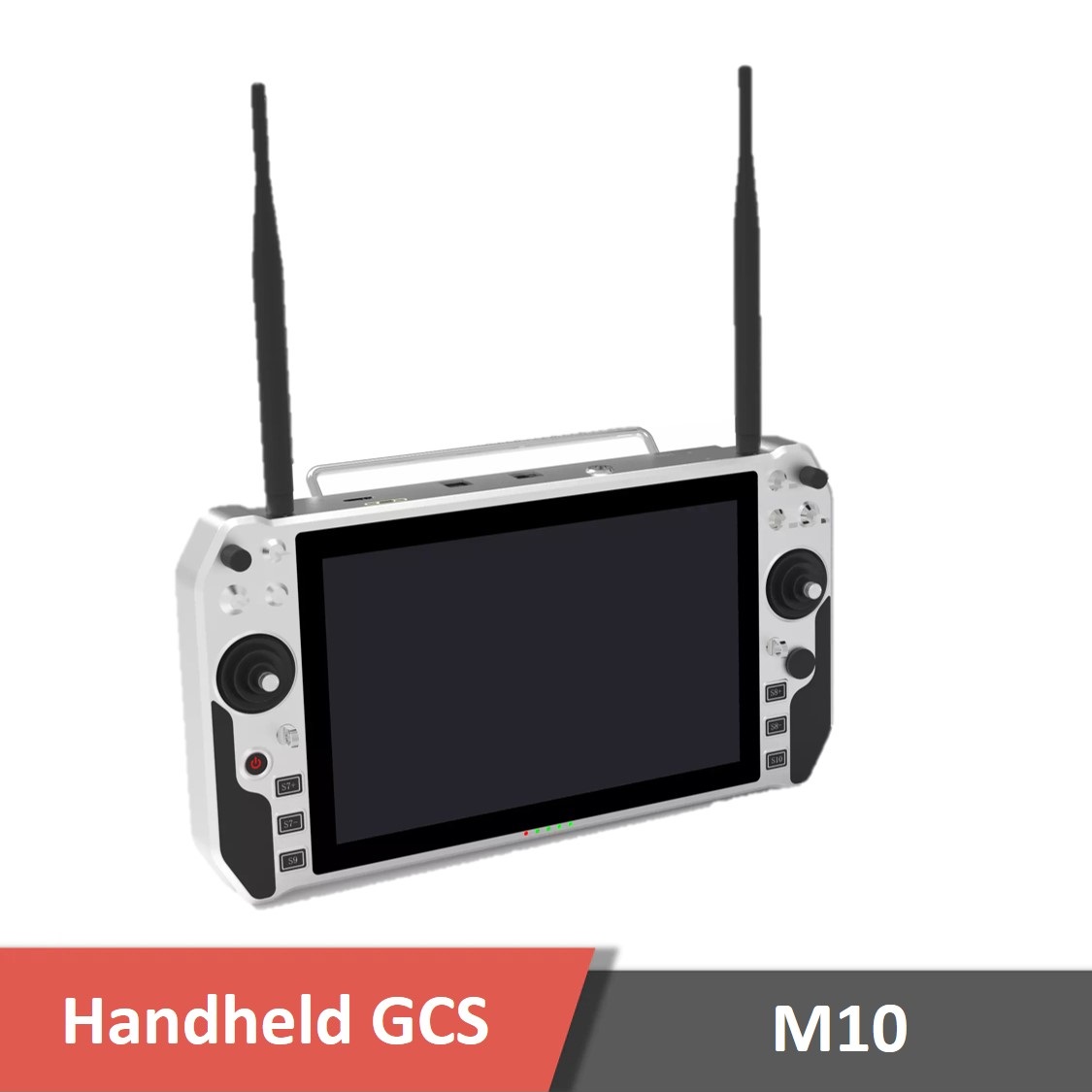

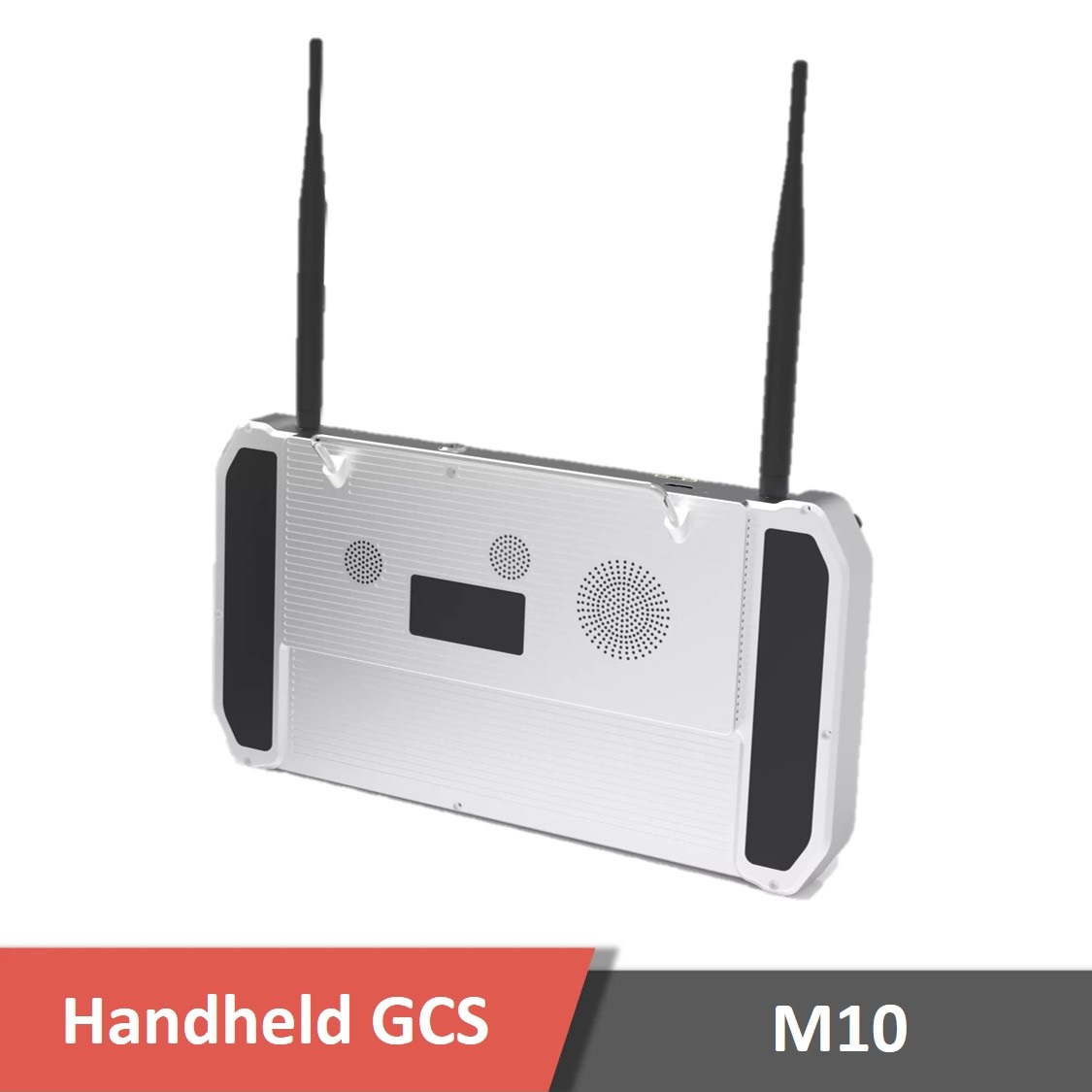

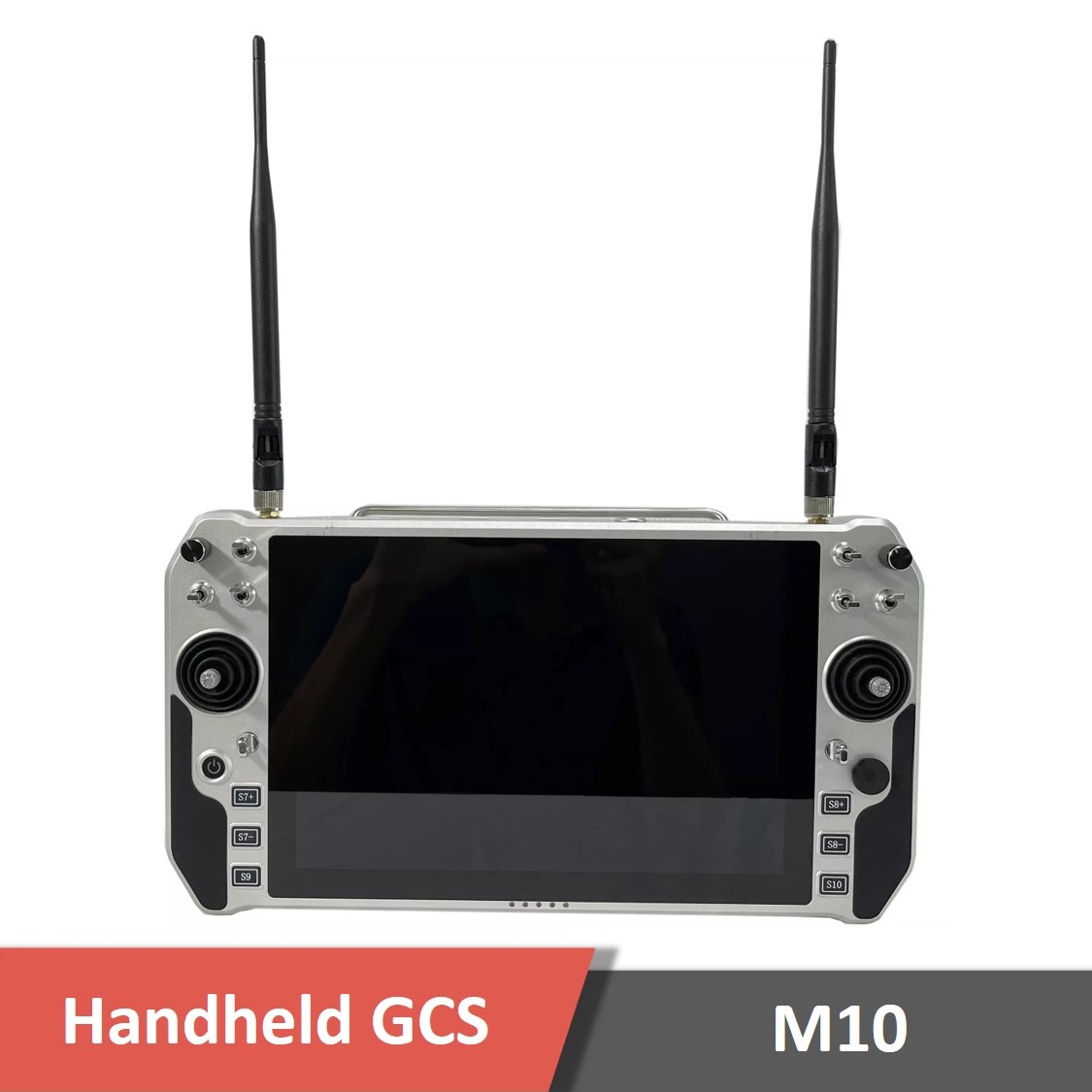

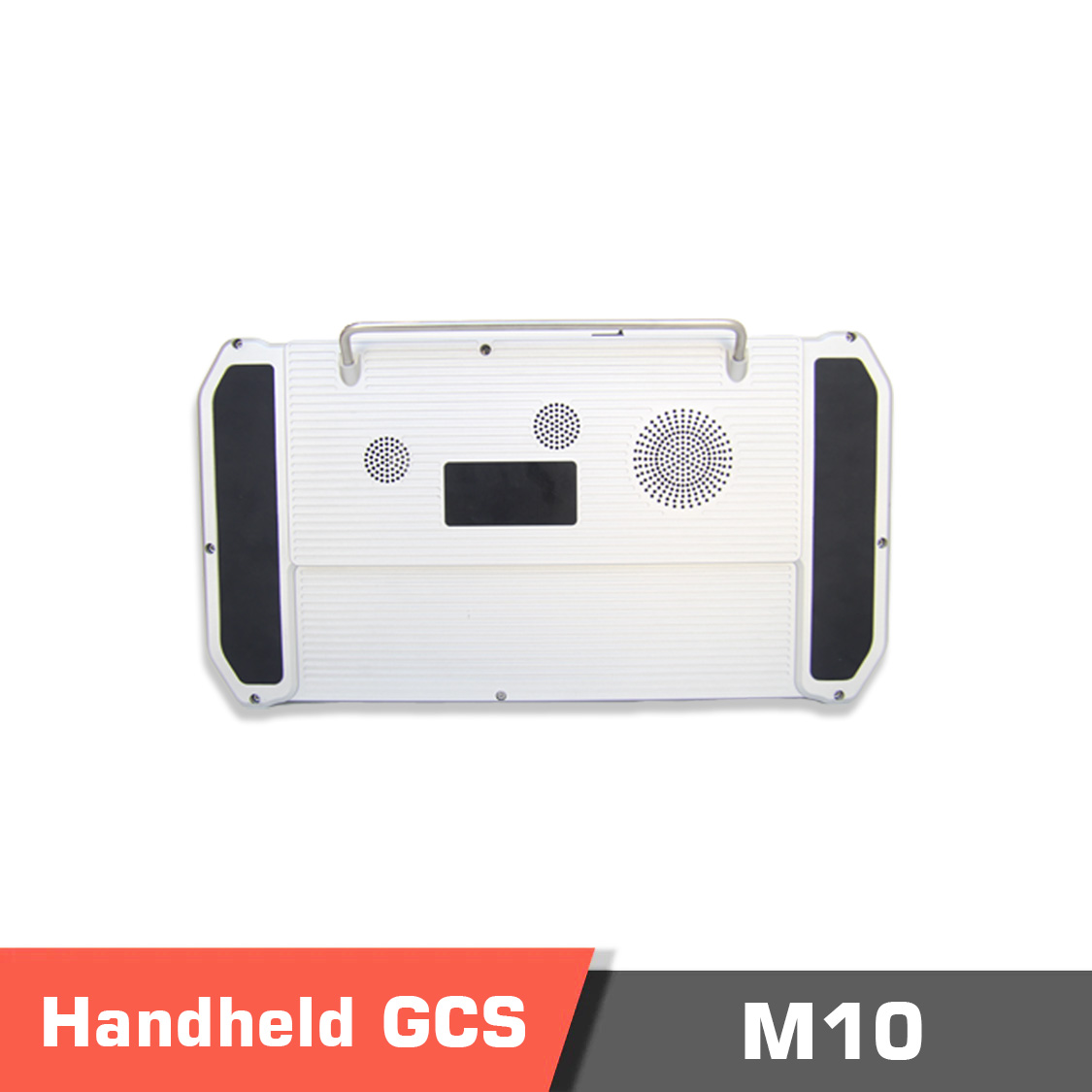

M10 Handheld Ground Control Station M10 HandHeld Ground Control System is a Portable GCS with a touchscreen and intelligent monitoring system suitable for security patrol drones, surveying and mapping drones, and rescue drones. With a 10.1″ industrial screen with 1200cd/m2 brightness, it is operable in a wide temperature range. Its body is made by CNC from aviation aluminum for a more sophisticated look and a better heat dissipation system. Channel and appearance customization is supported. There is a built-in 10KM/30KM image data transmission module, with 22 physical channels, which can also work with Sprintlink series. The GCS comes with i3 / i5 / i7 processors. All common GCS software like MissionPlanner and QGroundControl Station can be installed on the system. Built-in video transmission system and data transmission system and radio control makes this system suitable to be used as a monitoring and control system for drones. Read more about M10 in our blog post. For a comprehensive reading of related products, please visit the Motionew website. M10 Handheld Ground Control Station – FAQ What are the main hardware specifications of the M10 GCS? The M10 is available in single or dual-display configurations and features Intel Core i5 or i7 processors, ensuring smooth operation for UAV command and video processing. What operating system and software compatibility does the M10 support? It runs on Windows 10/11 and supports GCS software such as Mission Planner, QGroundControl, and other MAVLink-based applications. What connectivity options are available on the M10? The system includes HDMI, Ethernet, USB, and serial interfaces, allowing integration with telemetry radios, payloads, and video links. Does MotioNew provide OEM or custom branding options for the M10? Yes, OEM customization such as logo branding, firmware integration, and system configuration can be provided for bulk orders. What payment methods are accepted for purchasing the M10 Ground Control Station? MotioNew accepts major payment methods including PayPal, international credit cards, and bank transfers. Are manuals and technical documents included with the M10? Yes, comprehensive user manuals, wiring guides, and software setup documents are included, with digital versions available upon request.
