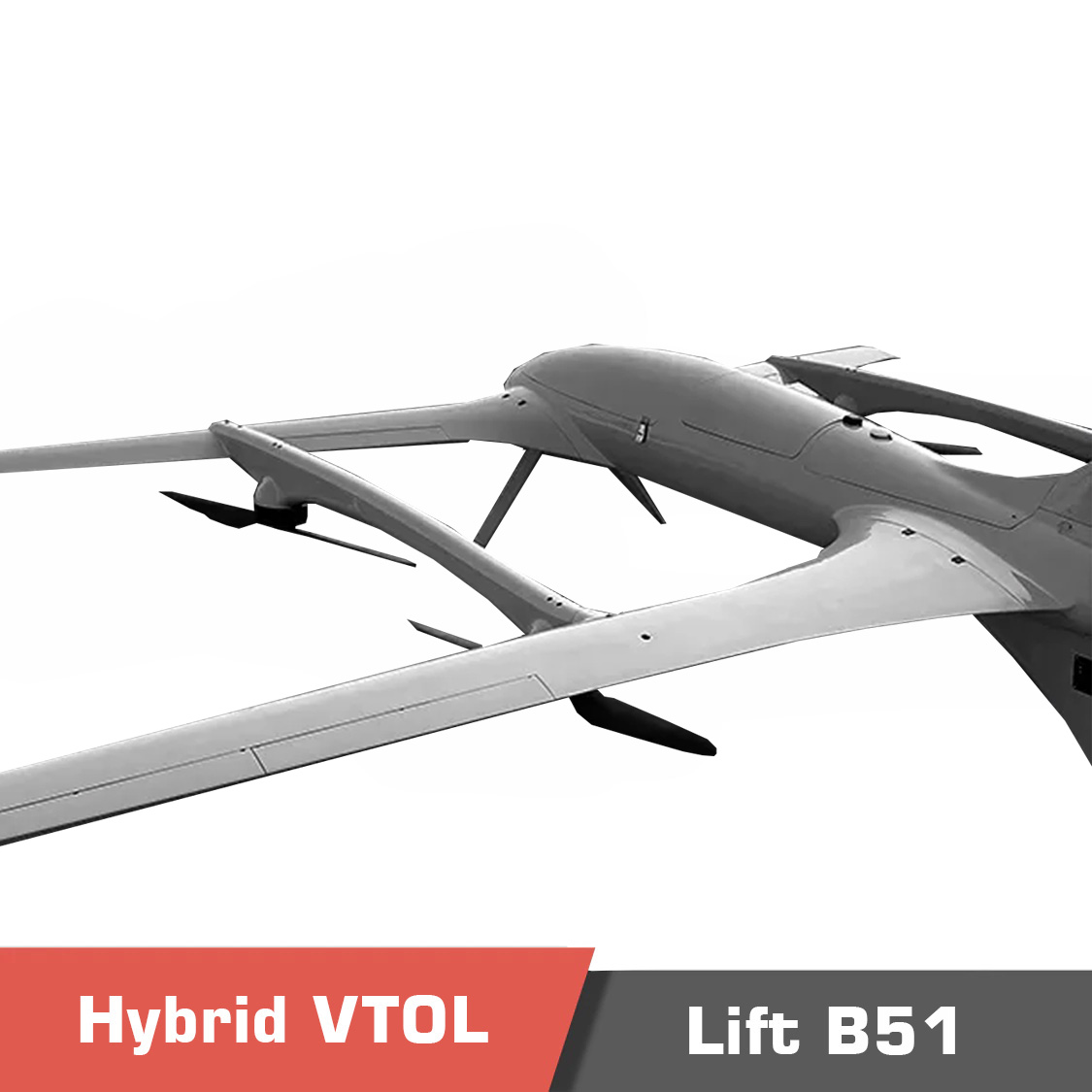

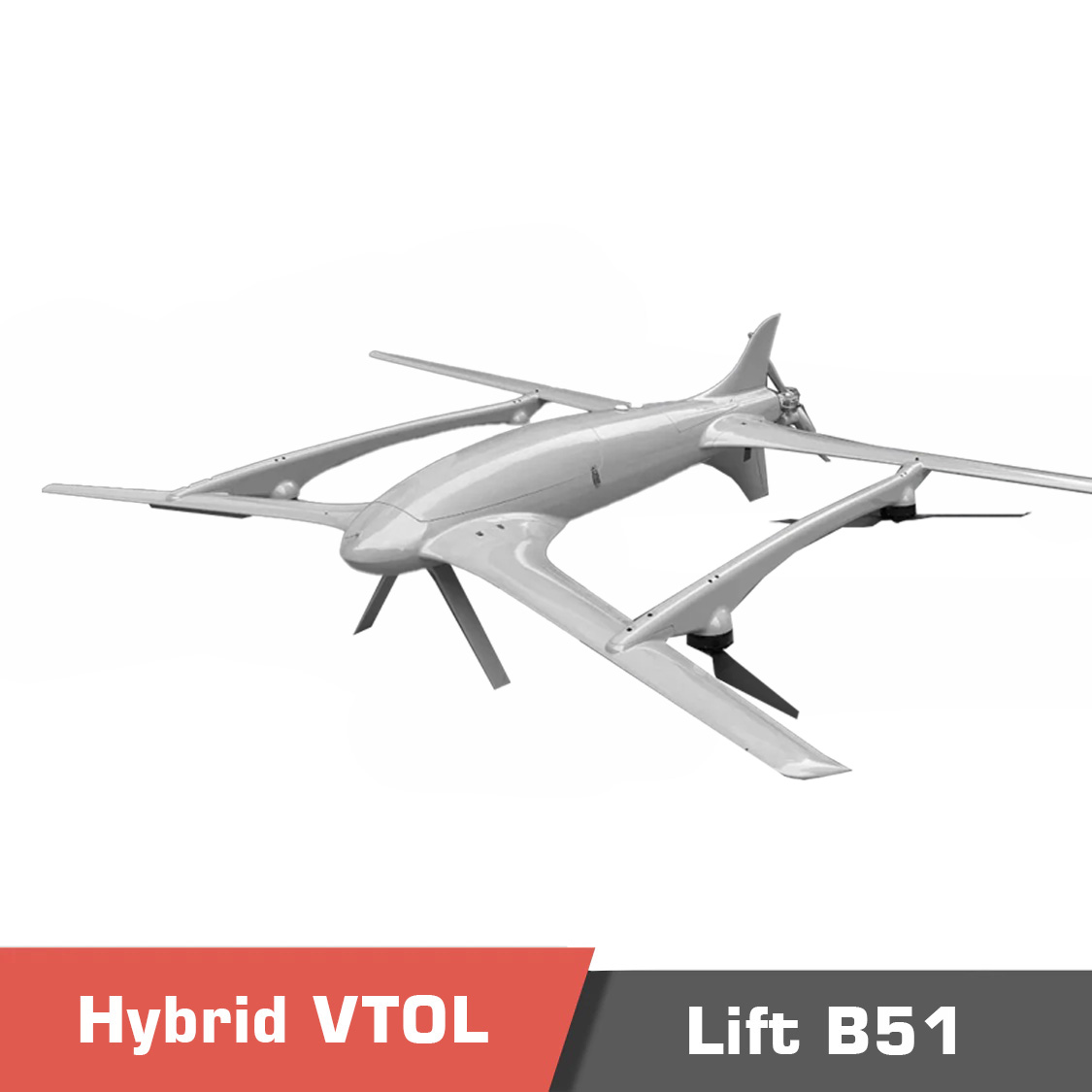

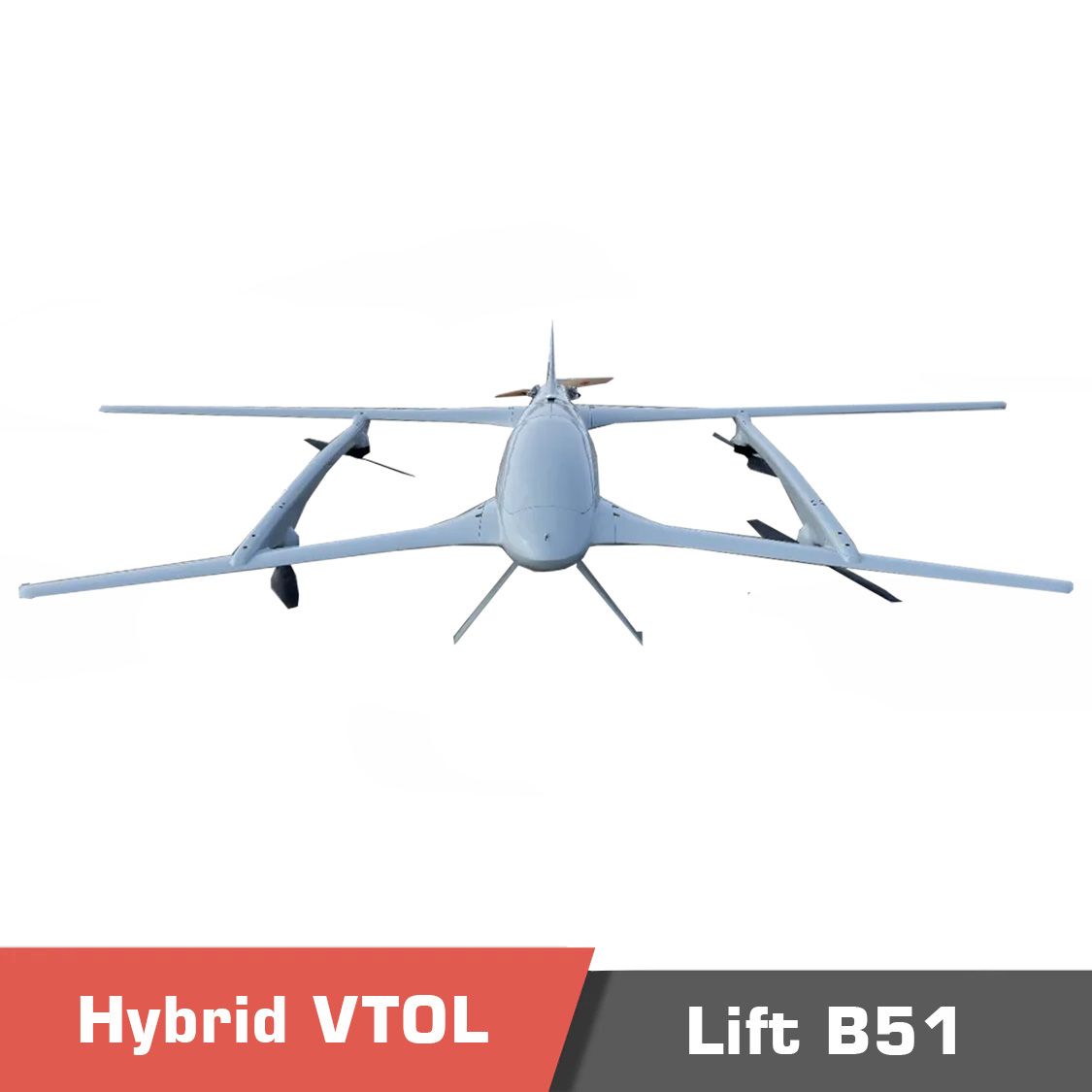

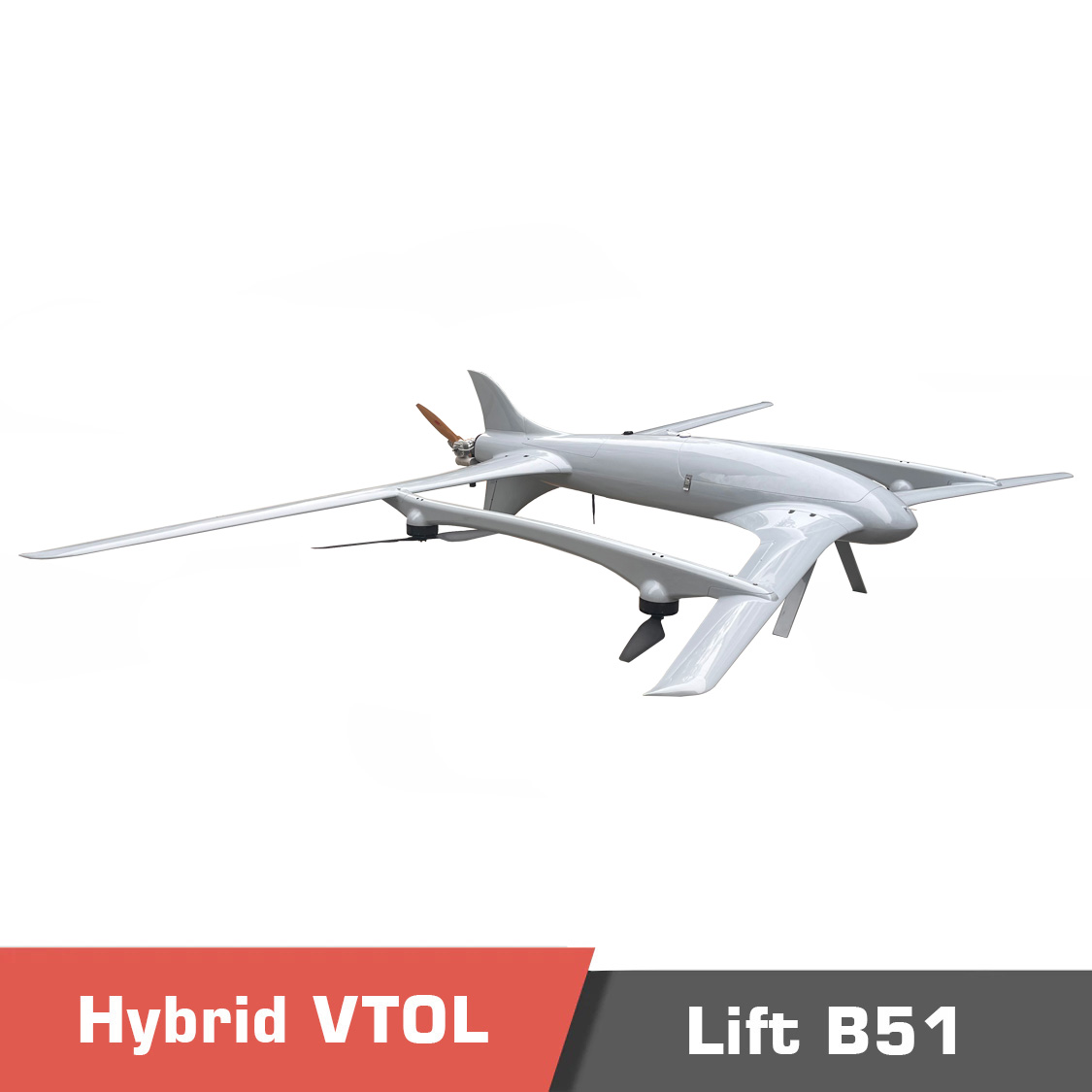

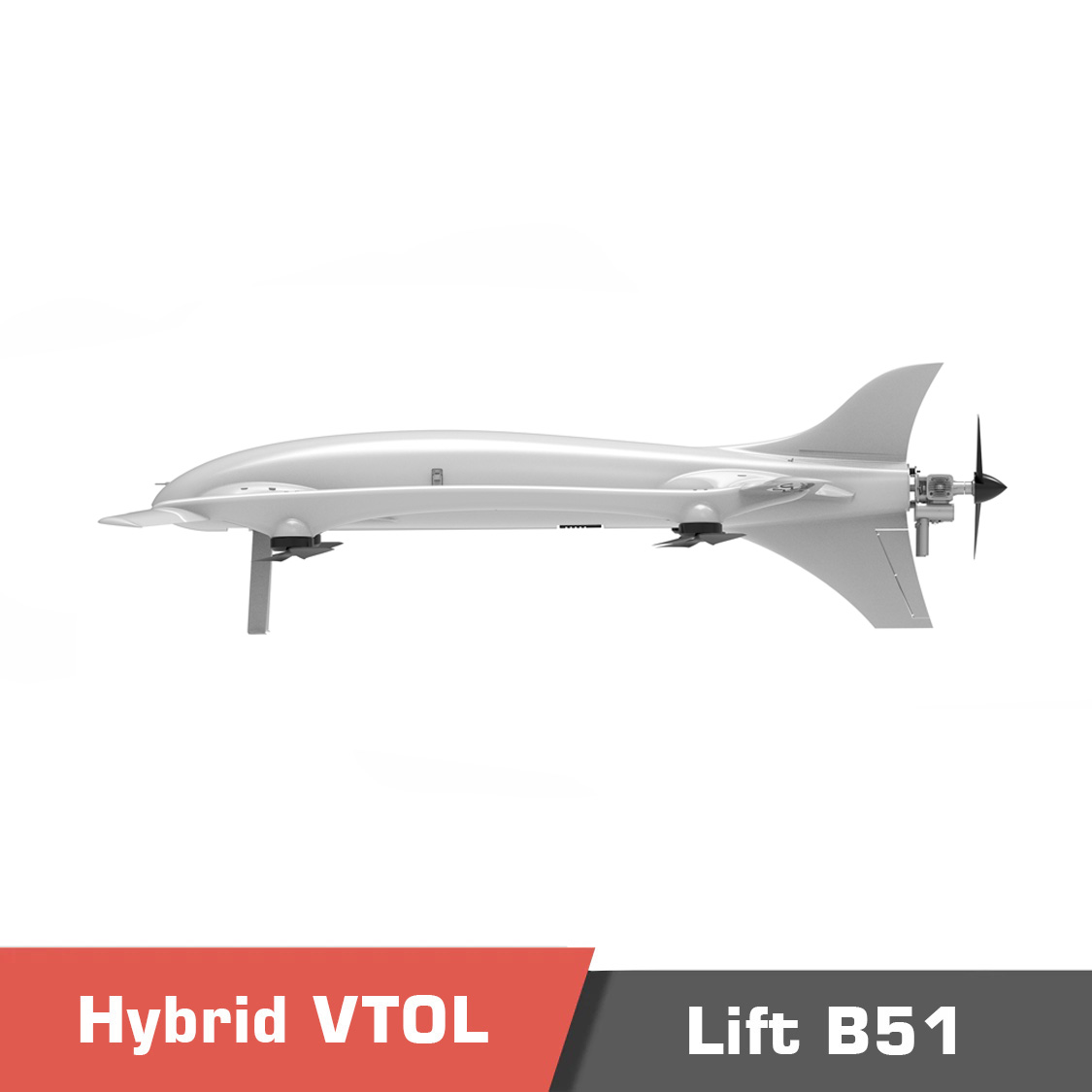

Overview of Lift B51

The Lift B51 is a state-of-the-art tandem wing VTOL (Vertical Take-Off and Landing) drone designed for exceptional performance and versatility in various applications. This advanced drone combines the benefits of fixed-wing efficiency with the flexibility of vertical take-off and landing capabilities, making it an ideal solution for both commercial and industrial use.

Technical Specifications

The Lift B51 boasts impressive technical specifications, starting with its substantial body length of 2905mm and body height of 930mm. The drone features a dual wingspan design, with the rear wingspan measuring 5100mm and the front wingspan 3530mm. This tandem wing configuration provides enhanced stability and aerodynamic efficiency, crucial for long-range and high-payload missions. Constructed from aviation-grade carbon fiber composites, the airframe ensures durability and lightweight performance, essential for demanding operational environments.

Buy Lift VTOL B51, Hybrid Tandem Wing Heavy Lift, Long Endurance VTOL Online

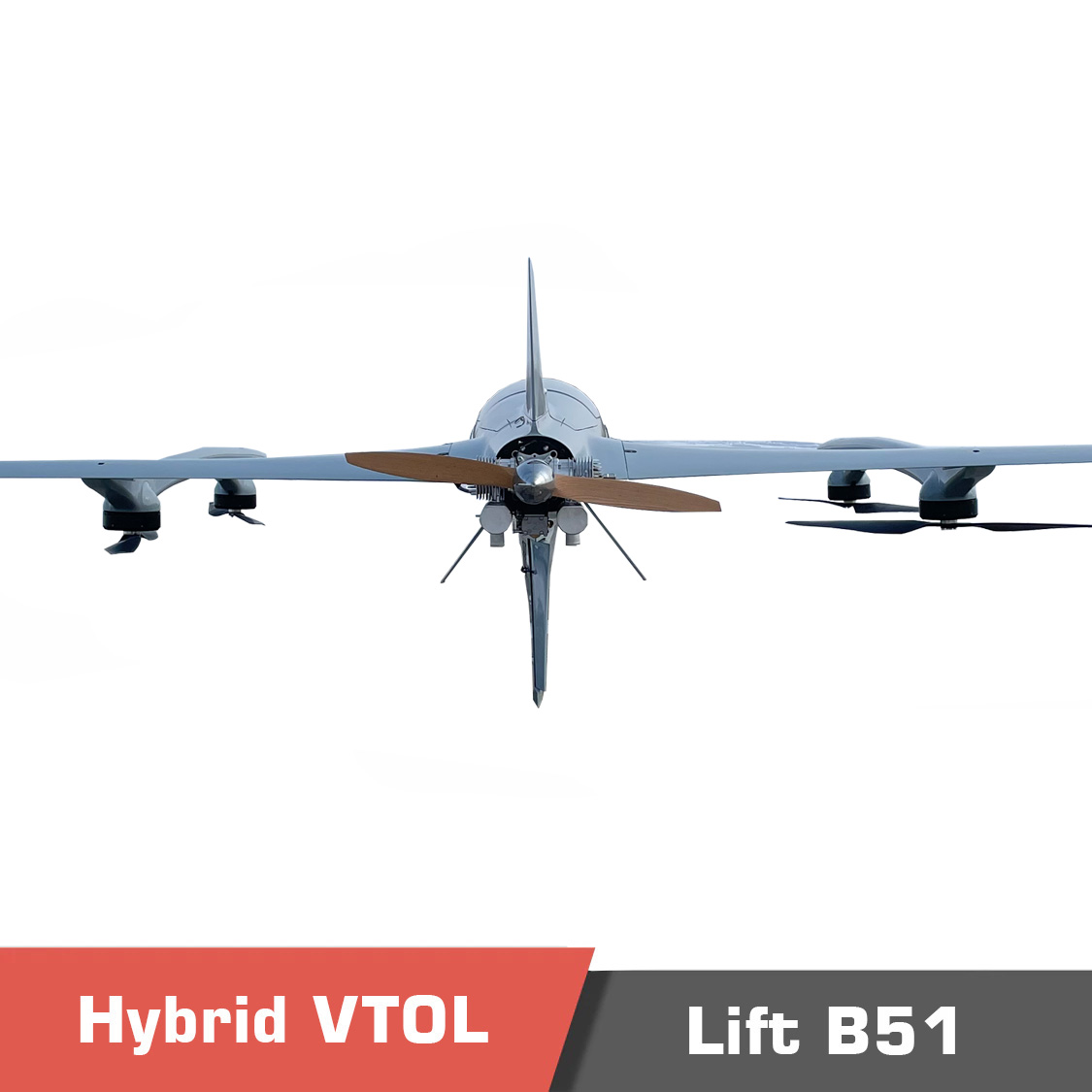

Powered by a reliable gasoline engine, the Lift B51 achieves level speeds ranging from 28 to 45 m/s, with a consistent cruising speed of 30 m/s. Its design enables it to withstand significant wind resistance, handling speeds of 8 to 10.7 m/s during take-off in VTOL mode, and 10.8 to 13.8 m/s during fixed-wing cruising. This robust wind resistance capability ensures stable and secure flights in various weather conditions.

Impressive function of Lift B51

The drone’s maximum range is an impressive 810 kilometers, allowing for extended missions without the need for frequent refueling. The Lift B51 supports a maximum take-off weight of 100 kilograms and can carry a substantial payload of up to 45 kilograms, making it suitable for transporting heavy equipment, sensors, or other payloads. The operational ceiling is equally remarkable, with the drone capable of flying at altitudes up to 5000 meters.

Buy Lift VTOL B51, Hybrid Tandem Wing Heavy Lift, Long Endurance VTOL Online

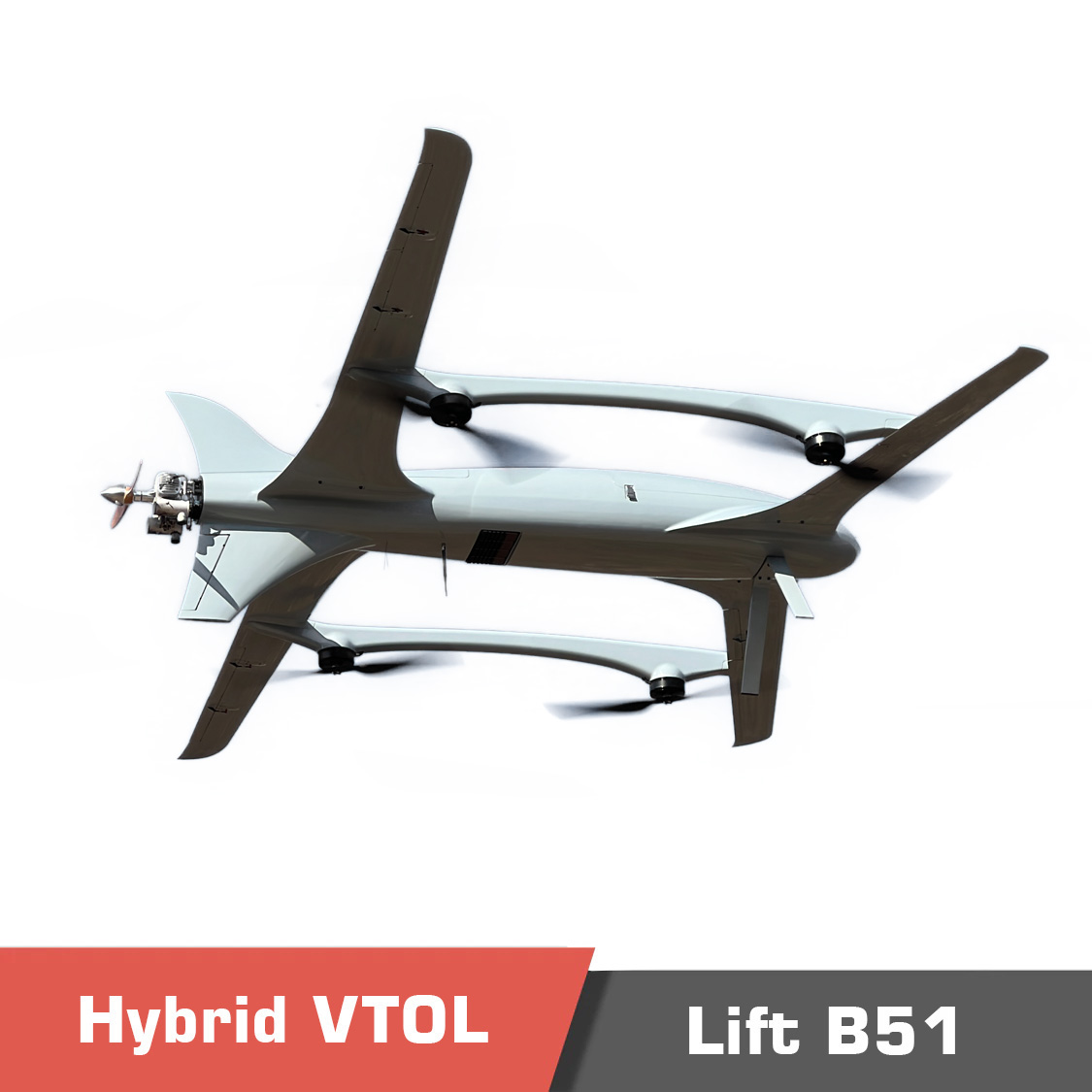

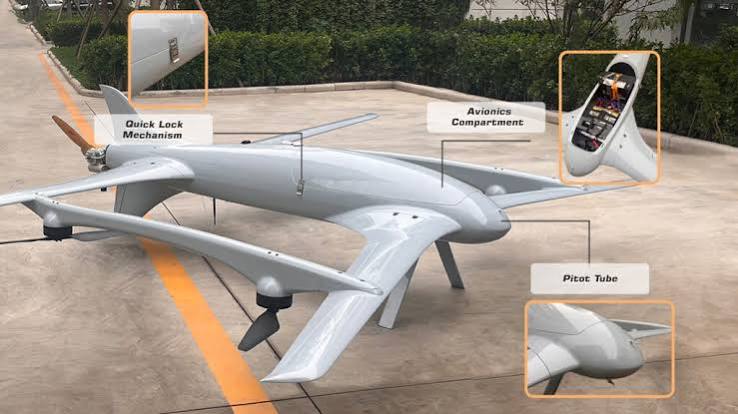

The unique design

Designed to perform in diverse environments, the Lift B51 operates efficiently within a working temperature range of -20°C to 45°C. Its fuel consumption rate is economical at 4 liters per hour (4L/h), providing a balance of performance and cost-efficiency. The drone’s protection degree is rated at IPX4, ensuring resistance to water splashes and offering durability in various environmental conditions.

Applications of Hybrid Tandem Wing Heavy Lift and Long Endurance VTOL

Buy Lift VTOL B51, Hybrid Tandem Wing Heavy Lift, Long Endurance VTOL Online

Whether for aerial surveying, mapping, monitoring, or delivery services, the Lift B51 tandem wing VTOL drone delivers unmatched performance, reliability, and versatility, setting a new standard in the UAV industry. With its cutting-edge design and advanced technical specifications, the Lift B51 is your go-to solution for high-demand aerial operations.

Overview Table of the Lift B51 Specifications

Buy Lift VTOL B51, Hybrid Tandem Wing Heavy Lift, Long Endurance VTOL Online

FAQ — Lift B51 Hybrid Tandem Wing

1. What are the key specifications and performance features of the Lift B51?
   The Lift B51 features a hybrid tandem-wing structure with a maximum takeoff weight of 50 kilograms and a payload capacity of 15 kilograms.
   It reaches a cruising speed of 27 m/s, with a maximum speed of 40 m/s, and offers up to 7 hours of flight endurance depending on configuration.

2. What propulsion system does the B51 utilize?
   The aircraft uses a hybrid gasoline-electric propulsion system, providing both the long endurance of a combustion engine and the precision control of electric lift motors during takeoff and landing.

3. What are the major design advantages of the tandem-wing VTOL configuration?
   The dual-wing aerodynamic layout improves lift efficiency and reduces drag, allowing higher endurance and payload capacity.
   Vertical takeoff and landing eliminate the need for runways, enabling operations in confined or rugged environments.

4. What are the payment and purchase options for the Lift B51?
   MotioNew supports secure international payment methods, including bank transfers, letters of credit, and proforma invoice transactions.
   Bulk buyers may request customized quotations for the PNP or RTF versions, with optional GCS and datalink packages.

5. Can the Lift B51 be customized or ordered as an OEM platform?
   Yes. The B51 supports OEM customization, including payload integration for mapping, surveillance, or logistics applications.
   Clients can specify communication systems, gimbals, or sensors to match their operational needs.

6. What technical documentation and accessories are provided with delivery?
   Each unit includes a technical specification sheet, assembly guide, packing list, and declaration of conformity.
   Additional engineering drawings, software manuals, and maintenance guides can be supplied upon request for enterprise clients.

Important Notice! If your company intends to export UAV products from USA, it is necessary to comply with American regulations. Kratos Defense Drone Shop products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information. Overview of Lift B51 The Lift B51 is a state-of-the-art tandem wing VTOL (Vertical Take-Off and Landing) drone designed for exceptional performance and versatility in various applications. This advanced drone combines the benefits of fixed-wing efficiency with the flexibility of vertical take-off and landing capabilities, making it an ideal solution for both commercial and industrial use.

Technical Specifications The Lift B51 boasts impressive technical specifications, starting with its substantial body length of 2905mm and body height of 930mm. The drone features a dual wingspan design, with the rear wingspan measuring 5100mm and the front wingspan 3530mm. This tandem wing configuration provides enhanced stability and aerodynamic efficiency, crucial for long-range and high-payload missions.

Constructed from aviation-grade carbon fiber composites, the airframe ensures durability and lightweight performance, essential for demanding operational environments. Powered by a reliable gasoline engine, the Lift B51 achieves level speeds ranging from 28 to 45 m/s, with a consistent cruising speed of 30 m/s. Its design enables it to withstand significant wind resistance, handling speeds of 8 to 10.7 m/s during take-off in VTOL mode, and 10.8 to 13.8 m/s during fixed-wing cruising.

This robust wind resistance capability ensures stable and secure flights in various weather conditions. Impressive function of Lift B51 The drone’s maximum range is an impressive 810 kilometers, allowing for extended missions without the need for frequent refueling. The Lift B51 supports a maximum take-off weight of 100 kilograms and can carry a substantial payload of up to 45 kilograms, making it suitable for transporting heavy equipment, sensors, or other payloads. The operational ceiling is equally remarkable, with the drone capable of flying at altitudes up to 5000 meters.

Buy Lift VTOL B51 Online

The unique design Designed to perform in diverse environments, the Lift B51 operates efficiently within a working temperature range of -20°C to 45°C. Its fuel consumption rate is economical at 4 liters per hour (4L/h), providing a balance of performance and cost-efficiency. The drone’s protection degree is rated at IPX4, ensuring resistance to water splashes and offering durability in various environmental conditions.

Applications of Hybrid Tandem Wing Heavy Lift and Long Endurance VTOL Whether for aerial surveying, mapping, monitoring, or delivery services, the Lift B51 tandem wing VTOL drone delivers unmatched performance, reliability, and versatility, setting a new standard in the UAV industry. With its cutting-edge design and advanced technical specifications, the Lift B51 is your go-to solution for high-demand aerial operations.

Buy Lift VTOL B51 Online

Power Line & Infrastructure Inspection

Replace manual inspections, solve problems in complex terrain and dangerous areas, guarantees for the safety and stability.

Overview Table of the Lift B51 Specifications Weights Maximum Take-off Weight 100kg Max. payload weight 45kg (Payload + Gasoline) Dimensions Dimensions Rear Wingspan: 5100mm Front Wingspan: 3530mm Body Length: 2905mm Height: 930mm Front Payload or Battery Cabin Size 340*340*270mm Fuel Tank Cabin Size 570*350*120mm Middle

Payload Cabin Size 450*350*77m Autopilot Cabin Size 186*300*60mm Rear Payload or Battery Cabin Size 400*260*180mm (a 25mm beam in the middle) Packing Chargeable Size 3050*800*980mm / 107kg Cruise Flight Engine Engine Gasoline engine Engine Type DLE222 Fuel Consumption 4L / h Performance Cruising Speed 30m/s Level Speed 28~45m/s Stall Speed 25m/s Max.

Wind Resistance Take-off (VTOL mode): 8~10.7m/s, Cruise (Fixed wing mode): 10.8~13.8m/s Max range 810km Max. Flight Altitude 5000m For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ — Lift B51 Hybrid Tandem Wing What are the key specifications and performance features of the Lift B51? The Lift B51 features a hybrid tandem-wing structure with a maximum takeoff weight of 50 kilograms and a payload capacity of 15 kilograms .

Environmental Monitoring

Collect aerial imagery, environmental data, and assist research even in remote or inaccessible locations.

It reaches a cruising speed of 27 m/s , with a maximum speed of 40 m/s , and offers up to 7 hours of flight endurance depending on configuration. What propulsion system does the B51 utilize? The aircraft uses a hybrid gasoline-electric propulsion system , providing both the long endurance of a combustion engine and the precision control of electric lift motors during takeoff and landing. What are the major design advantages of the tandem-wing VTOL configuration? The dual-wing aerodynamic layout improves lift efficiency and reduces drag, allowing higher endurance and payload capacity.

Geospatial & Land Surveying

Map topography, monitor erosion, and support land management or disaster assessment. Extended endurance and VTOL capabilities allow detailed surveys over mountains, valleys, or large construction sites.

Collect aerial imagery, environmental data, and assist research even in remote or inaccessible locations.

Buy Lift VTOL B51 Online

Power Line & Infrastructure Inspection

Replace manual inspections, solve problems in complex terrain and dangerous areas, guarantees for the safety and stability.

Buy Lift VTOL B51 Online

Geospatial & Land Surveying

Map topography, monitor erosion, and support land management or disaster assessment. Extended endurance and VTOL capabilities allow detailed surveys over mountains, valleys, or large construction sites.

Vertical takeoff and landing eliminate the need for runways, enabling operations in confined or rugged environments. What are the payment and purchase options for the Lift B51? Kratos Defense Drone Shop supports secure international payment methods , including bank transfers , letters of credit , and proforma invoice transactions . Bulk buyers may request customized quotations for the PNP or RTF versions, with optional GCS and datalink packages . Can the Lift B51 be customized or ordered as an OEM platform? Yes.

Buy Lift VTOL B51 Online

The B51 supports OEM customization , including payload integration for mapping, surveillance, or logistics applications. Clients can specify communication systems, gimbals, or sensors to match their operational needs. What technical documentation and accessories are provided with delivery? Each unit includes a technical specification sheet , assembly guide , packing list , and declaration of conformity . Additional engineering drawings, software manuals, and maintenance guides can be supplied upon request for enterprise clients.
