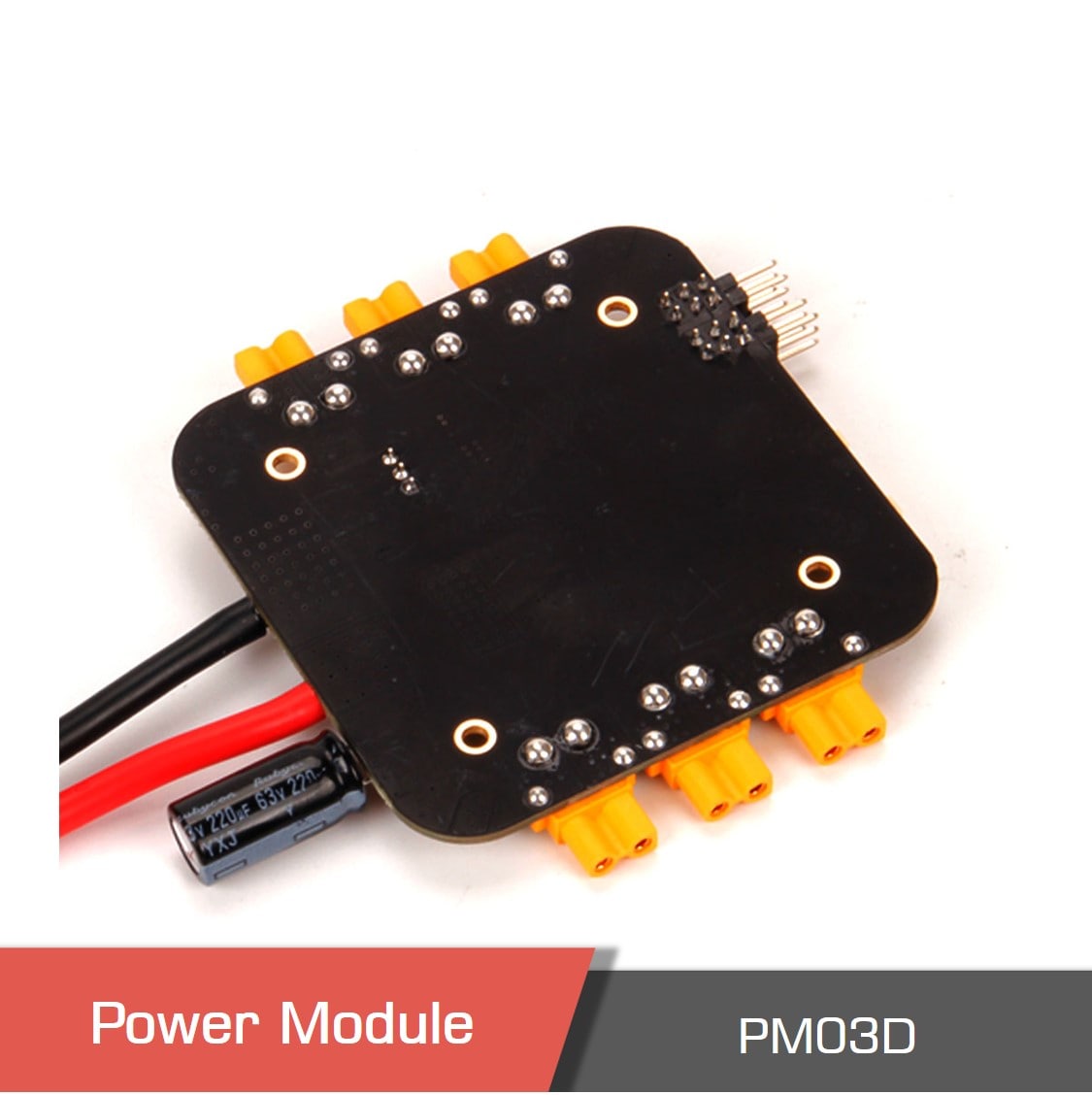

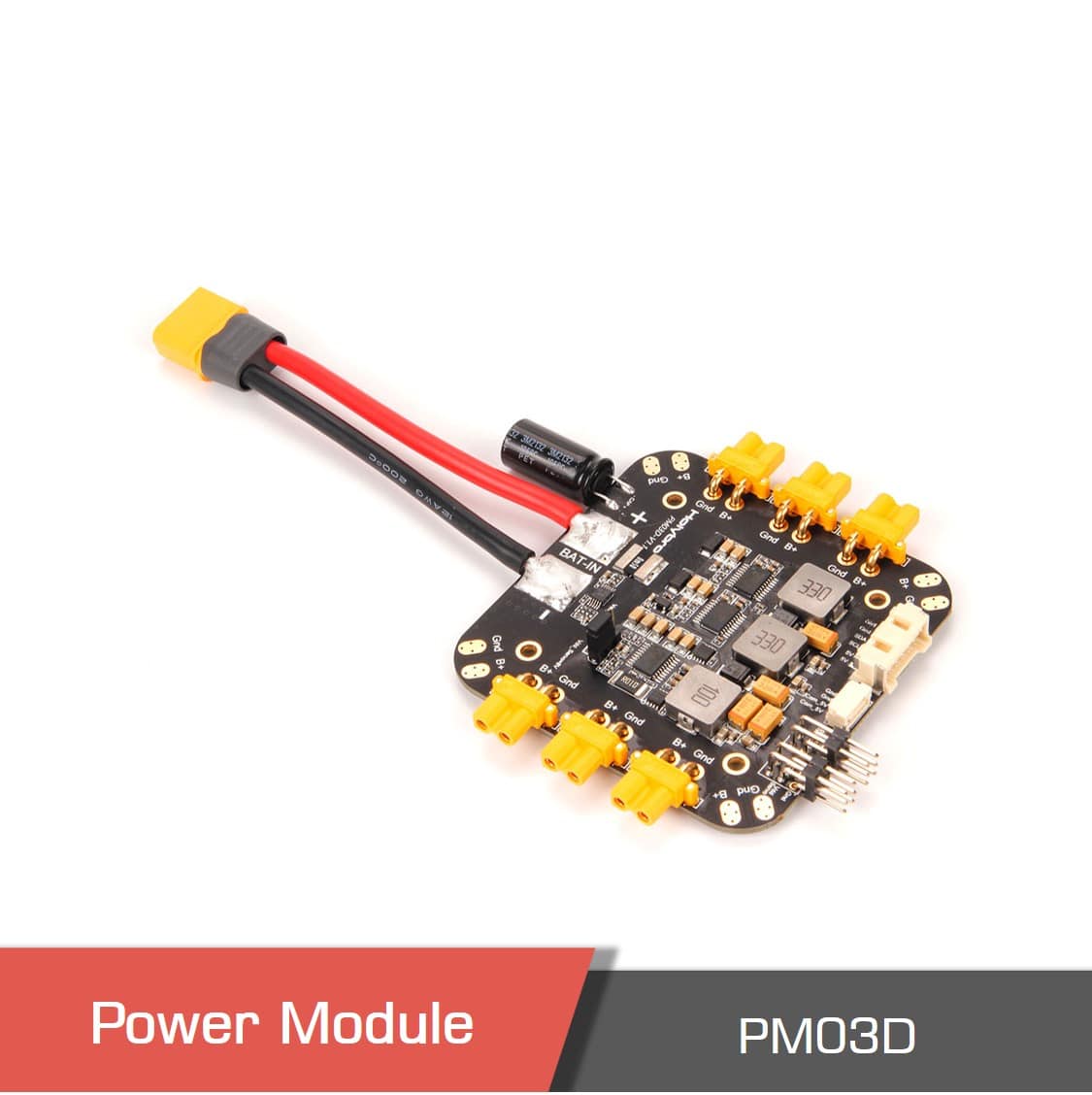

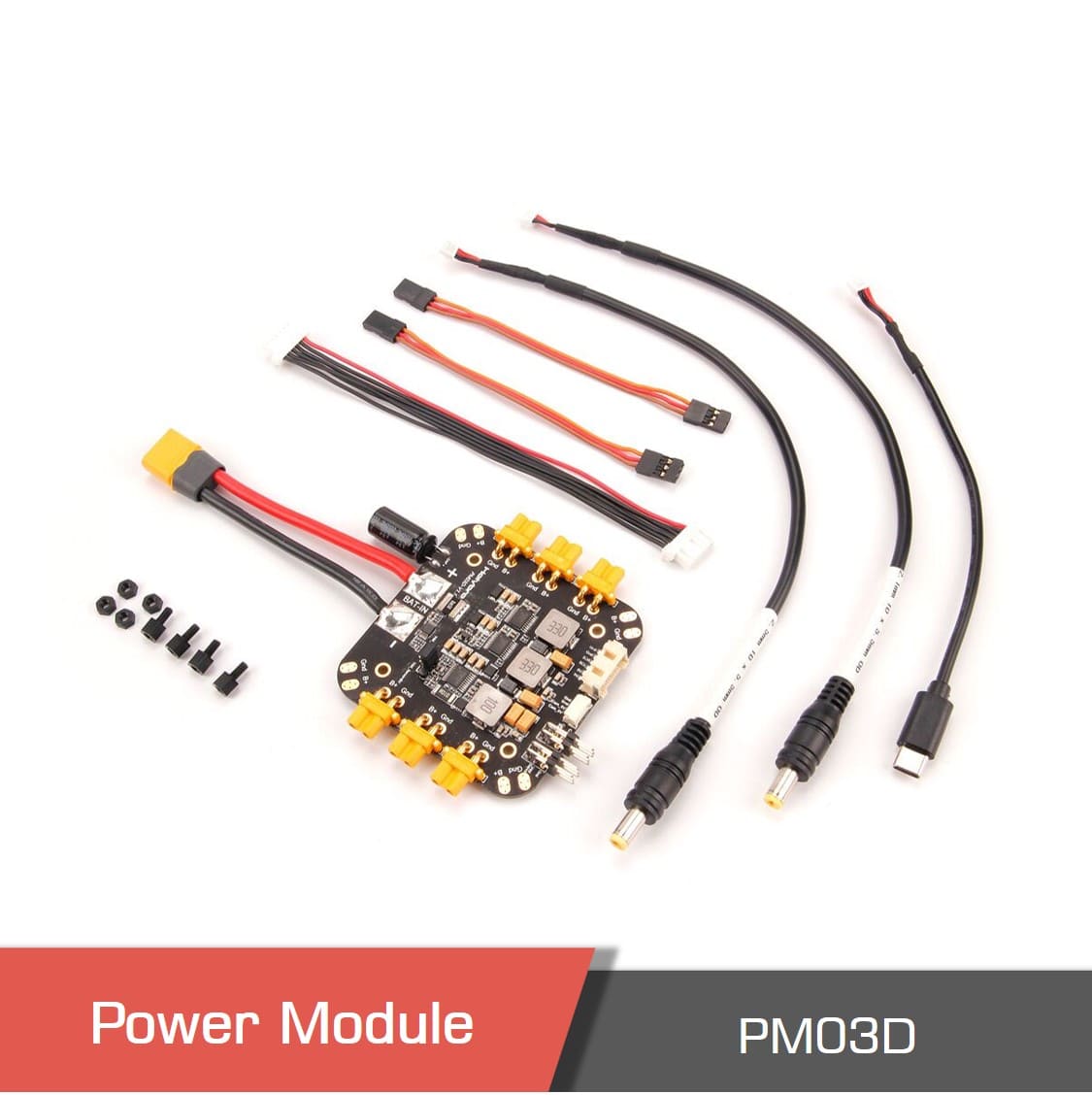

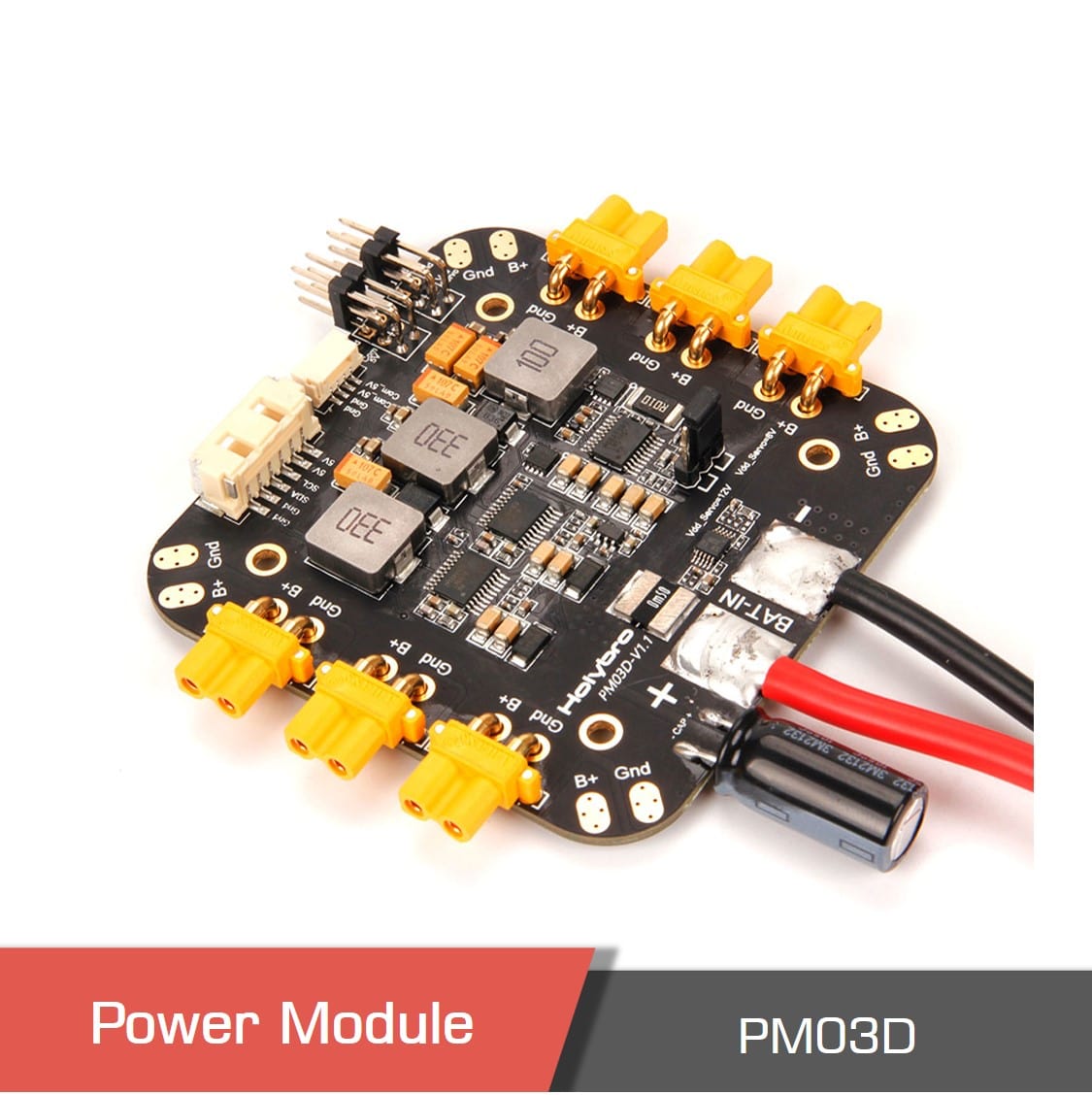

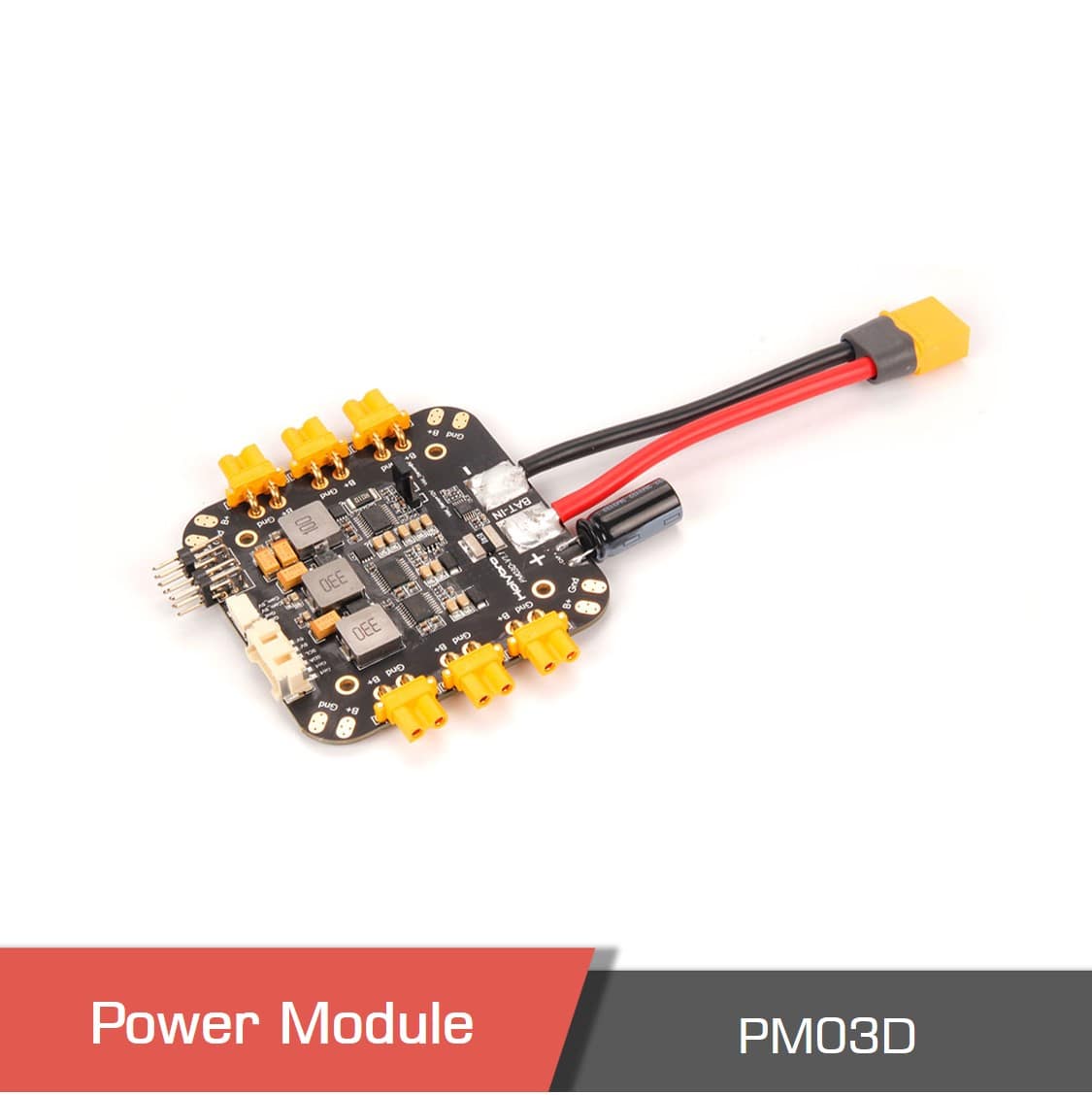

Holybro PM03D Power Module

Overview As part of the Holybro PM03D, drone power module, it provides a regulated power supply and is capable of monitoring battery voltage and energy consumption in connection with the I2C digital protocol over the period of 6 pins across the 1.00mm CLIK-Mate cable. If you use a flight controller that supports I2C power monitors such as the Pixhawk 5X and up, you will be able to use this module. This model is designed to be used on multi-rotor drones such as the X500 V2. Several XT-30 and XT-60 connectors have already been preinstalled in this system, so you can attach motor ESCs and batteries to it. Also included are a 5V BEC and an 8V/12V output that can be selected for different types of peripheral devices based on their switch. It is important to note that this FPV power module will not be compatible with flight controllers with analog PMs such as the Pixhawk4 Mini , Pix32 V5, or Durandal flight controllers that use analog PM. Features of PM03D With QGroundcontrol & Mission Planner, there is no additional setup required, which makes it plug-and-play XT-30 connectors and solder pads for easy connection of motors to ESCs The circuit board includes two voltage regulators: two 5.2V & a selectable 8V/12V onboard The motherboard’s 5V/A ports can power the companion computer or peripheral device Powering peripheral devices with selectable 8V or 12V triple row pin header If you have any questions regarding our products, use the Kratos Defense Drone Shop Contact us page to consult our engineering team. Holybro PM03D Power Module – FAQ 1. What is the main function and design of the Holybro PM03D Power Module? The Holybro PM03D is a digital power management module that provides regulated power and monitors battery voltage and current consumption via the I2C protocol. It is designed for multirotor drones such as the Holybro X500 V2 and compatible with flight controllers supporting I2C power monitoring (e.g., Pixhawk 5X and later). 2. What are the electrical specifications and output options? The PM03D supports XT30 and XT60 connections and includes two built-in voltage regulators—5.2V and a selectable 8V/12V output. It also features a 5V/3A BEC output and selectable high-voltage output for powering peripherals or companion computers. 3. Which flight controllers are compatible with the PM03D? It is compatible with flight controllers using I2C digital power monitoring, such as Pixhawk 5X, 6X, and newer models. It is not compatible with analog PM-based controllers like Pixhawk4 Mini, Pix32 V5, or Durandal. 4. What are the purchasing and delivery options for the PM03D? The module is sold as a standalone power management board with connectors preinstalled. Kratos Defense Drone Shop provides international shipping with tracking and estimated delivery times displayed during checkout. 5. Does Kratos Defense Drone Shop support OEM and bulk purchasing for this model? Yes. OEM and bulk purchasing programs are available for UAV manufacturers and integrators. Buyers can request custom wiring, connector types, and bulk pricing through Kratos Defense Drone Shop’s sales department. 6. What documentation and support resources are provided? User manuals, wiring diagrams, and setup guides are available in the product’s documentation section. Firmware support and integration assistance are provided through Holybro and Kratos Defense Drone Shop’s engineering support teams.
