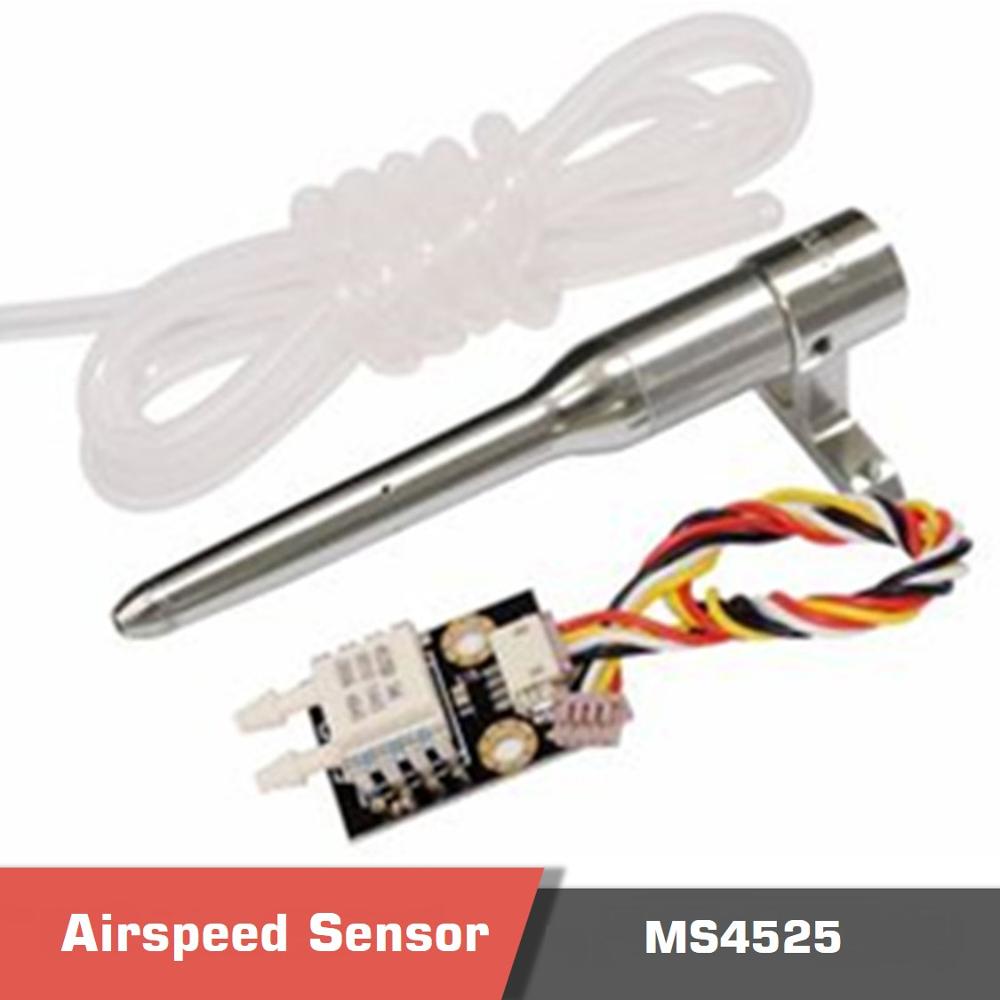

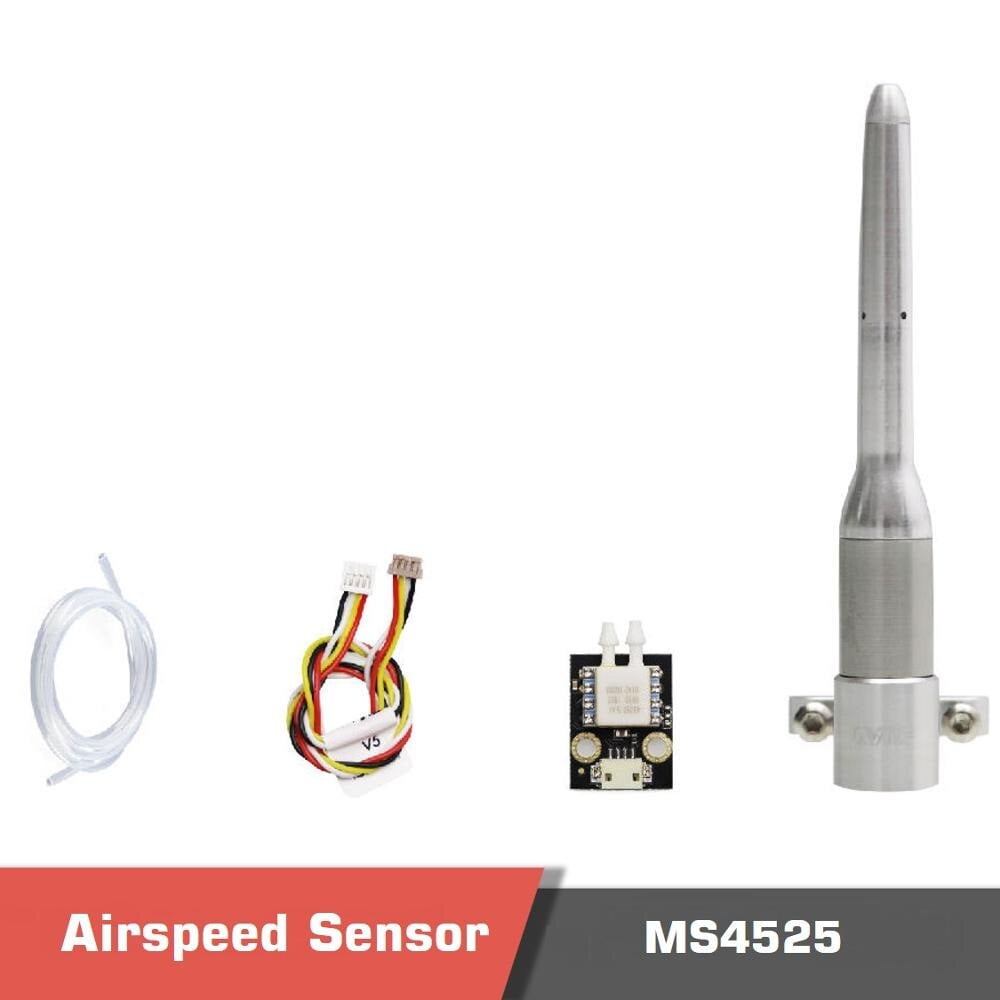

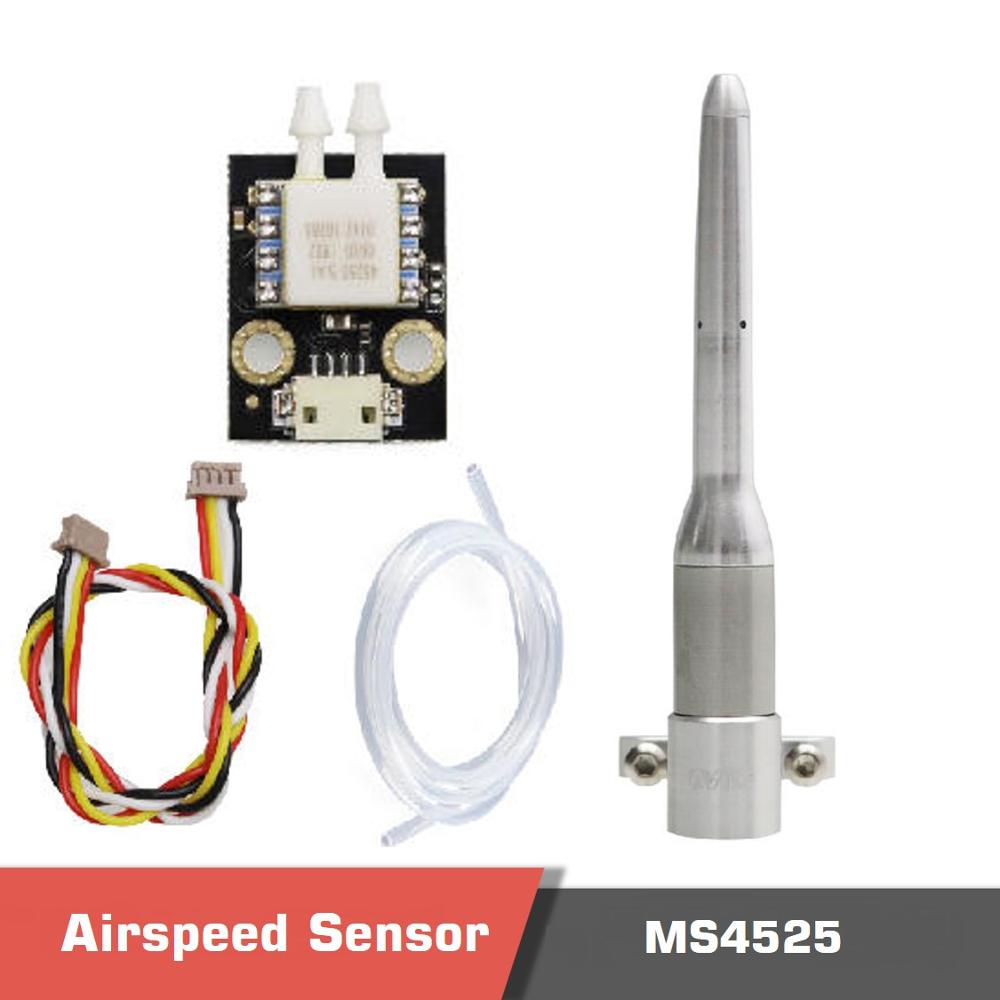

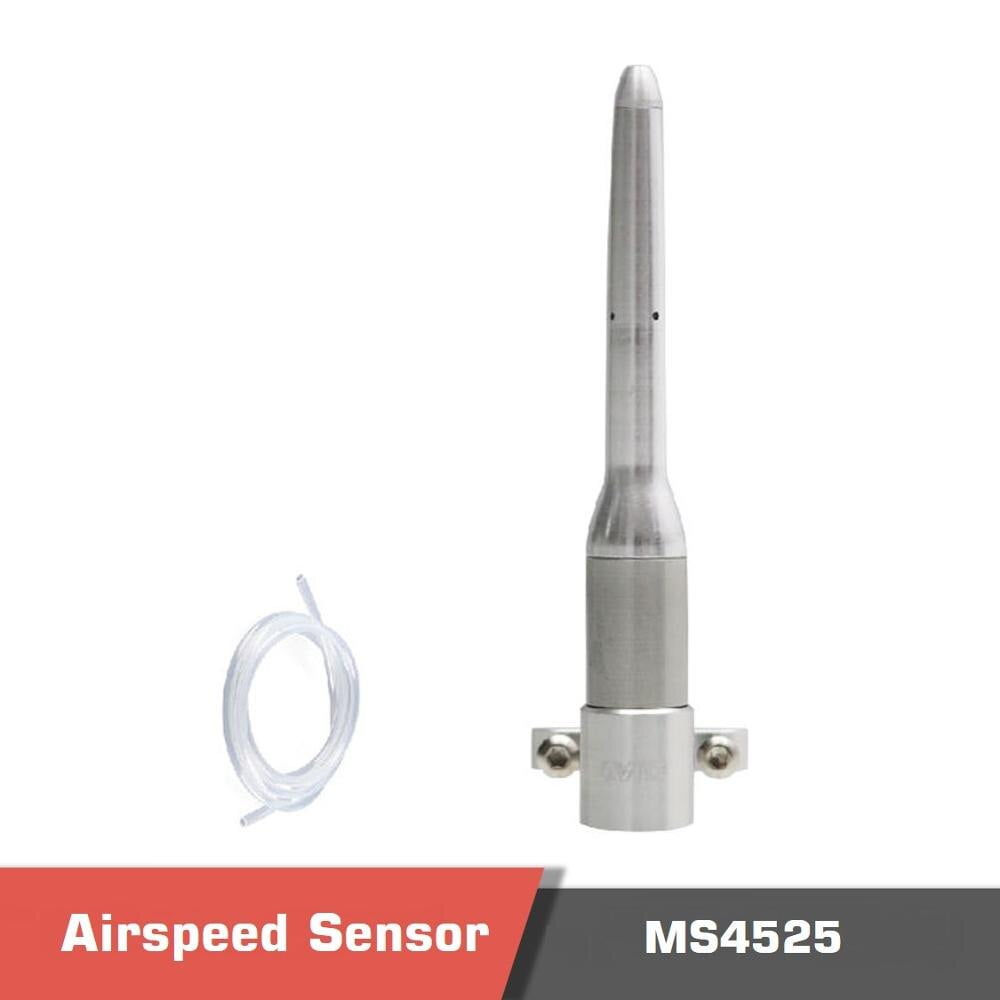

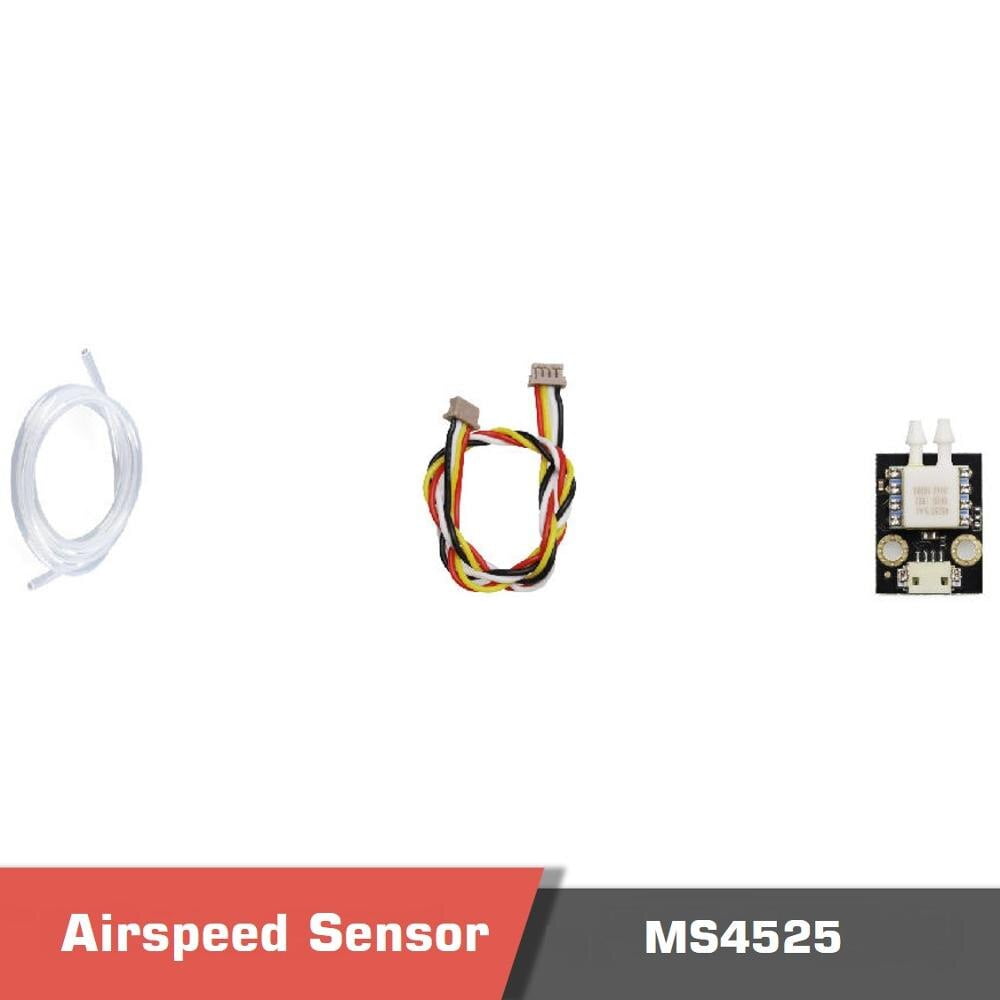

CUAV Airspeed Sensor MS4525 with Pitot Tube

* If you are looking for a heated pitot tube airspeed sensor, please check CUAV SKYE CUAV Airspeed Sensor Kit: Introduction This is a digital airspeed sensor kit developed by CUAV. It is recommended to use this airspeed for fixed-wing frames and VTOL drones in plane mode. It is usually used for detecting stalls and is helpful in windy conditions. Because it requires additional calibration, it may hard for new users to properly set it up as it may lead to unprecedented behavior unless used correctly. The MS4525 airspeed sensor included in the kit offers precise airspeed measurements, ensuring accurate flight performance and safety. Understanding Airspeed Sensors: Analog vs. Digital There are two versions of airspeed sensors, both analog and digital (I2C communication). It is possible to calculate the airspeed of an aircraft using the pitot tube by measuring the static and total air pressures. The placement of the pitot is very important, and it should be installed correctly in order to be directly in the airstream, and the holes on the pitot should not be covered in any other way. Pitot is usually mounted on the wing in a setup where the propeller is in the nose so that its environment is not in the flow of air from the propeller. Typically, the sensor and the pitot both have a static and dynamic port that needs to be connected per the specifications. Installation of Pitot Tube and Sensor: Key Considerations If you use your favorite ground station (MissionPlanner, QGroundControl, etc.) to test whether or not the sensor is functioning correctly, you should be able to see the sensor response. You should be able to see the sensor response if you measure the pressure by blowing into the tube (do not directly blow into it as you may tear the diaphragm – do it from a 40-50cm distance) or cover it with your finger. Testing Sensor Functionality: Ground Station Integration CUAV HOT Pitot Tube Airspeed Meter Airspeed Differential Sensor kit is suitable for V5+, V5 nano, Pixhawk, APM, PX4 Flight Controller, RC Model Airplane, etc. The kit includes the MS4525 airspeed sensor , a digital airspeed sensor known for its reliability and accuracy in measuring airspeed for UAV applications. With its compatibility across various flight controllers, the MS4525 ensures accurate and reliable airspeed readings for your UAV operations. If you have any questions regarding our products, use the Kratos Defense Drone Shop Contact us page to consult our engineering team. CUAV Airspeed Sensor with Pitot Tube – FAQ 1. What is the main function and application of the CUAV Airspeed Sensor? The CUAV Airspeed Sensor is designed to measure dynamic and static air pressure for calculating airspeed in fixed-wing and VTOL UAVs, enabling precise flight control and energy-efficient operation. 2. What sensor technology is used in this module? It integrates a digital differential pressure sensor (MS5525) for accurate and stable measurements across a wide range of speeds and environmental conditions. 3. How does the CUAV Airspeed Sensor connect to flight controllers? The module communicates via an I2C interface and is fully compatible with CUAV and Pixhawk flight controllers running PX4 or ArduPilot firmware. It supports plug-and-play integration without additional setup. 4. What are the available purchasing and delivery options for the CUAV Airspeed Sensor? The product includes the airspeed sensor, Pitot tube, and connection tubing. Kratos Defense Drone Shop provides international shipping with order tracking and estimated delivery times shown during checkout. 5. Does Kratos Defense Drone Shop offer OEM or bulk purchasing for this model? Yes. OEM and bulk purchasing options are available for UAV manufacturers and research institutions. Buyers can request custom tubing lengths, connectors, and volume-based pricing through Kratos Defense Drone Shop’s sales department. 6. What documentation and support resources are provided? Detailed user manuals, wiring diagrams, and setup guides are available in the product documentation section. Firmware compatibility updates and technical support are provided through CUAV and Kratos Defense Drone Shop’s engineering support teams.
