MotionUAV M-RTK Mosaic-G5 P3H, Anti-jamming and Anti-spoofing GNSS

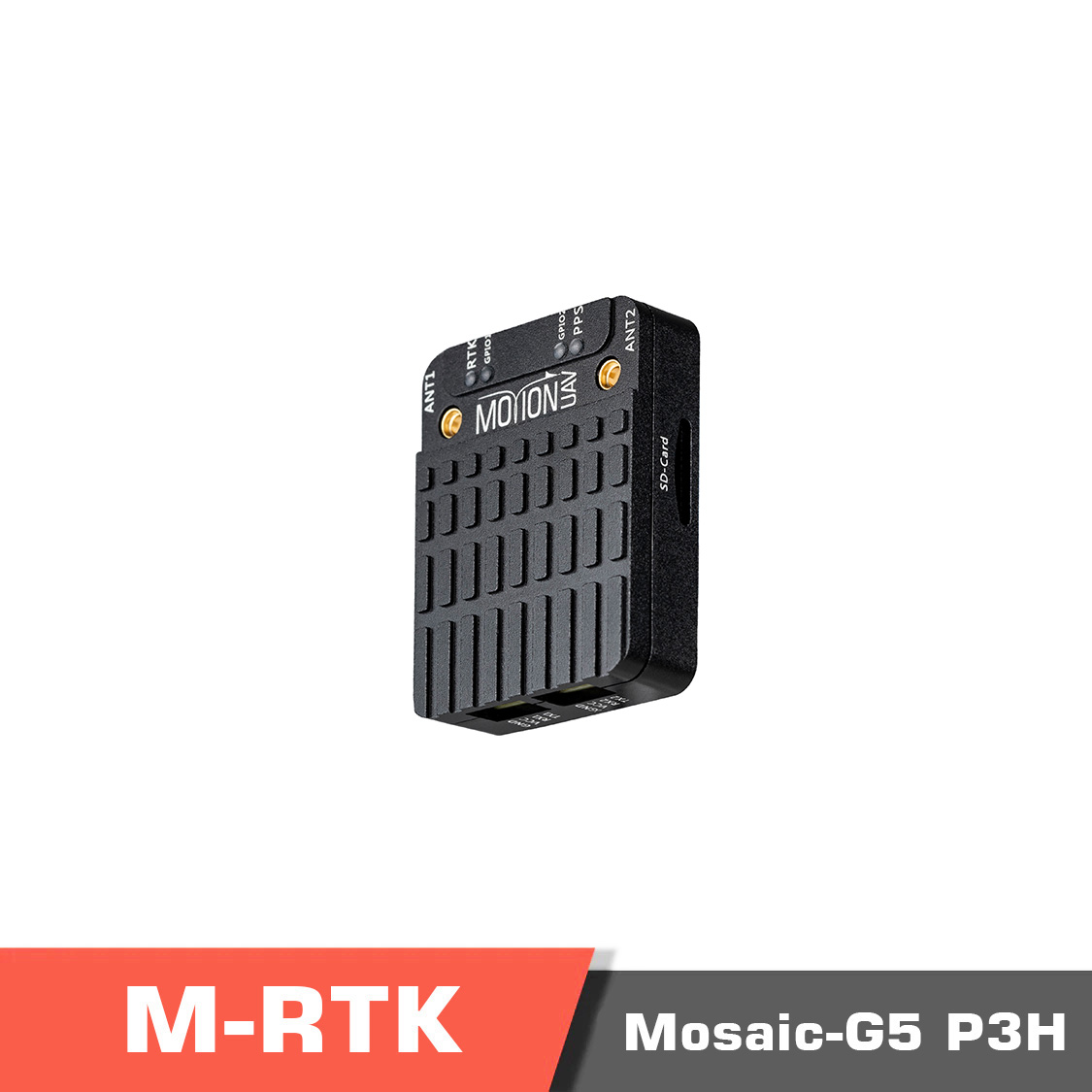

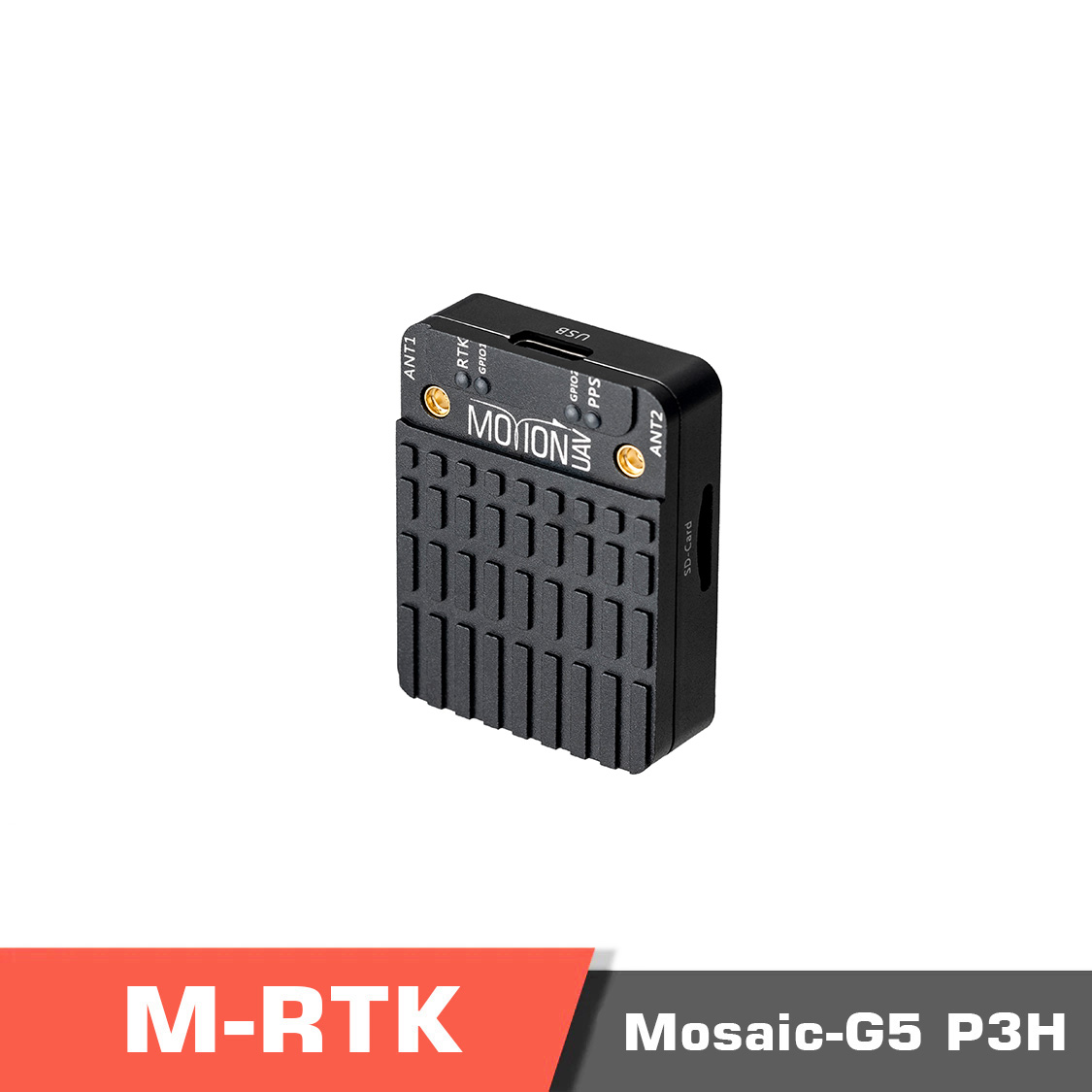

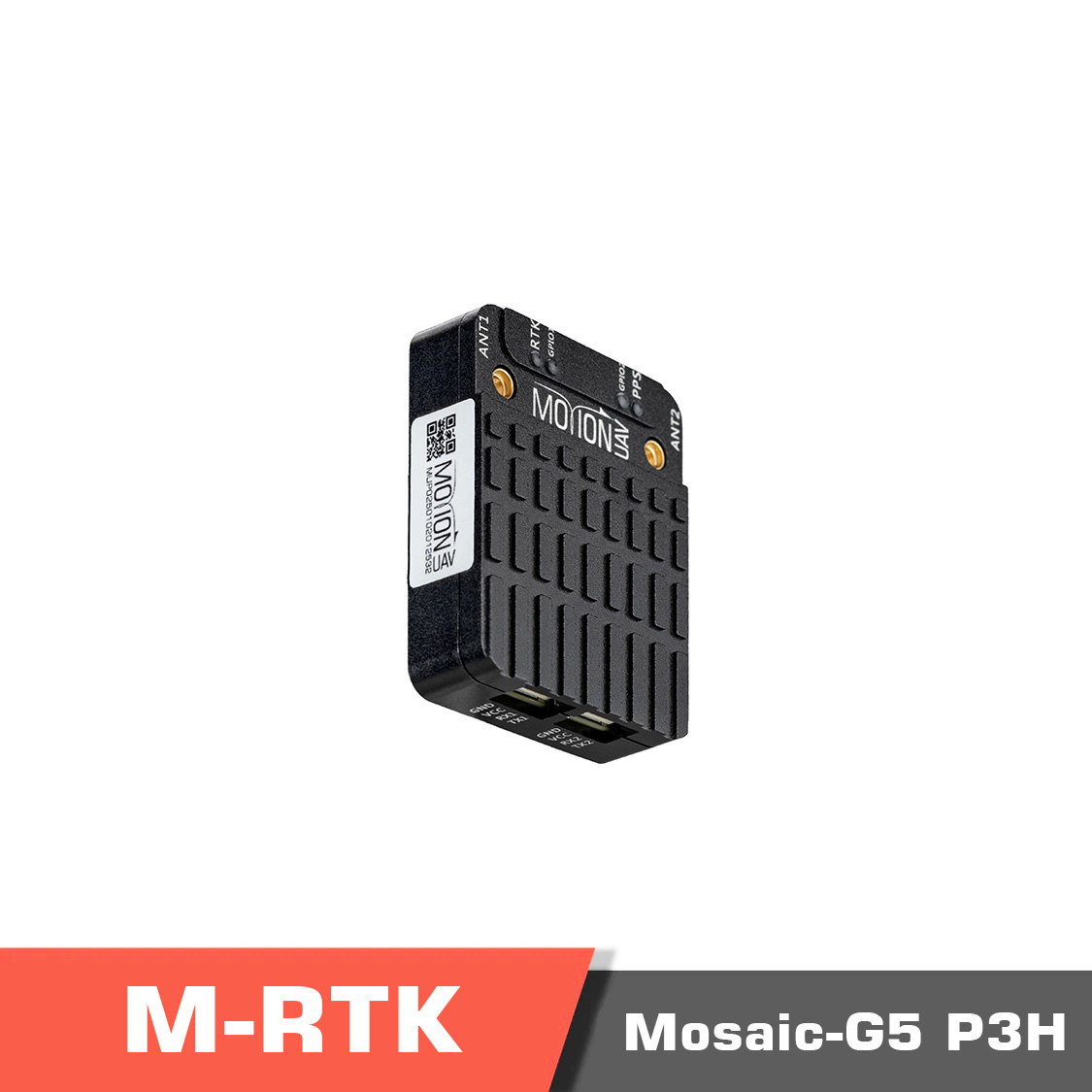

MotionUAV M-RTK Mosaic-G5 P3H Product Review The MotionUAV M-RTK Mosaic-G5 P3H is a high-precision GNSS receiver designed for professionals who demand the highest level of accuracy and reliability for critical missions. This M-RTK GPS uses a Mosaic-G5 P3H GNSS module from Septentrio, and one of its most important factors is its built-in anti-jamming and anti-spoofing capabilities. Unlike standard GPS receivers that are prone to GNSS signal loss in challenging environments, the Mosaic-G5 maintains a consistent RTK fix, which is a significant advantage for surveying, industrial applications, and complex autonomous navigation. Additionally, it is fully compatible with Pixhawk, ensuring a seamless integration for ArduPilot and PX4 users. Centimeter-Level Precision and Reliability Fast and accurate positioning is powered by multi-constellation, multi-frequency tracking. The Mosaic-G5 supports GPS, GLONASS, BeiDou, Galileo, and QZSS across the L1, L2, L5, E1, E5, and B1-B3 bands. This provides the ultra-precise compute processing needed to achieve an RTK accuracy of 0.6 cm + 0.5 ppm. This comprehensive coverage is critical for heavy-lift drones or autonomous missions because it actively mitigates multipath errors. If one frequency block is obstructed by tall buildings or dense tree canopies, the system seamlessly relies on the others to prevent positioning drift and keep the drone perfectly on course. Anti-Jamming and Anti-Spoofing (AIM+) To ensure continuous accuracy near complex infrastructure, the receiver features built-in Superior Anti-Interference technology. Electromagnetic interference from power lines, cell towers, or heavy machinery can easily jam standard GNSS modules, leading to flyaways or crashes. The Mosaic-G5’s anti-interference system actively filters out these disruptive radio frequencies, ensuring the drone’s location data stays locked and accurate even in harsh urban or industrial environments. High-Speed Updates and Dual-Antenna Heading Integrating a dual-antenna GNSS configuration provides the Mosaic-G5 with a highly accurate heading (yaw) that is 100% immune to magnetic interference. Traditional magnetometers easily fail when exposed to the electromagnetic fields generated by heavy-duty drone motors or metal structures. By calculating the precise spatial baseline between two antennas, the system maintains a perfect directional lock. Furthermore, the receiver outputs data at a fast 20 Hz update rate. This high frequency guarantees the real-time responsiveness necessary for smooth flight control and precise maneuvering during high-speed mapping missions Advanced Connectivity and Storage The design focuses on making complex data management simple for the end user: 32GB GNSS Data Log: The built-in storage supports raw GNSS data logging up to 32GB. This is a vital feature for Post-Processed Kinematic (PPK) workflows and deep mission analysis. Compact and Lightweight: Weighing less than 25g, this module provides industrial performance without sacrificing flight endurance or payload capacity. Plug-and-Play Interfaces: With a USB-C port for power and data, and Dual UART ports , it integrates easily with your companion computers and flight controllers. Performance Comparison Feature Standard GNSS Module (e.g., u-blox NEO-M8N) MotionUAV Mosaic-G5 P3H Accuracy (RTK) ~1.2m (Single Point) 0.6 cm + 0.5 ppm Update Rate 5 Hz – 10 Hz 20 Hz Heading Stability Magnetic Compass (Interference Prone) GNSS-Based Dual Antenna (Immune) Constellations & Frequencies Lacks specific bands such as L5 L1, L2, L5, E1, E5, B1, B2, B3 Signal Security None AIM+ Anti-Jamming & Anti-Spoofing The M-RTK Mosaic-G5 P3H provides a high-reliability positioning solution for critical UAV operations. By bridging the gap between industrial-grade GNSS performance and standard flight control hardware, it ensures consistent accuracy and mission success, even in high-interference or signal-obstructed environments. If you are currently using a standard GPS and are looking for a better solution, taking a look at the Mosaic-G5 P3H is highly recommended to overcome signal loss and interference.
