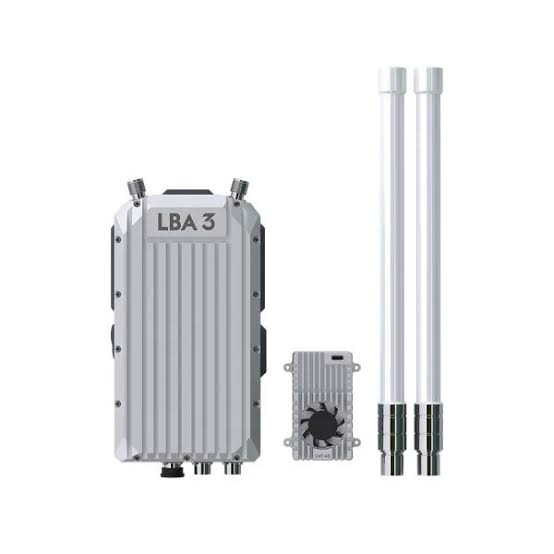

 CUAV LBA 3 Digital Link , Industrial Micro Private Network 4G 5G Large Bandwidth Hybrid One To Multiple Communication Base Station

CUAV LBA 3 Digital Link, Industrial Micro Private Network 4G 5G Large Bandwidth Hybrid One To Multiple Communication Base Station CUAV LBA 3 digital link is a micro base station equipment for medium-range and long-distance networking control and monitoring of UAVs. It has a 54km coverage area, and a large communication bandwidth of 30Mbps , with support of multi-unit network arrangements of up to 16 nodes in a star network. All nodes can communicate with each other with a minimum delay of less than 100ms. Supporting multiple nodes makes the system suitable for the formation flight of multiple UAVs.

Buy CUAV LBA 3 Digital Link Online

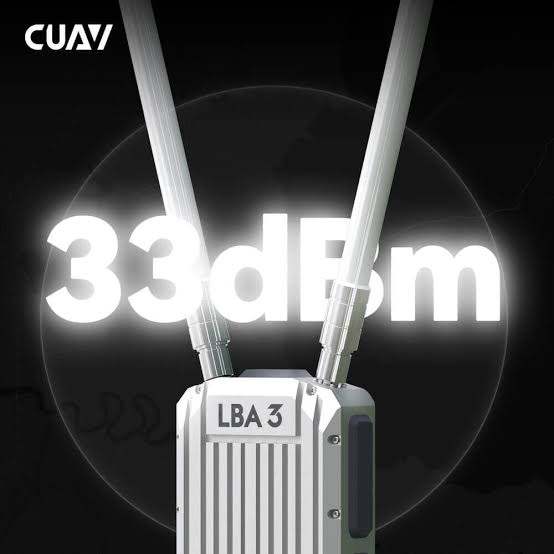

CUAV digital datalink drone supports both 1.4GHz and 800MHz frequencies. A maximum of 5W RF power and AES256 encryption are other features of it. LBA 3 has an industrial protection design (IP67), to meet outdoor operations situations. All the plugs are waterproof aviation types, and the module has three layers airtight design. The module works with LTE 4G/5G network. Moreover, it has a hybrid communication configuration to cover LTE network blind spots. LTE station antennas are usually inclined downward. As a result, stable LTE communication is not obtained at altitudes above 300m.

Buy CUAV LBA 3 Digital Link Online

Hybrid mode allows the network to cover the LTE blind spots to obtain reliable communication. Video Player https://www.Kratos Defense Drone Shop.com/wp-content/uploads/2023/02/Lba3gif-1.1.mp4 00:00 00:00 00:04 Use Up/Down Arrow keys to increase or decrease volume. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – CUAV LBA 3 Digital Link 1. What are the main specifications of the CUAV LBA 3 Digital Link? The LBA 3 is a 4G/5G hybrid digital communication base station designed for UAV and industrial network applications .

It supports up to 16 nodes in a star network topology , offering a coverage radius of 54 km , bandwidth of up to 100 Mbps , and latency below 100 ms . 2. How does the system’s one-to-multiple communication architecture work? The LBA 3 supports point-to-multipoint and multipoint interconnection , allowing all connected UAVs and ground units to communicate simultaneously within the same private network. This makes it ideal for formation flights, fleet management, and coordinated UAV operations .

3. What are the available configurations and frequency options? The system offers 1.4GHz and 800MHz variants, with configurations including Base Station and Sky Unit modules. The Base Station weighs 1.65 kg , while the Air Unit is 155 g , ensuring compact and flexible installation for airborne applications. 4. What payment methods are accepted for purchasing the LBA 3 system? Kratos Defense Drone Shop accepts credit/debit cards, PayPal, and bank wire transfers . For enterprise or OEM clients , proforma invoices can be issued for direct bank payments.

5. Is OEM or customization available for this system? Yes. Kratos Defense Drone Shop provides OEM customization , including frequency configuration, antenna selection, branding, and integration support . Contact the sales department for MOQ and lead time details. 6. Are datasheets and setup documents available? Yes. Kratos Defense Drone Shop supplies datasheets, configuration guides, and network setup manuals . Additional technical support is available for multi-UAV network integration, private 5G setup, and field calibration .
