All new Vibration Isolation Design
This new vibration isolation design uses a custom-formulated, durable silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drones.
Holybro Pixhawk 6X pro For Sale Online
Note:
- FC Module + a baseboard is required for this product to function. An FC Module or a Baseboard by itself will not function.
Specification
Processors & Sensors
- FMU Processor: STM32H753
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
- IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
- On-board sensors
- Accel/Gyro: ADIS16470
- ±40g, Vibration Isolated, Industrial IMU
- Accel/Gyro: IIM-42652
- ±16g, Vibration Isolated, Industrial IMU
- Accel/Gyro: ICM-45686 with BalancedGyro™ Technology
- Barometer: ICP20100
- Barometer: BMP388
- Mag: BMM150
- NXP EdgeLock SE050 Plug & Trust hardware secure element
-
Holybro Pixhawk 6X pro For Sale Online
Electrical data
- Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
- Current Ratings:
- Telem1 & GPS2 combined current limit: 1.5A
- All other ports combined current limit: 1.5A
- Operating Temperature: -25-85°C
Mechanical data
- Dimensions
- Flight Controller Module: 38.8 x 31.8 x 30.1mm
- Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum)
- Mini Baseboard: 43.4 x 72.8 x 14.2 mm
- Weight
- Flight Controller Module: 50g
- Standard Baseboard: 72.5g (Aluminum)
- Mini Baseboard: 26.5g
-
Holybro Pixhawk 6X pro For Sale Online

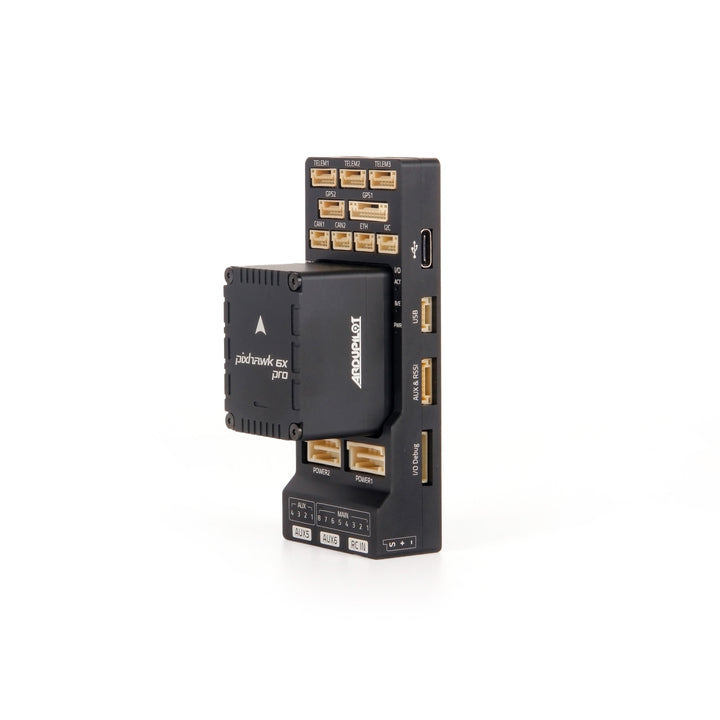

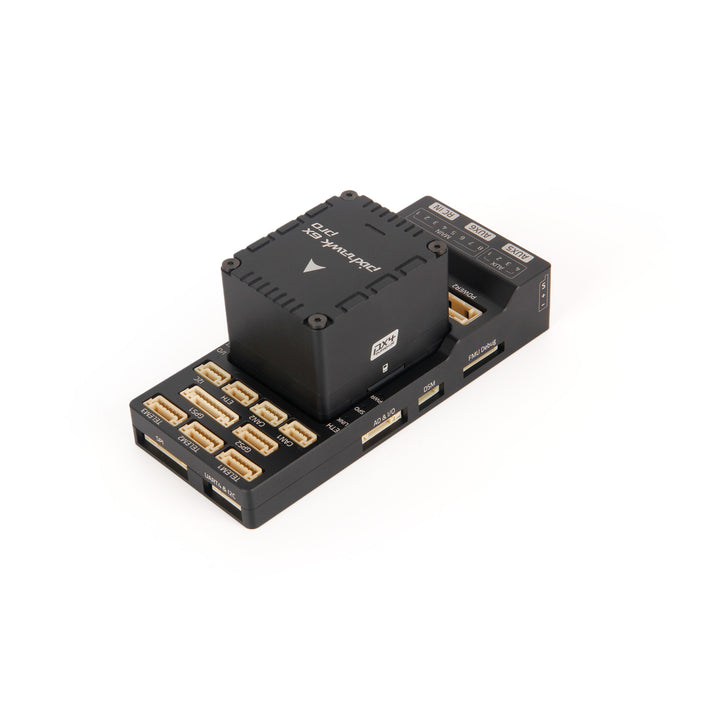

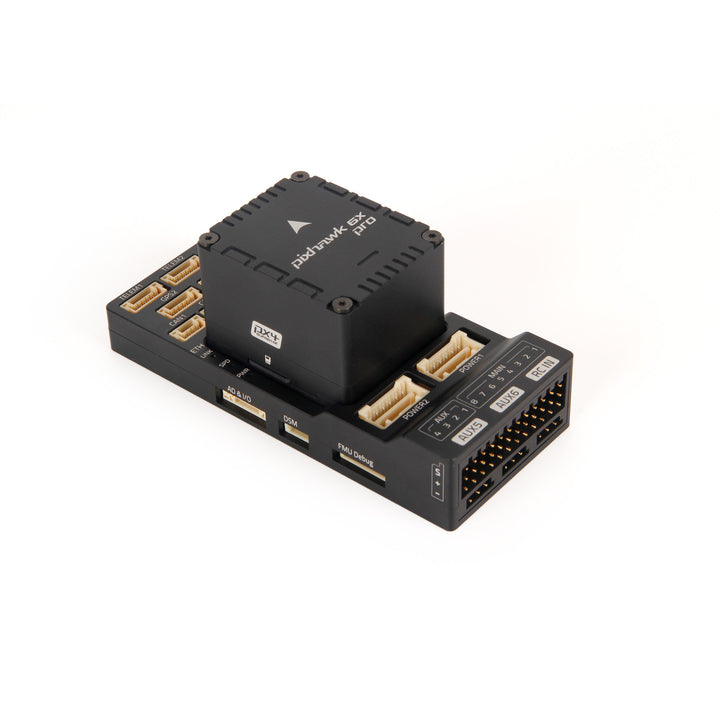

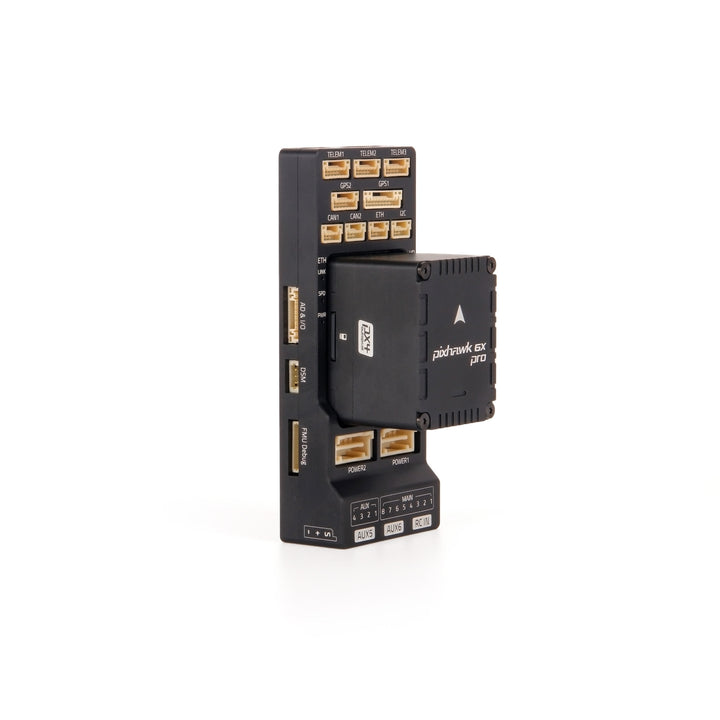

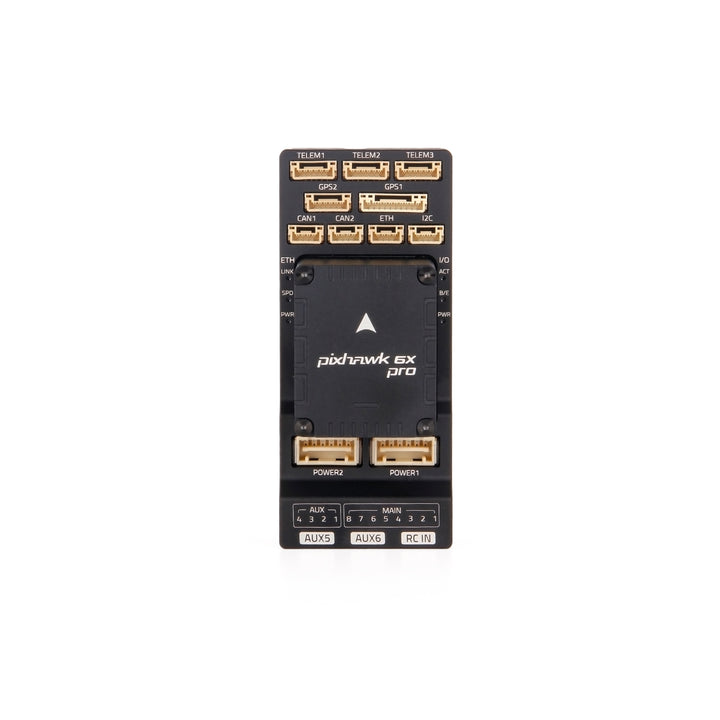

Overview of Holybro Pixhawk 6X pro The Holybro Pixhawk 6X Pro is a state of the art flight controller designed for demanding UAV applications, featuring a high-performance ADIS16470 Industrial IMU. This IMU offers a high accelerometer dynamic range of ±40 g, ensuring accurate motion sensing even in the most challenging environments. The flight controller incorporates a new advanced durable vibration isolation material, which operates at a resonance frequency in the higher spectrum, making it ideal for industrial and commercial drone applications. One of the standout features of the Pixhawk 6X Pro is its triple redundant IMU and double redundant barometer setup, with sensors on separate buses to enhance reliability and safety.
Holybro Pixhawk 6X pro For Sale Online

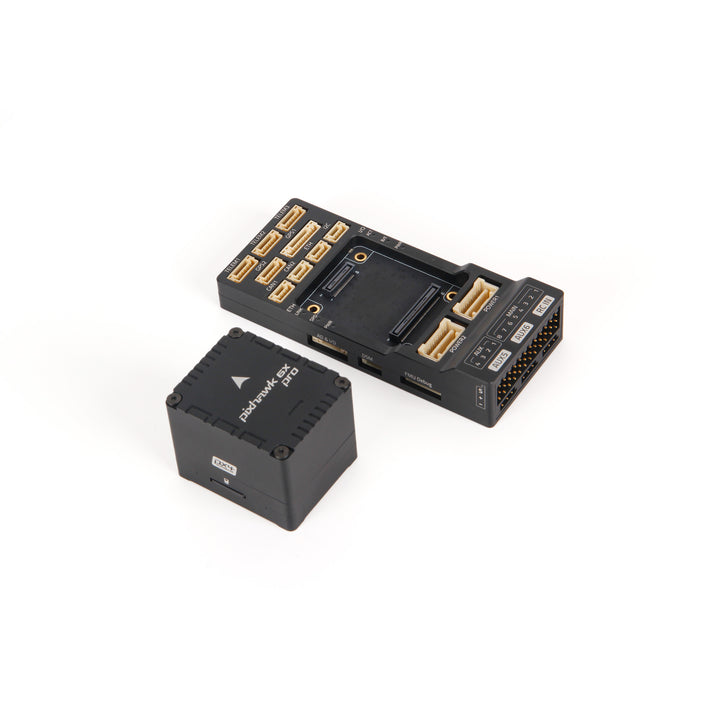

The high-performance STM32H753 processor powers the system, ensuring smooth and efficient operations. Its modular design separates the IMU, FMU, and base system, providing flexibility and ease of maintenance. Safety is a priority in the design of the Pixhawk 6X Pro . It incorporates sensors from different manufacturers and model lineups to reduce the risk of common-mode failures. Each sensor is powered by an independent LDO with individual power control, further enhancing the system’s robustness.
The inclusion of an Ethernet interface facilitates high-speed integration with mission computers, making it suitable for advanced applications requiring fast data transfer. Additionally, the IMU board is temperature-controlled, ensuring the IMUs operate at their optimal working temperature. This feature is crucial for maintaining performance and accuracy across varying environmental conditions. Overall, the Pixhawk 6X Pro is a high-performance, reliable, and flexible solution for sophisticated UAV operations, meeting the demands of both industrial and commercial applications. All new Vibration Isolation Design This new vibration isolation design uses a custom-formulated durabile silicone-based isolation material in place of the traditional foam design.
Buy Holybro Pixhawk 6X pro Online
Backed by extensive R&D and testing , it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone. If you have any questions regarding our products, use the Kratos Defense Drone Shop Contact us page to consult our engineering team. FAQ – Holybro Pixhawk 6X Pro (Next-Generation UAV Flight Controller) 1. What are the key technical features of the Holybro Pixhawk 6X Pro? The Pixhawk 6X Pro is based on the PX4 open-hardware standard, powered by the STM32H7 dual-core processor. It features triple IMUs, dual barometers, and advanced vibration damping, providing exceptional reliability and precision for industrial and research UAVs
Buy Holybro Pixhawk 6X pro Online
. 2. What connectivity and expansion options does it support? It supports multiple UART, CAN, and I²C ports, along with Ethernet, PWM, and USB-C connectivity. The 6X Pro is compatible with both PX4 and ArduPilot firmware, offering wide compatibility with sensors and companion computers. 3. What UAV types is it suitable for? It is ideal for professional-grade UAVs including multirotors, fixed-wing drones, VTOL systems, and ground robotics requiring advanced autonomous navigation and sensor integration.
4. How can customers order and make payments? The Pixhawk 6X Pro is available through Kratos Defense Drone Shop’s online store. Payment methods include PayPal, major credit/debit cards, and bank transfers. International shipping and volume pricing are available for enterprise clients. 5. Does Kratos Defense Drone Shop provide OEM or customization support? Yes. Kratos Defense Drone Shop offers OEM integration including firmware optimization, hardware adaptation, and system-level customization for UAV manufacturers and developers.
Buy Holybro Pixhawk 6X pro Online

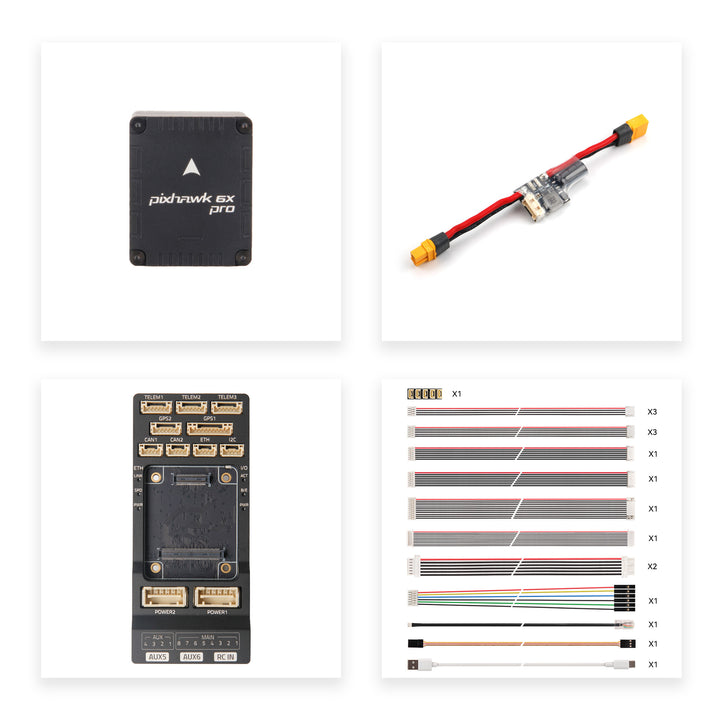

6. What documentation and after-sales support are included? Each unit includes setup and installation manuals, wiring diagrams, and firmware configuration guides. Kratos Defense Drone Shop provides warranty service, firmware update support, and technical assistance for system integration.
