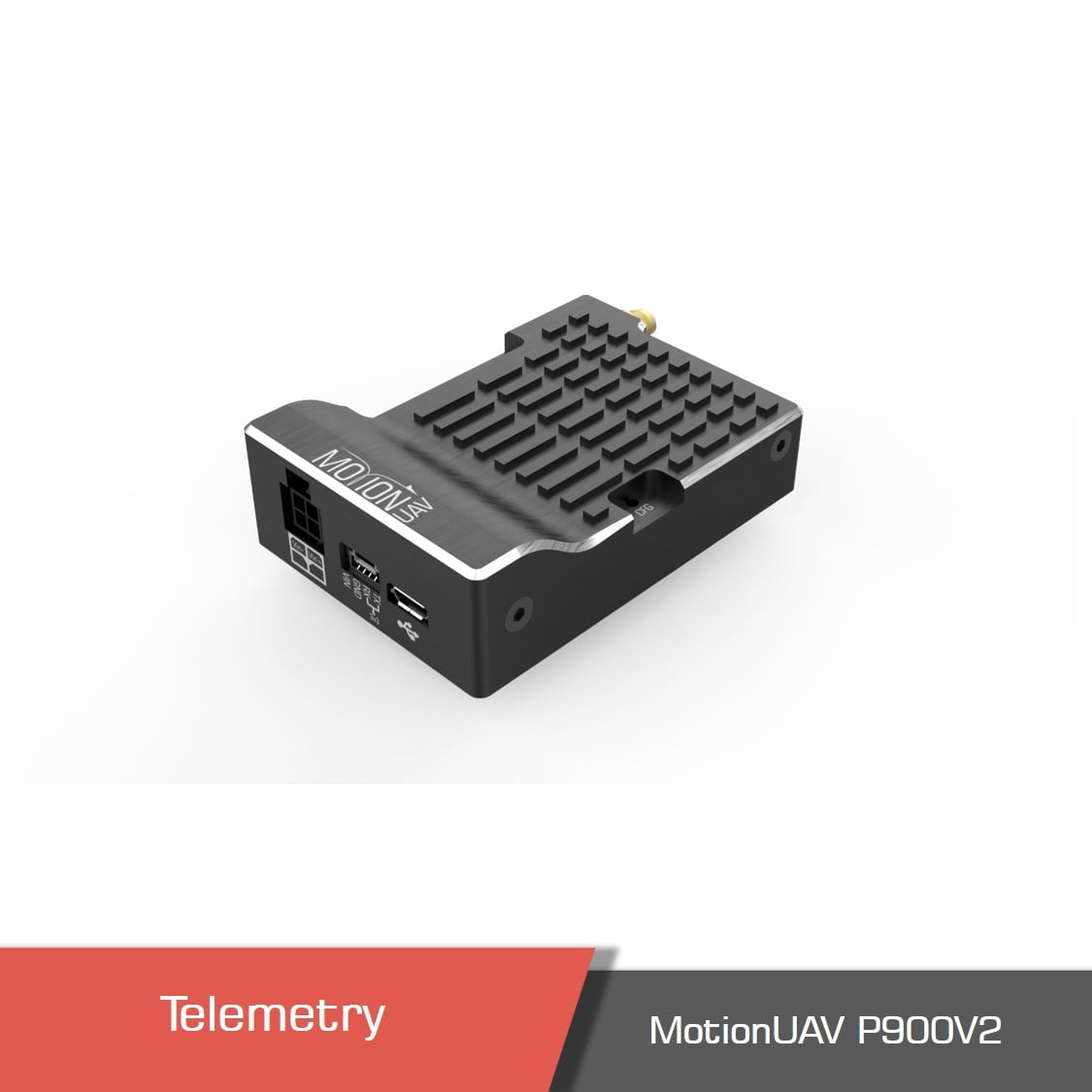

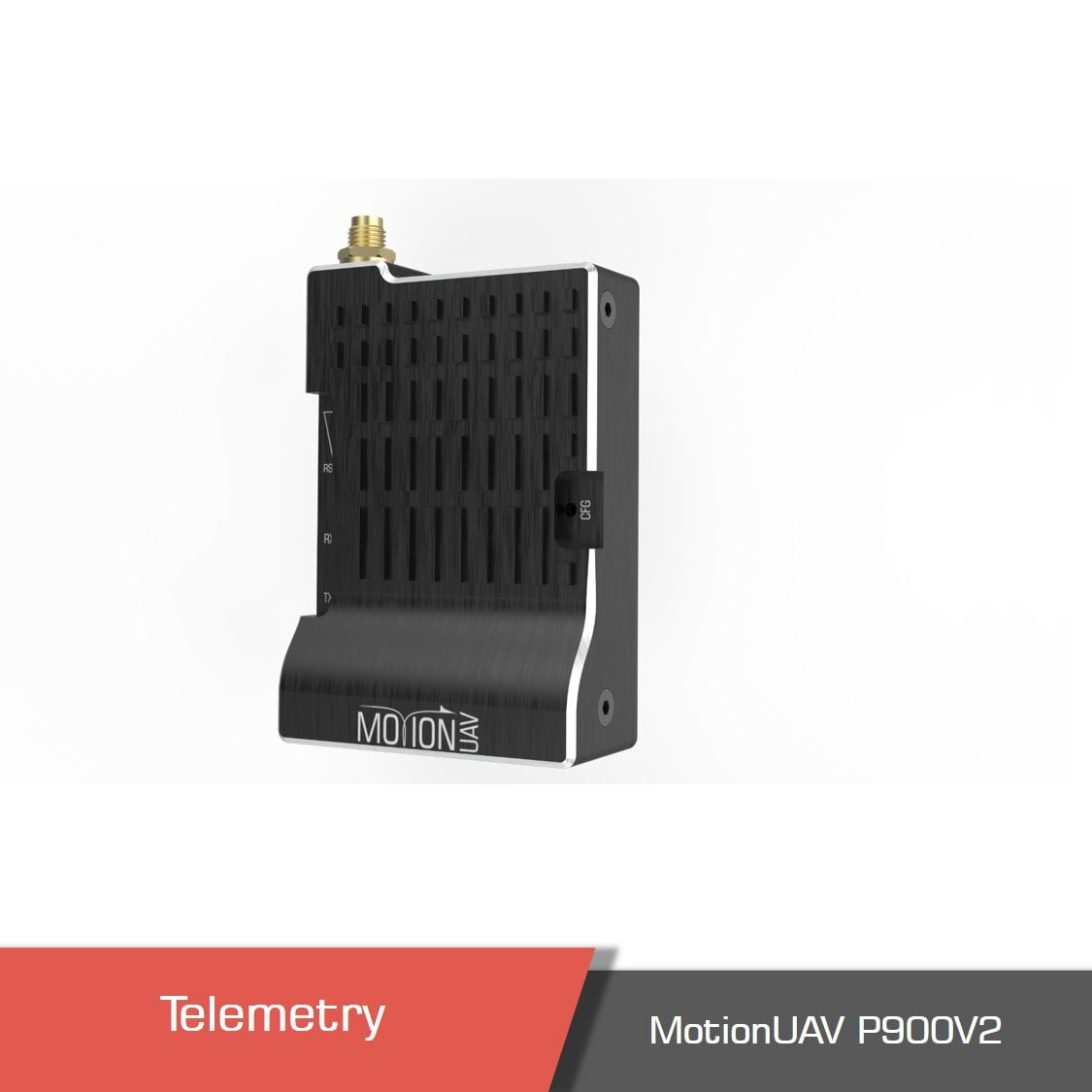

MotionUAV P900 V2 Radio Telemetry Module

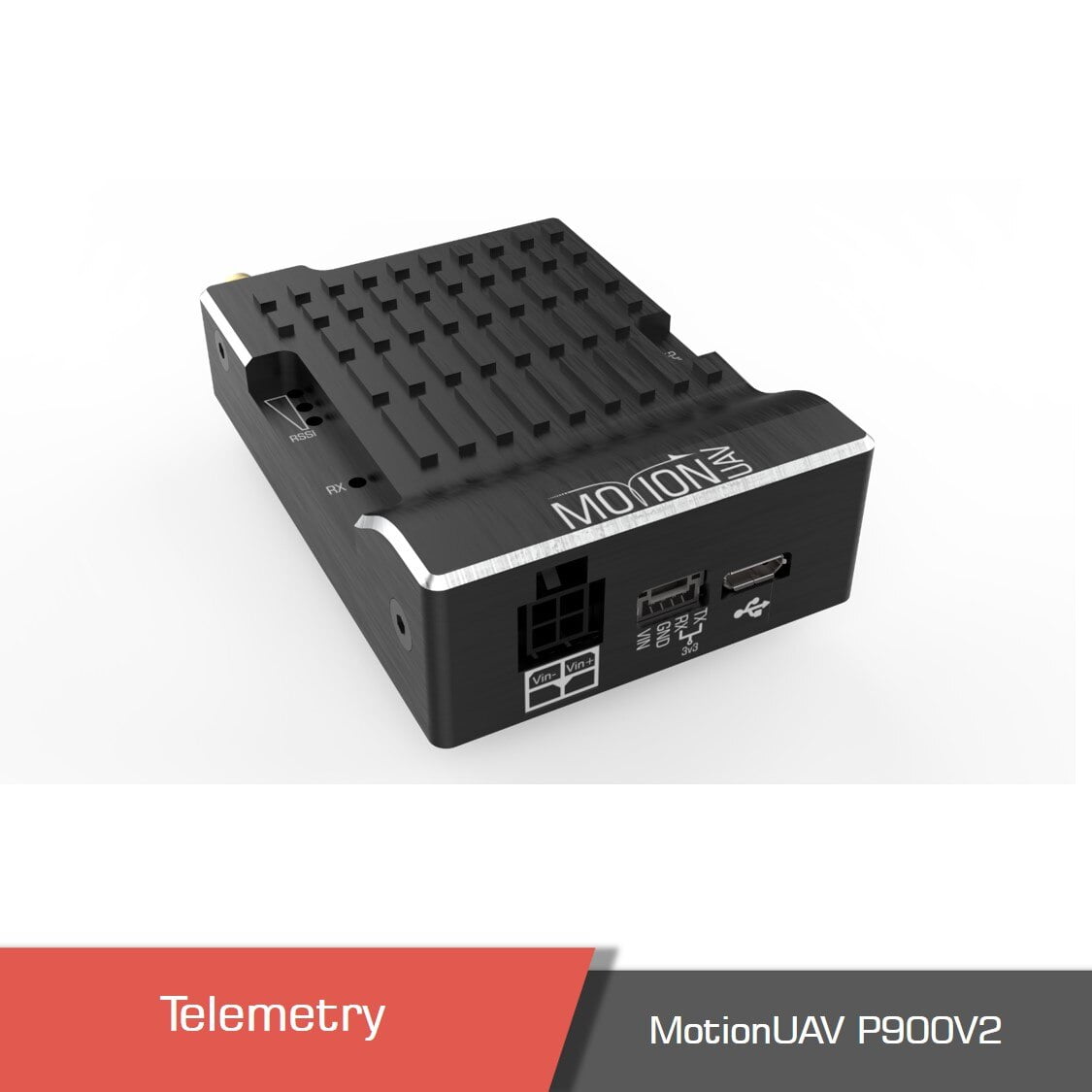

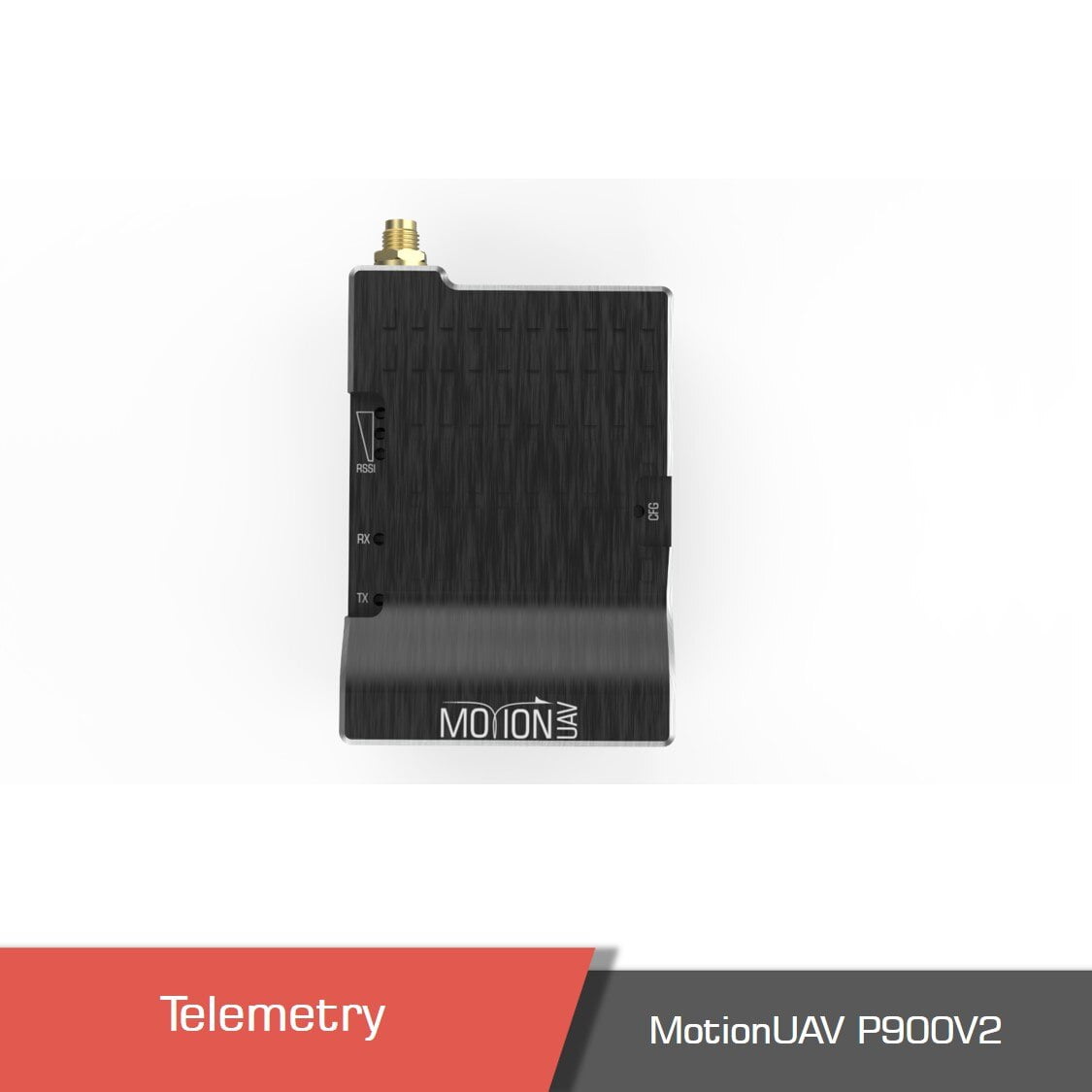

Overview of MotionUAV Radio Telemetry The MotionUAV P900 V2 offers fast data transmission, low latency, and secure data communications. UAV Datalink drone MotionUAV P900 V2 is capable of capturing serial and diagnostic data from legacy devices. The MotionUAV P900 V2 provides excellent noise figure, superior interference rejection, agile frequency synthesis, digital modulation, and matched filter detection with its advanced features. If you would like to see the full range of our products, please visit the Motionew Online Shop Description of the numbers in the above picture 1-Receive Signal Strength Indicators 2-This LED indicates that the modem is synchronized and has received valid packets 3-When illuminated, this LED indicates that the modem is transmitting data over the air 4-Holding this button while powering up the modem will boot the unit into COMMAND mode: the default serial interface will be active and temporarily set to operate at its default serial settings of RS232 and 9600/8/N/1 5-USB Port for configuration of the module. Only available on new versions 6-Vin /Vin– is used to power the unit. The input Voltage range is 9-30 Vdc with at least 1A current requirement 7-Data Serial interface for connection to a PC (using a Serial to USB cable) or to Pixhawk / Paparazzi / MotionUAV flight controllers (3.3v Logic) 8-RP-SMA Female Bulkhead Antenna connector. ATTENTION: DO NOT POWER the module without the Antenna connected Power Requirements The module needs an independent 1A current power supply. General Connection Mode Please attach a TTL Serial-USB transmission cable to the module, in order to connect it to the computer. The default standard interface rate is 9600. The required interface baud rate can be changed according to the requirements. To do so, you need the change the configuration of the module. Please do not change the configuration if you do not know what you are doing (please do it only if you are an expert), as you may brick the module. Features of MotionUAV P900 V2 Very Low Cost Supports up to 276kbps! Quad Filter Stage provides Extreme Noise & Interference Rejection True Self Healing Mesh, Auto Routing, Store & Forward Industrial Temperature (-55oC to 85oC) Maximum allowable transit power (Adjustable, up to 1W) Low Power consumption in Sleep and Sniff modes 32 bits of CRC, selectable Forward Error Correction with retransmit Separate diagnostics port—transparent remote diagnosis and online network control If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team. FAQ – MotionUAV P900 V2 Radio Telemetry Module 1. What are the main specifications of the MotionUAV P900 V2? The MotionUAV P900 V2 is a 900 MHz long-range radio telemetry module designed for UAV, UGV, and industrial telemetry systems . It provides fast data transmission, low latency , and secure wireless communication , with an effective range of up to 60 km in ideal line-of-sight conditions. 2. What technologies ensure reliable communication performance? The system incorporates digital modulation , matched filter detection , and agile frequency synthesis for optimized performance. It also features excellent noise rejection , superior interference resistance , and a low-noise figure design for reliable operation in complex RF environments. 3. What interfaces and power requirements does the module support? It includes: RS232 / TTL data interface for connection to Pixhawk, CubePilot, or MotionUAV flight controllers. USB configuration port (available in newer versions). Vin (9–30V DC) power input with 1A current requirement . It uses RP-SMA antenna connectors and supports diagnostic LEDs for signal and data status. 4. What payment methods are available for purchasing the P900 V2 module? Motionew accepts credit/debit cards, PayPal, and wire transfers . For OEM or enterprise buyers , proforma invoices can be arranged for direct bank payments. 5. Is OEM customization available for this telemetry system? Yes. Motionew offers OEM customization , including frequency tuning, connector modification, branding, and enclosure customization . Contact the sales team for MOQ and delivery lead-time information. 6. Are datasheets and setup documents available? Yes. Motionew provides datasheets, wiring diagrams, and configuration manuals . Additional technical support is available for UAV integration, telemetry setup, and long-range optimization .
