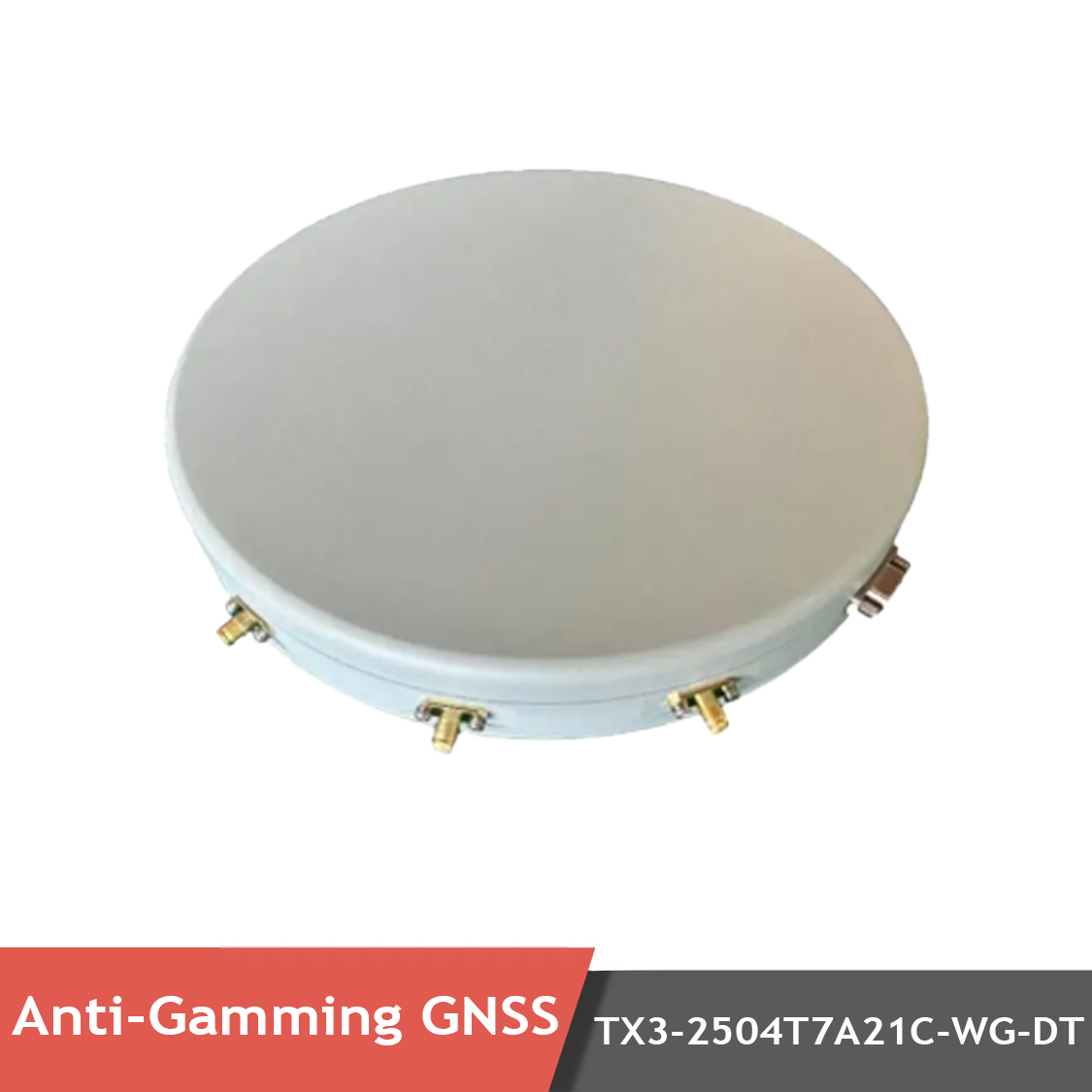

Overview The TX2504-3T7A21C-WG-DT mini-7-element multi-system satellite navigation anti-jamming terminal is a compact yet powerful all-in-one GNSS solution designed for applications demanding high reliability, robust performance, and superior interference resistance. This innovative GPS terminal integrates multi-system compatibility with a 7-element phased array structure, providing enhanced signal stability in the most demanding electromagnetic environments. Integrating an antenna array, anti-jamming components, and a receiver, it enhances PNT security with a compact, lightweight design. As part of the advanced Anti-Jamming GNSS product series, the TX2504-3T7A21C-WG-DT combines compact design with state-of-the-art signal processing, offering UAVs, and industrial systems precise and secure navigation capabilities. Mini 7-element Phased Array for Precision and Stability At the heart of the TX2504-3T7A21C-WG-DT lies its innovative 7-element digital phased array (DPA) architecture. Each element dynamically adjusts to incoming signal patterns, enabling advanced beamforming and interference rejection. This structure provides superior anti-jamming performance while maintaining high gain and low noise characteristics. Unlike traditional single-element antennas, this 7-element system enhances spatial filtering, allowing the receiver to isolate genuine satellite signals even when multiple jamming sources are present. The result is enhanced signal-to-noise ratio (SNR) and stable positioning under challenging RF conditions. Multi-system Satellite Navigation Compatibility The TX2504-3T7A21C-WG-DT supports multiple GNSS constellations, including GPS, GLONASS, Galileo, and BeiDou, ensuring continuous operation across diverse geographic regions. Its all-in-one architecture enables simultaneous multi-frequency tracking, enhancing accuracy and minimizing signal latency. The terminal’s advanced navigation engine supports high-dynamic and high-altitude operation, making it ideal for unmanned aerial systems (UAS), defense communications, and precision mapping platforms. Its real-time interference suppression algorithms ensure continuous signal reception and data integrity. Compact All-in-one Engineering Designed for efficiency and durability, the TX2504-3T7A21C-WG-DT integrates the antenna, RF front-end, receiver, and interference suppression circuitry into a single miniaturized module. The compact form factor simplifies system integration while maintaining excellent electromagnetic shielding and environmental protection. This all-in-one design reduces installation complexity and minimizes system weight-an essential feature for UAV platforms where size and power consumption are critical. MotioNew engineers have validated this terminal for use across various UAV control systems and GNSS receivers. Integration and Compatibility The TX2504-3T7A21C-WG-DT is engineered for seamless integration with flight controllers , and timing synchronization systems. MotioNew’s engineering team offers dedicated support for hardware configuration, antenna calibration, and software optimization. Its compatibility with multi-band receivers ensures that the antenna can be deployed in professional-grade systems, supporting multiple applications such as aerial surveying and more. For projects demanding enhanced positioning accuracy, MotioNew also offers a range of RTK modules , GNSS timing devices , and antenna accessories that complement the TX2504-3T7A21C-WG-DT’s advanced capabilities. Key Features Mini 7-element digital phased array (DPA) design Multi-system GNSS compatibility (GPS, Galileo, BeiDou, GLONASS) All-in-one integrated anti-jamming solution Compact, lightweight construction for UAV and mobile platforms Adaptive beamforming and spatial filtering technology High immunity to spoofing and electronic interference Rugged enclosure for environmental resilience Applications UAV and unmanned ground vehicle (UGV) navigation Surveying, mapping, and precision agriculture Industrial robotics and automated logistics Satellite-based timing synchronization networks Each of these use cases benefits from the TX2504-3T7A21C-WG-DT’s miniaturized yet high-performance design, which ensures precise navigation even under adverse conditions. MotioNew Technical Advantage MotioNew’s engineering team provides complete support for integrating the TX2504-3T7A21C-WG-DT into new or existing systems. From installation guidance to firmware configuration, our experts ensure your project achieves maximum signal reliability and navigation precision. MotioNew also supports bulk procurement and OEM customization options, ensuring consistent quality and supply for enterprise-scale deployments. Clients receive post-sale assistance, testing documentation, and calibration services for long-term operational stability. FAQs Q1: What makes the TX2504-3T7A21C-WG-DT unique compared to standard GNSS antennas? Its integrated 7-element digital phased array design provides exceptional anti-jamming performance in a compact all-in-one form, enabling superior spatial filtering and reliability. Q2: Is the TX2504-3T7A21C-WG-DT suitable for UAV applications? Yes. The lightweight, compact design and high interference suppression make it ideal for UAVs and other aerial navigation systems where precision and space optimization are vital. Q3: Does MotioNew provide bulk and wholesale options? Yes. MotioNew offers competitive pricing for bulk and wholesale orders, along with engineering support and batch verification to ensure quality consistency. Buy From MotioNew, and Leave The Technical Worries Behind
