XD-10 10kg payload winch

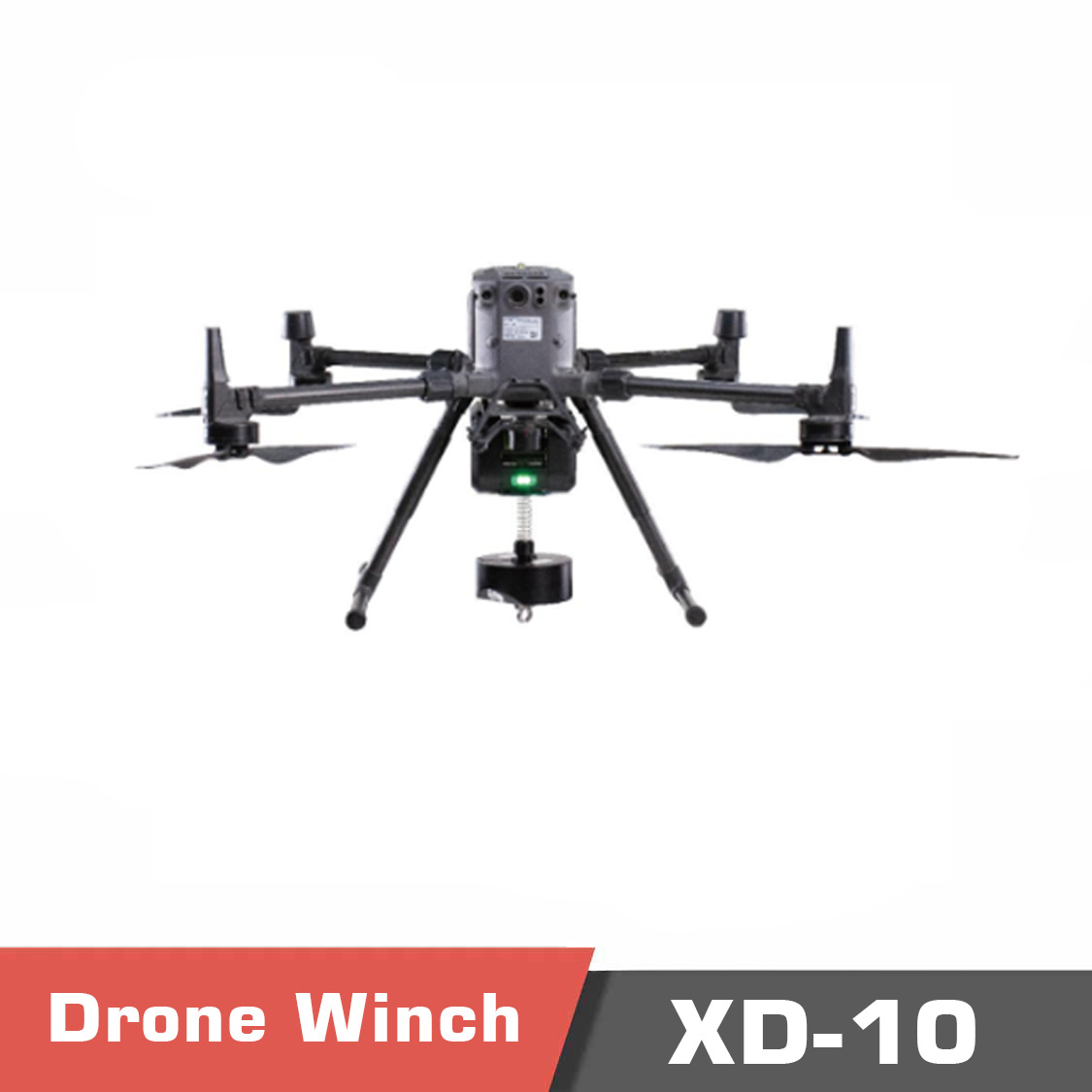

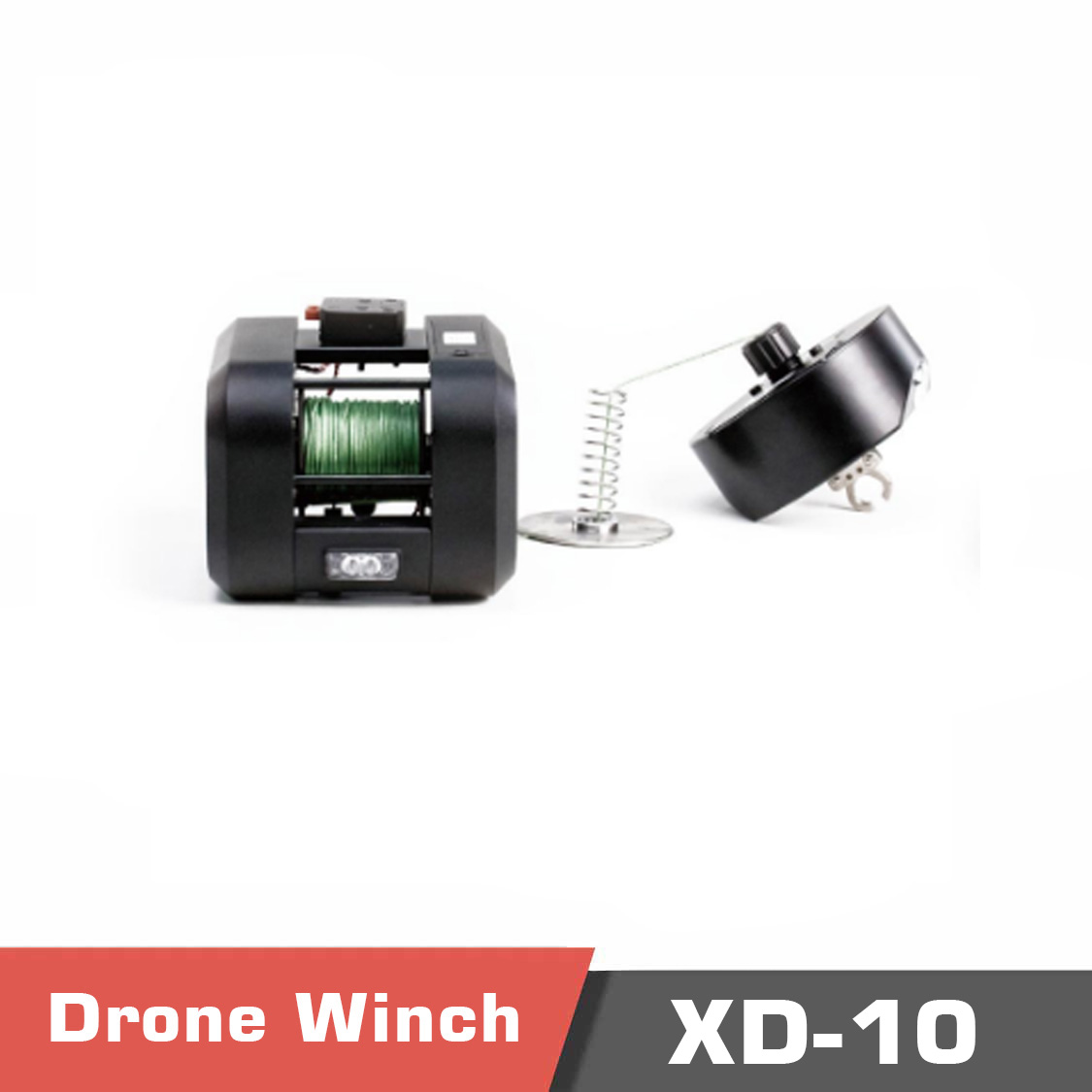

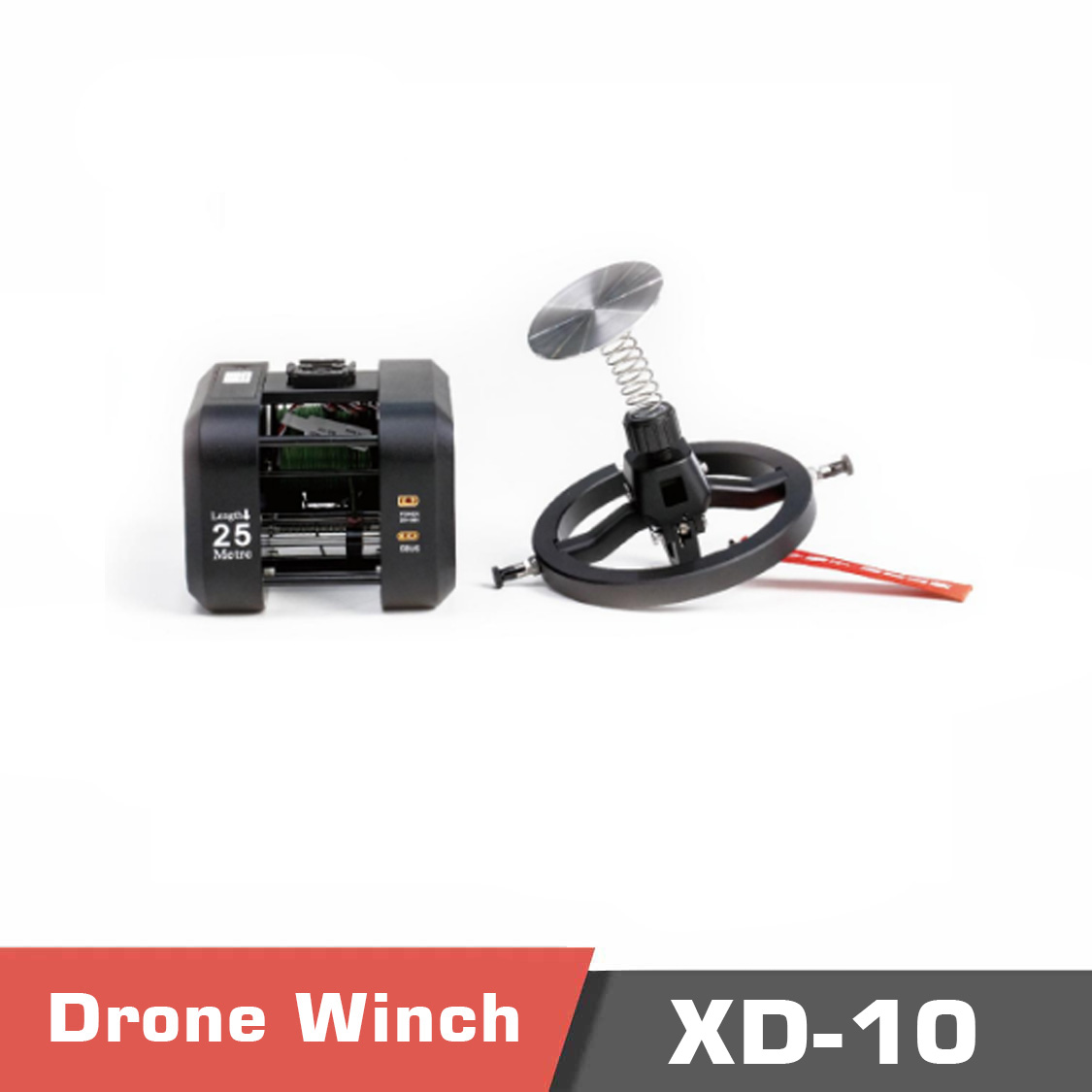

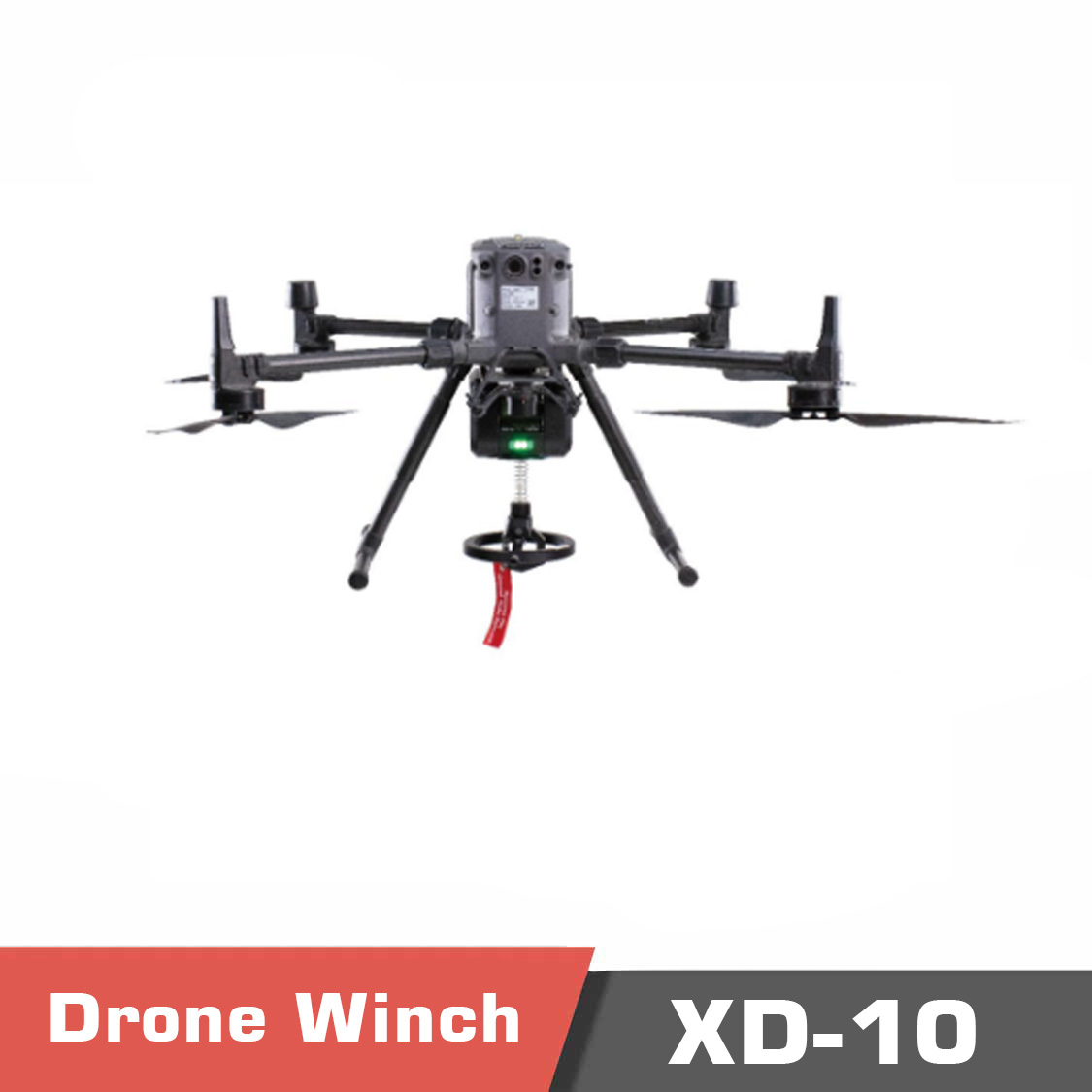

XD-10 10kg payload winch XD-10 Winch System for Drones – 10kg Payload | 25m Cable | Ultra-Lightweight Design The XD-10 Winch is a compact and ultra-light drone winch system engineered for precision delivery, aerial deployment, and vertical retrieval tasks . With a 10kg max payload , 25-meter rope length , and support for Smart Auto Release , it is optimized for light-duty drones requiring safe, efficient, and automated lifting operations . Its small form factor and full feature set make it ideal for mapping payload drops, sample retrievals, sensor deployment, and light logistics missions . 📦 Basic Specifications Main Body Dimensions: 173 × 123 × 142 mm Main Body Weight: 1170 g Mechanical Release Weight: 283 g Counterweight Ring Weight: 379 g Smart Auto Release Device (Optional): 756 g Rope Length: 25 m 🚀 Performance Parameters Parameter Value Max Load Capacity 10 kg Retraction Speed 0.1 – 0.6 m/s Motor Speed 38 – 228 RPM ⚡ Supply Voltage Power Supply Mode: Battery powered (non-DCDC) Operating Voltage Range: 22 – 56V 🎮 Control Modes SBUS / PWM / Remote Control: Standard RS232 / RS422: Optional (customizable) 🧠 Smart Functions 🎯 Retraction Limit Detection (top & bottom) 🛑 One-Click Emergency Rope Cutoff ⏫ Slow Rise + Top Protection 🚨 Fault Alarm for Motor Failures 🔄 Auto Line Management 📦 One-Click Auto Release & Casting ⛔ Auto Stop at Ground Contact 🔁 Auto Ground Release (Smart Mode) 🔌 Power-Off Brake (safety brake during power failure) 🚫 No-Load Descent Block (cable entanglement prevention) 🛠 Custom Integration with Third-Party Controllers 🚁 Best For Sample retrieval drones Environmental monitoring drops Survey tool deployment UAV light cargo delivery Vertical inspection gear deployment The XD-10 delivers versatile, compact, and intelligent winching for drones operating in low-payload scenarios. Its advanced safety features , automated release options , and lightweight profile make it a perfect match for modern UAVs with limited lifting capacity. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ XD-10 10kg payload winch 1. What is the maximum payload capacity of the XD-10 winch? The XD-10 can carry up to 10 kg , with a rope length of 25 meters , making it suitable for light-duty delivery and retrieval tasks. 2. What is the operating power requirement for this winch? It operates on a 22–56V power supply (battery-powered, non-DCDC), ensuring compatibility with most UAV systems. 3. What are the retraction and deployment speeds of the winch? The system supports a retraction speed of 0.1–0.6 m/s , powered by a motor with speeds ranging from 38 to 228 RPM . 4. What payment methods are available for this product? Kratos Defense Drone Shop accepts secure payments through major credit cards and trusted online payment gateways, with full details provided during checkout. 5. Is OEM customization available for the XD-10 winch? Yes, OEM services and bulk customization options are available. Customers can contact Kratos Defense Drone Shop’s sales team to discuss tailored configurations. 6. Are technical documents provided with the purchase? Yes, the package includes user manuals and product documentation , covering installation, operation, and maintenance.
