Buy VTOL Drone Adler M32 Online

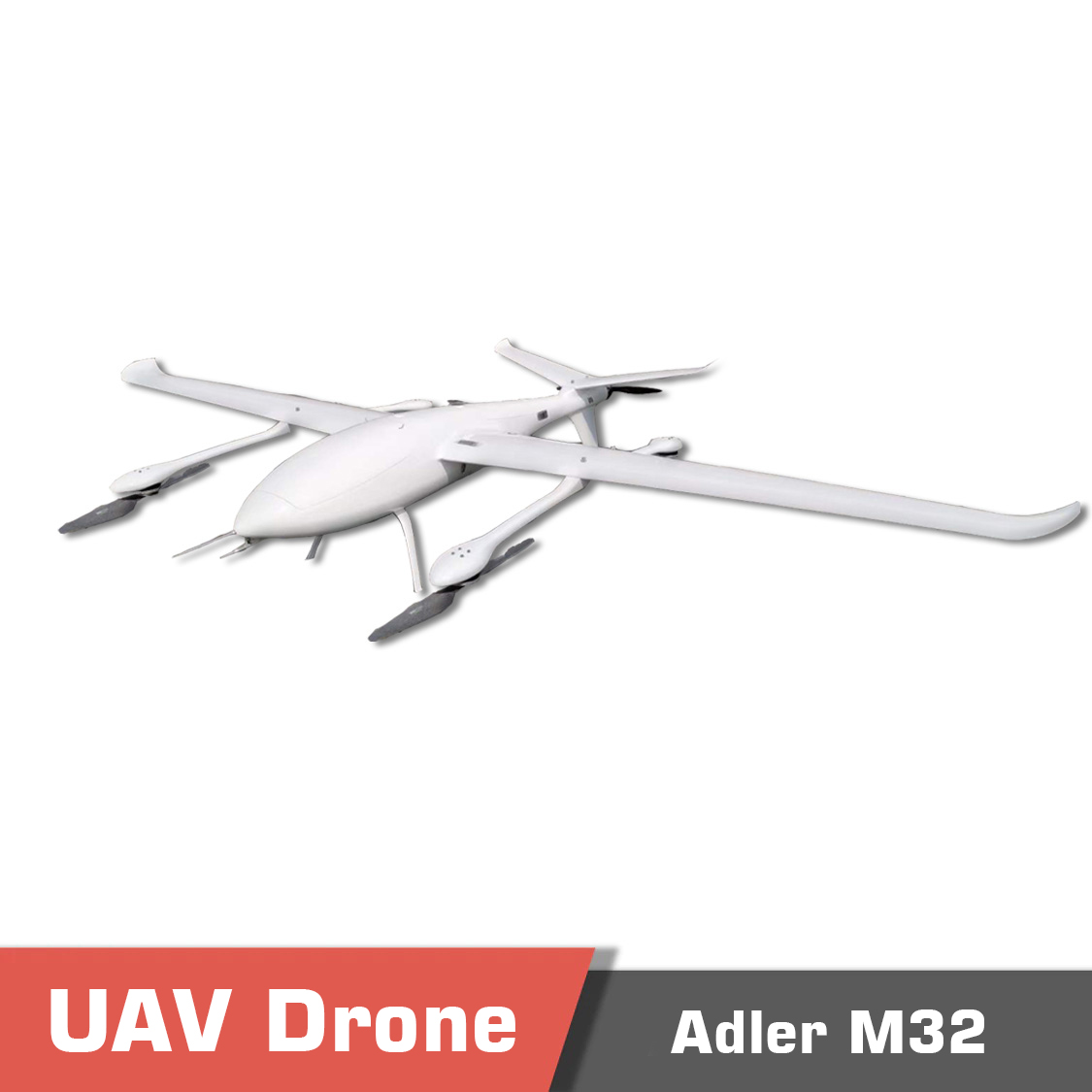

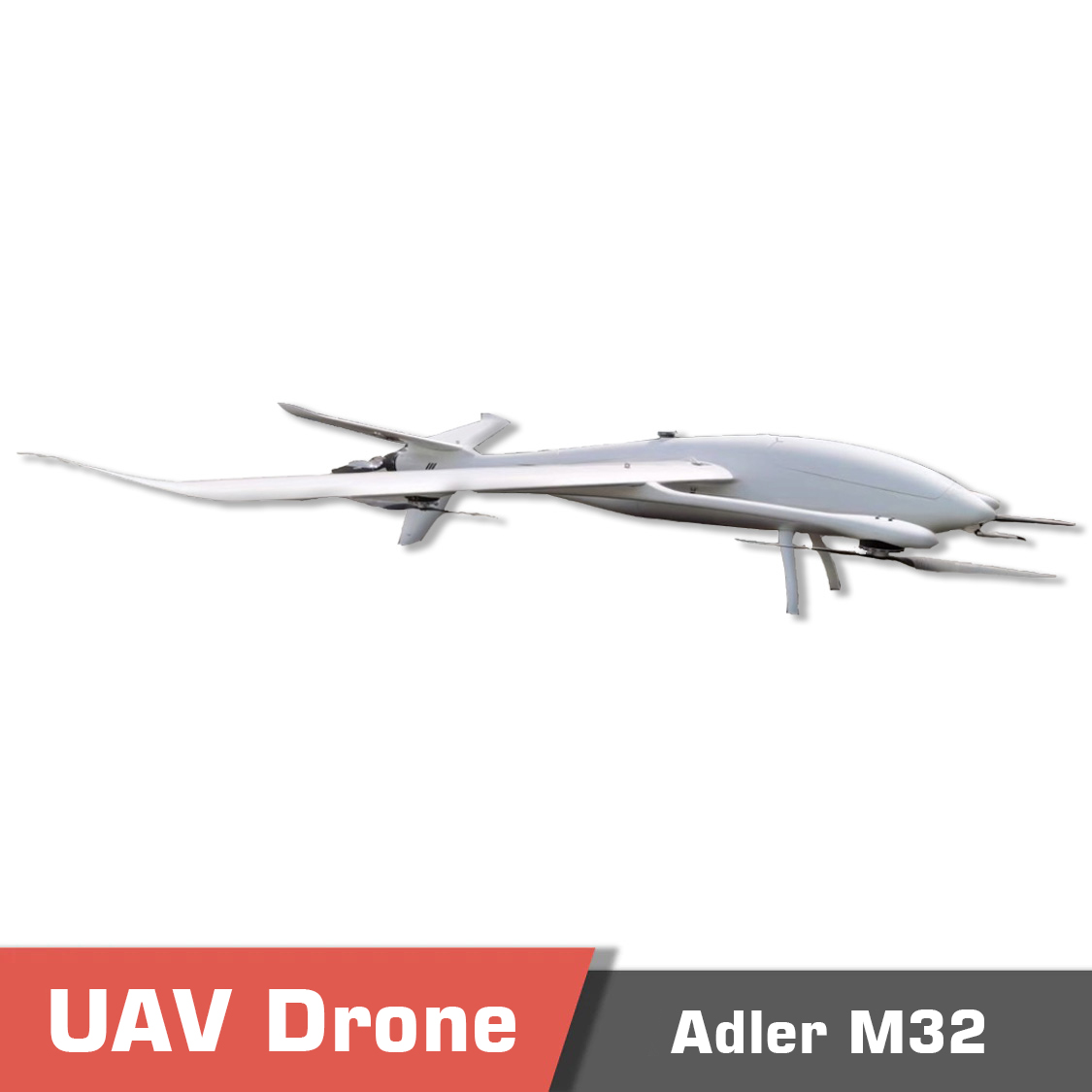

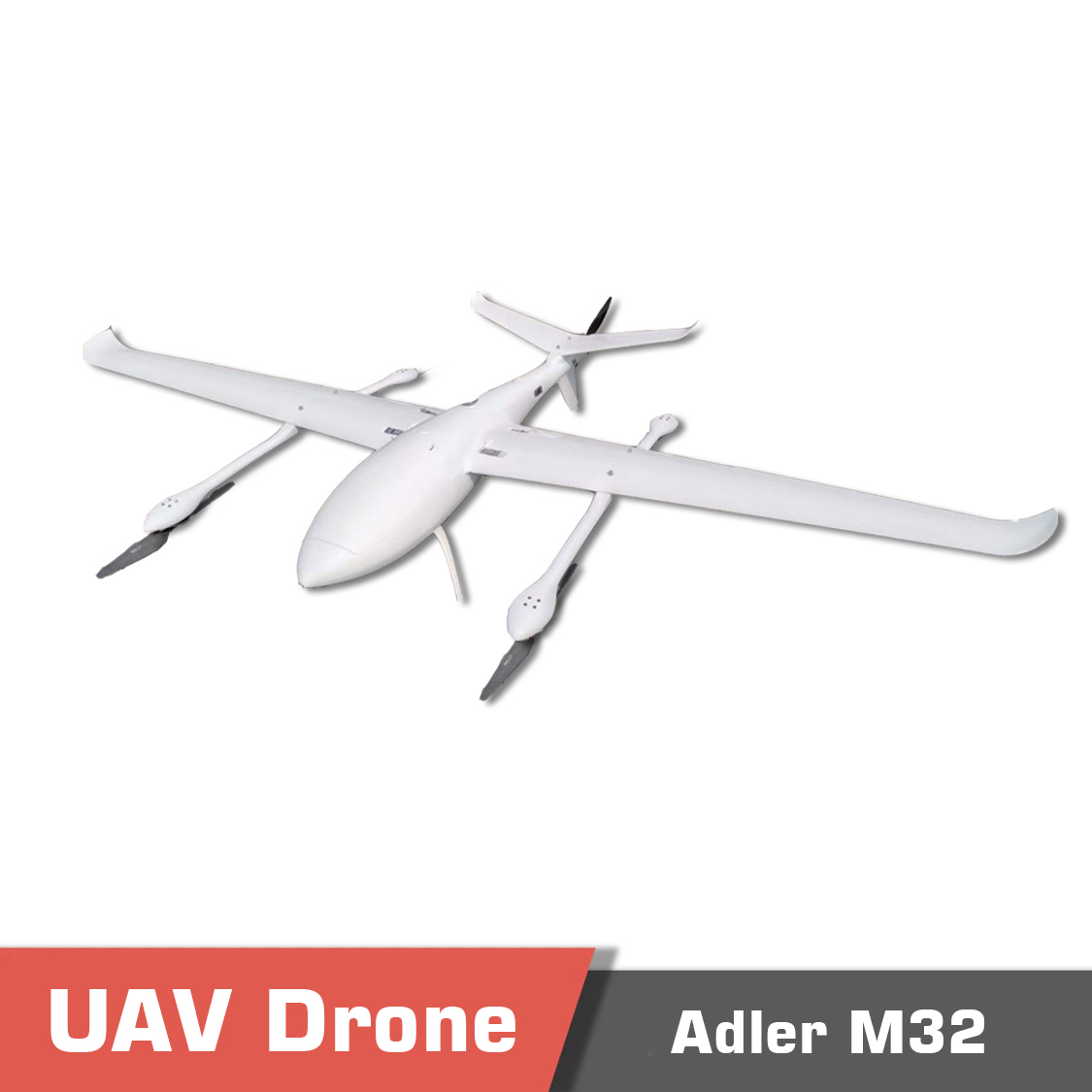

Important Notice! If your company intends to export UAV products from USA, it is necessary to comply with American regulations. Kratos Defense Drone Shop products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information. Video VTOL drone Adler M32 , Long Endurance, Heavy Payload Fixed-Wing VTOL Drone Adler M32 Fixed-Wing VTOL is a battery-powered vertical take-off and landing Drone (VTOL Drone) fixed-wing UAV, offering 3.8hours endurance time with a 1.2kg payload that is catered to the needs of a wide range of aerial surveying applications and can be used as a cargo drone, mapping drone, and surveying drone in applications like terrain mapping, lightweight material transport, ground reconnaissance, and border patrol.
Adler M32 Fixed-Wing VTOL V-tail design allows for incredible aerial maneuvers. It adopts a composite aerodynamic layout of quadrotors and fixed-wings and combines the advantages of VTOL of the quadrotors and the long range of fixed wing drones . This flexible and lightweight aircraft features a 24Kg maximum take-off weight and a 5Kg maximum load . The efficiency of the power system can be optimized to meet the characteristics of various surveying and mapping scenarios. Equipped with a modular design and a 3.2m wing span , the UAV can be quickly deployed in less than 90 seconds.
A detachable load compartment design allows matching the center-of-mass of the cargo with that of the plane, realizing fast switching and enabling mission-matched loads. Low-acoustic noise performance is guaranteed due to the electric power and less maintenance and life-cycle cost. The motor-tilt design improves flight stability. Adler M32 can resist and fly in windy conditions without any difficulty with a wind resistance level of up to 12m/s. Adler M32 can reach a maximum speed of 26m/s, and fly up to 4500 meters height.
Achieving 0.1m positioning accuracy is possible with the help of dual GPS and RTK systems. Build from pure carbon fiber, the Adler M32 fuselage is lightweight and flexible. It has a detachable payload compartment design, for easier replacement of different types of payloads. All parts of the system including wings, tail, and arms are designed based on a quick assemble and disassemble structure. Read more in our blog post , or contact us if you have any questions.
Overview Table of the Adler M32 Specifications Weights Maximum Take-off Weight 24kg Max. payload weight 5kg (suggested 1.2kg) Airframe Weight 6.45kg Dimensions Dimensions Wingspan: 3200mm Body Length: 1260mm Height: 190mm Battery Cabin Size 300*200*140mm Packing Chargeable Size 1800*680*500mm(Contains the wheel) / 45kg Performance Max. Cruising Speed 26m/s Stall Speed 17m/s Max. Wind Resistance 12m/s Flight Time 228min with 1.2kg payload Max.
Flight Altitude 4500m Battery (Recommended) 4 * 6S 30000mAH HED Li-ion VTOL Drone Adler M32 – FAQ 1. What are the key technical specifications of the Adler M32? The Adler M32 features a 3.2 m wingspan , 24 kg maximum takeoff weight , and 5 kg payload capacity . It offers up to 3.8 hours of flight endurance , suitable for mapping, surveying, and cargo applications. 2. What is the aerodynamic configuration of the M32? It employs a V-tail fixed-wing design with quadrotor-assisted VTOL capability , combining vertical take-off and long-range fixed-wing efficiency. 3. What types of payloads can be integrated? Compatible payloads include mapping cameras, multispectral sensors, and lightweight delivery modules .
The modular design allows quick swaps for different missions. 4. What payment methods are supported for purchasing the Adler M32? Kratos Defense Drone Shop supports bank transfer, PayPal, and major credit cards for both retail and bulk international transactions. 5. Does Kratos Defense Drone Shop offer OEM customization for this drone? Yes, OEM customization is available for branding, payload integration, communication systems , and mission-specific configurations . 6. What documentation and certifications come with the Adler M32? Each unit includes technical manuals, compliance documentation, and operational guides , ensuring adherence to international UAV standards and export regulations.
