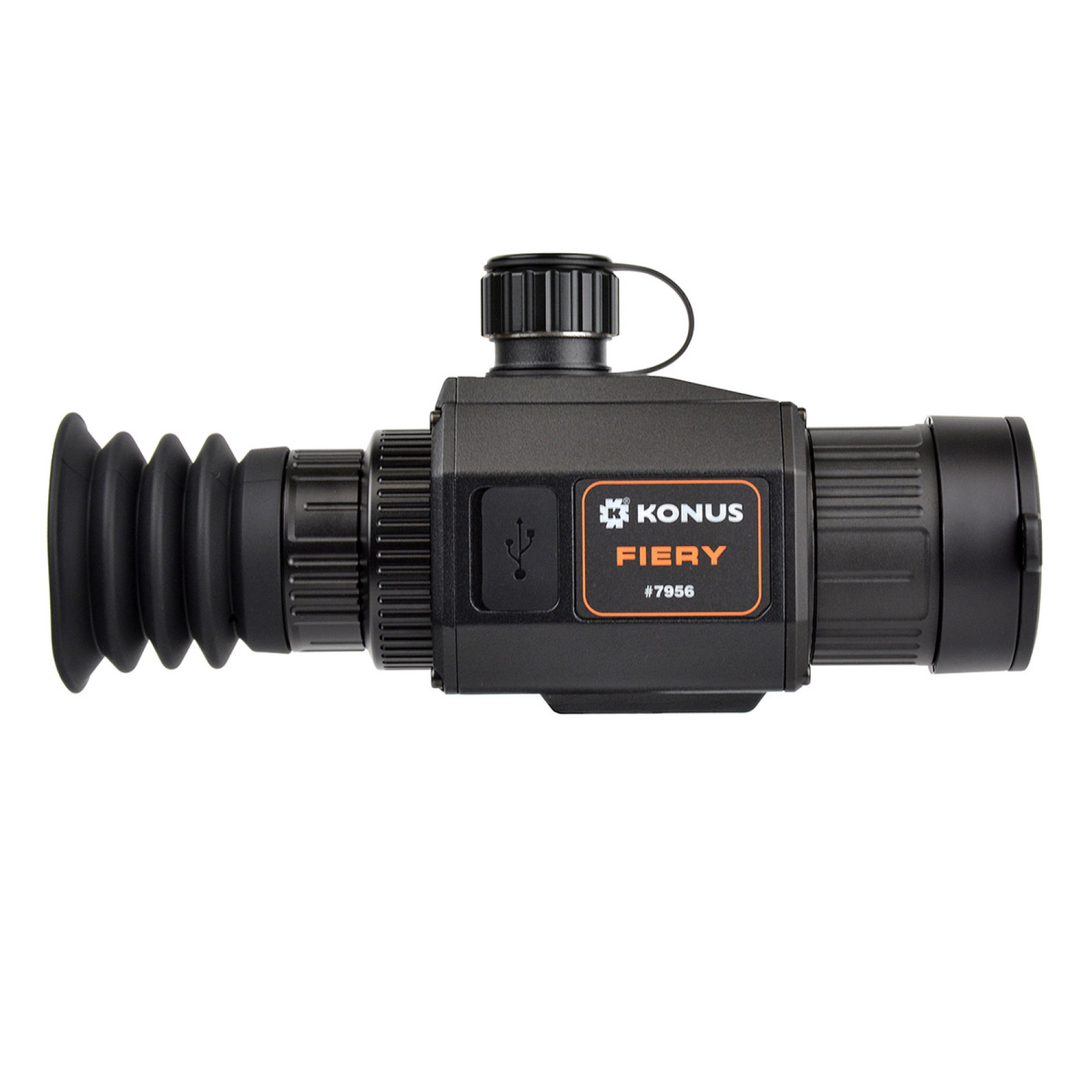

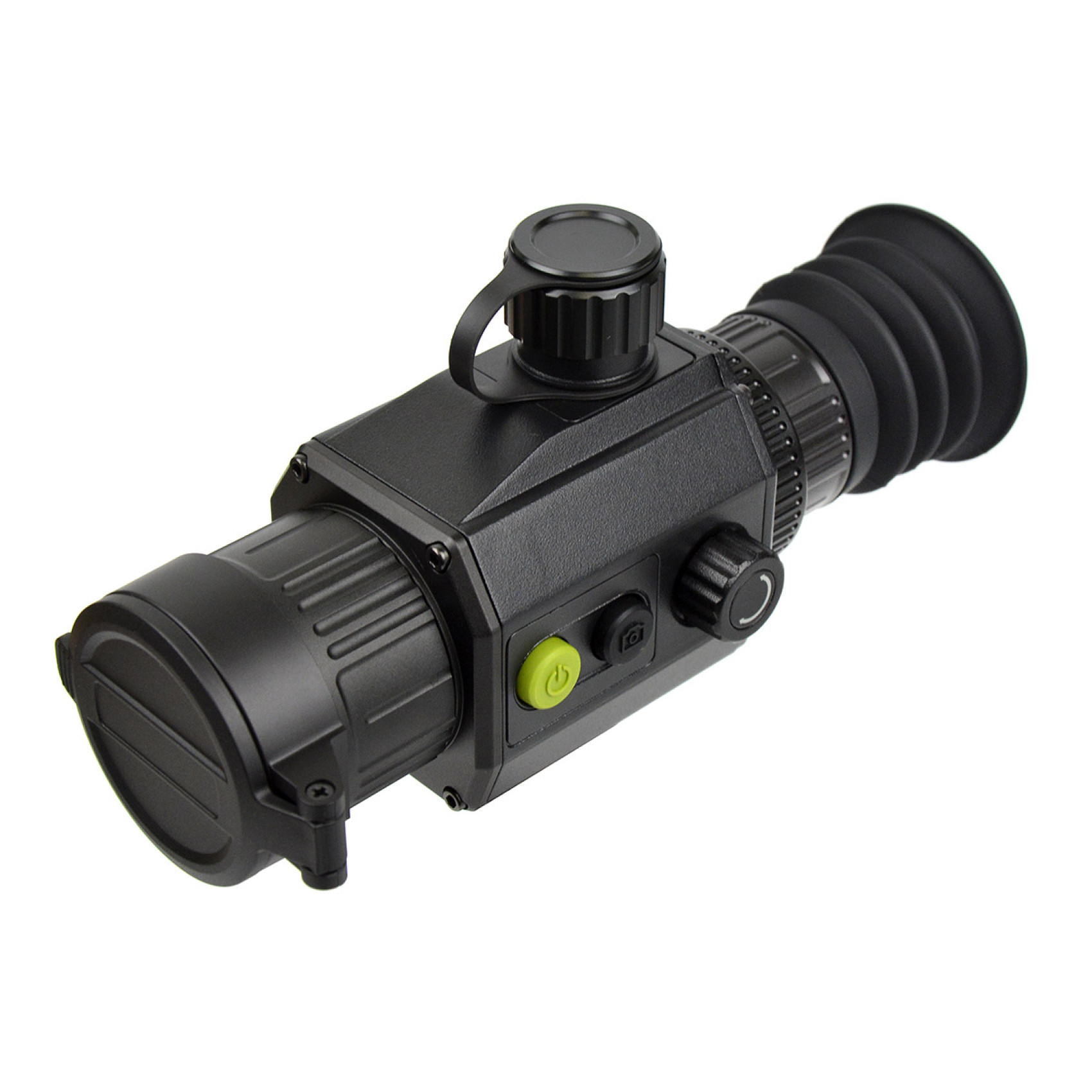

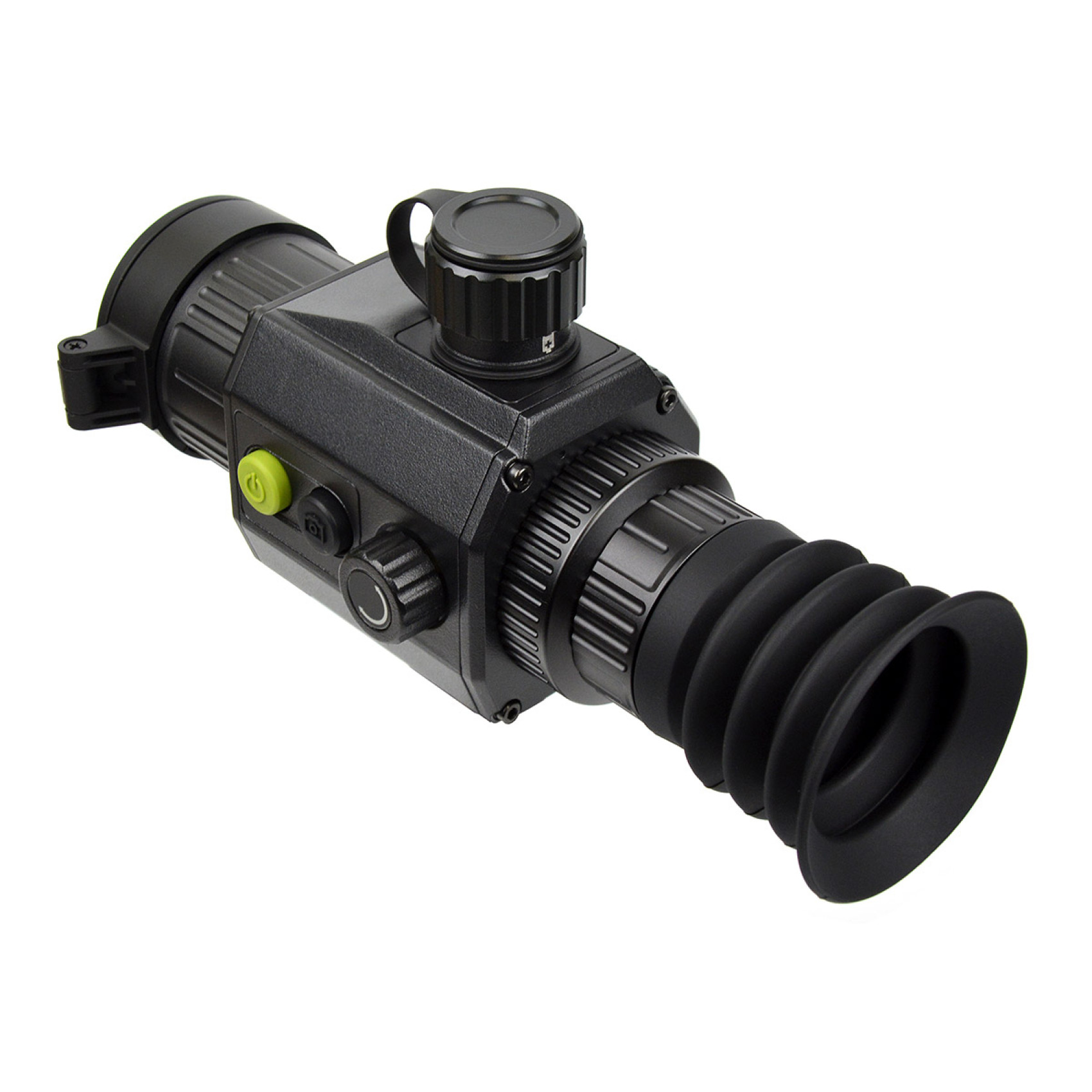

KONUS FIRE CLIP-ON 2.1x-16.8x 384×288 thermal imager

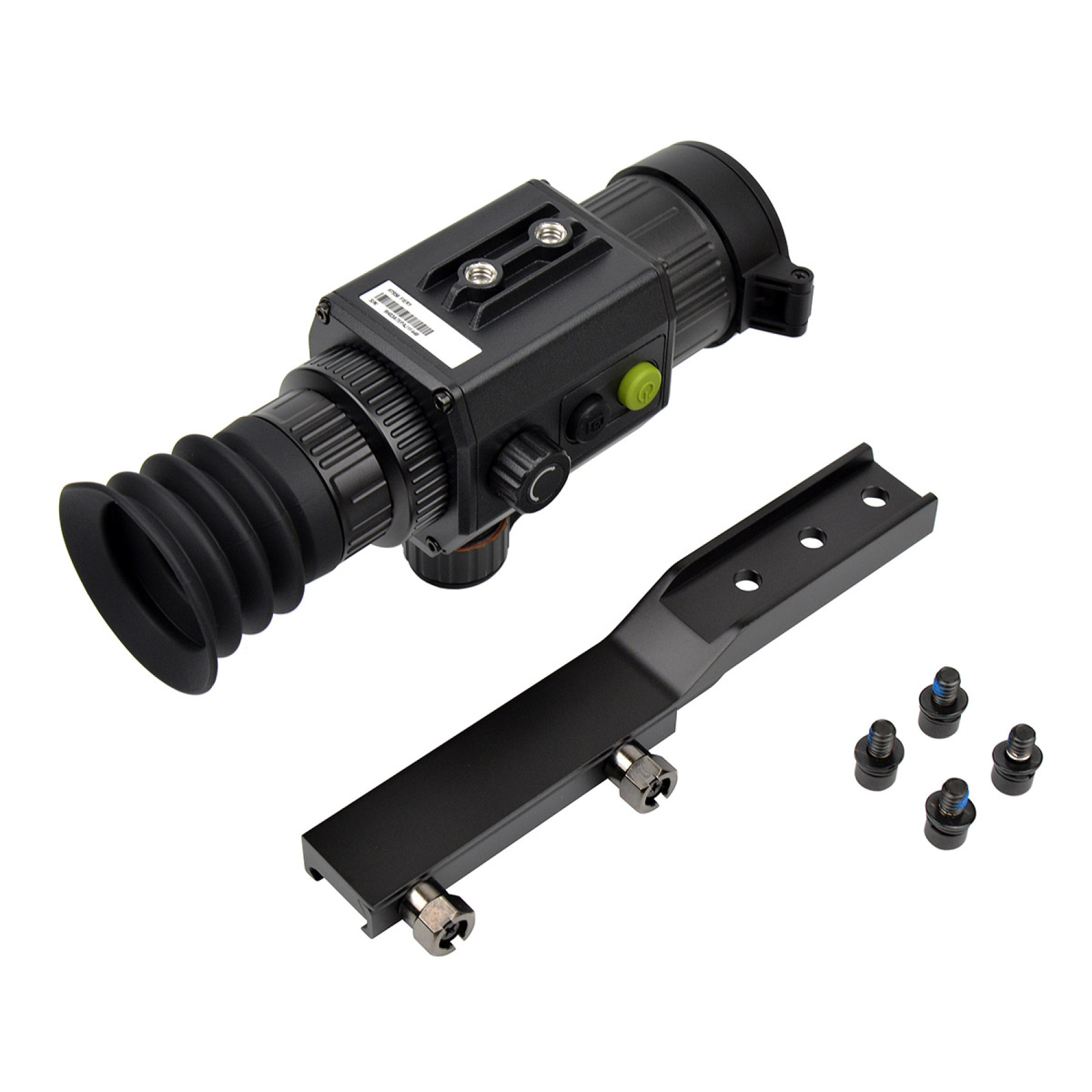

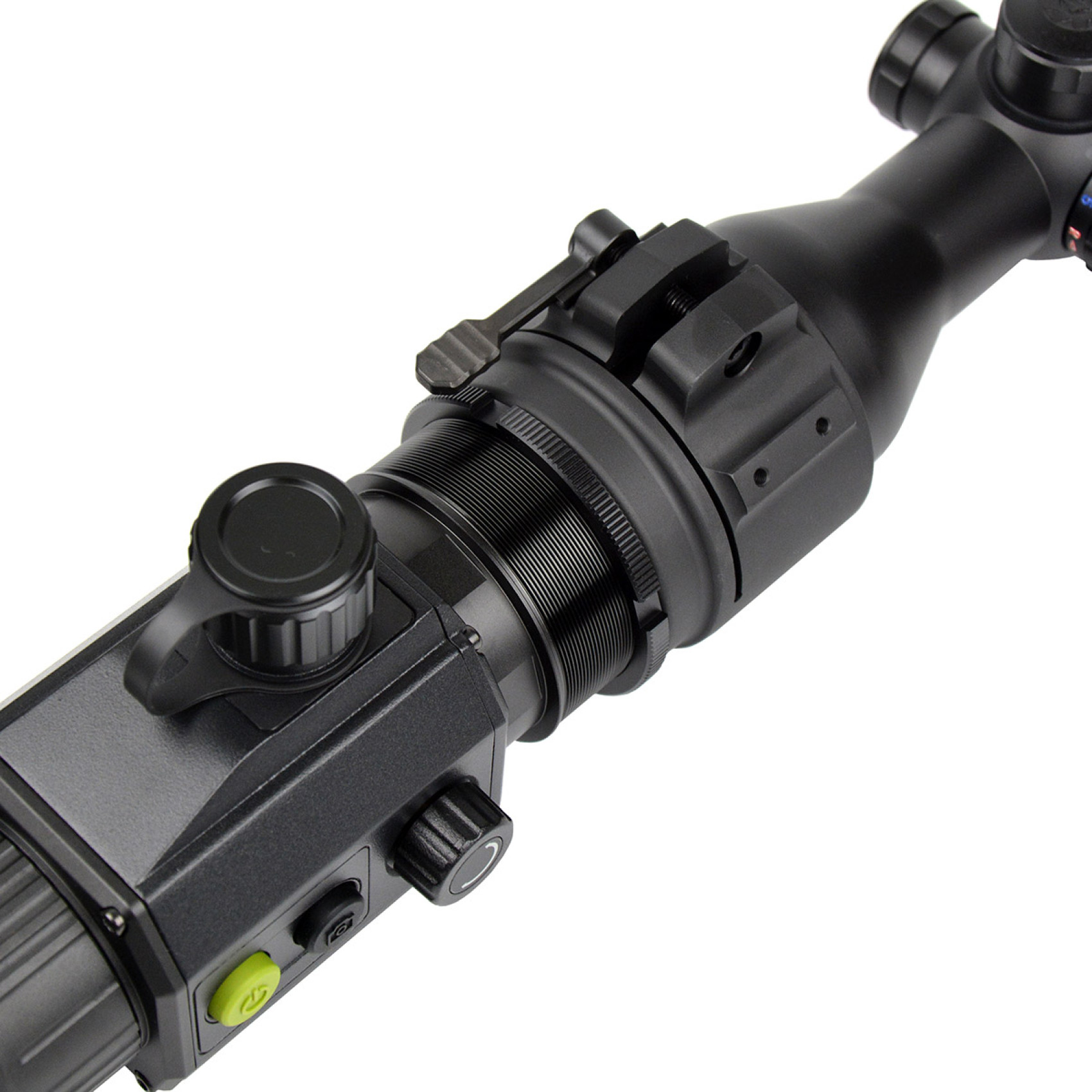

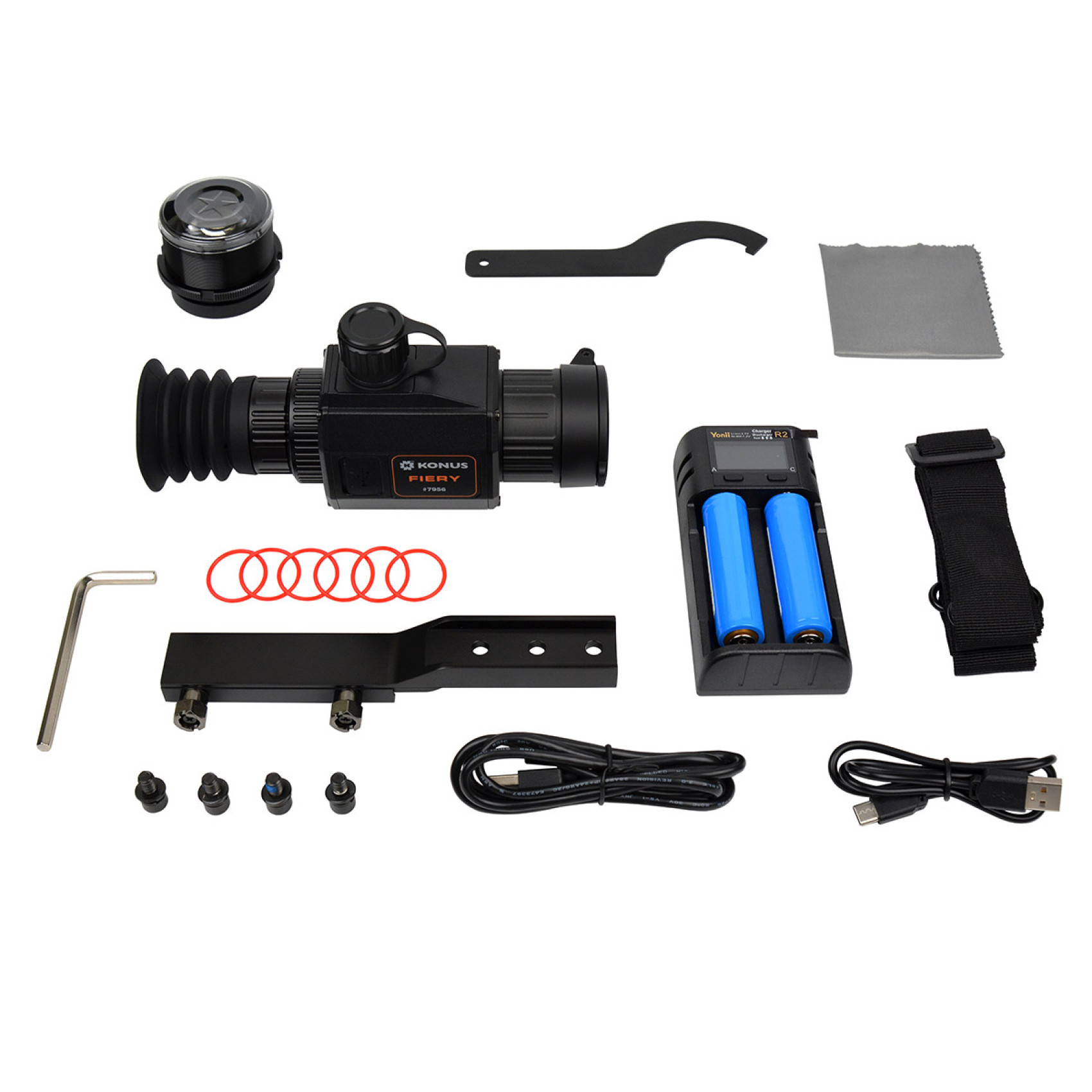

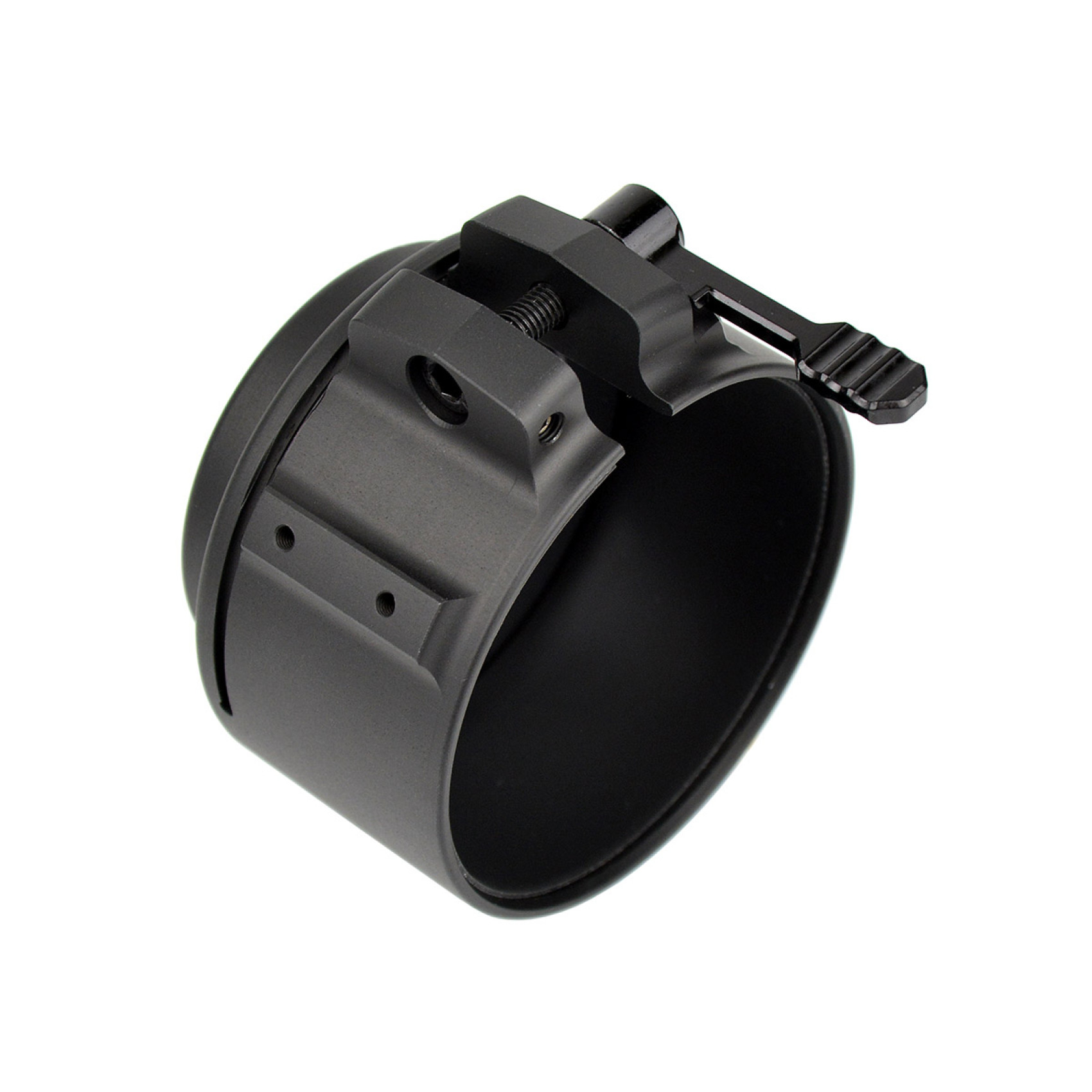

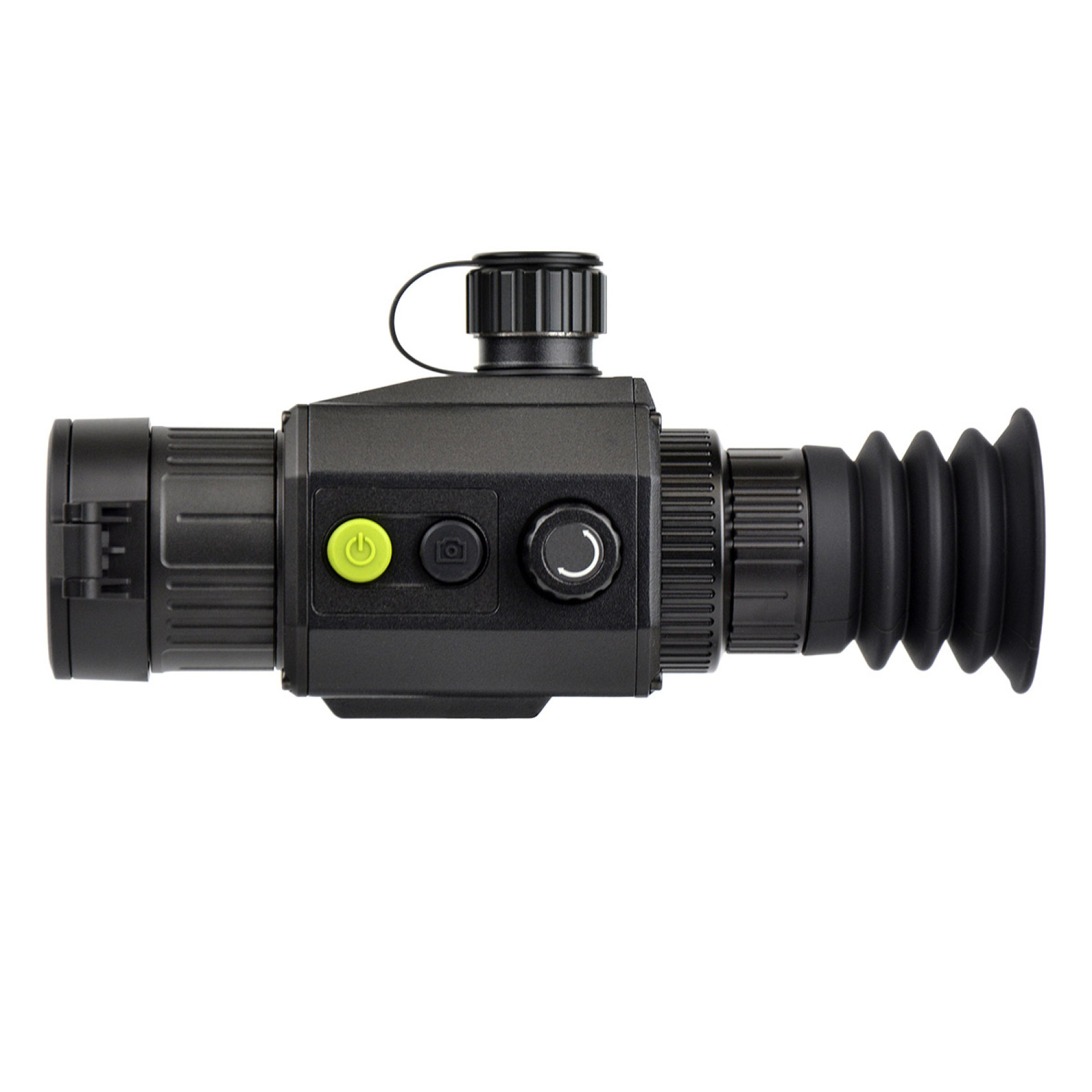

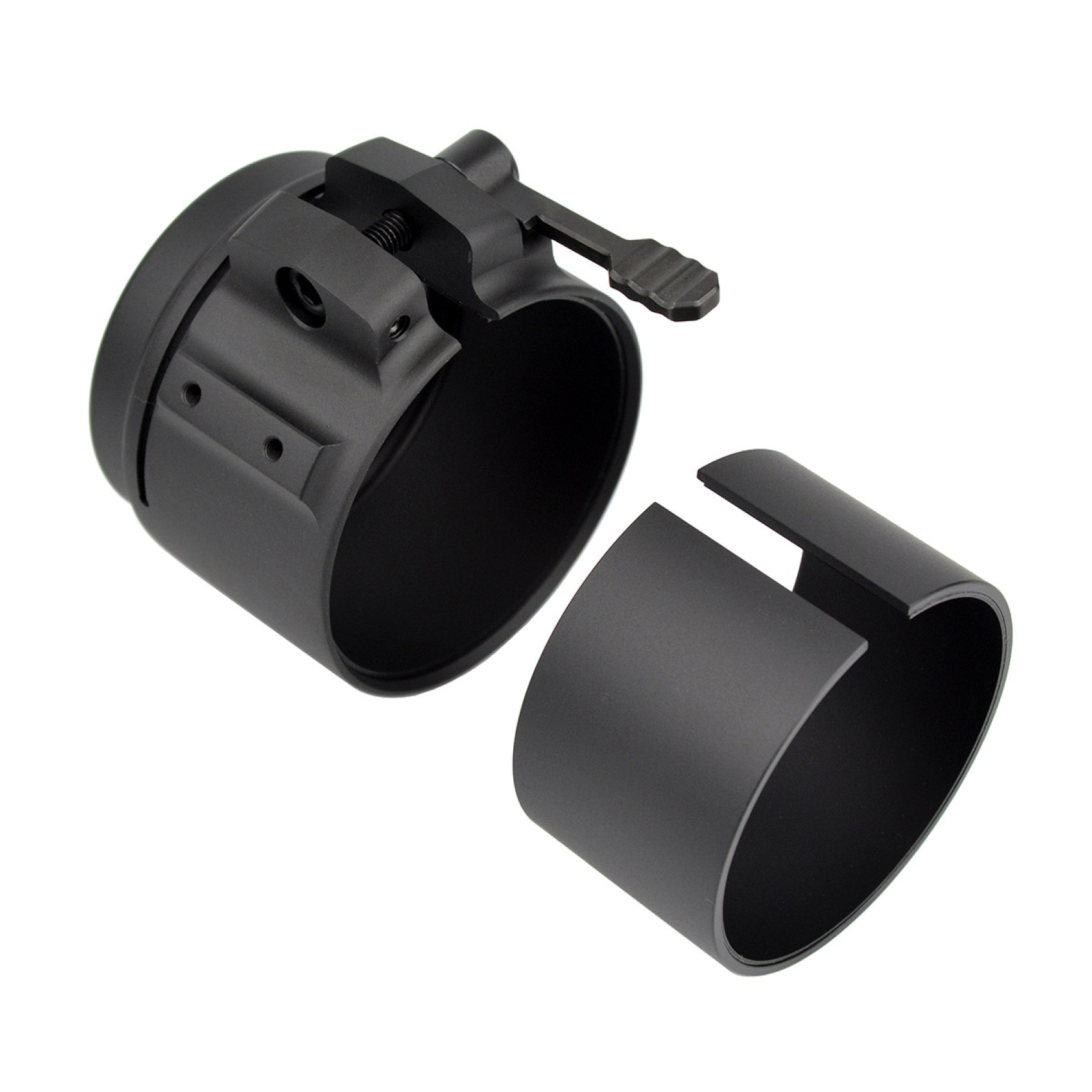

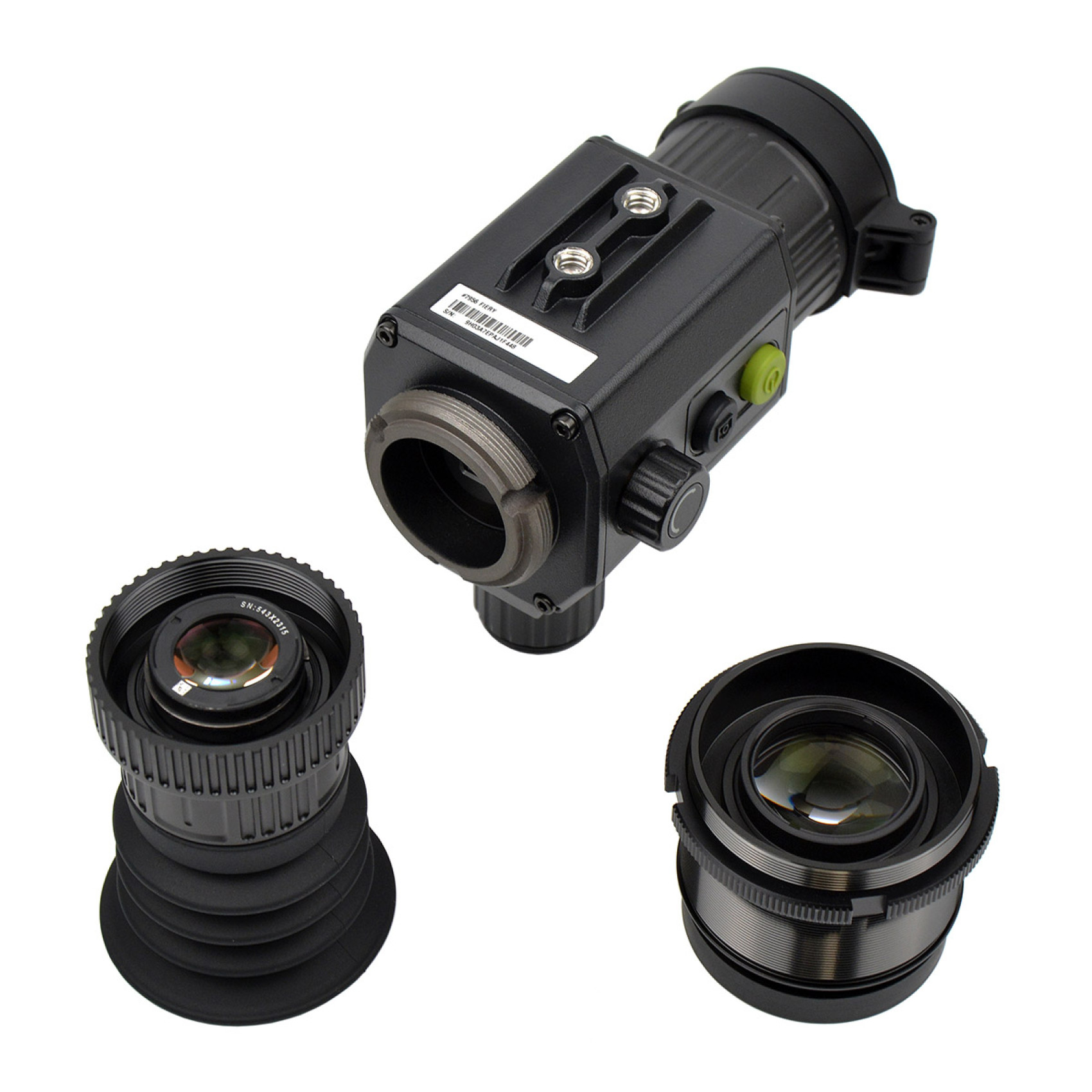

Description The KONUS FIRE CLIP-ON 2.1x-16.8x 384×288 thermal imager is a 3-in-1 multifunctional thermal imaging system with a rich set of accessories that provides a wide range of applications. This thermal imager combines the functions of three devices at once: a thermal monocular, a thermal sight and a thermal daytime optics attachment. Detection / recognition / identification Car – 3900 m / 1000 / 500 m Person – 1800 m / 460 / 230 m Features Powered by a replaceable 18650 battery Possibility of mounting on Weaver/Picatinny Can be mounted on a riflescope (44-56 mm) Tripod socket (UNC 1/4-20 standard) Removable eyepiece with diopter correction Hinged protective lens cover Rubber eyecup with 50 mm extension Focus ring on the lens Universal USB Type-C connector Metal body with water protection Rotary and pressure control drum Characteristics Sensor: uncooled VOx sensor 384 x 288 px (12 µm) Spectral range: 8 μm – 14 μm Temperature sensitivity: ≤ 35 µm (at 25 °C) Lens: 35 mm, F1.0 Focusing: on the lens Optical magnification: 2.1x Digital zoom: 1x, 2x, 4x, 8x Display: 1440 x 1080, 0.4 inches, OLED, 50 Hz Grid: 10 types, 4 colors, on/off. Color palettes: white hot, sepia, green hot, red hot, iron, black hot Power supply type: 18650 x1 battery Working time: up to 7.5 hours Operating temperature: -20 °C to +55 °C Built-in memory: 16 GB Protection: IP67 Interface: USB Type-C, Wi-Fi Compatible with weapons Maximum energy of the bullet: 6000 J Cartridge characteristics: .375 H&H Package contents Thermal imager Weaver / Picatinny bracket Adapter for the sight (44-50 mm) Adapter for rifle scope (56 mm) Double-sided coupling with nut Clamping wrench for the coupling USB interface cable USB charging cable Charging device Fixing screws (4 pcs.) O-ring (6 pcs.) Bag for transportation Bag strap Hex key Napkin for optics Instruction manual Dimensions Dimensions: 184 x 88 x 65 mm (without bracket) Weight: 553 g (with battery) Package size: 267 x 228 x 116 mm Weight of the package: 1996 г
