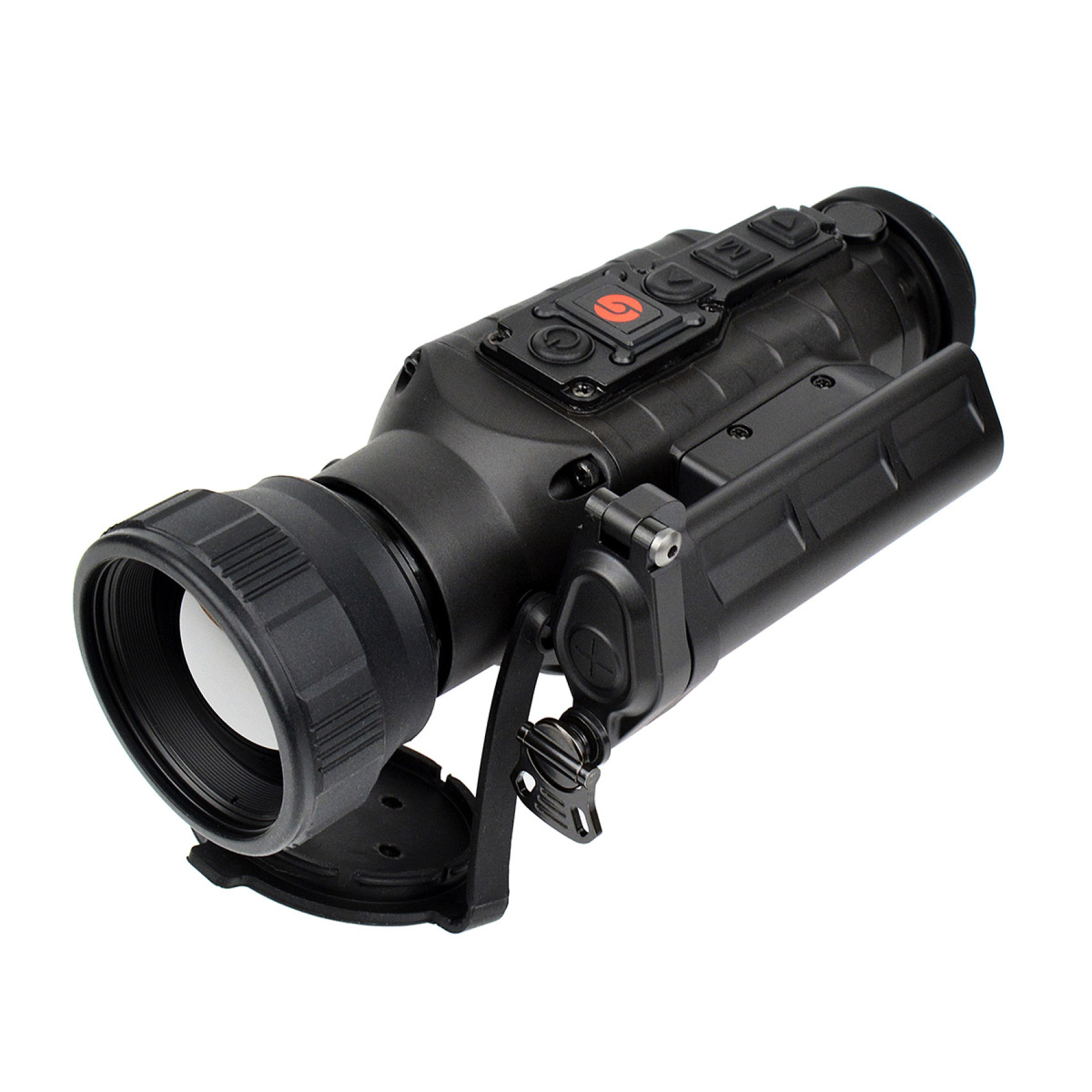

GUIDE TA651 640x480px 50mm thermal imaging attachment

Description The GUIDE TA651 640x480px 50mm thermal imaging mount is a professional model designed to be mounted on a daytime scope and is designed to fire at long distances. The 50 mm diameter lens, the largest in the series, allows you to detect targets at distances up to 3.3 km. A modern matrix with a resolution of 640×480 pixels and a sensor size of 12µm provides high image quality, ensuring convenience and clarity when observing through the main sight. Improved image detail helps to more accurately recognize and identify heat sources. Other improvements include a new power system that supports replaceable 18650 batteries. Features Focus ring on the lens UNC 1/4-20 tripod mount Shockproof metal body Detection / recognition Vehicle (2.3 m x 2.3 m): 3300 m / 2000 m Person (1.8 m x 0.5 m): 2000 m / 1000 m Deer (1.5 m x 0.5 m): 1650 m / 830 m Wild boar (0.9 m x 0.7 m): 1250 m / 630 m Characteristics Exit pupil removal: 20 mm Sensor: uncooled VOx matrix 640 x 480 px (12 µm, 50 Hz) Spectral range: 8 μm – 14 μm Temperature sensitivity: ≤ 40 µm (at 25 °C) Lens: 50 mm, F1.0 Angular field of view: 8.8° x 6.6° (horizontal x vertical) Optical magnification: 1x Digital zoom: 1x, 2x, 4x, 8x Display: 0.5” AMOLED (800 x 600 px) Color palettes: White Hot, Black Hot, Red Hot, Iron Red, Blue Hot, Green Hot Power supply type: 18650 x1 (without protection) Operating temperature: -30/+50 °C Working time: up to 7 hours Protection: IP67 Kickback resistance: 500 G (250 G burst) Interfaces: LEMO (PAL, 50 Hz), Bluetooth Package contents Thermal imaging nozzle with a ring 18650 battery, 2200mAh (1 pc.) Charger for 2 batteries USB Type-C charging cable LEMO/USB cable Viewer Soft case Instruction manual Dimensions Dimensions of the thermal imager: 179 x 80 x 61 mm Weight of the thermal imager: 541 g (587 g with battery) Package dimensions: 263 x 137 x 132 mm Package weight: 1.7 kg
