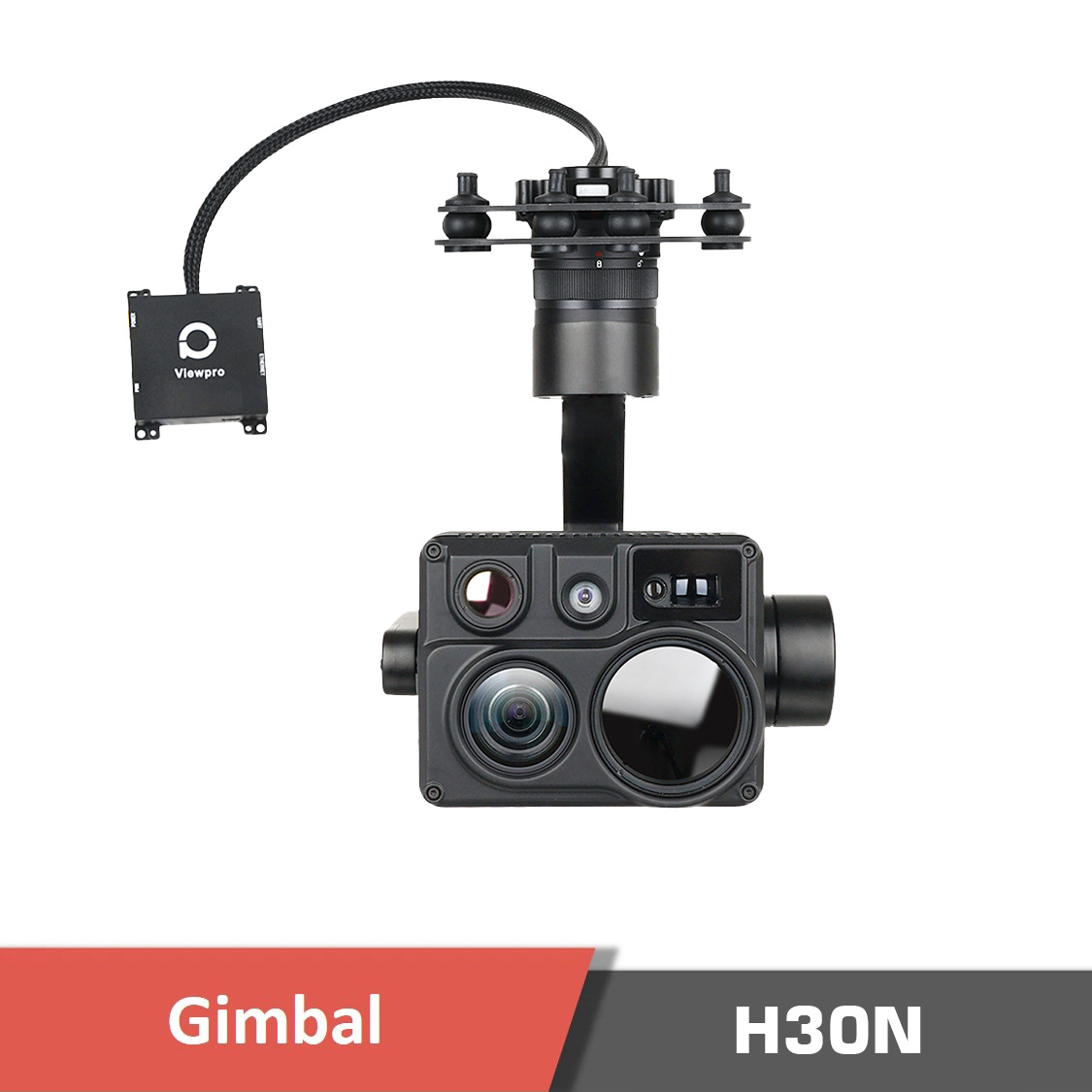

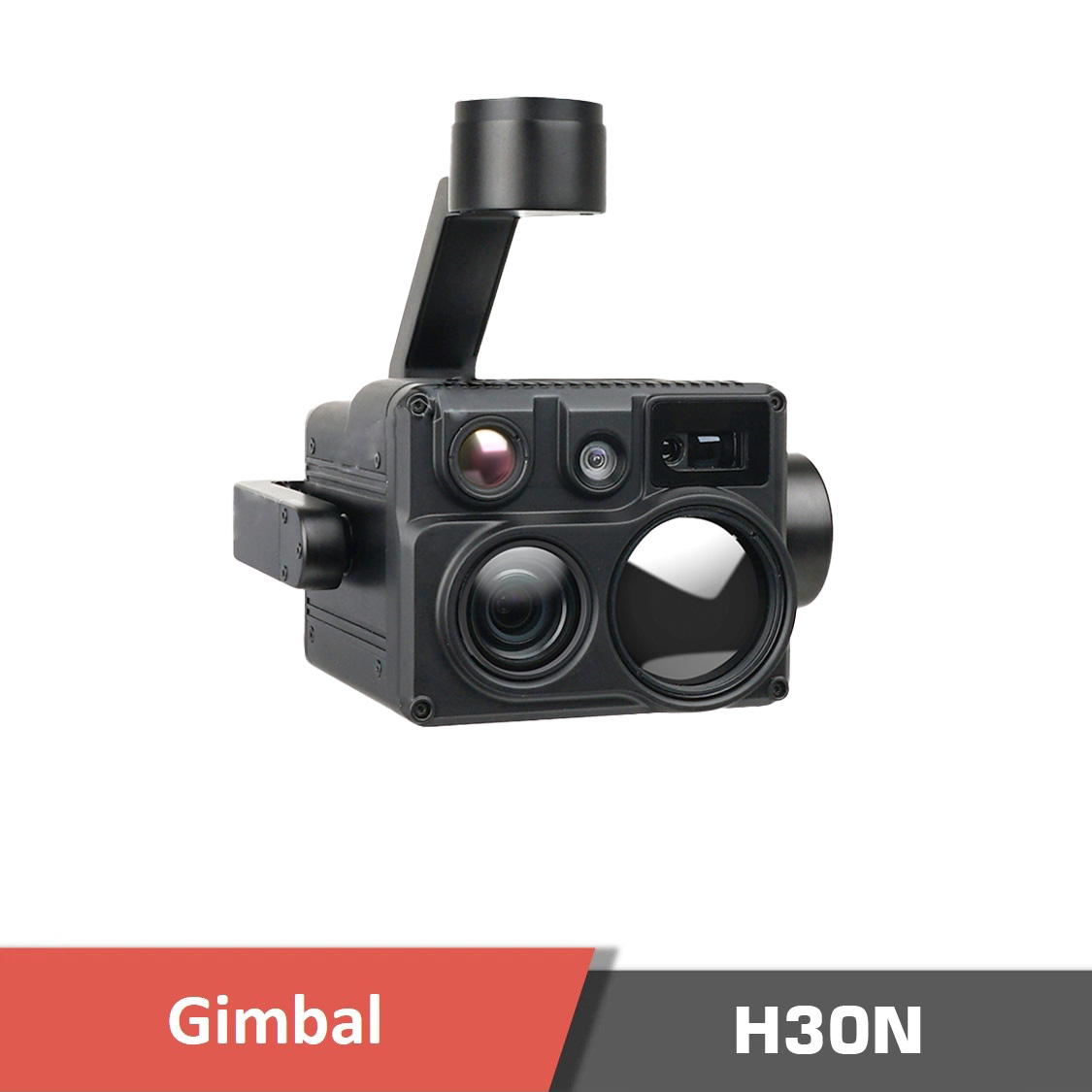

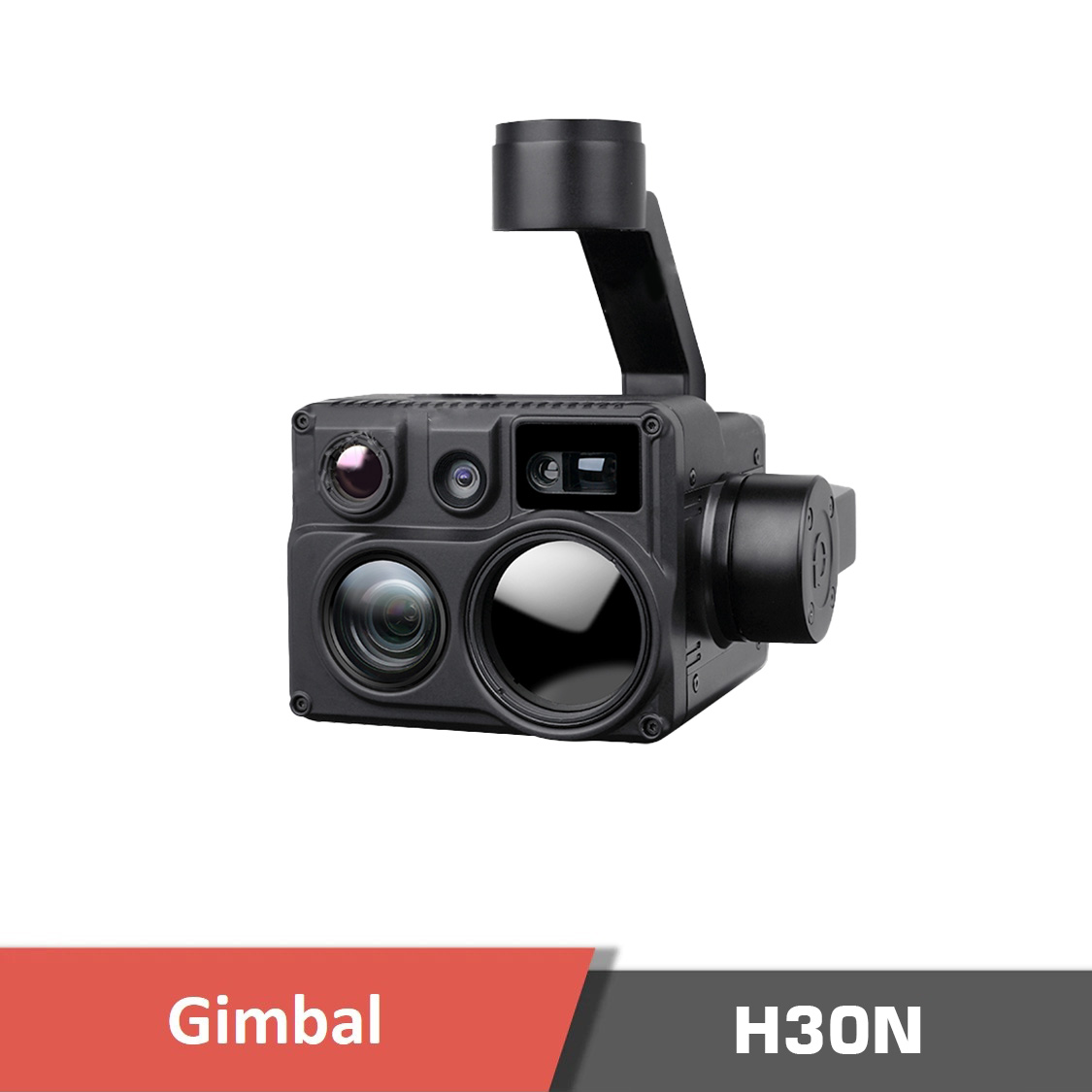

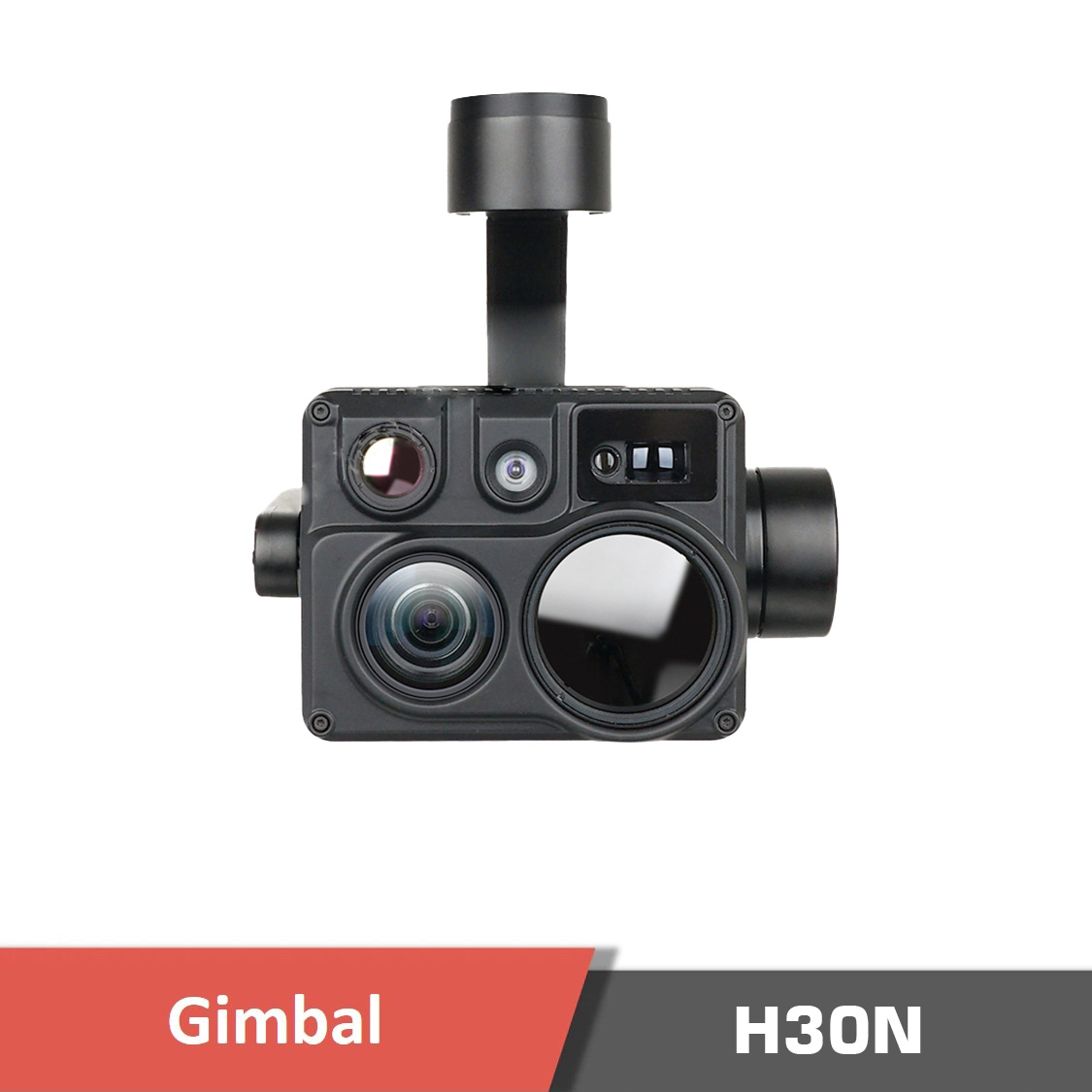

H30N gimbal camera, Dual IR and Dual EO with Laser Rangefinder and AI tracker

Overview of H30N gimbal camera Introducing H30N Gimbal Camera , the pinnacle of surveillance technology – the EO/IR Camera System, a comprehensive solution that redefines the landscape of imaging and surveillance capabilities. Designed to exceed expectations in any environment, this system thrives in temperatures ranging from -20℃ to +60℃, ensuring unparalleled performance in diverse climatic conditions. H30N Gimbal Camera General Specifications At its core, this advanced system stands out for its dual EO and IR camera configurations, offering unparalleled versatility and functionality. With not just one, but two EO cameras, this system ensures exceptional imaging quality and flexibility. The first EO camera features a SONY 1/2.5″ “Exmor R” CMOS sensor with a total pixel count of 8.51MP, along with an impressive 20x optical zoom that extends up to 30x with Super Resolution capabilities. The second EO camera, with a focus length of 2.8mm and a resolution of 1920×1080, provides additional depth and precision to your surveillance needs. EO/IR Camera System But that’s not all – the EO camera ensemble is complemented by two IR thermal imagers, each with unique specifications catering to different surveillance requirements. The first IR thermal imager comes with a 50mm lens and boasts a detector pixel count of 640×480, offering uncooled long-wave thermal imaging. Meanwhile, the second IR thermal imager, equipped with a 13mm lens and the same detector pixel count, offers a different perspective and application for thermal imaging needs. IR Laser Rangefinder Beyond the impressive camera setup, this system offers an array of features that ensure superior performance and functionality. The Camera gimbal drone system’s specifications allow for extensive mechanical and controllable ranges, enabling a wide scope of view and precise control over the surveillance area. The system’s IR Laser Rangefinder, with a range spanning from 5 to 1000 meters, ensures accurate distance measurement and location resolution (Latitude and longitude of target), bolstering its surveillance capabilities. Weight and Dimensions of H30N Gimbal Camera Compact, durable, and weighing 1339g, this system measures 161.1×142.5×193.5mm (Quickport Version), making it a robust yet portable solution for diverse surveillance applications. Whether it’s for security, research, or specialized imaging needs, this EO/IR Camera System is the ultimate choice for those seeking cutting-edge surveillance technology. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. FAQ – H30N Multi-Sensor Gimbal Camera 1. What sensors are likely included in the H30N gimbal? Being a multi-sensor model, the H30N likely integrates at least a high-zoom EO (electro-optical) camera (for visible light) plus a thermal or IR sensor. It may also include a laser rangefinder or near-infrared (NIR) channel depending on the intended surveillance or inspection use. 2. What stabilization mechanism does H30N use? It is expected to have a 3-axis stabilized gimbal system to maintain stable imaging under UAV motion and environmental disturbances, especially important for multi-sensor fusion applications. 3. What are typical features for multi-sensor capabilities (tracking, imaging) in this type of gimbal? Features likely include: Synchronized capture across sensors (EO + thermal) Picture-in-Picture (PIP) or split-screen display of visible & thermal/IR AI-assisted detection/tracking (humans, vehicles, heat signatures) Possibly geospatial metadata / geo-tagging if GPS or IMU integration is included 4. What payment methods are usually accepted for purchasing this kind of high-end gimbal? Standard methods: major credit/debit cards, PayPal (if available), and international bank transfers. For large orders, purchase orders may be arranged. 5. Is OEM customization available for enterprise or defense customers? Yes. OEM support is commonly available: sensor combinations, spectral bands, lens focal lengths, mounting interfaces, control protocols, and power options can often be tailored per customer needs. 6. Are technical documents and manuals supplied with the product? Yes. For a product like this, the customer should receive detailed datasheets, user/installation manuals, integration guides, calibration instructions, and possibly software SDKs or firmware docs.
