GUIDE TK621 640x480px 25mm thermal imaging monocular

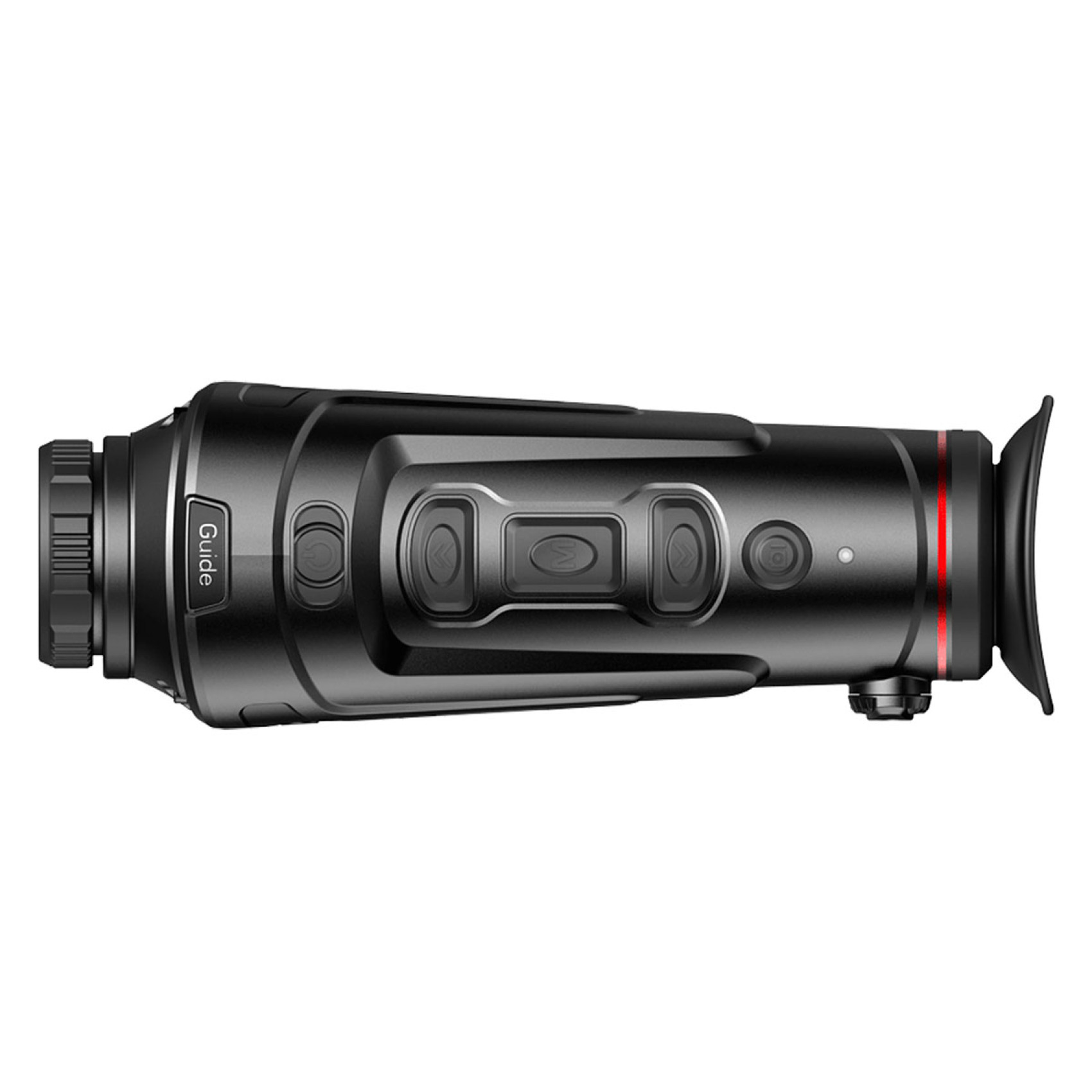

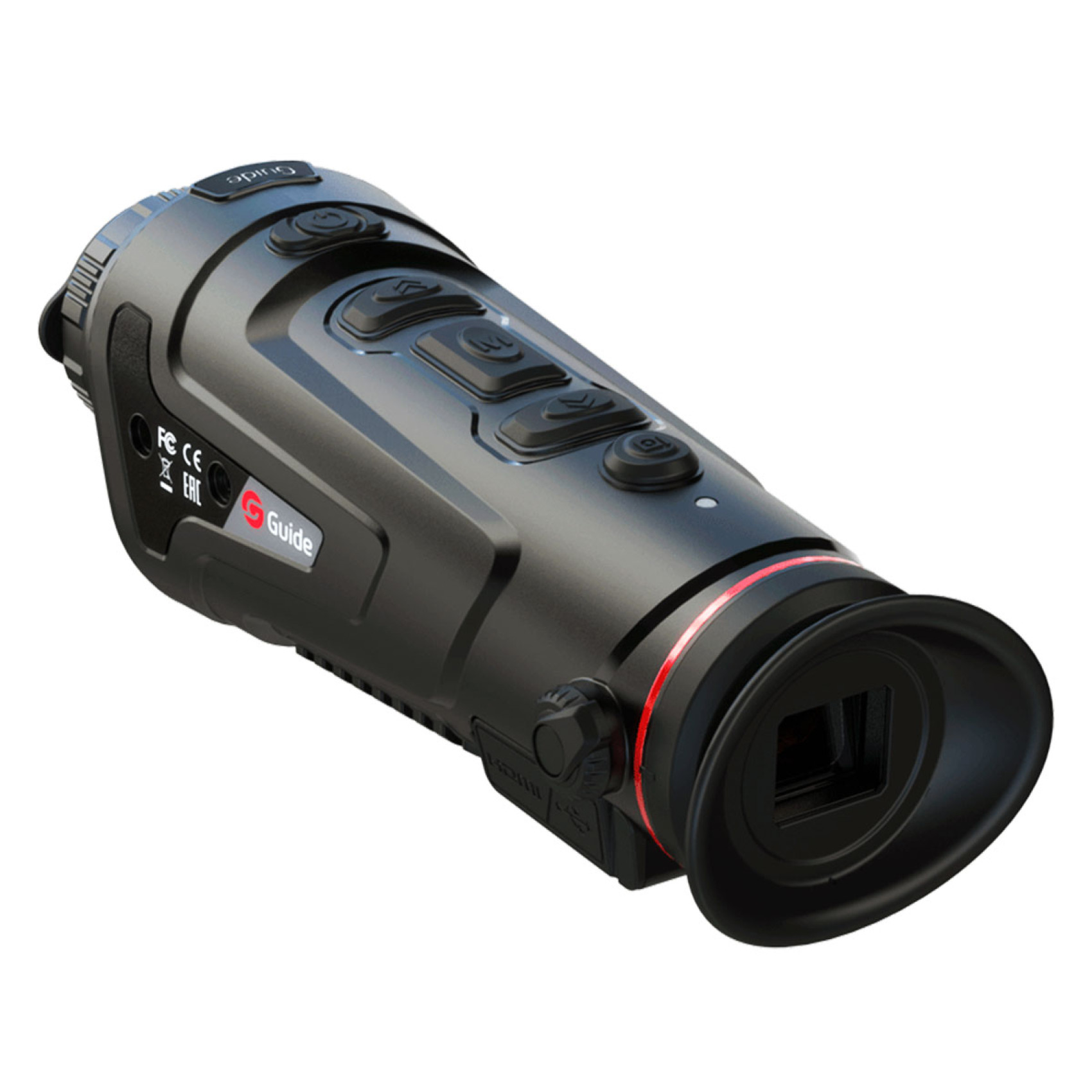

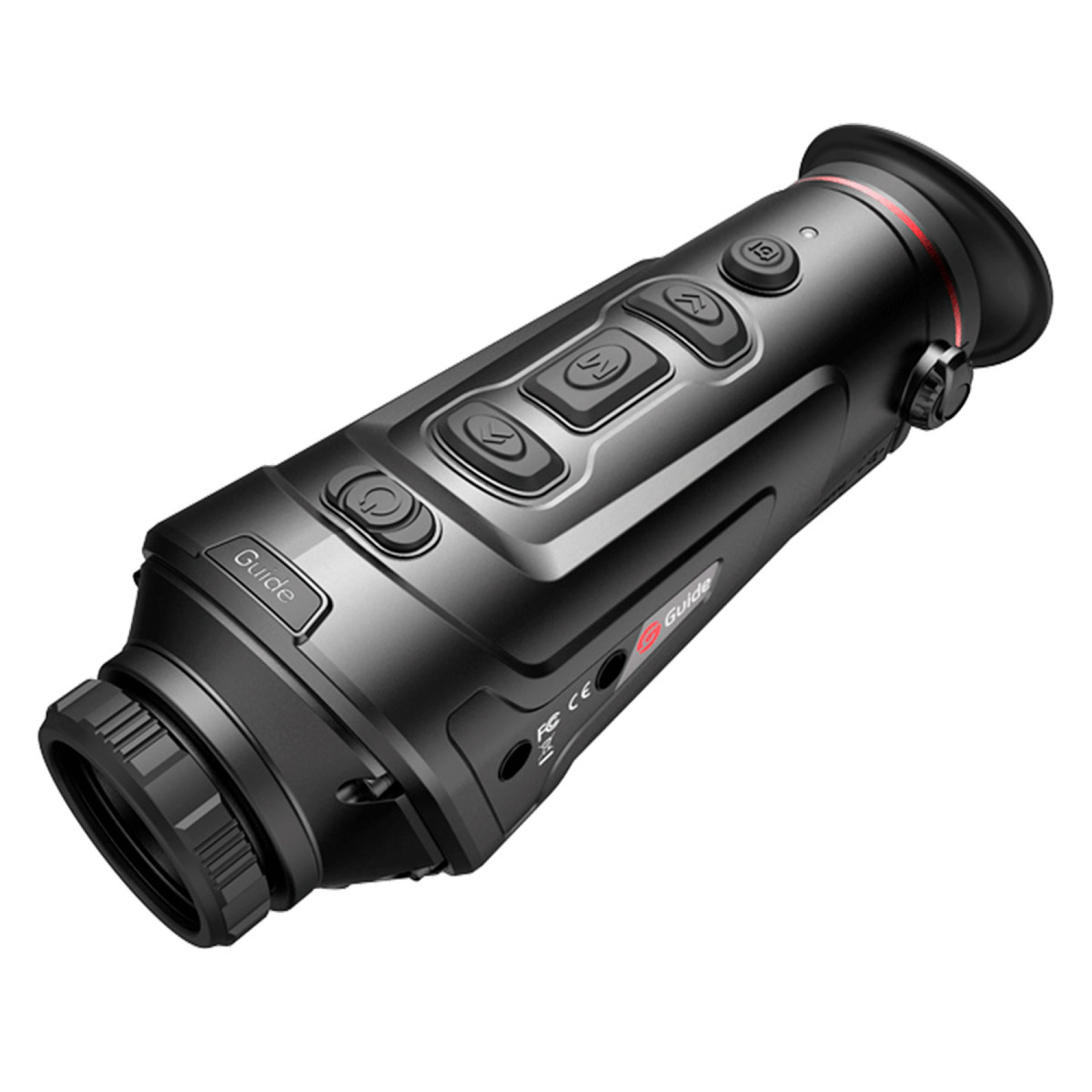

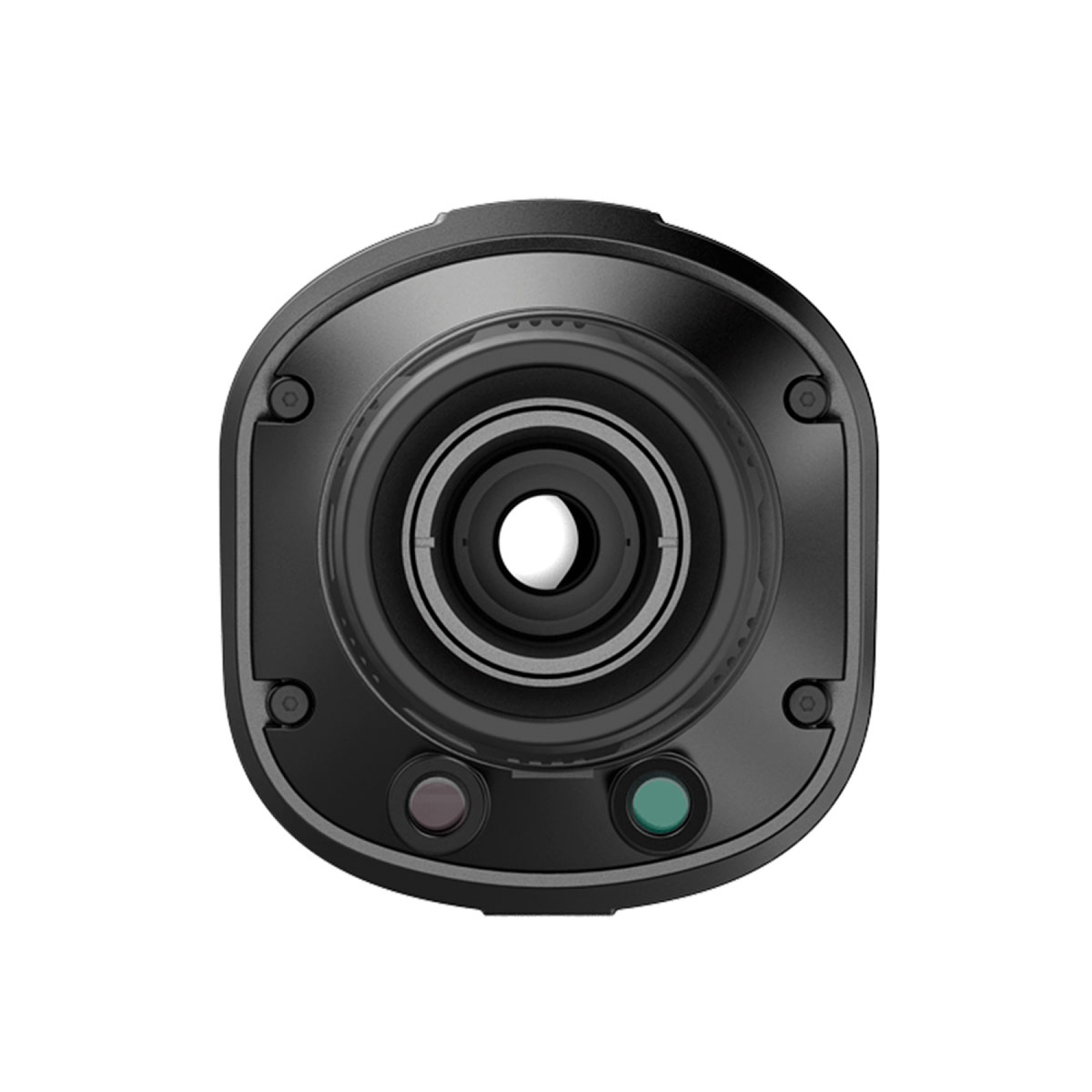

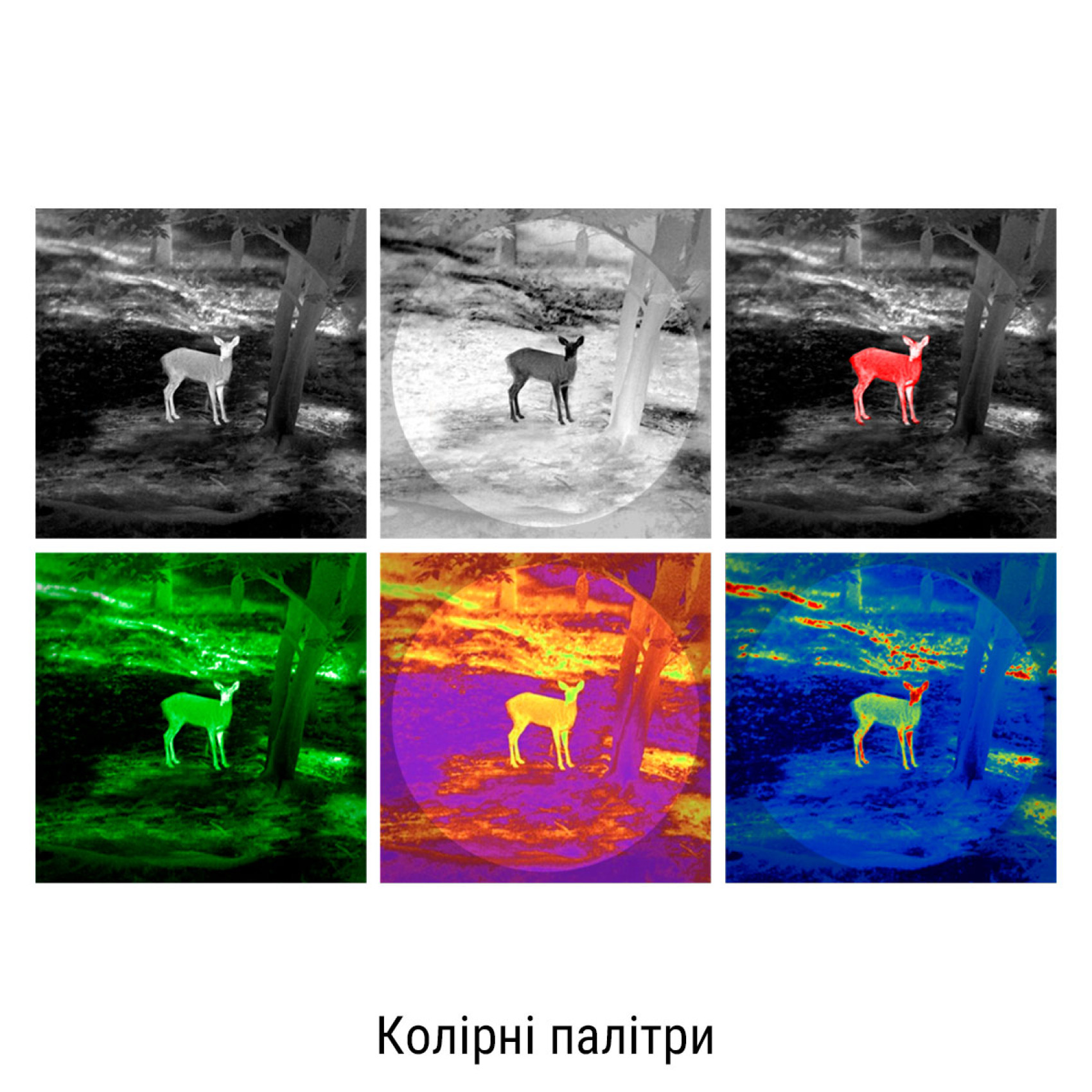

Description The GUIDE TK621 640x480px 25mm thermal imaging monocular GUIDE TK621 is designed around a Vanadium Oxide infrared detector (VOx, 50 Hz, 12 microns), it has a large 640 x 480 pixel sensor. It has a 17.5° x 13.1° field of view, a 0.4-inch FLCOS display (1280 by 960 pixels), 1.1x optical magnification, and smooth digital zoom up to 8x. Detection / Recognition Vehicle (2.3m x 2.3m): 2400m / 1000m Human (1.8 m x 0.5 m): 1000 m / 500 m Deer (1.5 m x 0.5 m): 830 m / 420 m Boar (0.9 m x 0.7 m): 620 m / 320 m Features Laser designator (up to 200 m) Built-in LED illumination Focus ring on the lens UNC 1/4-20 tripod mount Sockets for mounting optional Picatinny rail Diopter correction adjuster from -4 to +2 Characteristics Sensor: uncooled VOx sensor 640 x 480 px (12 µm, 50 Hz) Spectral range: 8 μm – 14 μm Temperature sensitivity: ≤ 30 µm (at 25 °C) Lens: 25 mm, F1.0 Focusing: on the lens Angular field of view: 17.5° x 13.1° (horizontal x vertical) Optical zoom: 1.5x Digital zoom: 1x – 8x (smooth) Display: 0.4” FLCOS (1280 x 960 px) Color Palettes: Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot Power Type: 18650 x 2 (Built-in, 6000mAh) Working time: up to 4.5 hours Protection: IP66 Built-in memory: 16GB Interfaces: Wi-fi, Micro-HDMI, USB Type-C Accessories Thermal Imager Soft case for storage and transportation Power adapter USB Type-C cable Micro HDMI cable Wrist strap Shoulder strap Lens cap Manual Dimensions Dimensions: 192 x 71 x 65 mm Weight: 490 g
