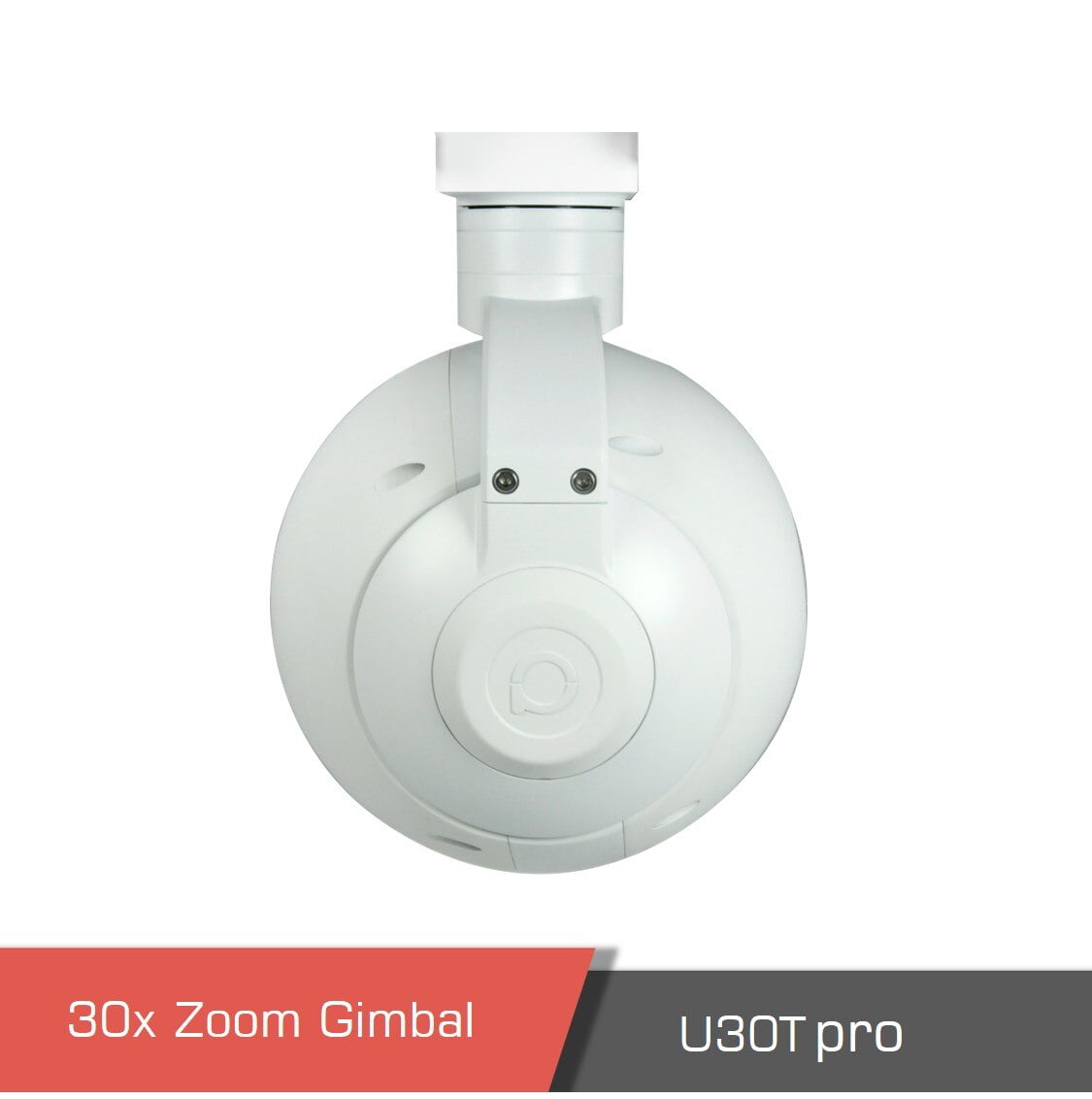

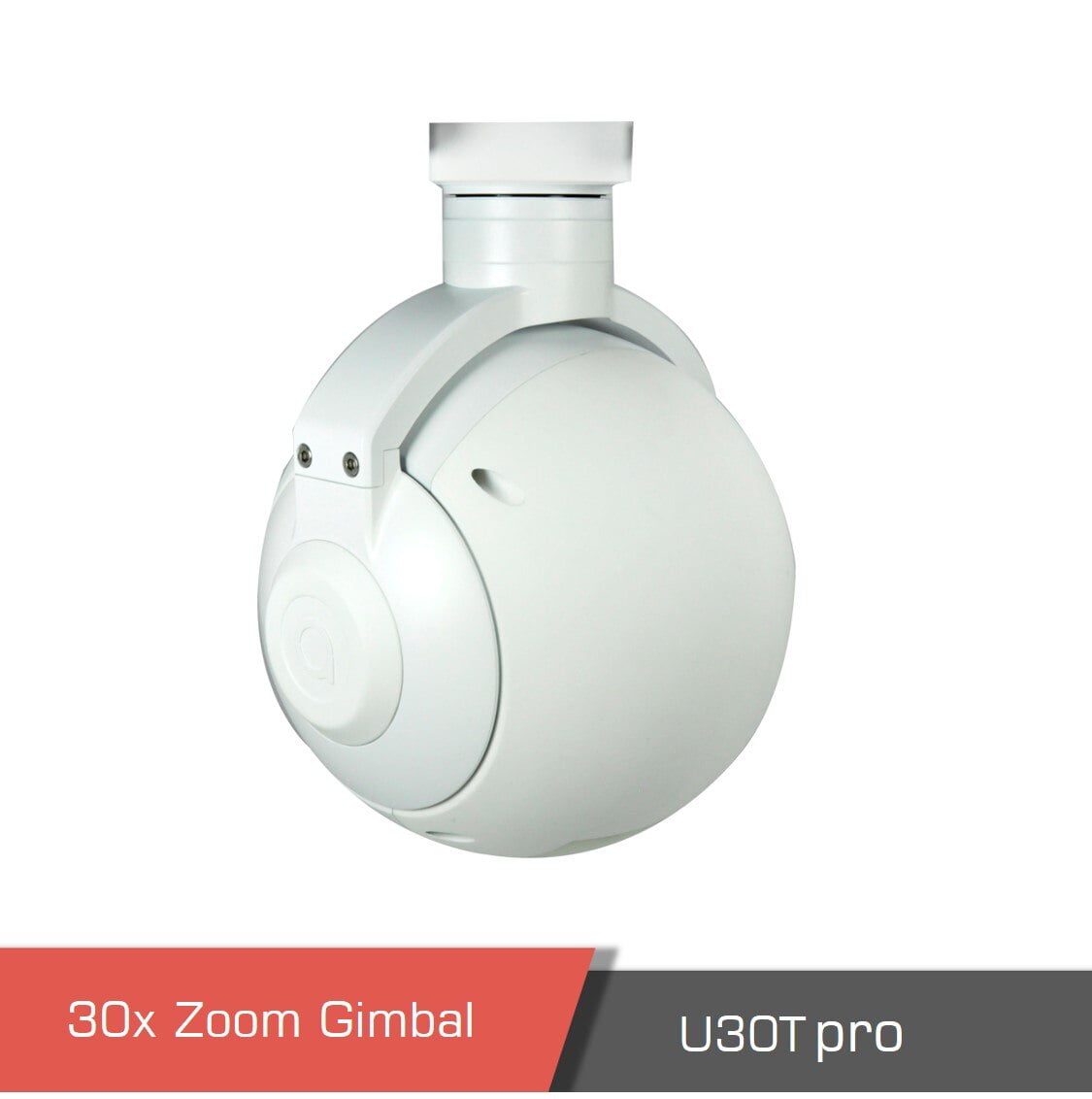

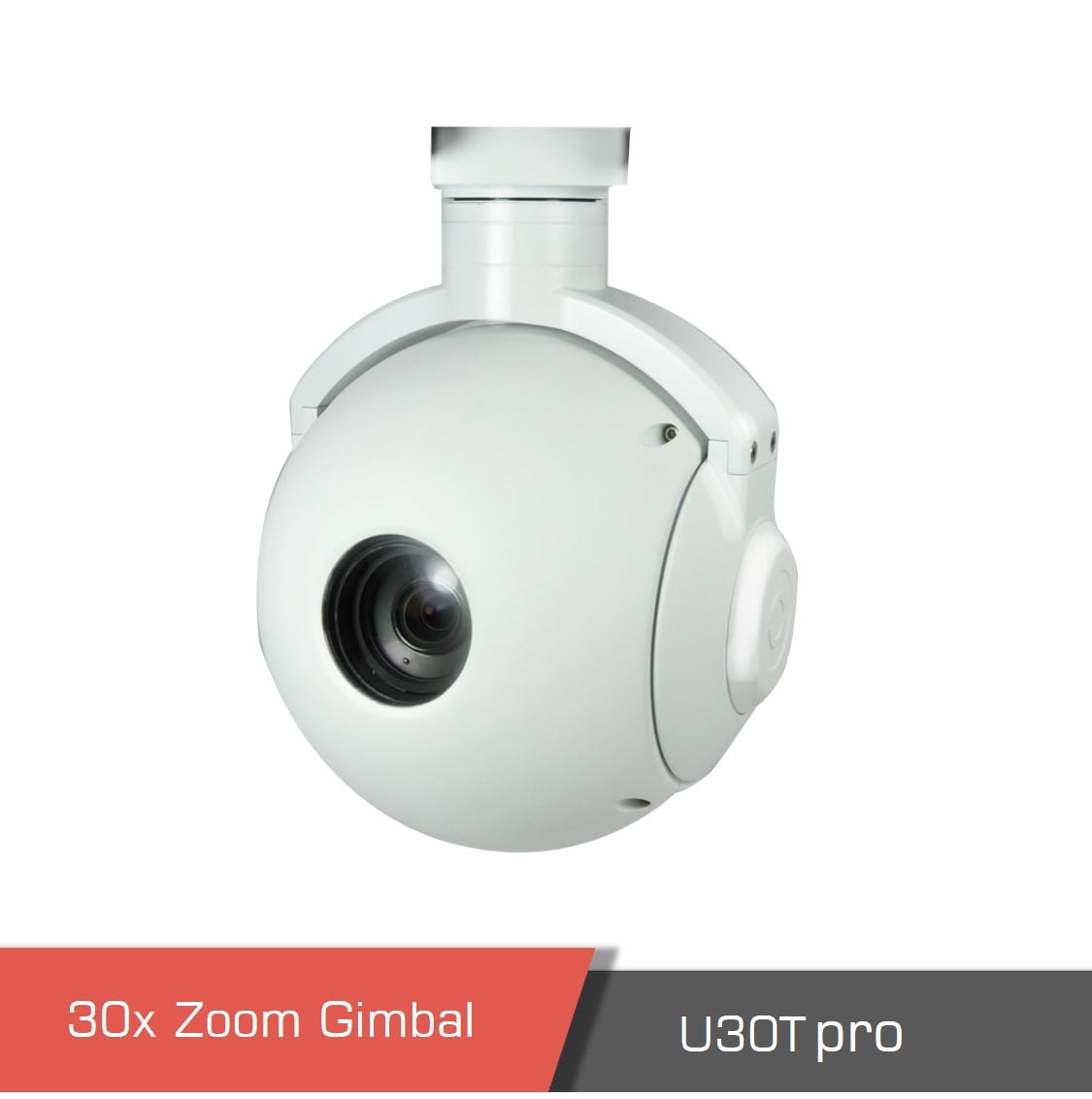

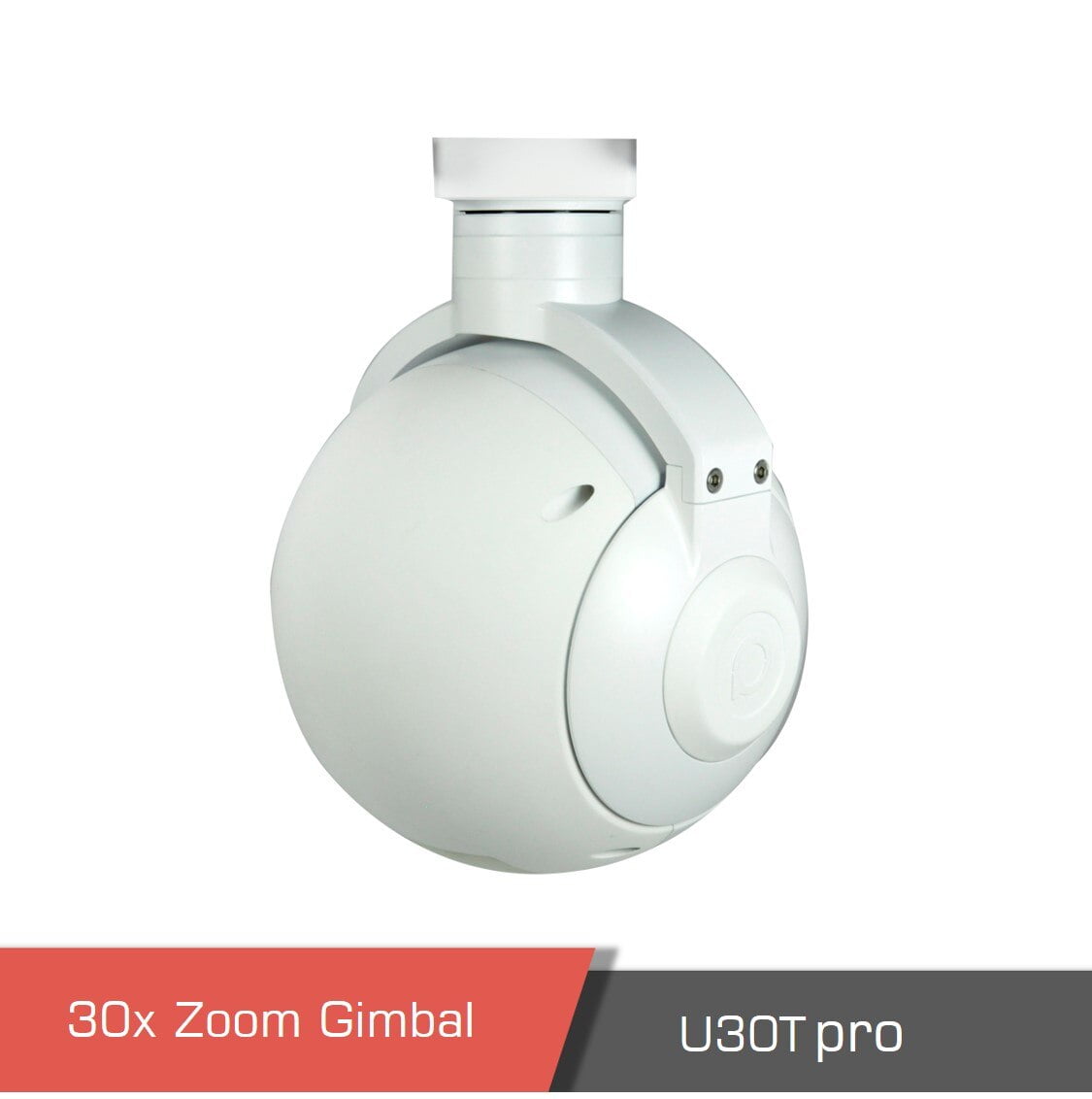

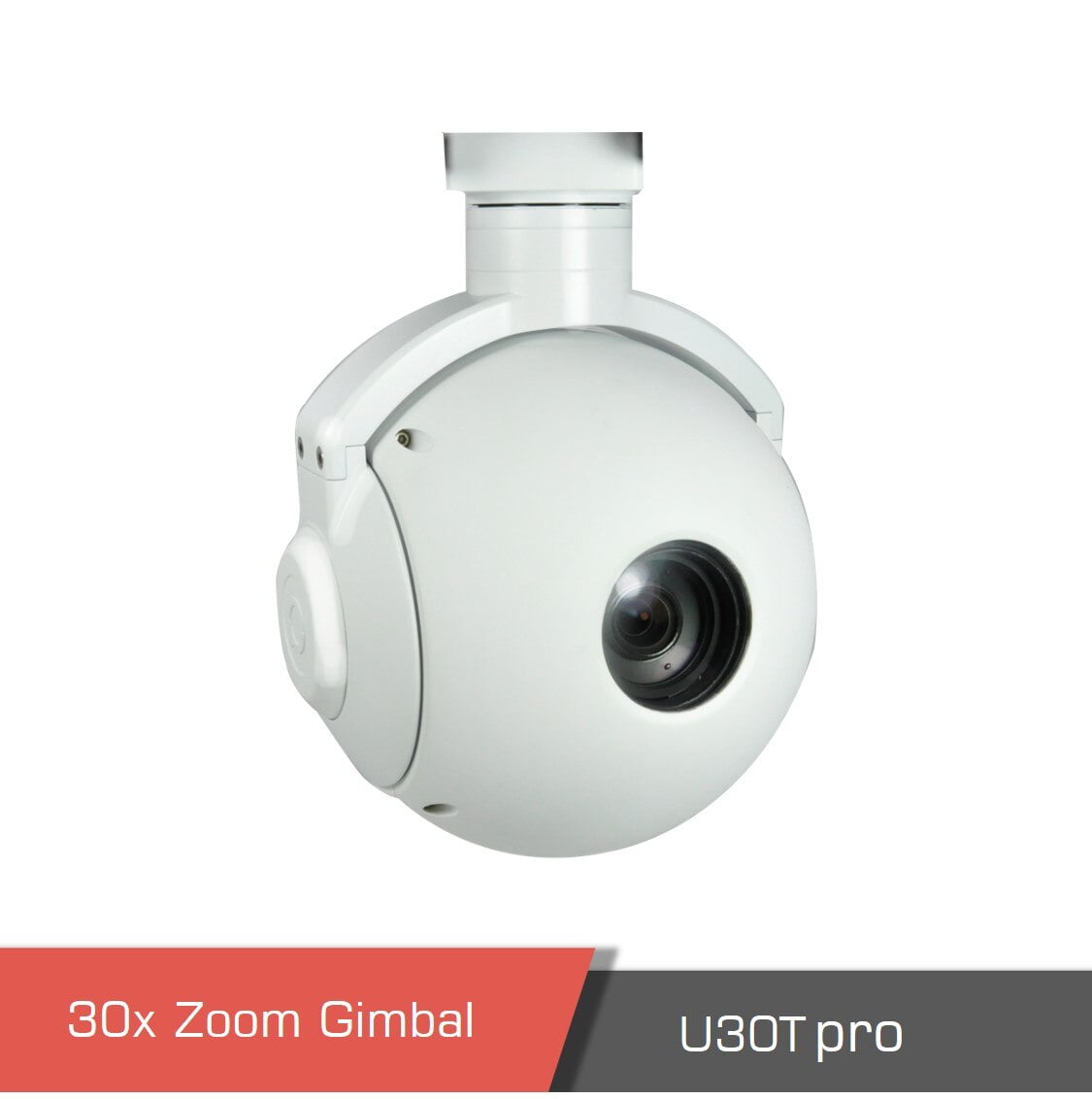

Gimbal Camera U30T pro

U30T pro Gimbal Drone Camera Overview U30T pro is a 2-axis design but 3-axis function gimbal drone camera with 30x optical zoom. It’s powered by SONY 1/2.8″ “Exmor R” CMOS module, 2.13 million effective pixels, fast auto-focus speed, 1080p HD image quality. U30T pro can achieve target tracking. It easy to control pitch, yaw, zoom, tracking function through PWM, S.BUS or TTL. SONY 30x Zoom Starlight Camera Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30T can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains. Single Sensor Visible Light Camera Object Tracking Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect. Multi Output Methods Optional U30T pro support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree endless pan. Multi Control Methods Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl. Compatible with Viewport U30T pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. Simple FAQ (U30T Pro – Engineers & B2B Buyers) 1. What are the main imaging specifications of the U30T Pro? The U30T Pro features a SONY 1/2.8″ Exmor R CMOS sensor with 2.13 million effective pixels, supporting 30x optical zoom and 1080p HD video output . It also provides fast autofocus and starlight-level low-light performance. 2. What stabilization and control system does the gimbal use? Although built on a 2-axis design , it functions with 3-axis stabilization algorithms , delivering smooth footage. Control is available through PWM, S.BUS, or TTL , enabling yaw, pitch, zoom, and tracking management. 3. Does the U30T Pro support target tracking? Yes, it includes target tracking functionality , making it suitable for surveillance, inspection, and law enforcement UAV missions. 4. What payment methods are accepted when purchasing this camera? Kratos Defense Drone Shop supports secure payment options including major credit cards and online payment gateways. Specific options are shown during checkout. 5. Can the U30T Pro be ordered with OEM customization? Yes, OEM services and bulk order customization are available. Customers should contact Kratos Defense Drone Shop’s sales team for tailored integration. 6. What documents are included with the purchase? The product comes with technical documentation, user manuals, and integration guides , ensuring proper installation and operation.
