Gimbal Camera| Model Q40TM-Pro | 40x EO Dual Sensors | Laser Range Finder + GPS-Based Targeting

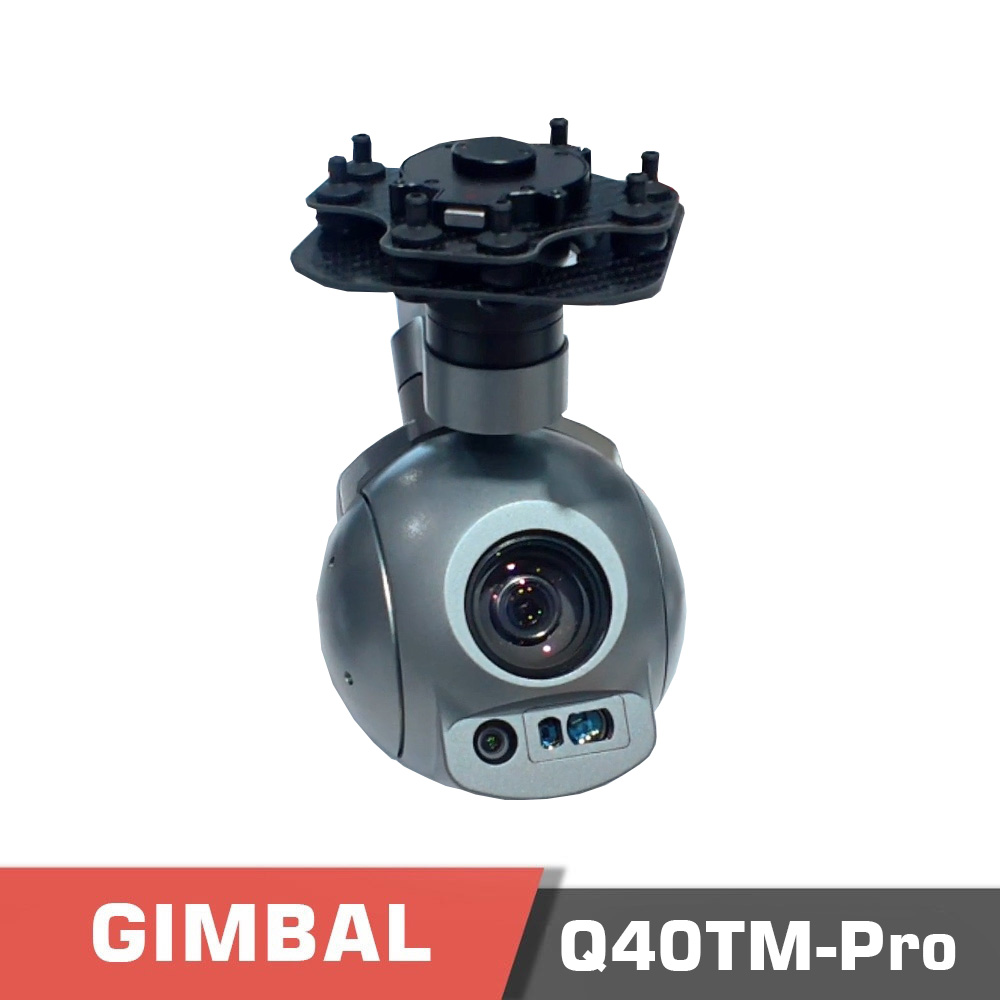

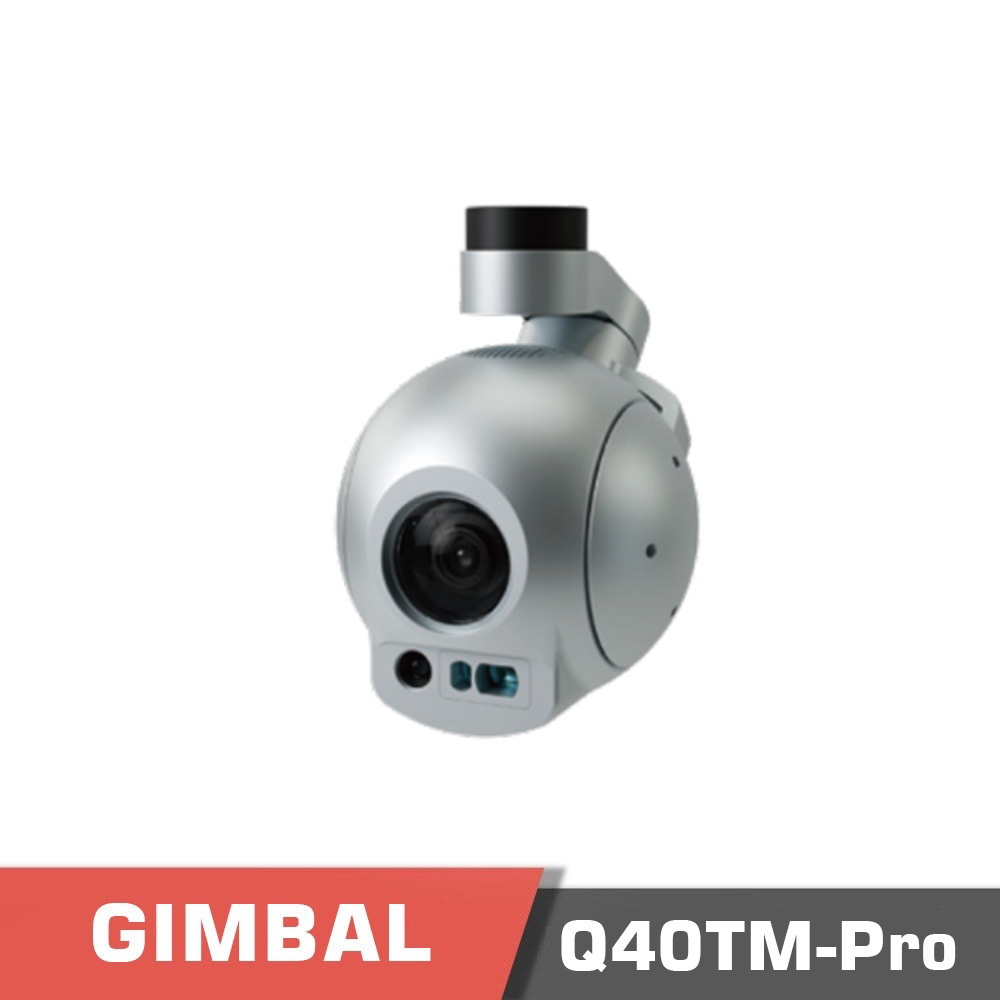

Q40TM Pro Gimbal Camera 40x EO Dual Sensors + LRF + GPS-Based Targeting The Q40TM Pro is a precision-engineered gimbal payload designed for UAV missions requiring long-range zoom, real-time GPS coordinate calculation, and object tracking . With dual EO lenses, an integrated laser rangefinder (LRF) , and onboard processing, it provides accurate target positioning at distances up to 2,000 meters . Ideal for search and rescue, surveillance, security operations, and infrastructure inspection, the Q40TM Pro combines optical zoom , target locking , and coordinate reporting into one robust module. Key Specifications Feature Specification Main Sensor 1/2.8″ CMOS, dual EO lenses Zoom Lens 40x optical zoom, f=4.25–170mm Wide Lens 8mm prime lens, FOV 45° × 30° Resolution 1920 × 1080 (1080p) Total Pixels 2.13MP Laser Rangefinder 3–2000m measurement range Object Tracking Supported (✓) Working Voltage 4S–6S (14.8V–22.2V) Output Interfaces 1080p micro HDMI / IP Control Protocols PWM / S.BUS / UART / TCP / UDP Local Storage SD card support up to 256GB Weight 850g Dimensions 118 × 134.8 × 198.7 mm Highlights 40x Optical Zoom : High-precision visual tracking from wide-angle to long-range views Dual Lens System : Combine overview and detail recognition with prime + zoom lenses Integrated LRF : Calculates GPS coordinates of tracked targets with laser accuracy Real-Time Output : Supports streaming over IP and micro HDMI for live operations Rugged, Lightweight Design : Suitable for medium to heavy UAV platforms in varied environments Use Cases Surveillance and reconnaissance Target location and GPS coordinate reporting Law enforcement or border patrol missions Nighttime operations when paired with auxiliary lights Line inspection and infrastructure surveying For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. Simple FAQ (Q40TM Pro – Engineers & B2B Buyers) 1. What are the main technical specifications of the Q40TM-Pro gimbal? It features dual EO lenses, a 40x optical zoom (4.25–170mm), a wide 8mm lens, 1080p resolution, an integrated laser rangefinder (3–2000m), GPS-based targeting, and weighs 850g with dimensions of 118 × 134.8 × 198.7 mm. 2. What type of targeting and tracking capabilities does the Q40TM-Pro provide? It supports object tracking, GPS-based coordinate calculation, and accurate target positioning with integrated laser rangefinder measurements up to 2,000 meters. 3. What are the power and interface requirements of the Q40TM-Pro? It operates on 4S–6S power (14.8V–22.2V) and supports output via 1080p HDMI/IP. Control protocols include PWM, S.BUS, UART, TCP, and UDP. 4. What payment methods are available for purchasing the Q40TM-Pro? Payments can be made securely through credit card, PayPal, and other international methods. 5. Can the Q40TM-Pro be ordered with OEM branding? Yes, OEM customization is available for bulk and enterprise orders upon request. 6. Are product manuals and technical documents provided with the Q40TM-Pro? Yes, detailed specifications, user guides, and setup manuals are available in the Documents section of the product page.
