Buy U30TIR Gimbal Camera, 30x Zoom Dual-sensor 2-axis Gimbal Camera Online

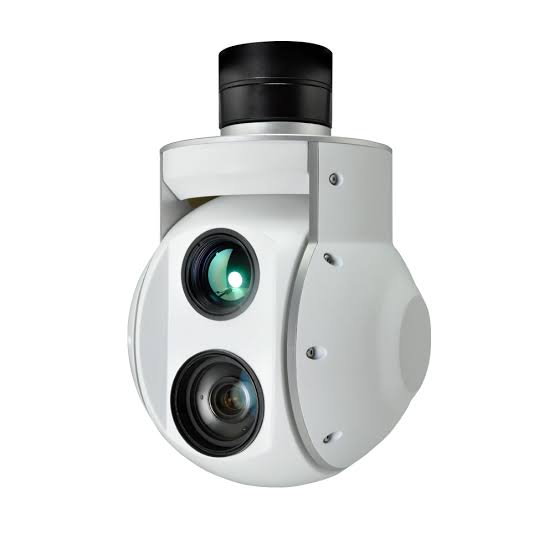

U30TIR Gimbal Camera Overview U30TIR gimbal camera features a 30x optical zoom lens. It’s powered by SONY 1/2.8″ Exmor R, 2.13 mega effective pixels, fast auto-focus speed, 1080p HD image quality, as well as visible light, and thermal image object tracking. It is compact in size and supports PWM, S. BUS, and TTL. Detecting by the heat source, the 25mm thermal can reveal the damage to buildings, fire spark in the forest, the location of people or animals, and more.

Mainly used for applications where you need a fixed wing drone with gimbal camera , it’s widely used in day and night surveillance, search, inspection, and firefighting. Camera Specifications of U30TIR Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, U30TIR gimbal can still clearly display image features in the utterly poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

Buy U30TIR Gimbal Camera Online

Professional Thermal Imager Integrated with the French ULIS high-precision uncooled long wave (8μm ~14μm) thermal image sensor, U30TIR gimbal can record and transmit thermal and visible images at the same time in picture in picture format (PIP format). There exists an Optional Thermometry version: With a temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperatures ranging between 0℃~120℃ to be measured and displayed on the screen.

Adjust the different colors applied to the thermal data based on the needs of specific scenarios. Built-in normalization, cross-correlation, and tracking algorithms, combined with object missing recapture algorithm, achieve a stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor and trace information display. The tracking speed is up to 32 pixels/frame, the object size range is from 16×16 pixel to 160×160 pixel, with the minimum signal-to-noise ratio (SNR) of 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improves the accuracy and tracking effect.

Buy U30TIR Gimbal Camera Online

Multi Output Methods U30TIR gimbal supports HDMI, Ethernet/IP, and SDI output. HDMI and SDI output resolution are 1080p while Ethernet output resolution by default is 720p and recording resolution is 1080p. IP output and SDI output versions will support 360-degree endless pan. Multi Control Methods for this thermal camera By default, the gimbal can be controlled using PWM and Serial TTL, as well as SBUS. IP output version also supports TCP control via ethernet cable. For a comprehensive reading of related products, please visit the Kratos Defense Drone Shop website. Simple FAQ (U30TIR – Engineers & B2B Buyers)

Buy U30TIR Gimbal Camera Online

1. What are the main imaging capabilities of the U30TIR? The U30TIR integrates a 30x optical zoom EO camera with 1080p HD resolution and a 640×512 thermal infrared sensor , making it suitable for day-and-night operations. 2. What stabilization and control features does it offer? It is a 2-axis gimbal with advanced stabilization algorithms.

Control is supported via PWM, S.BUS, or TTL , allowing precise yaw, pitch, and zoom management. 3. What applications is the U30TIR best suited for? The dual-sensor design makes it ideal for surveillance, law enforcement, search & rescue, and industrial inspections , where both visual and thermal data are required.

Buy U30TIR Gimbal Camera Online

4. What payment methods are accepted for purchasing this gimbal? Kratos Defense Drone Shop supports secure transactions through major credit cards and trusted online payment gateways, with options displayed during checkout. 5. Is OEM customization available for the U30TIR? Yes, OEM and bulk customization options are supported. Buyers can contact Kratos Defense Drone Shop’s sales team to discuss integration and special requirements.

6. What documentation is included with the purchase? The product includes user manuals, specifications, and integration guides , ensuring smooth setup and operation.
