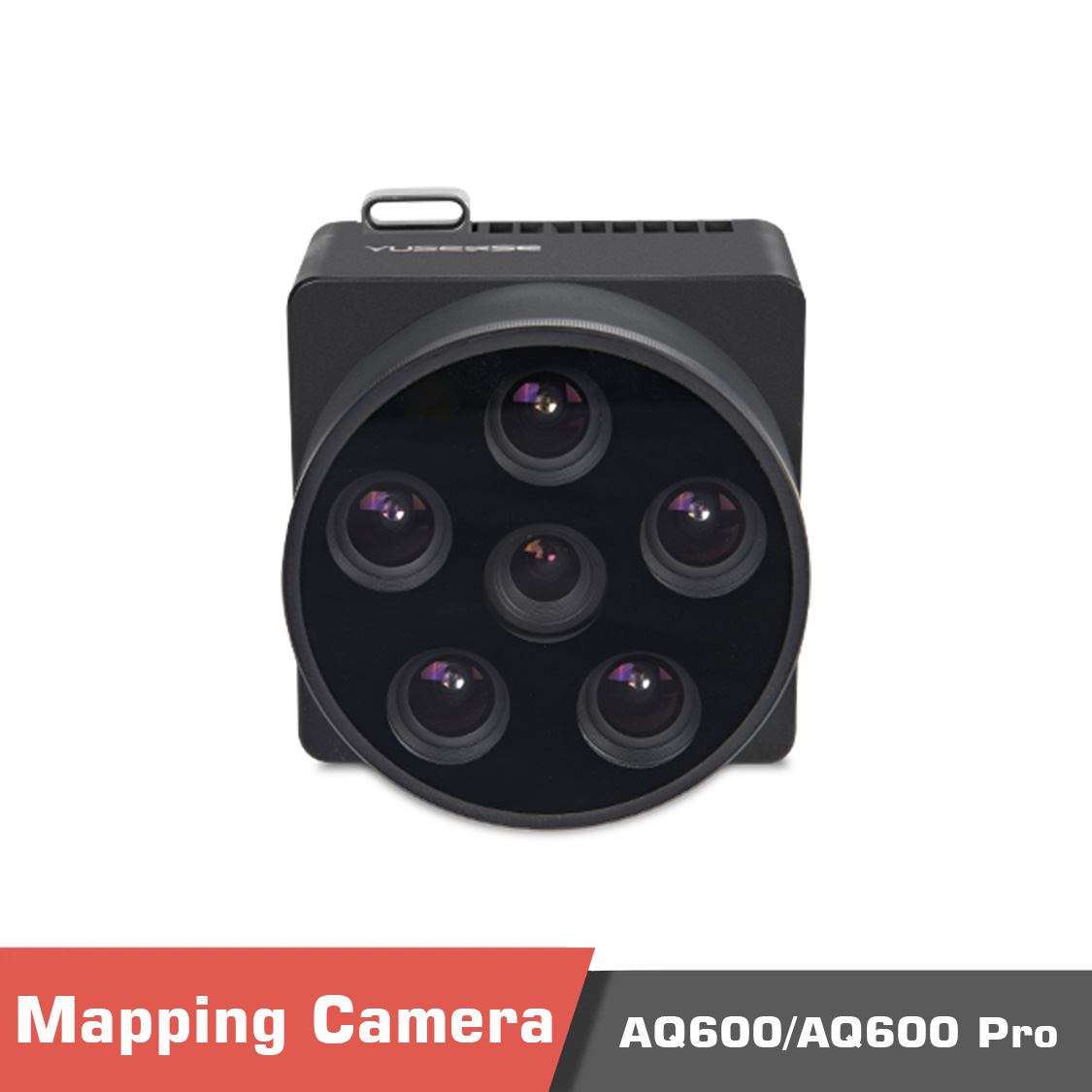

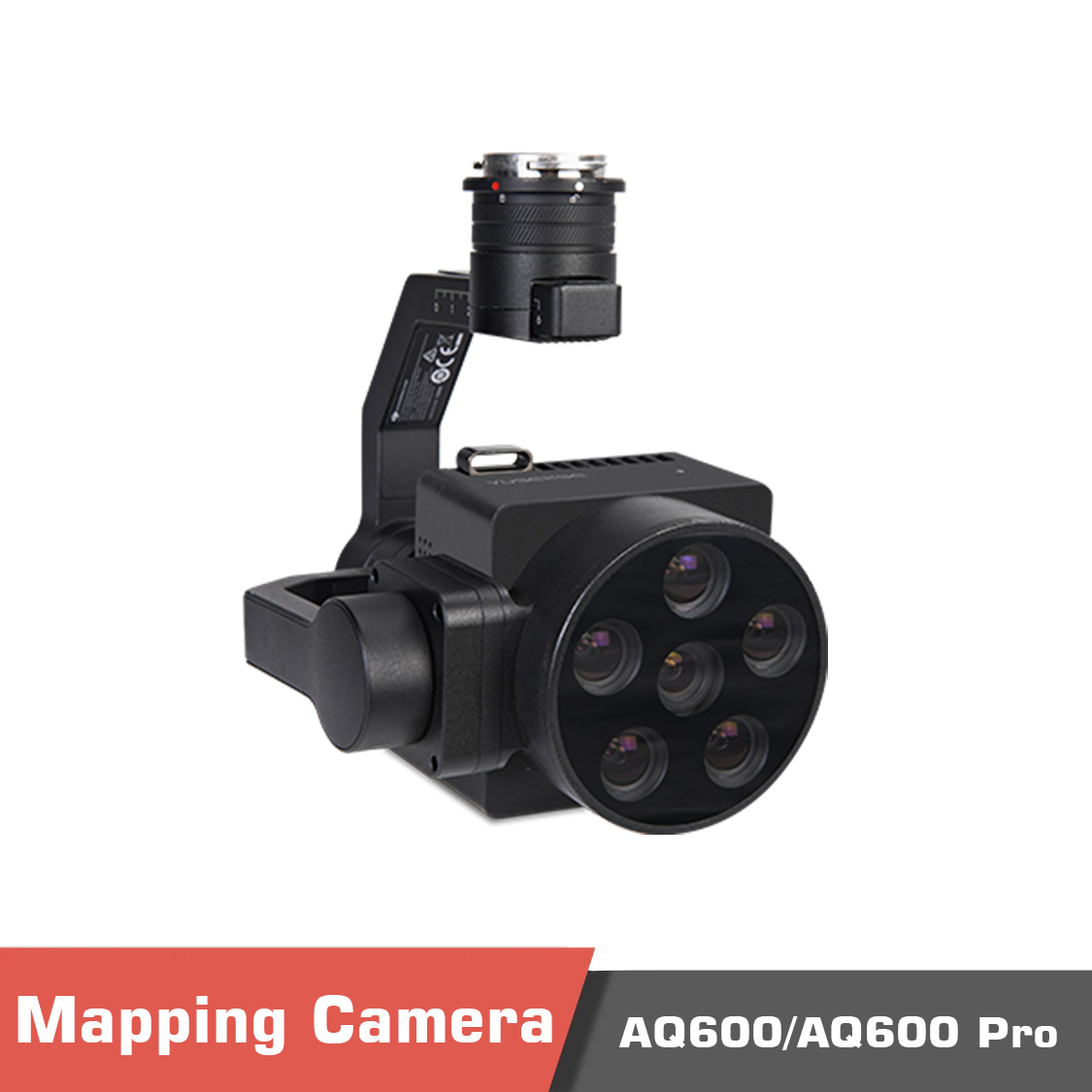

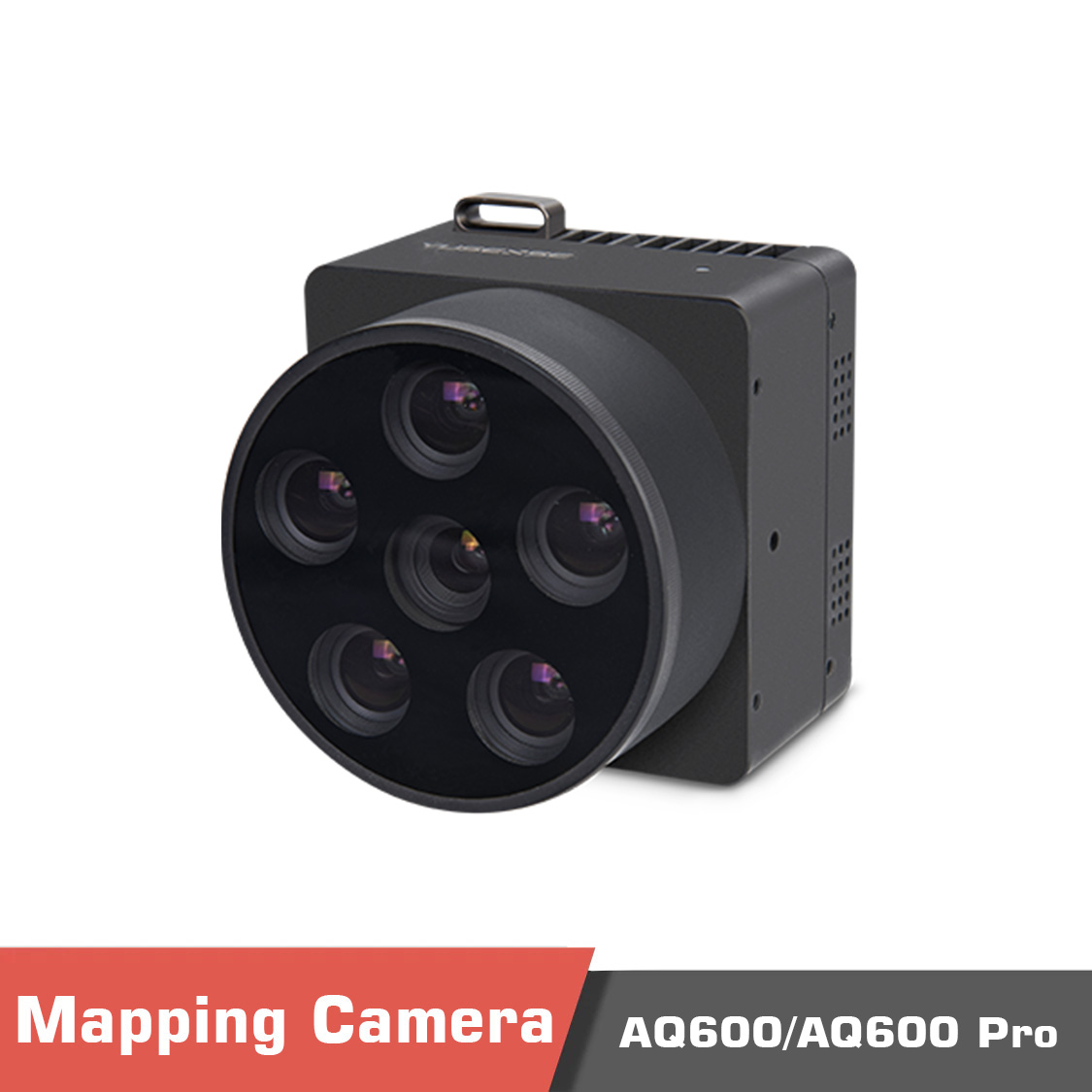

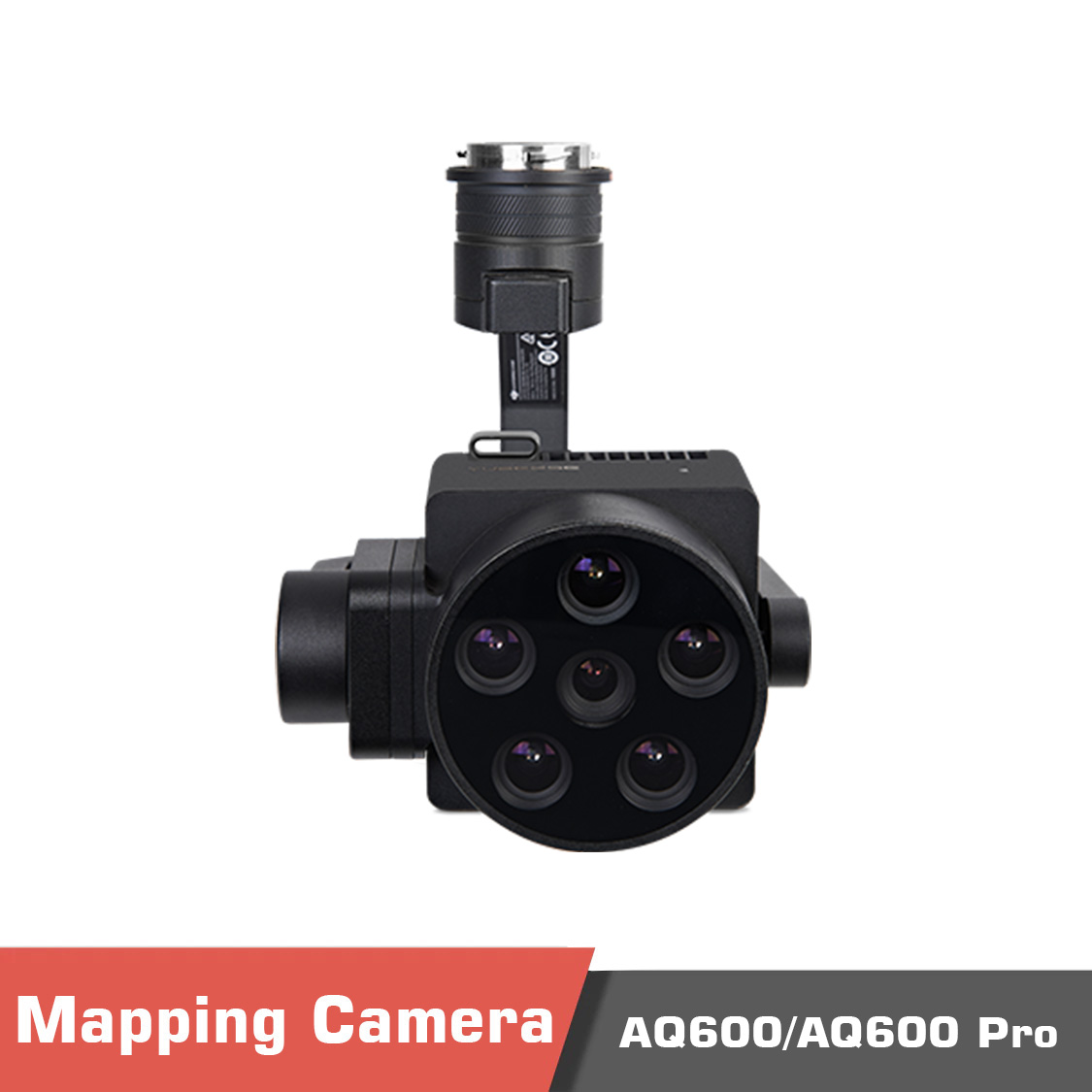

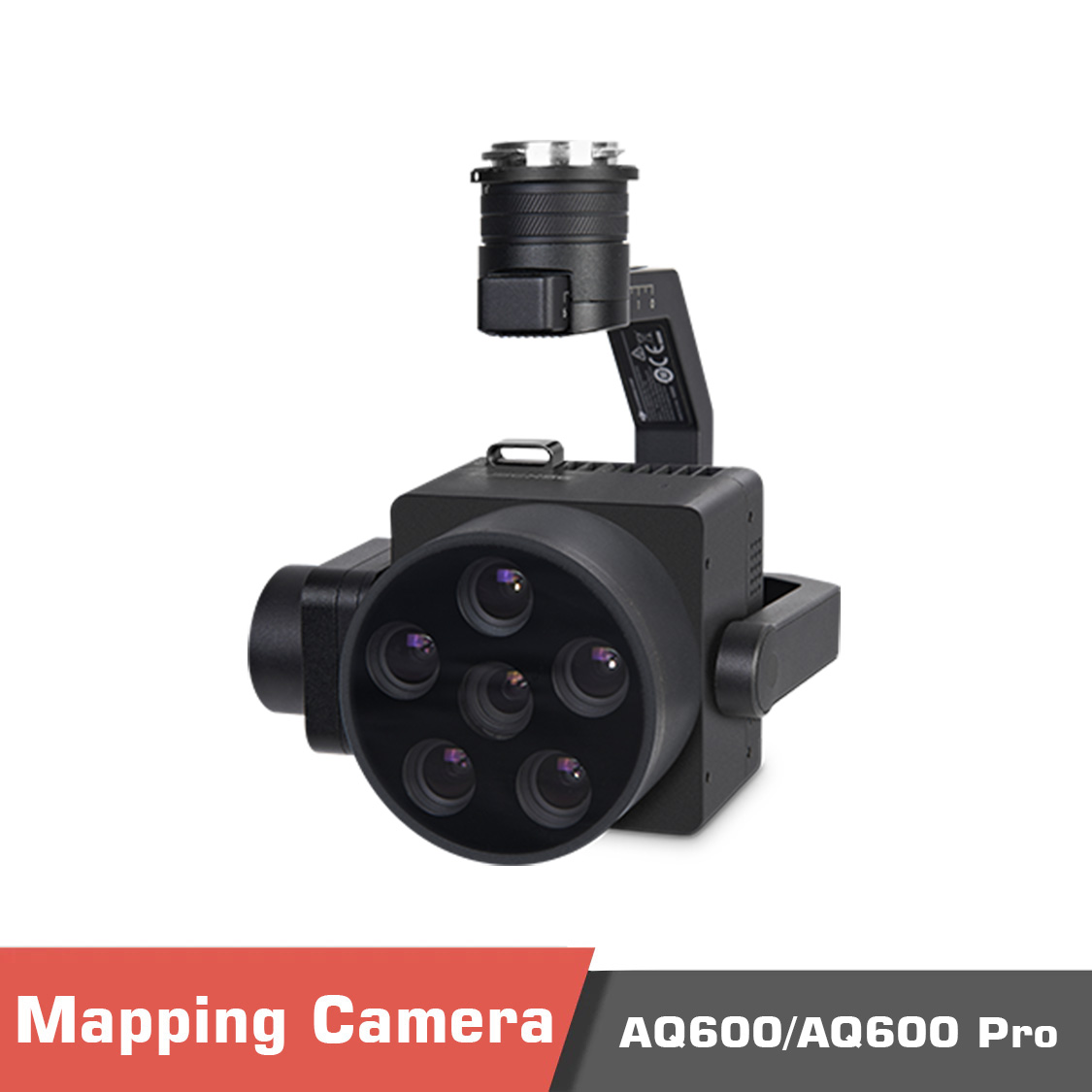

AQ600 / AQ600 Pro multispectral camera

AQ600 / AQ600 Pro multispectral camera Overview AQ600 / AQ600 Pro multispectral camera has 5 channels of 3.2M pixel multispectral sensors, with an additional 12.3M pixel RGB sensor. Equipped with sapphire optical window, large aperture, low distortion, broadband transmission, all-glass lens, and aluminum alloy body. Featuring video-level detection and result output, it meets the application needs of various industries such as precision agriculture, forestry monitoring, river and lake ecology, and target identification. Features of AQ600 / AQ600 Pro multispectral camera 5 multispectral & 1 RGB 3.2 million & 12.3 million pixels 12-bit global & 8-bit rolling shutter DJI X-Port Control All channels synchronized imaging within 1 second On-board real-time spectral inversion and video output Standard Downlink Light Sensor (DLS) DJI X-Port power supply, 128G solid state USB flash drive Timing, overlap rate and multiple trigger modes DJI M300/M350 RTK UAV customization, plug and play AQ600 / AQ600 Pro multispectral camera Overview Specifications AQ600 AQ600 Pro Combination method 5 multispectral channels + 1 RGB channel Target size Multispectral: 1/1.8”; RGB: 1/2.3” Effective pixels Multispectral: 3.2Mpx; RGB: 12.3Mpx Shutter type Multispectral: Global; RGB: Rolling Field of view Multispectral: 48.8°×37.5°; RGB: 47.4°×36.4° Ground resolution Multispectral: 5.28cm@h120m; RGB: 2.60cm@h120m Coverage Width Multispectral: 109m×82m@h120m; RGB: 106m×79m@h120m Spectral channel [1] 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm,840nm@30nm, RGB Shooting frequency Photo mode: 1Hz (related to the actual read and write speed of the storage medium); Video mode: 20Hz Host size ≤80mm×80mm×78mm ≤130mm×160mm×165mm (optical axis vertical to the ground) Host weight ≤415g ≤780g Mounting interface 8×M3 X-Port Parameter settings WIFI (WEB interface access)/Ethernet/UART DJI Pilot Shooting trigger External trigger, timing trigger, overlap rate trigger Overlap rate trigger, timing trigger For a comprehensive reading of Gimbal camera , please visit the Kratos Defense Drone Shop website. FAQ – AQ600 / AQ600 Pro Multispectral Camera 1. What spectral bands does the AQ600 / AQ600 Pro capture? The system includes 5 multispectral channels with 3.2 MP resolution each, along with an additional 12.3 MP RGB sensor for true-color imaging. 2. How fast is the image capture and synchronization process? All channels can capture synchronized images within 1 second, ensuring precise data collection for mapping and monitoring missions. 3. What integration options are available with drone platforms? The camera supports DJI X-Port control and power supply, features onboard real-time spectral inversion, and provides video output for direct monitoring. 4. What payment options are supported for purchasing this camera? Purchases can be made using major credit cards, PayPal, and bank transfers. 5. Is OEM customization available for large projects? Yes. OEM services are available for enterprise clients needing tailored multispectral imaging solutions. 6. Are technical documents and software tools provided with the camera? Yes. Customers have access to datasheets, installation manuals, and spectral processing documentation to support integration and field use.
