NAV40 Inertial Navigation System (INS)

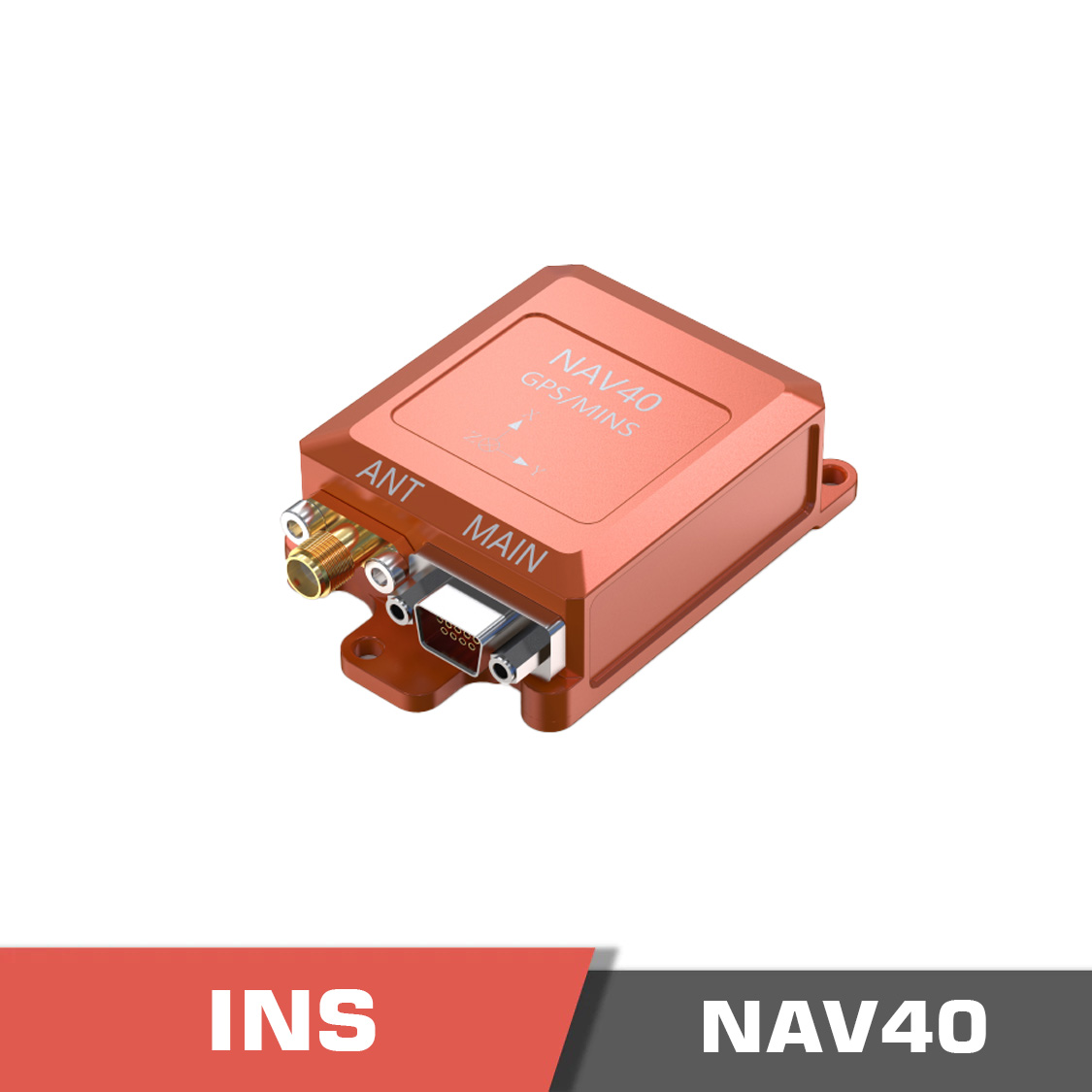

NAV40 Inertial Navigation System (INS) The NAV40 Inertial navigation system is Integrated with a three-axis gyroscope, three-axis accelerometer, three-axis magnetometer, GPS receiver module, barometric altimeter, and other miniature sensors, with information fusion achieved through the built-in improved Extended Kalman Filter (EKF). It is specifically optimized for drone inertial navigation systems , effectively reducing the influence of vehicle maneuver, vibration, environmental temperature, and electromagnetic interference. This ensures the provision of complete and reliable three-dimensional position, three-axis attitude, three-axis velocity, three-axis acceleration, and other information at up to 200Hz. Dual- redundancy Support external differential GPS support external magnetic compass Support external dual antenna GPS orientation Optional simultaneous output of attitude information under different coordinate systems Navigation data update frequency up to 200Hz Small dimension (61x40x19mm), and lightweight (45g) If you have any questions regarding our products, use the Kratos Defense Drone Shop Contact us page to consult our engineering team. FAQ – NAV40 Inertial Navigation System (INS) 1. What are the core features of the NAV40 INS? The NAV40 integrates a 3-axis gyroscope, accelerometer, magnetometer, GPS receiver, and barometric altimeter. It uses an enhanced Extended Kalman Filter (EKF) to deliver precise 3D position, velocity, and attitude data at up to 200 Hz. 2. What accuracy and reliability features are included? It includes dual redundancy, supports external differential GPS, external magnetic compass, and dual-antenna GPS orientation. These ensure highly accurate and stable navigation in challenging conditions. 3. What UAV applications is it suitable for? Ideal for fixed-wing UAVs, VTOLs, and multirotors requiring precise positioning and stable navigation under vibration, maneuvering, and electromagnetic interference. 4. How can customers purchase and pay for the NAV40? The NAV40 can be ordered directly from Kratos Defense Drone Shop’s website. Payment methods include PayPal, Visa, Mastercard, and wire transfer. International shipping is available for bulk and OEM orders. 5. Is OEM or system integration support available? Yes. Kratos Defense Drone Shop provides OEM customization and integration support, including firmware optimization, communication interface customization, and system compatibility testing. 6. What documentation and after-sales support are provided? Each unit includes installation, calibration, and data configuration manuals. Kratos Defense Drone Shop provides firmware updates, technical consultation, and warranty coverage for all NAV series navigation systems.
