Holybro Pixhawk 6X with Jetson Baseboard

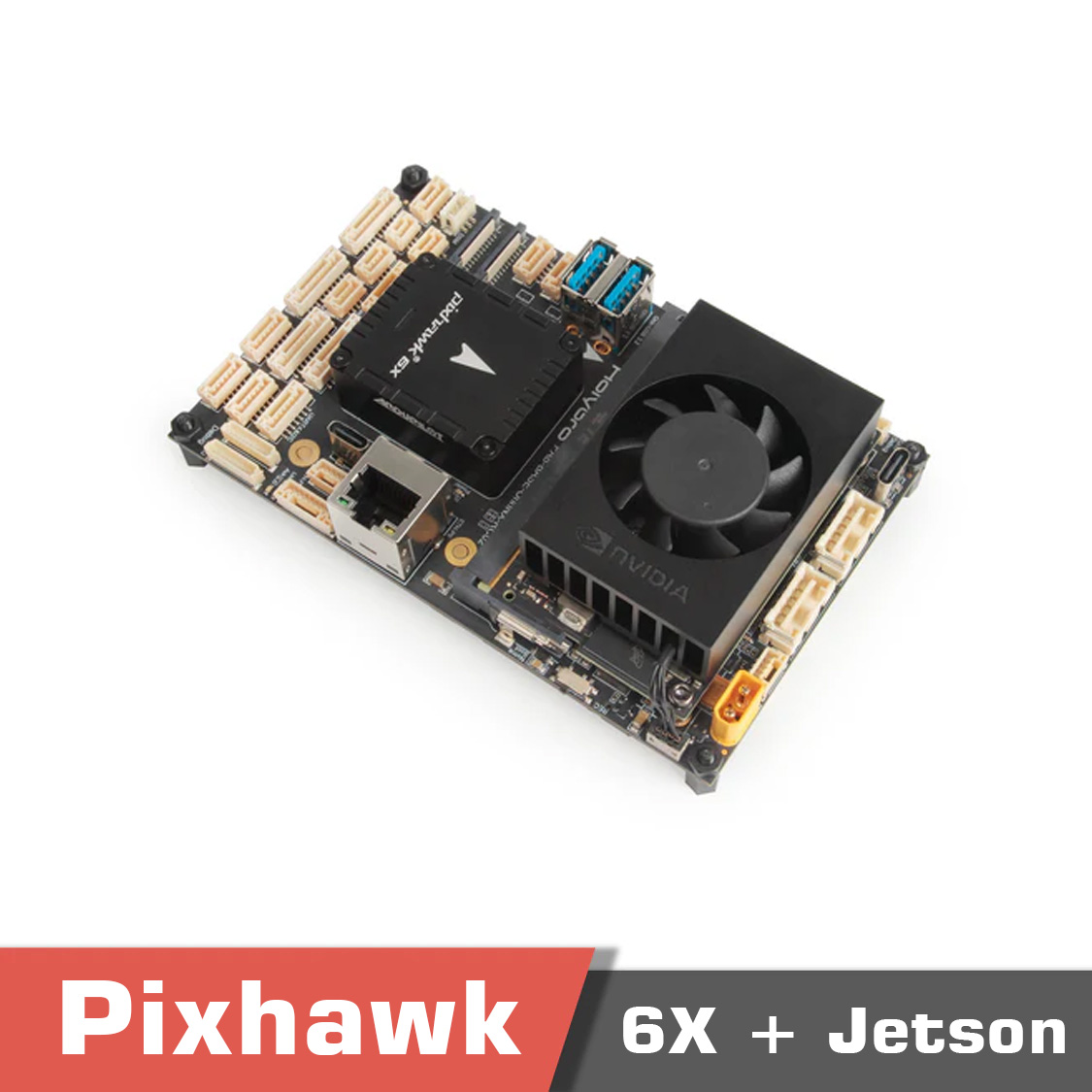

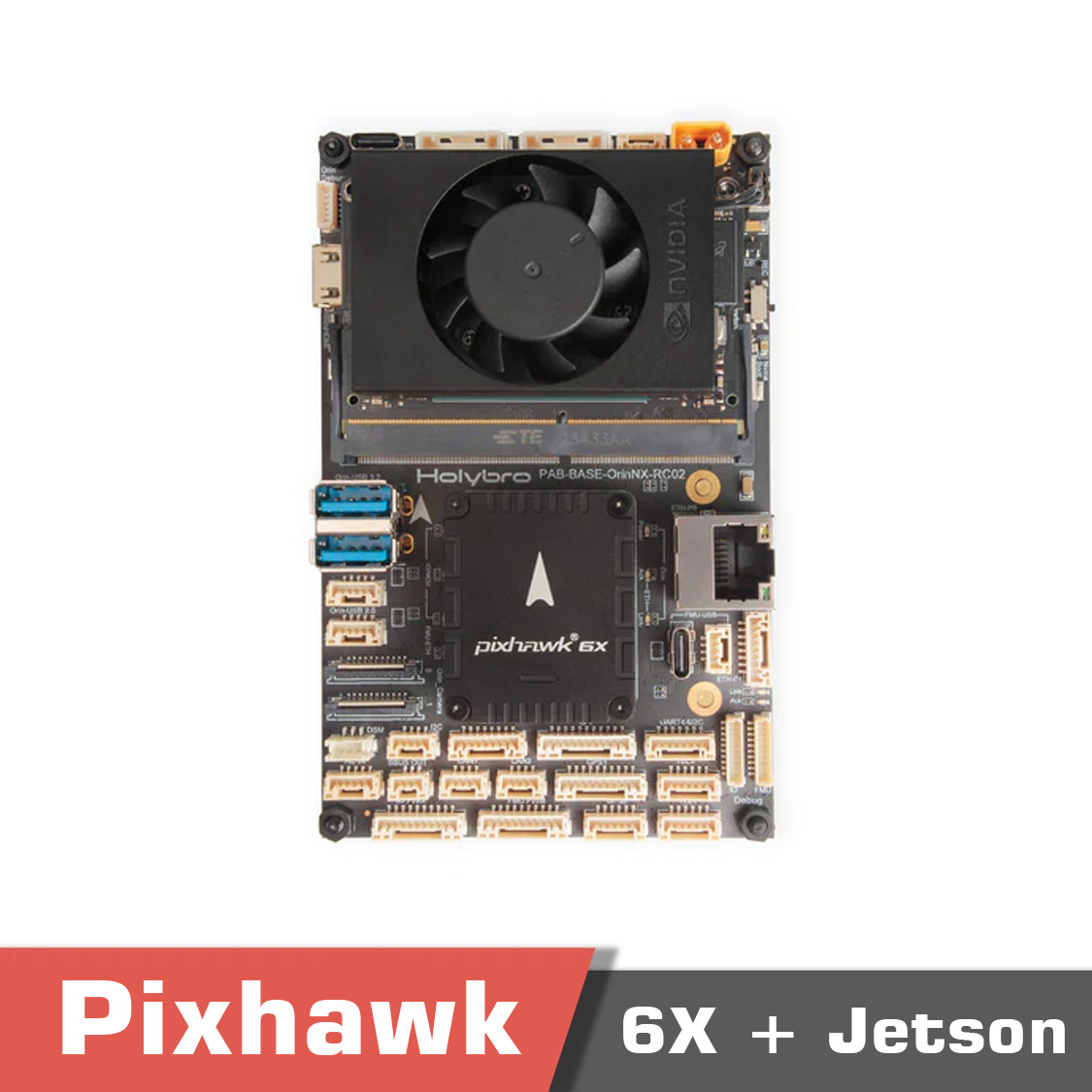

Holybro Pixhawk 6X with Jetson Baseboard Overview The Holybro Pixhawk 6X with Jetson Baseboard combines the Pixhawk Autopilot Bus (PAB) standard with the NVIDIA Jetson Orin NX/Nano Carrier Board. This integration makes it a powerful platform for advanced autonomous drone applications. The PAB form factor ensures seamless compatibility with other PAB-compliant flight controllers such as Pixhawk 6X. This setup is perfect for developers and UAV integrators looking to leverage Jetson’s AI capabilities alongside the proven Pixhawk flight control ecosystem. Jetson Baseboard Ports & Interfaces Interface Details Ethernet 2x Gigabit (8-pin JST-GH, RJ45), via RTL8367S Camera Inputs 2x MIPI CSI (4 lanes each), 15-Pin FFC USB Ports 2x USB 3.0 (5A), 2x USB 2.0 (0A), USB-C debug PCIe Slots Key M 2242 (NVMe x4), Key E 2230 (WiFi/BT x2) Mini HDMI Out Video output GPIO 4x (6-pin JST-GH) CAN / SPI / I2C / I2S Dedicated JST-GH connectors UART Ports 2x (debug + connected to telem2) Fan Power Port For active cooling IMU IIM42652 onboard Jetson Baseboard Power & Requirements Input Power: XT30, 7V-24V (3S-4S) Integrated UBEC: Converts 7V-24V to 5.5V for Jetson External UBEC: Recommended above 4S for redundancy Power Consumption: Minimum 8V/3A (depends on peripherals) – Tip: Using an external UBEC alongside the integrated one ensures redundancy and easier maintenance if a BEC fails. Pixhawk Autopilot Interfaces Interface Type Details PAB Connectors 100-pin + 50-pin Hirose DF40 Power Inputs Redundant modules with overvoltage protection I2C Monitoring 2x 6-pin Molex CLIK-Mate GPS Ports Primary: 10-pin JST-GH, Secondary: 6-pin CAN Ports 2x CAN (4-pin JST-GH) Telemetry Ports 3x (2x 6-pin JST-GH, 1 linked to Jetson) PWM Outputs 16 channels (2x 10-pin JST-GH) UART4 + I2C 6-pin JST-GH Additional Ethernet Same 2x Gigabit shared via RTL8367S AD & IO 8-pin JST-GH USB + RC Inputs USB-C + 4-pin JST-GH, DSM (3-pin), RC (5-pin) SPI Sensor Bus 11-pin JST-GH Debug Ports 2x (FMU & IO, 10-pin JST-SH) Dimensions & Weight Baseboard Size: 126 x 80 x 38 mm (without Jetson or FC) Total Weight: ~203.2g (Jetson, Heatsink, FC, M.2 SSD, WiFi) UBEC Power Specs Spec Value Input Voltage 3~14S (XT30) Output Voltages 6.0 / 7.2 / 8.0 / 9.2 V Recommended 7.2V for powering Jetson Output Current 12A continuous, 24A burst Size & Weight 48 x 33.6 x 16.3 mm, 47.8g Why Choose Pixhawk 6X with Jetson Baseboard? Supports advanced AI compute on the edge with NVIDIA Jetson. Offers extensive connectivity for cameras, sensors, and telemetry. Designed with redundant power options for reliable UAV operation. Seamlessly integrates with Pixhawk 6X and other PAB flight controllers. Need more details or a tailored build recommendation? Visit our VTOL Drone Store on MotioNew for compatible accessories, cables, GPS , and telemetry modules to complete your project. If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team. FAQ – Holybro Pixhawk 6X with Jetson Baseboard (AI-Enabled UAV Flight Platform) 1. What is the main purpose of the Pixhawk 6X with Jetson Baseboard? This system combines the Pixhawk 6X flight controller with the NVIDIA Jetson Orin NX/Nano baseboard , enabling advanced AI and autonomous flight capabilities for UAVs. 2. What connectivity and expansion options are available? It includes dual Gigabit Ethernet ports, dual MIPI CSI camera inputs, USB 3.0/2.0, PCIe NVMe and Wi-Fi slots, HDMI output, GPIO, CAN, SPI, I²C, UART, and fan power ports. 3. What UAV applications benefit from this system? Ideal for AI-assisted UAVs, autonomous mapping, vision-based navigation, and robotics requiring onboard computing and real-time data processing. 4. How can customers order and make payments? Available through MotioNew’s online store, priced between $467–$1,704 USD depending on configuration (with or without Jetson NX). Payments via PayPal, credit/debit cards, or bank transfer are accepted. 5. Does MotioNew provide OEM or integration customization? Yes. OEM services include hardware adaptation, sensor and Jetson integration, and software optimization for UAV manufacturers and AI developers. 6. What documentation and support are provided? Each kit includes setup and wiring documentation, SDK and firmware resources, and AI integration guides. MotioNew provides warranty service and full technical support for professional users.
