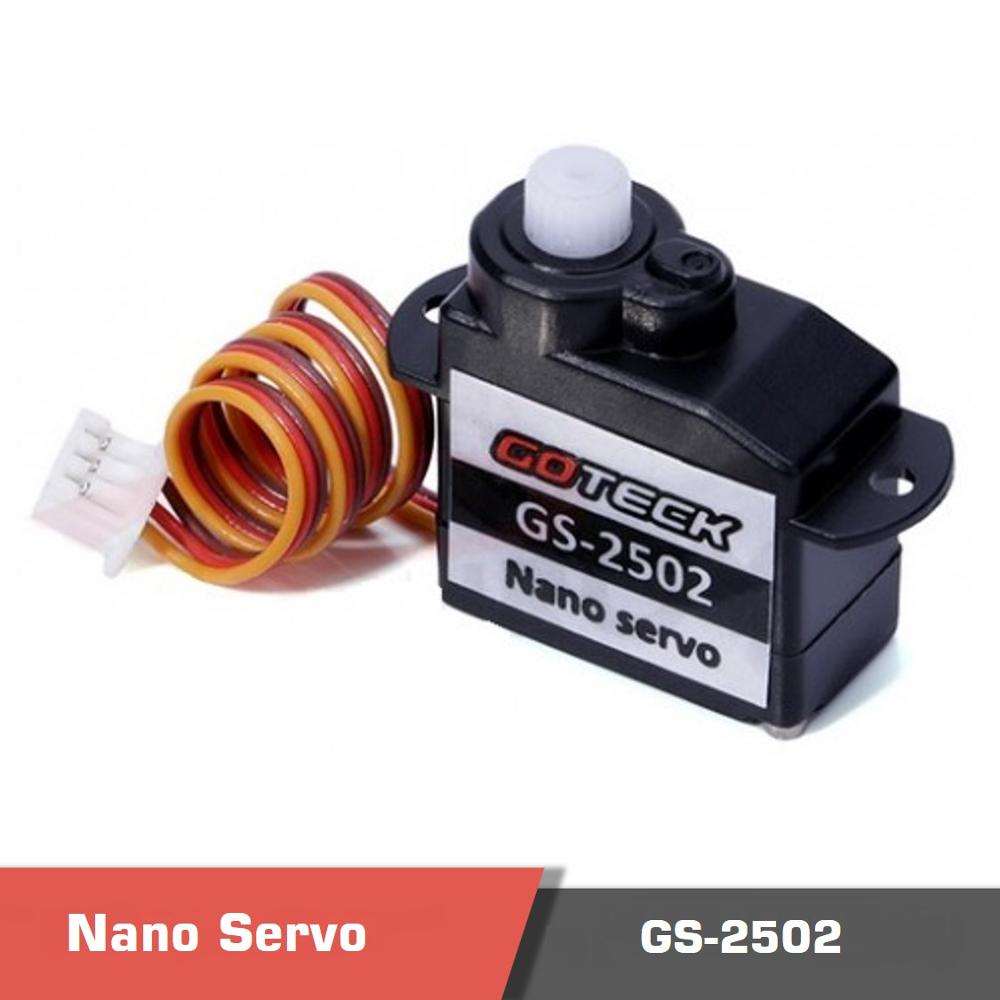

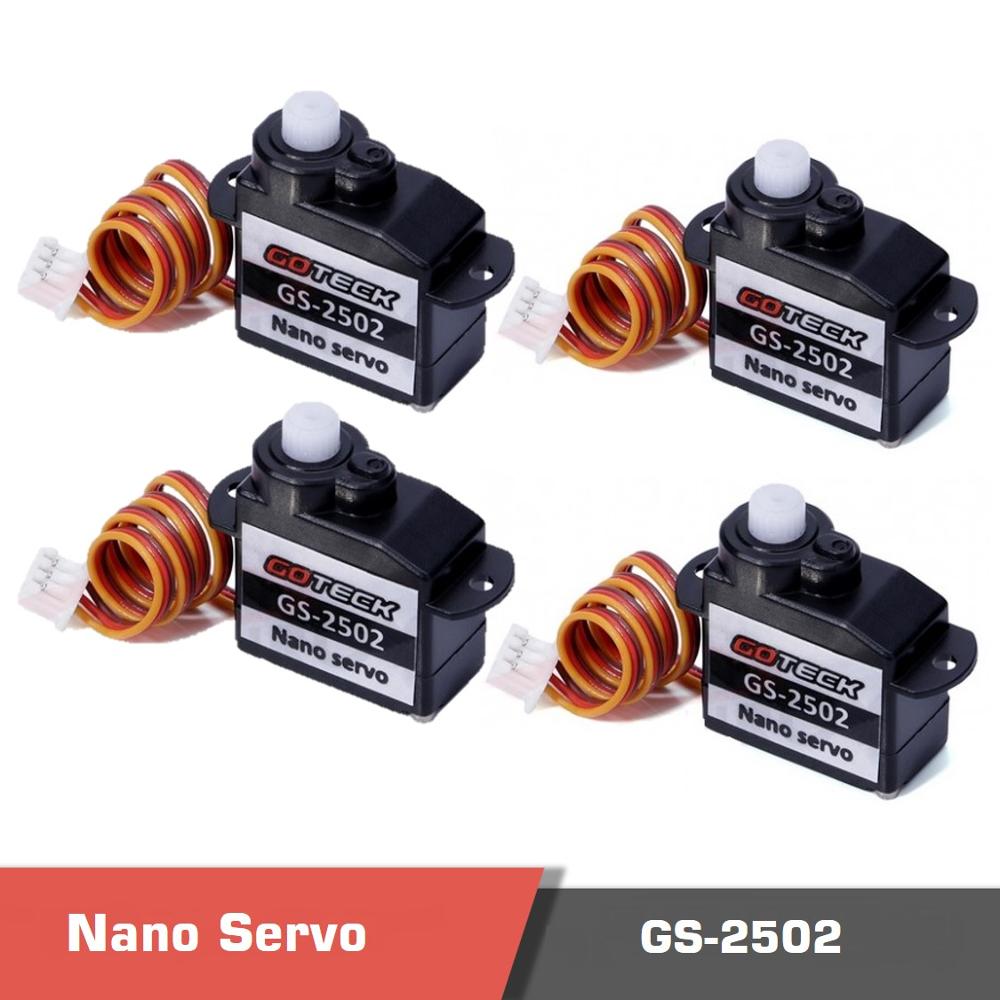

GoTECK Micro Servo Motor DC GS-2502 Nano Servomotor

Overview GoTECK GS-2502 Nano Servomotor is a 2.2kg servo motor capable of providing a torque of 0.2kg/0.09s at 6V. GoTECK GS-2502 features compact design, light weight, and high torque. Goteck Micro Servo Motor DC GS-2502 Nano Servomotor is suitable for RC Aircrafts, Robots, Boats, and Steering Cars. Consult Motionew Online Shop for the full range of our products. Suitable Environmental Conditions Storage Temperature Range: -20℃～60℃ Operating Temperature Range:-10℃～50℃ Operating Voltage Range:4.5V～6V Operating speed (at no load): 0.08 sec/60° Running current (at no load): 35 mA Stall torque (at locked): 0．20 kg-cm Stall current (at locked): 160 mA Idle current (at stopped): 4 mA Limit angle : 180°± 10° Weight: 2.5g ± 1 g Connector wire gauge: ＃32 PVC Connector wire length: 100 ± 5 mm Horn gear spline: 20T/ψ3.85 Horn type: Cross, bar –type Reduction ratio: 1/448 Amplifier type: Analog controller Operating travel: 70° (1000→2000 μsec) Neutral position:1500 μsec Dead band width: 10 μsec Rotating direction: Clockwise (1500→2000 μsec) Pulse width range: 700→2300 μsec Maximum travel: About 145°(800→2200 μsec If you have any questions regarding our products, use the Motionew team of experts page to consult our engineering team. FAQ – GoTECK Micro Servo Motor DC GS-2502 Nano Servomotor 1. What are the main specifications of the GoTECK GS-2502 Nano Servo Motor? The GS-2502 is a micro DC servo motor delivering a torque of 2.2 kg·cm and a rotation speed of 0.09 s/60° at 6V . It operates within a voltage range of 4.5V–6V , making it ideal for compact robotics, RC aircraft, boats, and steering systems. 2. What environmental conditions can this servo operate under? The GS-2502 is designed for reliability under a temperature range of –10°C to +50°C and can be safely stored between –20°C and +60°C , allowing use in various field and indoor environments. 3. What are the electrical and mechanical features of this servo? It has a running current of 35mA (no load) and a stall torque of 0.20 kg·cm , with a fast response and precise position control. The lightweight and compact form factor make it suitable for applications requiring high torque-to-weight ratios. 4. What payment options are available for purchasing the GS-2502 servo motor? Motionew accepts credit/debit cards, PayPal, and wire transfers . For bulk or institutional orders , proforma invoices can be arranged for direct bank transfers. 5. Is OEM or bulk customization available for this product? Yes. OEM services are available for custom connectors, cable lengths, labeling, or packaging . Contact the Motionew sales department to discuss MOQ and delivery lead times . 6. Are datasheets and technical documents available? Yes. Motionew provides datasheets, torque-speed charts, and wiring diagrams under the Documents section of the product page. Additional technical assistance is available upon request for system integration or testing.
