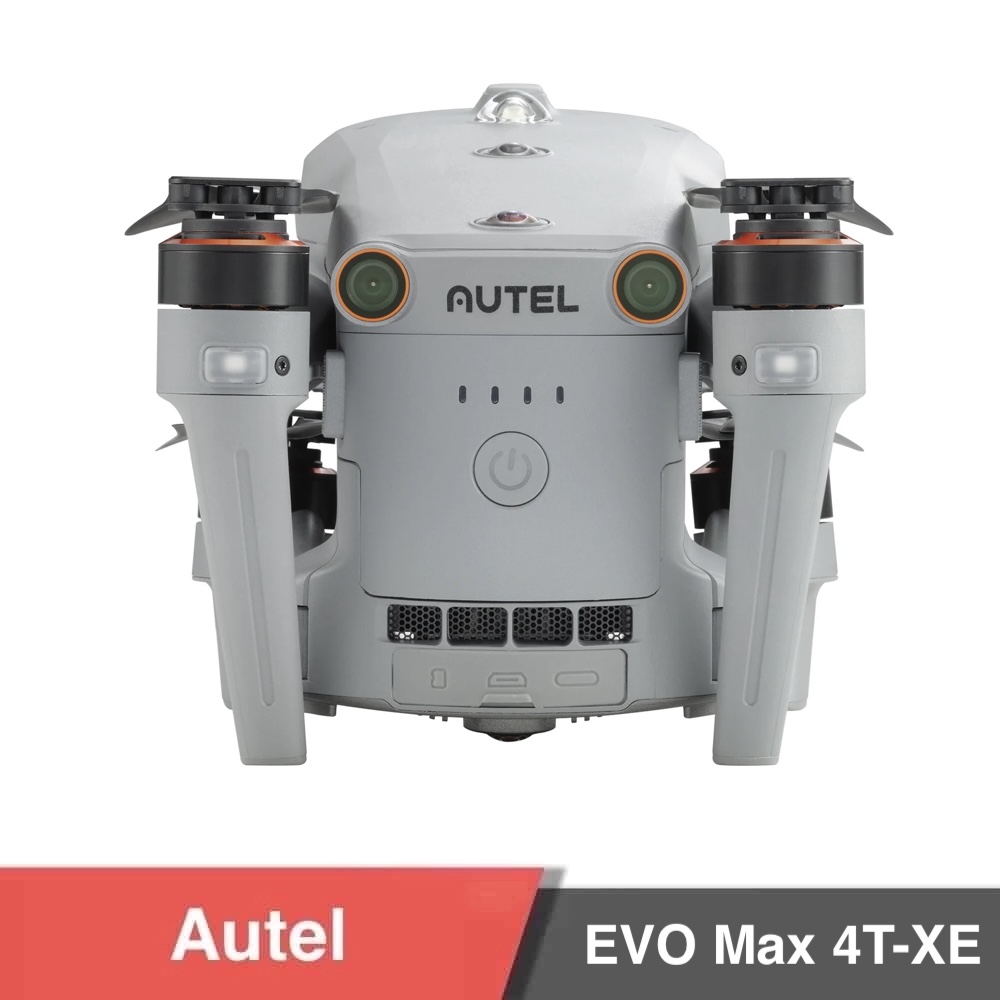

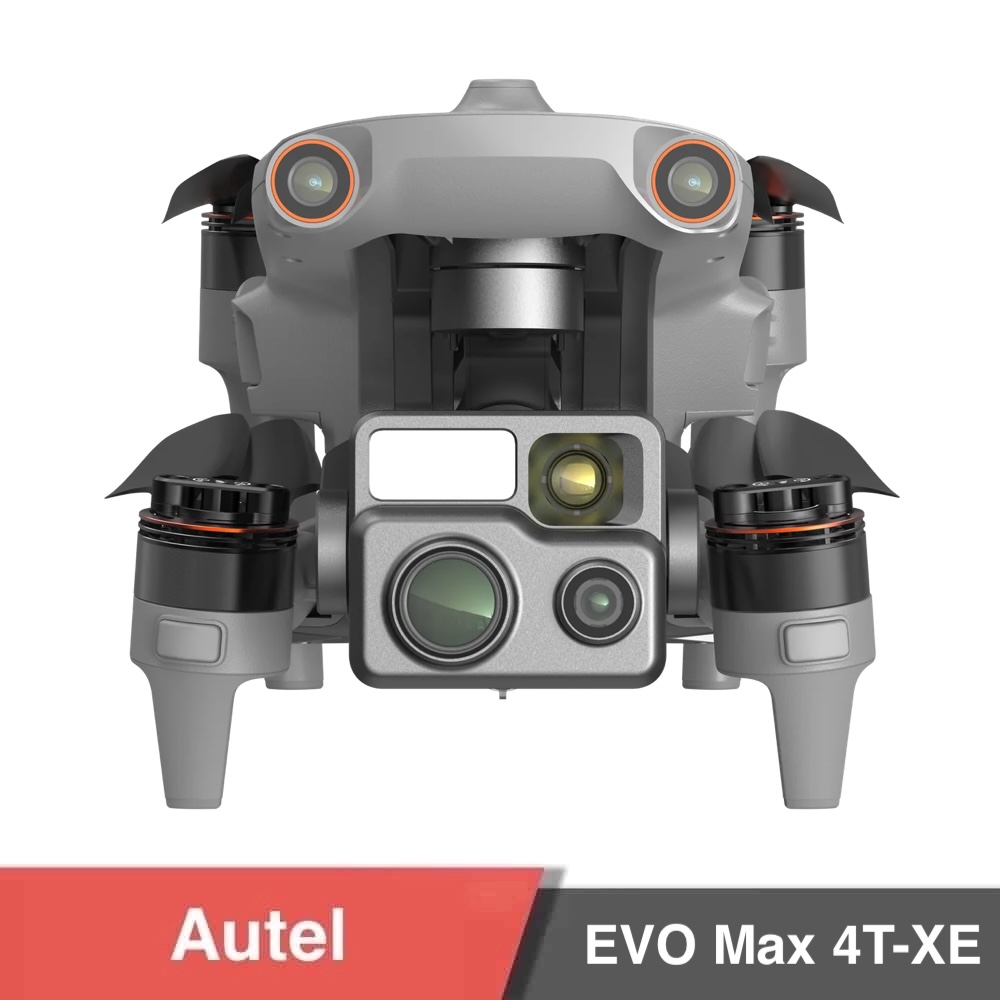

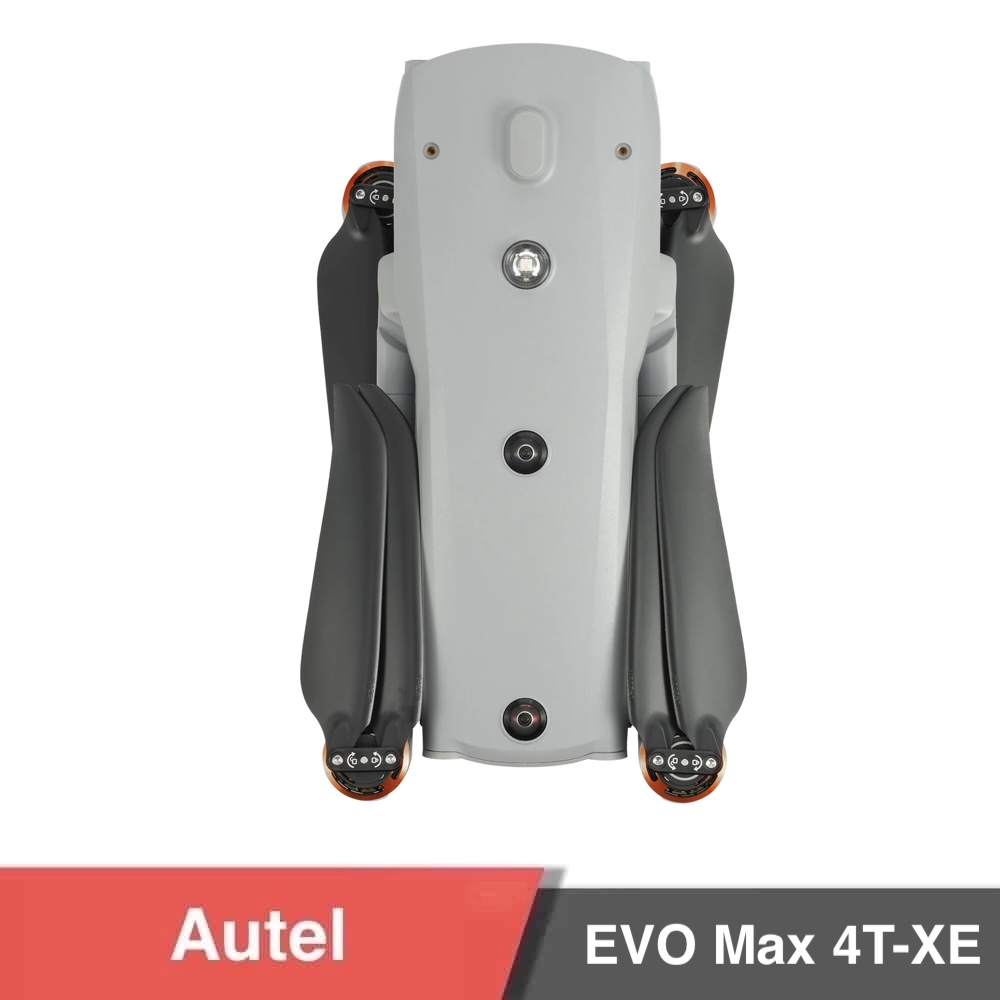

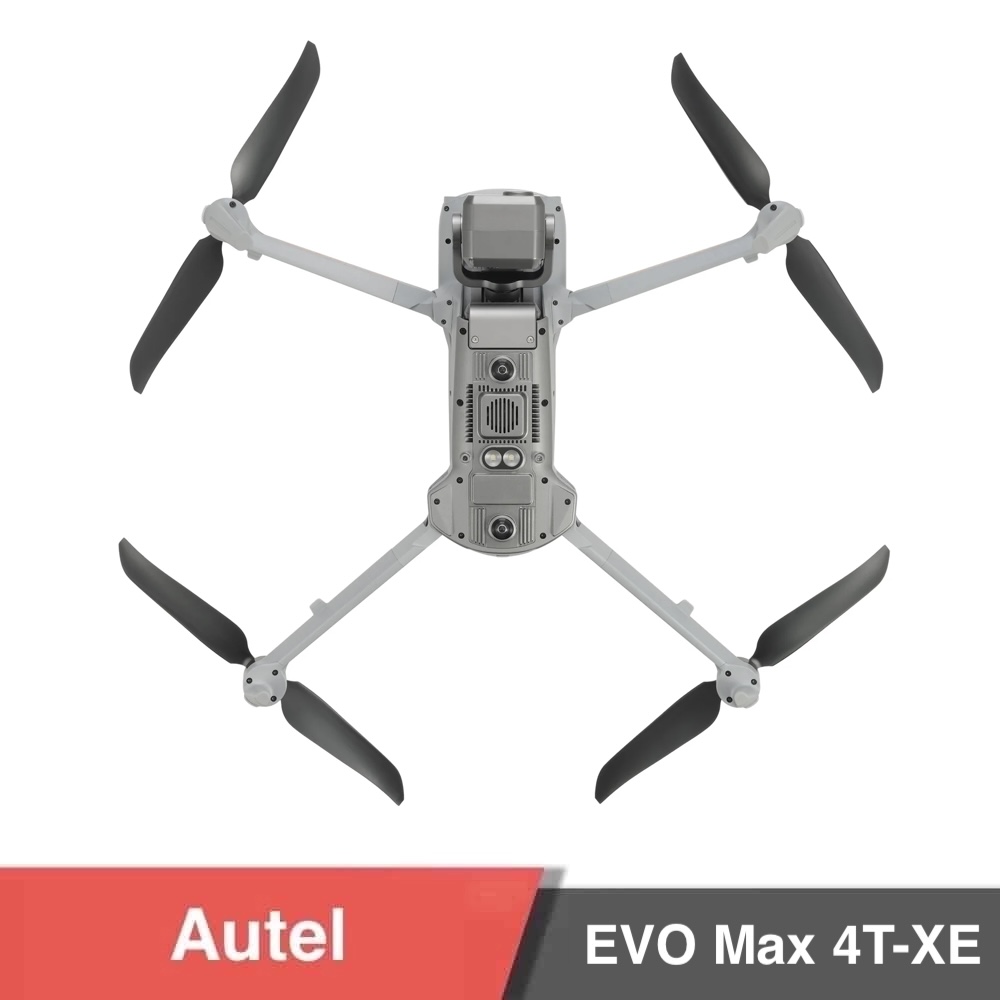

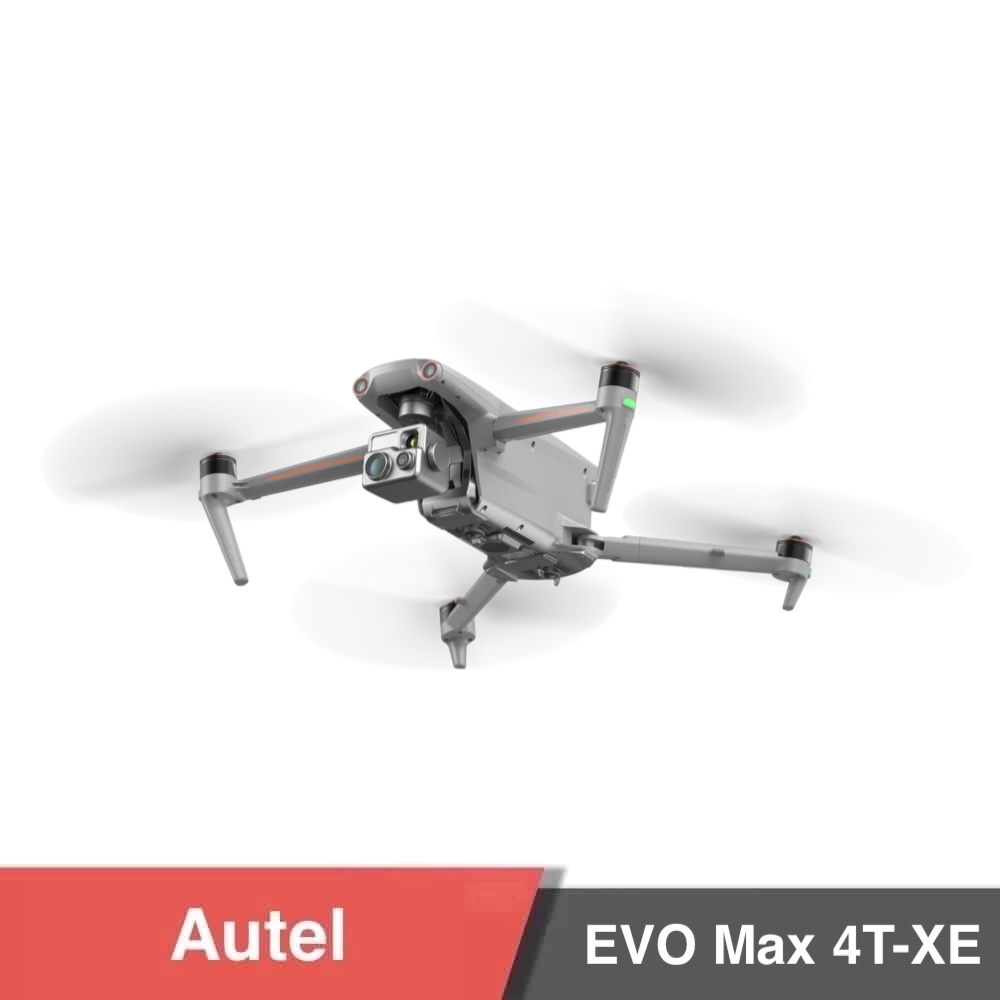

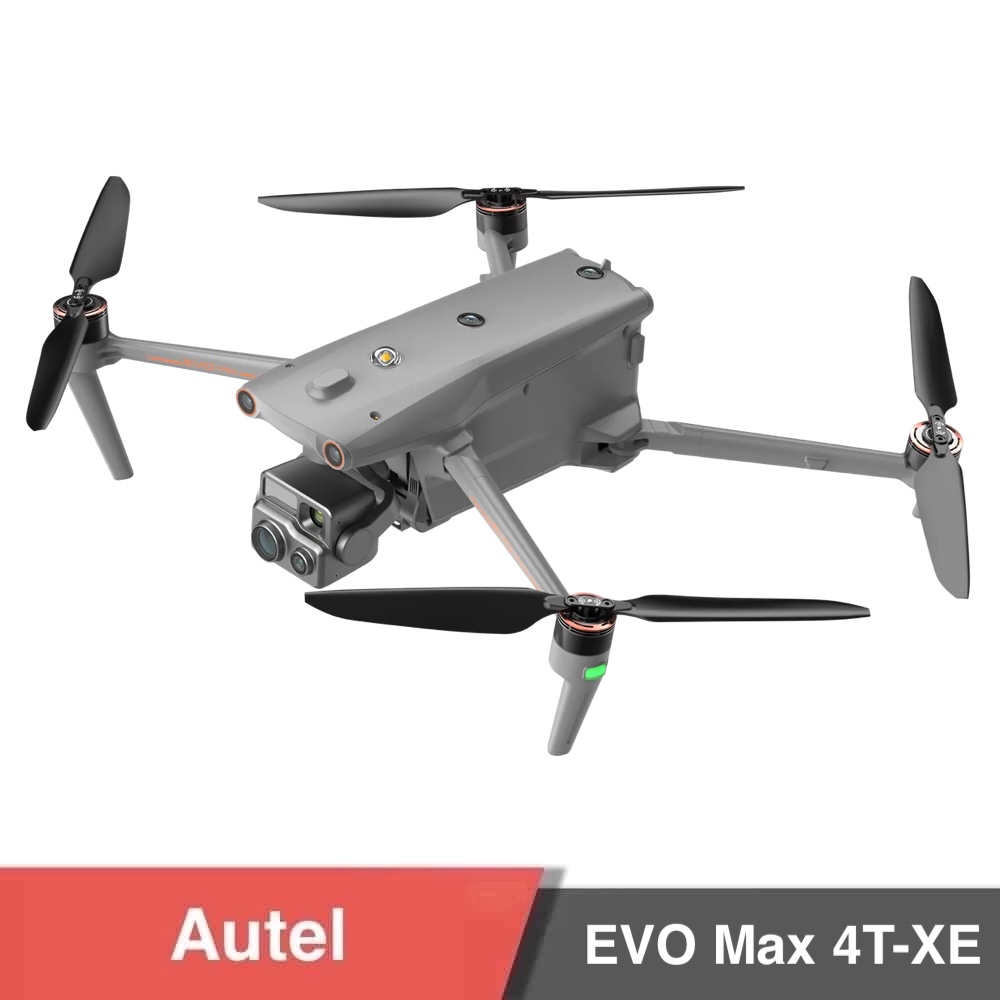

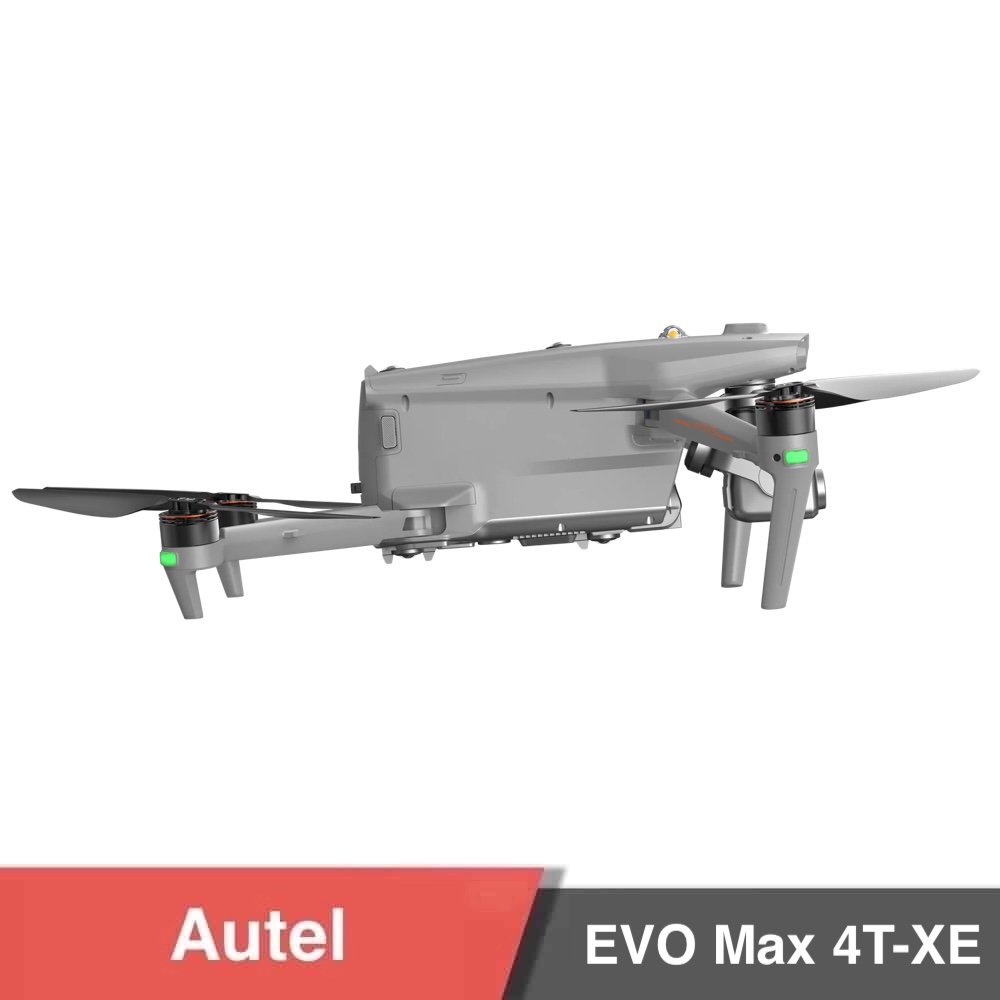

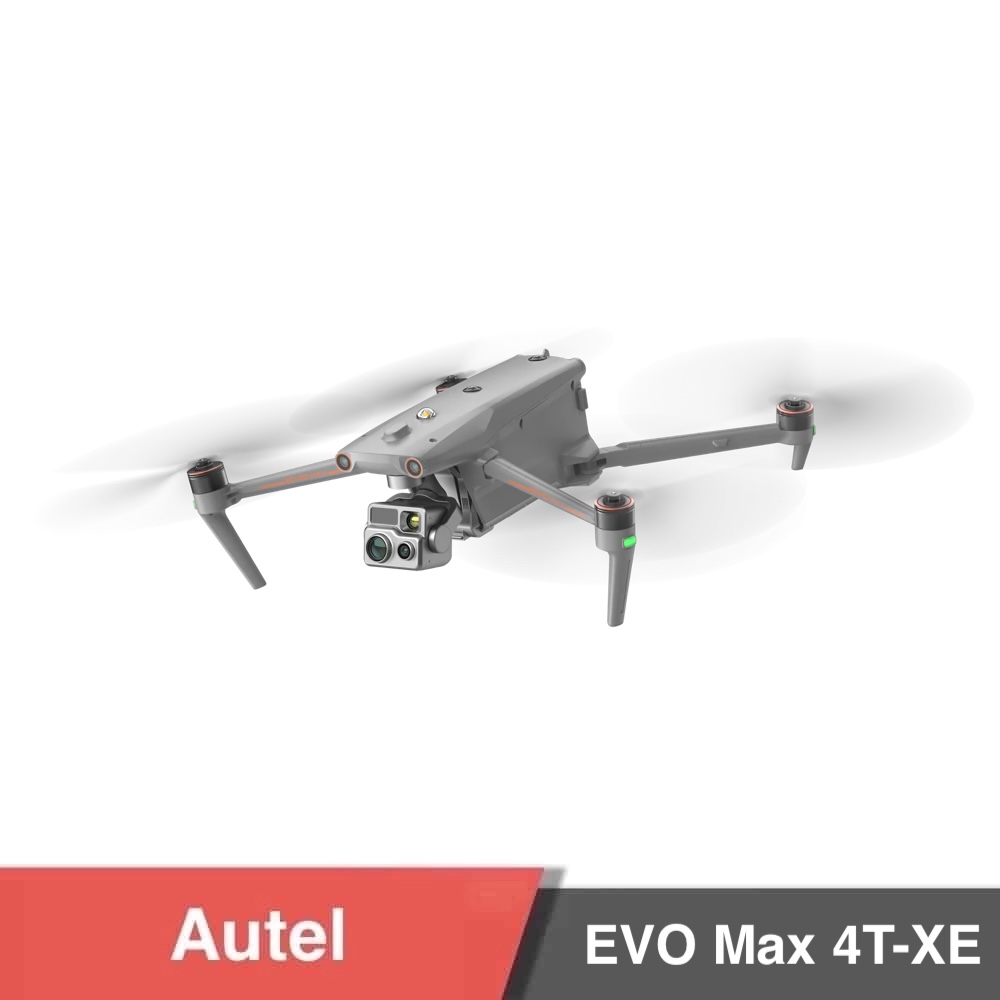

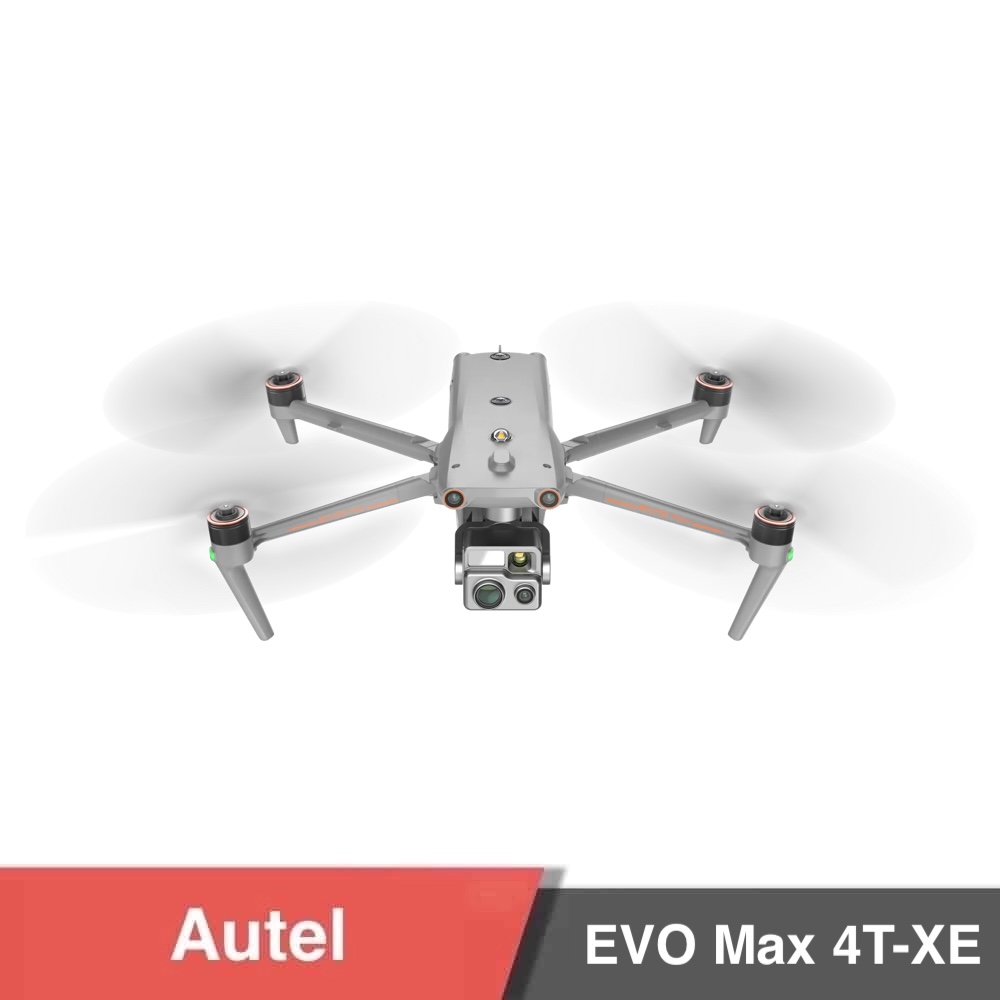

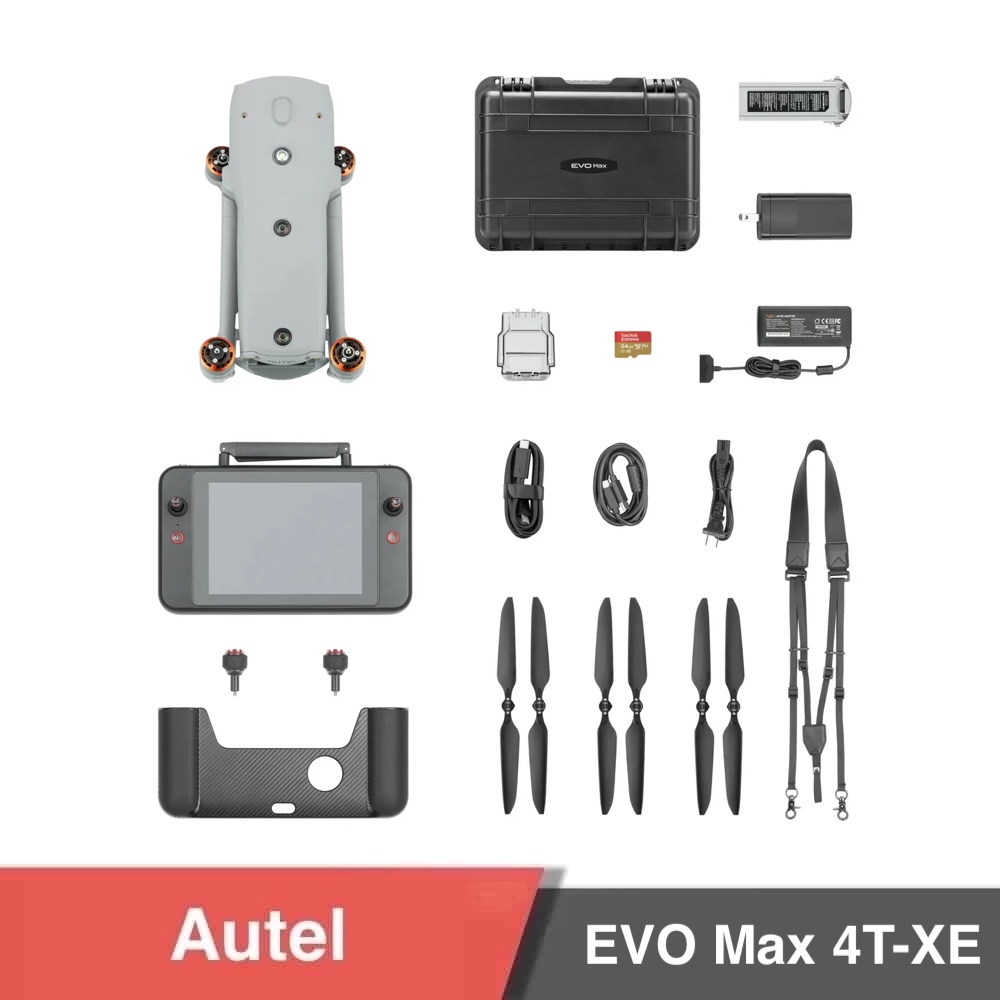

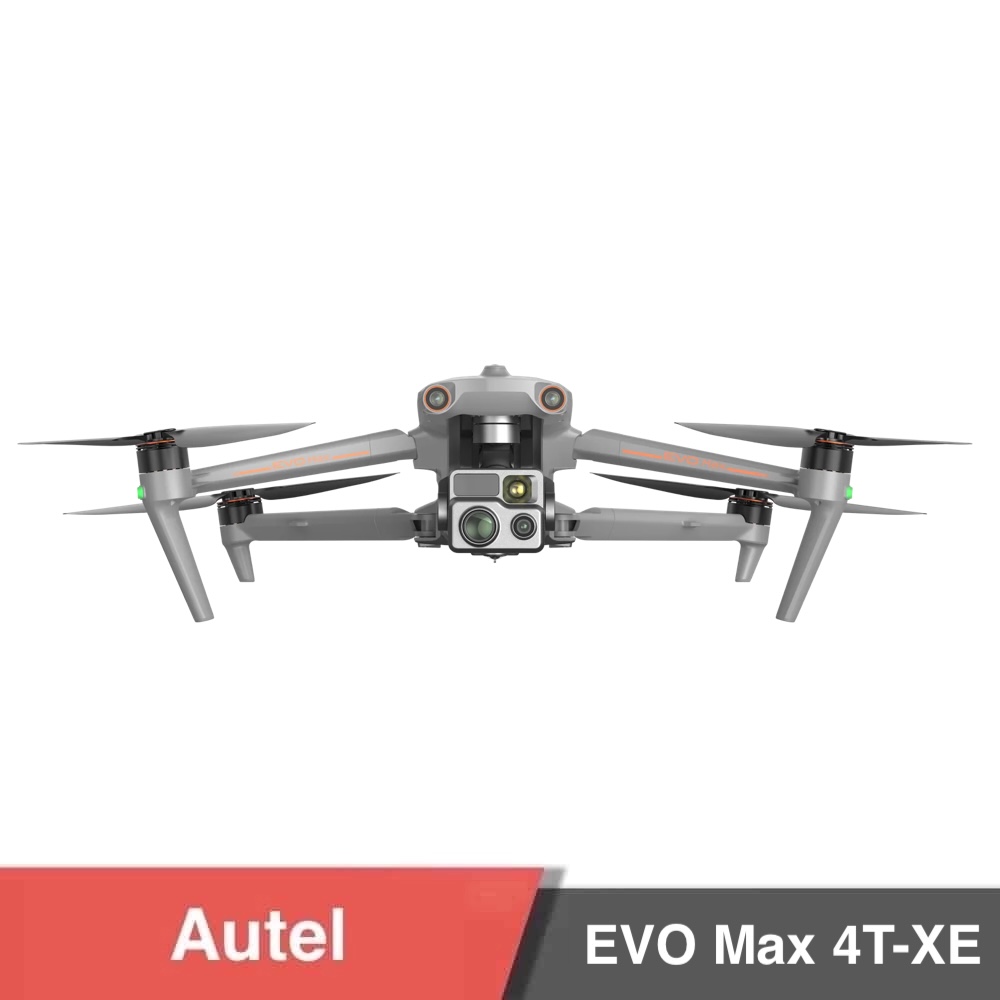

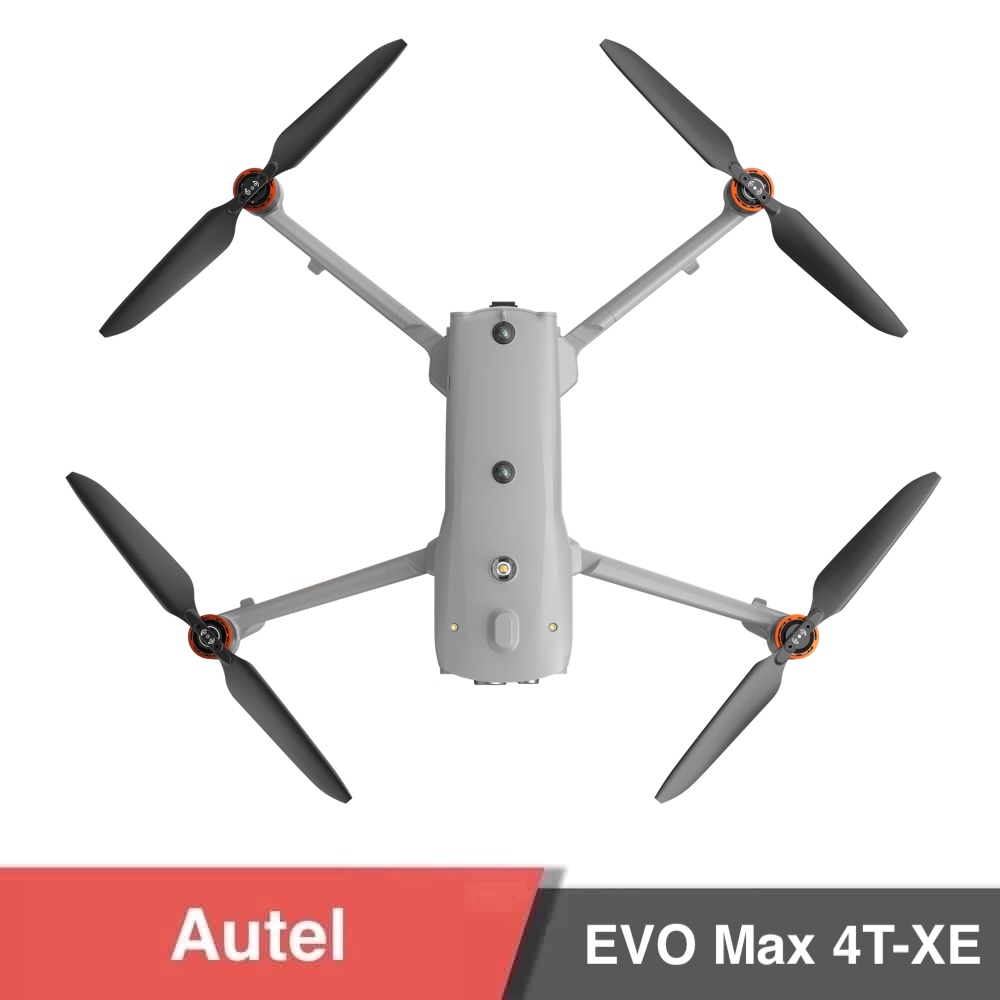

Autel Evo Max 4T-XE

Important Notice! This product requires export license. MotioNew can apply for export license for this product for your company. Please contact us for more information before purchasing. If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information. Autel EVO Max 4T-XE – Advanced Multi-Sensor Drone for Tactical, Inspection & Emergency Response The Autel EVO Max 4T-XE is a rugged, mission-adaptable UAV designed for professionals who require real-time situational awareness , thermal analytics , and AI-enhanced perception in the most demanding environments. Featuring a powerful 160x hybrid zoom camera , high-res thermal , super-sensitive EO sensor , and laser rangefinder , this drone is ideal for public safety , infrastructure inspection , firefighting , and search & rescue . 🔍 Multi-Sensor Payload System – EVO Max 4T-XE Sensor Specs Zoom Camera 48MP, 10x Optical Zoom, 160x Max Hybrid Zoom, 4K Video, f/2.8–f/4.8 Wide-Angle Camera 48MP, 1/2″ CMOS, f/2.8, DFOV 83.4°, Equivalent Focal: 24mm Thermal Camera 640×512, 9.1mm, 16x Digital Zoom, -4°F to 1022°F Laser Rangefinder Range: 5–1200m (16–3,737 ft), Accuracy: ±1m (D×0.15%) ⚙️ Key Capabilities: Mission-Ready Payload: Seamless switching between EO, thermal, and laser modes in a single gimbal AI-Enhanced Target Tracking: Automatically identify, lock, and track vehicles, people, and hotspots All-Weather Performance: IP43-rated protection | Operates from -20°C to 50°C Autonomous Missions: Supports polygon , waypoint , and quick-repeat inspections with precision GPS-Denied Navigation: Powered by SLAM , enabling flight in tunnels or under canopy 720° Obstacle Avoidance: Millimeter-wave radar + fisheye vision fusion system SkyLink 3.0: AES-encrypted HD video up to 15km , adaptive frequency hopping, 1080p @30FPS A-Mesh 1.0 Networking: Multi-drone communication, relay operations, dual remote info-sharing Live-View & Command Capabilities: Multicast Live-View: Simultaneously stream visible light, thermal IR, and map overlays Data Security: AES-256 (onboard storage), AES-128 (radio/cloud), HTTPS compliance Autel SDK Ecosystem: Supports Mobile & Payload SDK for custom app and device integration EVO Max 4T XE Accessories: EVO Nest: Automated drone dock for remote, all-weather deployment RTK Module: Centimeter-level positioning in dense or obstructed areas Loudspeaker + Spotlight Combo: 114dB PA system, adjustable beam angle, voice playback Smart Controller V3: 7.9″ 2000nits display, HDMI out, 128GB storage 🔎 Applications: Public Safety Search & Rescue Firefighting Powerline & Tower Inspection Patrol, response Nighttime S&R ops Hotspot tracking Structure & line surveillance If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team. FAQ – Autel EVO Max 4T-XE 1. What are the sensor and camera capabilities of the EVO Max 4T-XE? This model integrates a multi-sensor payload , including: A 48 MP zoom camera with 10× optical and 160× hybrid zoom supporting 4K video. A 48 MP wide-angle camera offering an 83.4° diagonal field of view. A 640 × 512 thermal camera capable of radiometric measurement from –20 °C to 550 °C with multiple imaging modes. A laser rangefinder with a 5 – 1200 m range and ±(1 m + 0.15 × D) accuracy. 2. What are the flight performance specifications? The drone provides a maximum flight time of 42 minutes , hover time up to 38 minutes , and top speed of 23 m/s in performance mode. It supports transmission distances up to 15 km , wind resistance up to 12 m/s , and can operate between –20 °C and 50 °C . The maximum take-off mass is approximately 1.99 kg . 3. What navigation and obstacle-avoidance systems are integrated? The EVO Max 4T-XE features 360° obstacle avoidance using millimeter-wave radar and vision sensors . It supports GNSS positioning (GPS, GLONASS, Galileo, BeiDou) and visual SLAM for precise navigation even in GPS-denied environments. It also includes hot-swappable batteries , 128 GB internal storage , and an IP43 protection rating . 4. What payment methods are available for purchasing the EVO Max 4T-XE? MotioNew accepts major international credit and debit cards as well as bank wire transfers , providing secure and efficient payment processing for individual and corporate clients. 5. Is OEM or enterprise customization available? Yes. MotioNew offers OEM services , including branding, payload integration, and configuration customization to meet specific enterprise or operational requirements. 6. What documentation and compliance materials are provided? Each package includes a user manual , technical specification sheet , compliance certificates , and safety documentation such as battery MSDS and UN38.3 reports. The product is subject to export-control regulations , and MotioNew assists clients with the necessary licensing procedures.
