XD-MAX 150kg payload winch

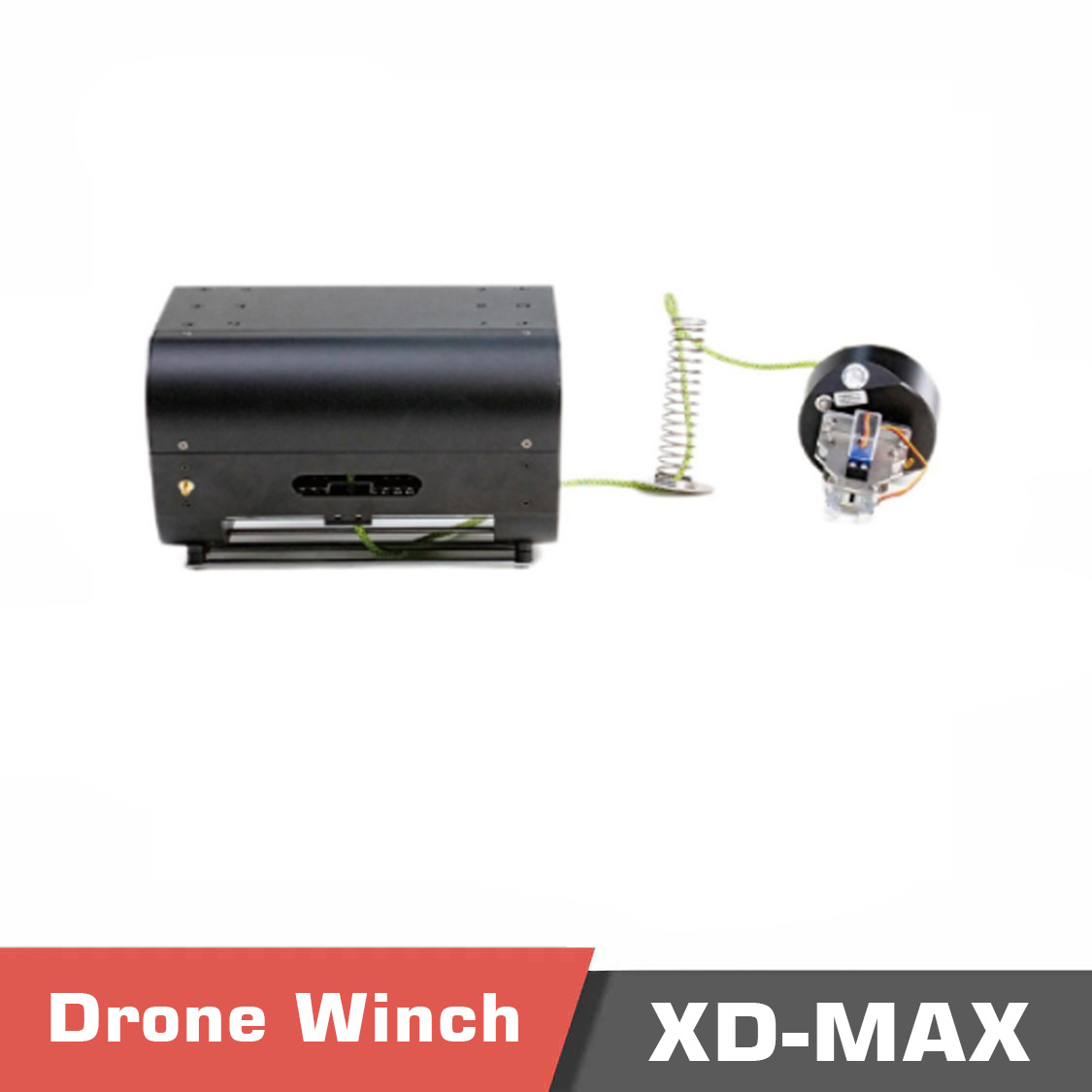

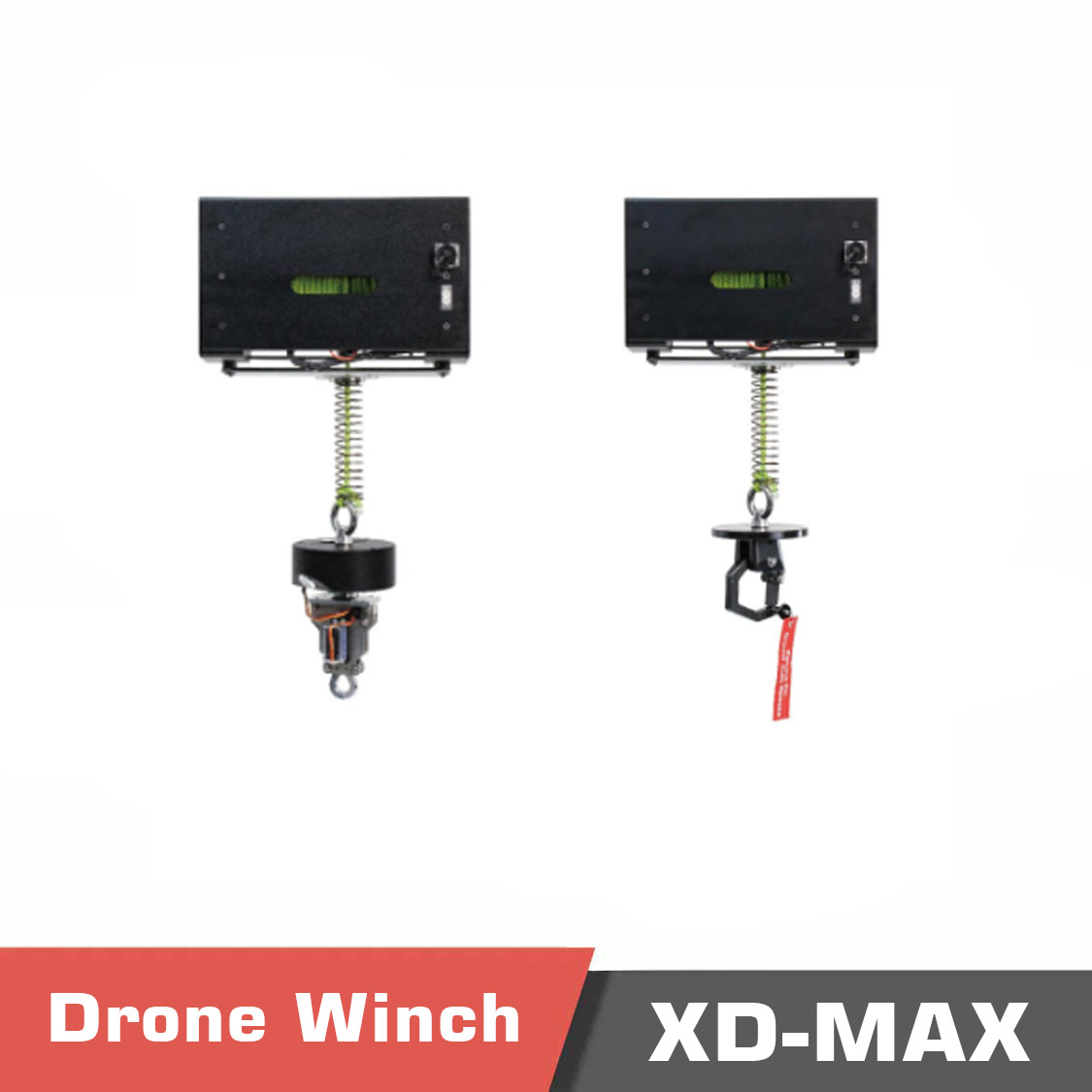

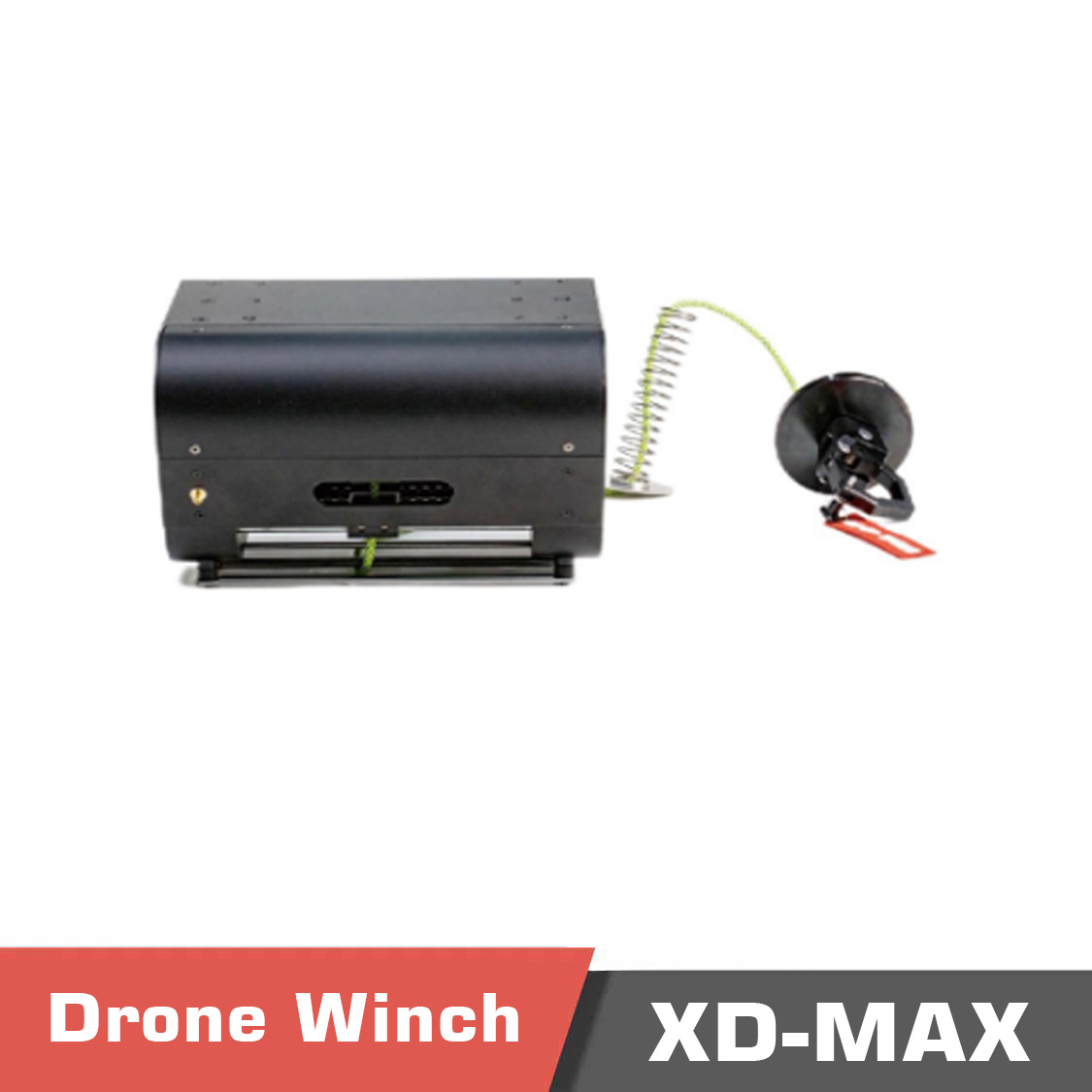

XD-MAX 150kg payload winch XD-MAX Drone Winch – 150kg Heavy-Lift Payload System with Smart Release Options The XD-MAX Winch is a high-capacity, intelligent aerial delivery solution engineered for professional drones tasked with heavy-lift, logistics, and emergency drop operations . Featuring a 150kg maximum payload , 25-meter rope length , and both mechanical and smart auto-release devices , it offers unmatched safety, control, and operational precision. Perfect for UAV applications in disaster relief, industrial logistics, urban transport, and remote payload drops , the XD-MAX supports custom control protocols and integrates easily with third-party flight systems . 📦 Basic Specifications Main Body Dimensions: 326 × 225 × 208 mm Main Body Weight: 13 kg Rope Length: 25 m Mechanical Release Weight: 1890 g Smart Auto Release (Optional): 1647 g 🚀 Performance Parameters Parameter Value Max Load Capacity 150 kg Retraction Speed 0.1–0.4 m/s Motor Speed 32–128 RPM Power Supply Voltage 44–52V Full Load Rated Power 400W Hover Power < 20W Power Mode Battery powered (non-DCDC) 🎮 Control Interface SBUS / PWM / Remote Control: Standard RS232 / RS422: Optional (Custom Integration) CAN Communication: Optional (Custom Integration) 🧠 Smart Auto Release Features Retraction Limit: Supports top & bottom cable limits Thrust Monitoring: Real-time cable tension detection Automatic Line Management: Auto retraction/wiring One-Click Fuse: Emergency cable breakage system Soft Stop: Smooth deceleration near cable top One-Click Release / Casting: Auto-release with fault detection Fault Alarm: Yellow indicator for motor failure Sway Detection: Real-time monitoring of swing dynamics No Empty Load Drop: Safety lockout if no load is present Power-Off Brake: Auto brake in case of power failure Custom Development: API for third-party controller integration 🔧 Ideal Applications UAV cargo delivery and aerial logistics Emergency supply drops and disaster relief Heavy equipment or sensor deployment Urban aerial transportation trials Survey, rescue, and medical transport drones The XD-MAX winch system brings precision, power, and safety to aerial logistics, offering robust performance with smart automation. Its modular release options and open interface design make it the go-to solution for advanced UAV lifting missions. For a comprehensive reading of related products, please visit the Motionew website. Simple FAQ (XD-MAX Winch – Engineers & B2B Buyers) 1. What is the maximum payload capacity of the XD-MAX winch? The XD-MAX supports up to 150 kg payloads with a 25-meter rope length , designed for heavy-lift UAV logistics, industrial transport, and emergency supply drops. 2. What are the power and performance specifications? It operates at 44–52V , with a full-load rated power of 400W , motor speeds between 32–128 RPM , and a retraction speed of 0.1–0.4 m/s . Hover power consumption is below 20W . 3. What control and release mechanisms are available? The system supports SBUS/PWM/Remote control by default, with optional RS232, RS422, and CAN communication for custom integration. Both mechanical release and Smart Auto Release devices are available. 4. What payment methods can be used to purchase the XD-MAX? MotioNew accepts payments via major credit cards and secure online payment gateways. Complete options are displayed during checkout. 5. Is OEM customization possible for the XD-MAX winch? Yes, OEM services and bulk customization are supported. Buyers can contact MotioNew’s sales team to discuss integration and special requirements. 6. What documentation is provided with the product? The package includes user manuals, technical specifications, and installation guides , ensuring proper setup, operation, and maintenance.
